Description

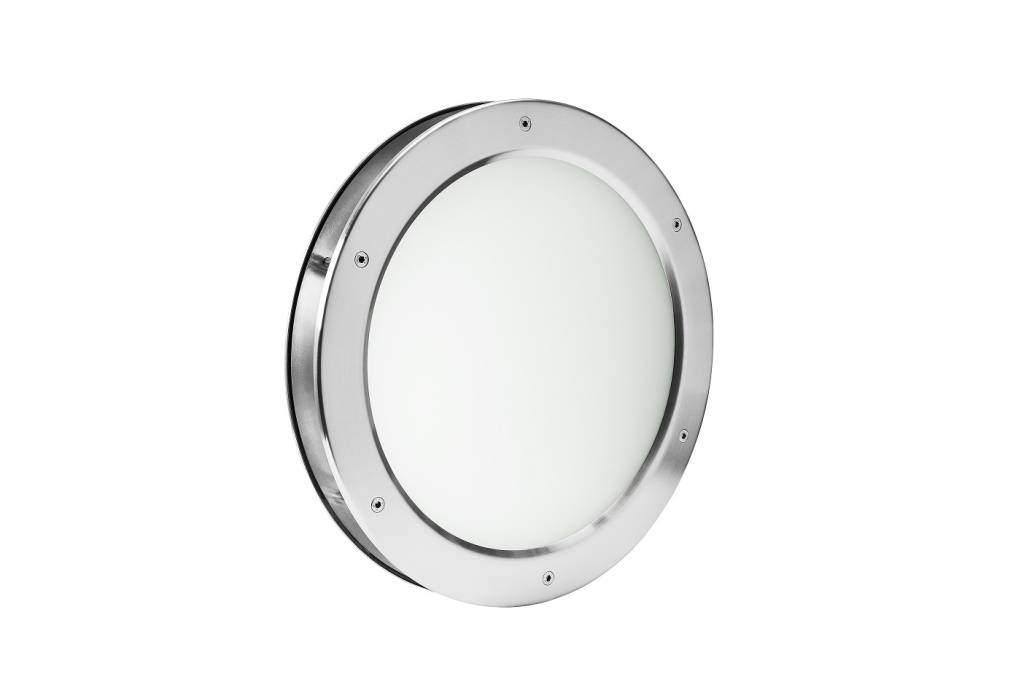

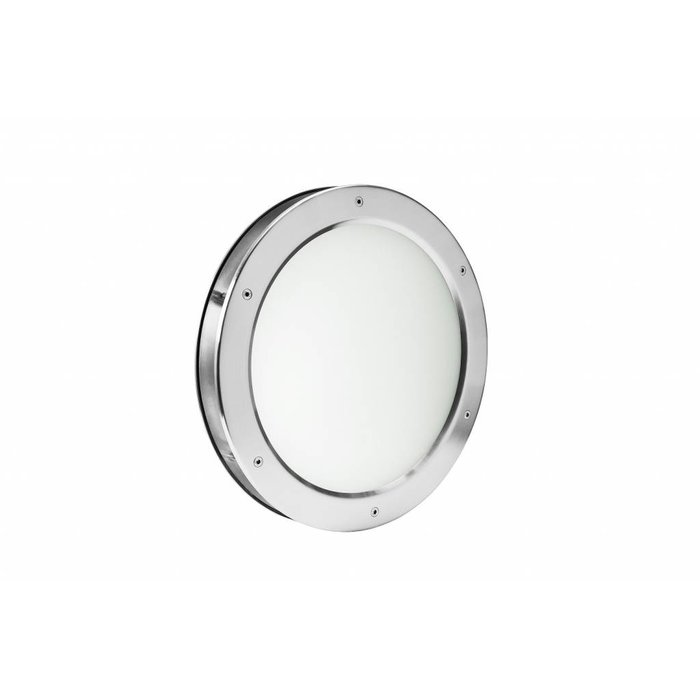

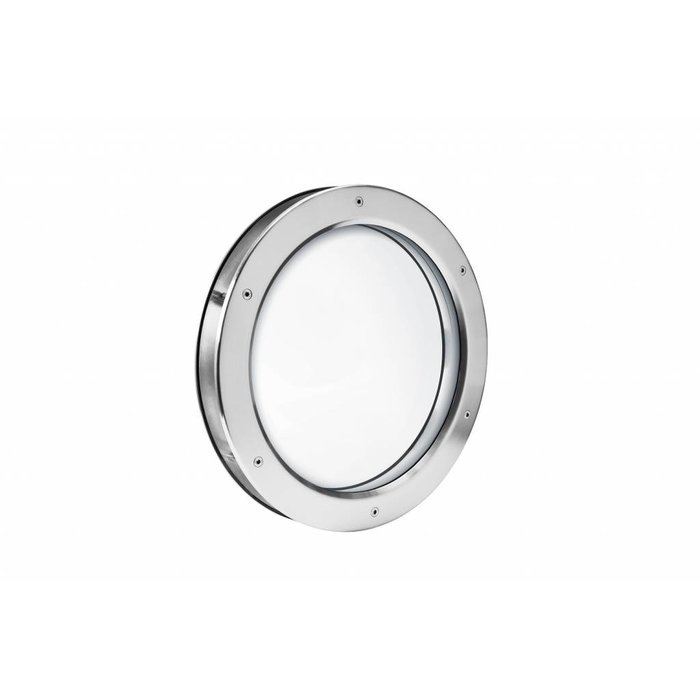

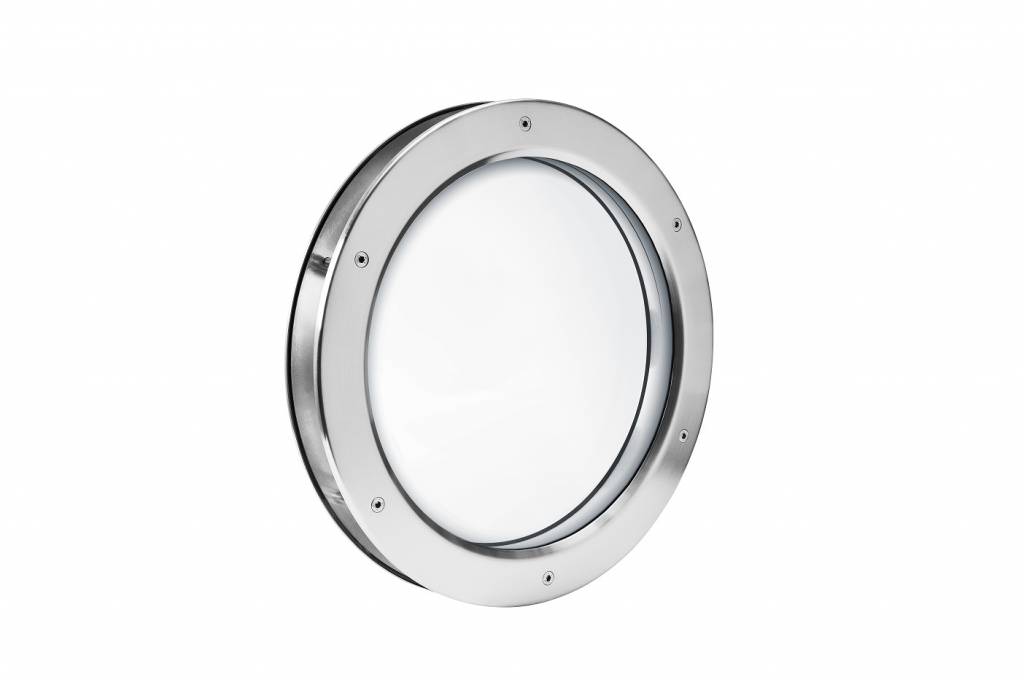

Stainless steel porthole B2000 400 mm + double safety glass & one-sided attachment
Article code: 0180-0053-01
This stainless steel porthole is fitted with double-layered safety glass (2x4mm).
Because they are equipped with double glazing, they can be used both indoors and outdoors and they are less sensitive to condensation.

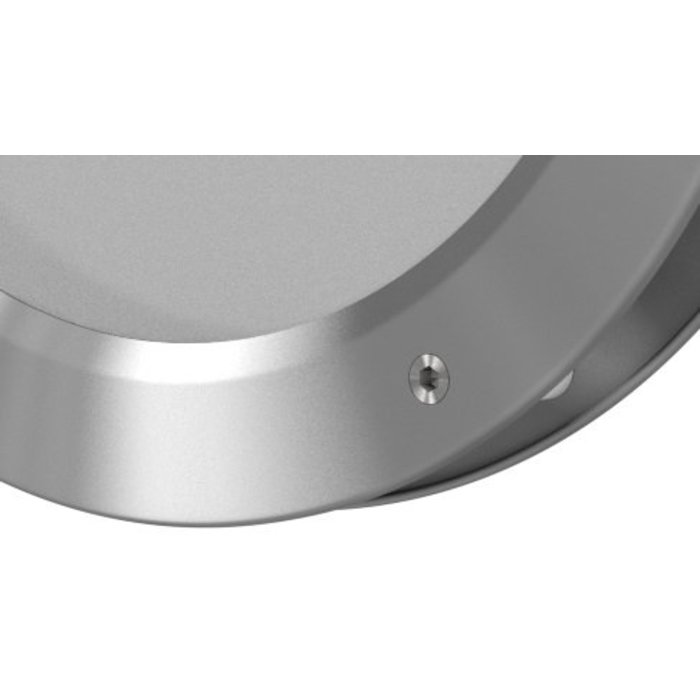

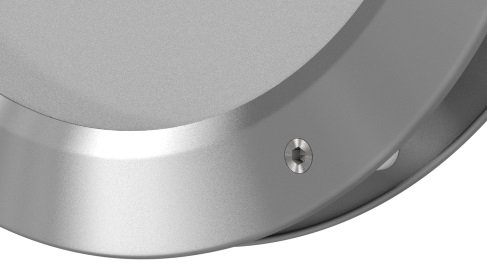

With this model, the attachment is visible on 1 side. The 2 rings are attached to each other by means of patent screws.
They have the following features:
- professional quality
- VSG 4 mm laminated safety glass (2 x)
- 2 rings in brushed stainless steel (EN 1.4016 – AISI 430)
- the 2 rings have a transparent rubber edge so that the glass is not damaged and the whole closes nicely
- suitable for door thickness of 35-45 mm (+/- 2 mm)
- screws visible on 1 side.

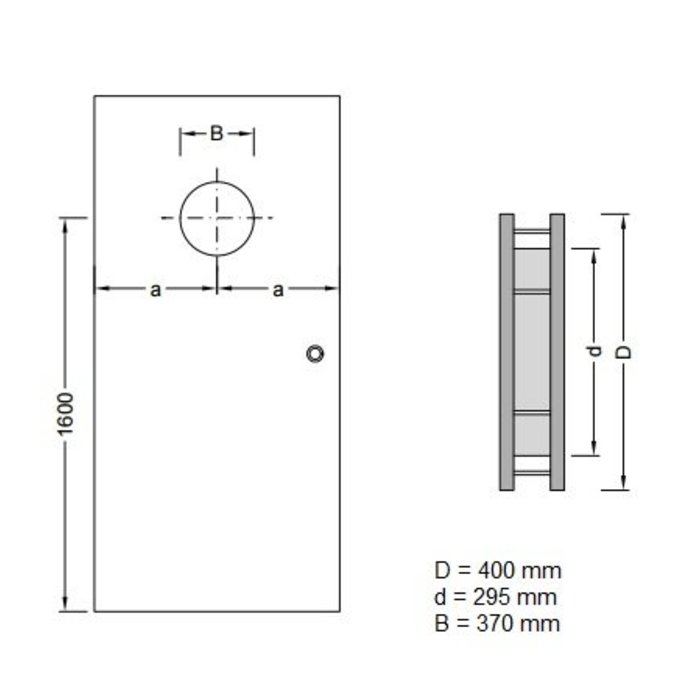

The outer size of this porthole is 400 mm, the glass is 295 mm.
The diameter of the opening to be provided in the door is 370 mm.
This porthole is supplied (free of charge) as a complete set including mounting materials.
Above you can choose between a porthole with transparent or frosted glass.
