Description

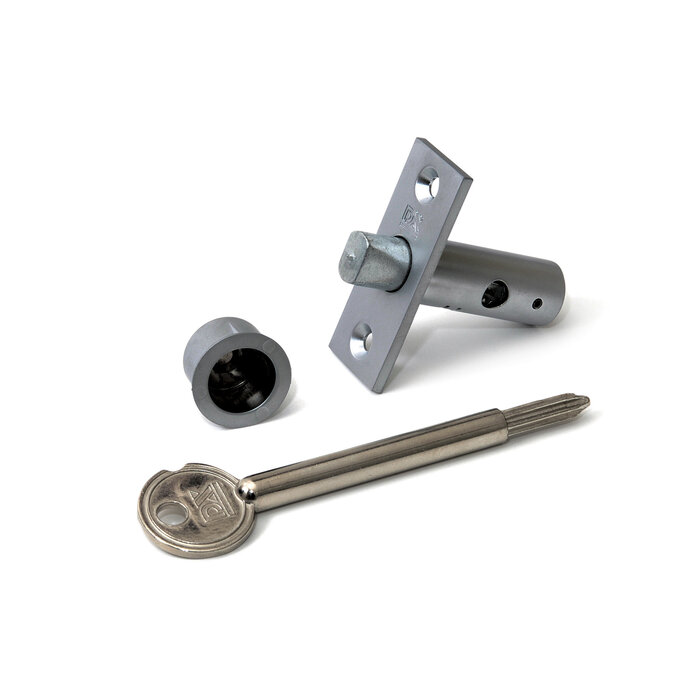

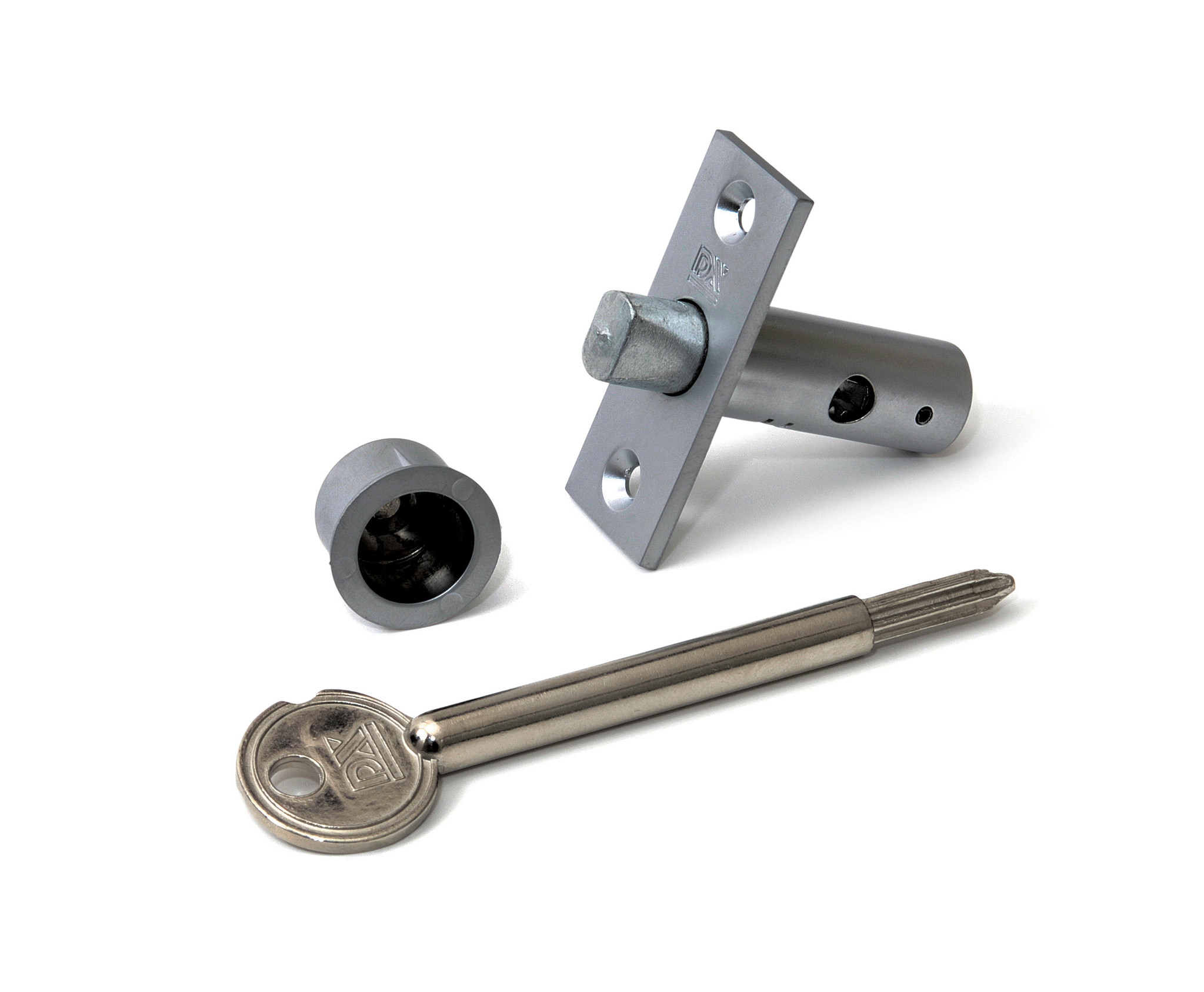

Silver-grey mortise bolt with striker length 55 mm for additional locking of window or door
Article code: DS0160.300.0350
Mortise latches have long been used to tilt your door, but they are actually intended as a window or door lock.
Characteristic of the mortise locks with key is that they can only be operated from the inside, which makes them very popular as an extra lock on an interior or exterior door.
Due to its common dimensions, these silver-grey mortise bolts can be used for both renovation and new construction projects and on both inward and outward opening windows and doors.
Material | Zamac |
Finish | Satin chrome plated |
Lock | Star key |
Diameter (mm) | 18 |
Mounting material | Included |
accessories | Lock pot & 1 star key (included) |
Application | Additional security for windows |

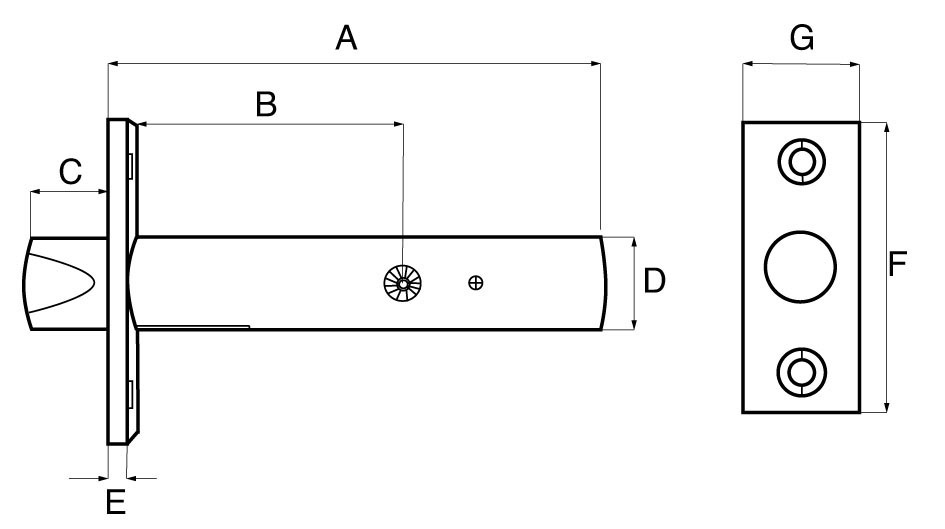

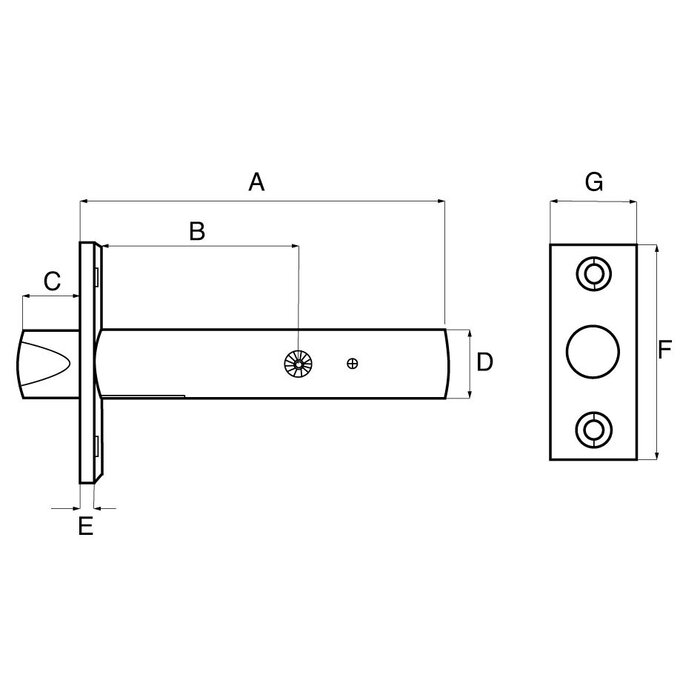

A (mm) |
55 |
B (mm) |
35 |
C (mm) |
12 |
D (mm) |
16 |
E (mm) |
3 |
F (mm) |
55 |
G (mm) |
22 |
