Description

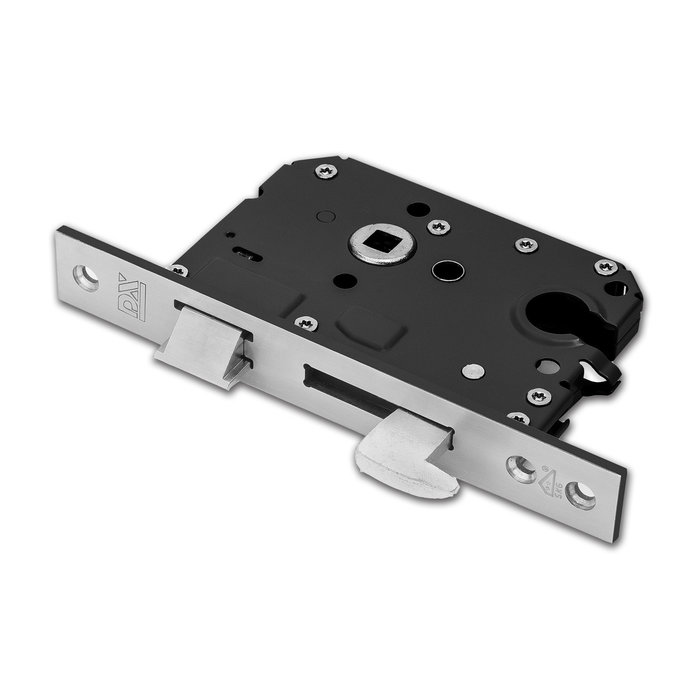

Security mortise lock SKG** approved with safety day and hook bolt
Article code: DS0160.295.6000
If you are looking for a master lock for your front or back door, this SKG** approved mortise lock with hook bolt is the perfect durable solution.

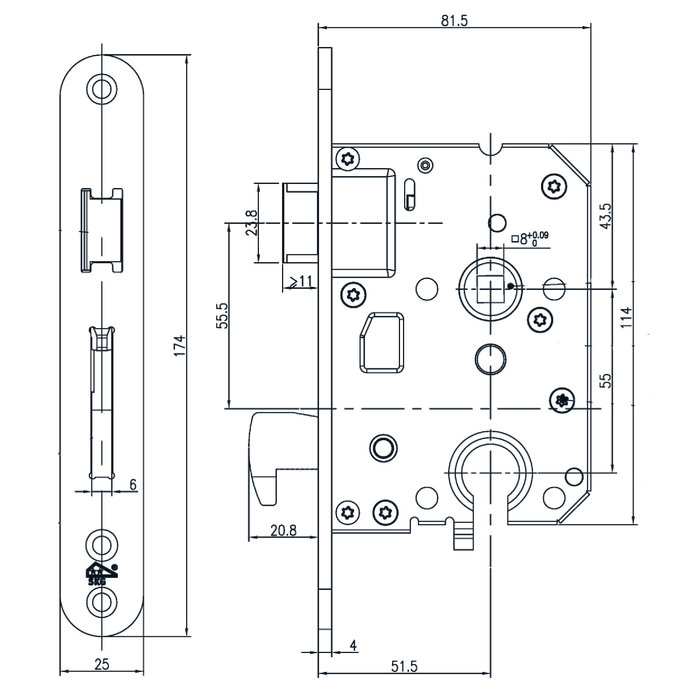

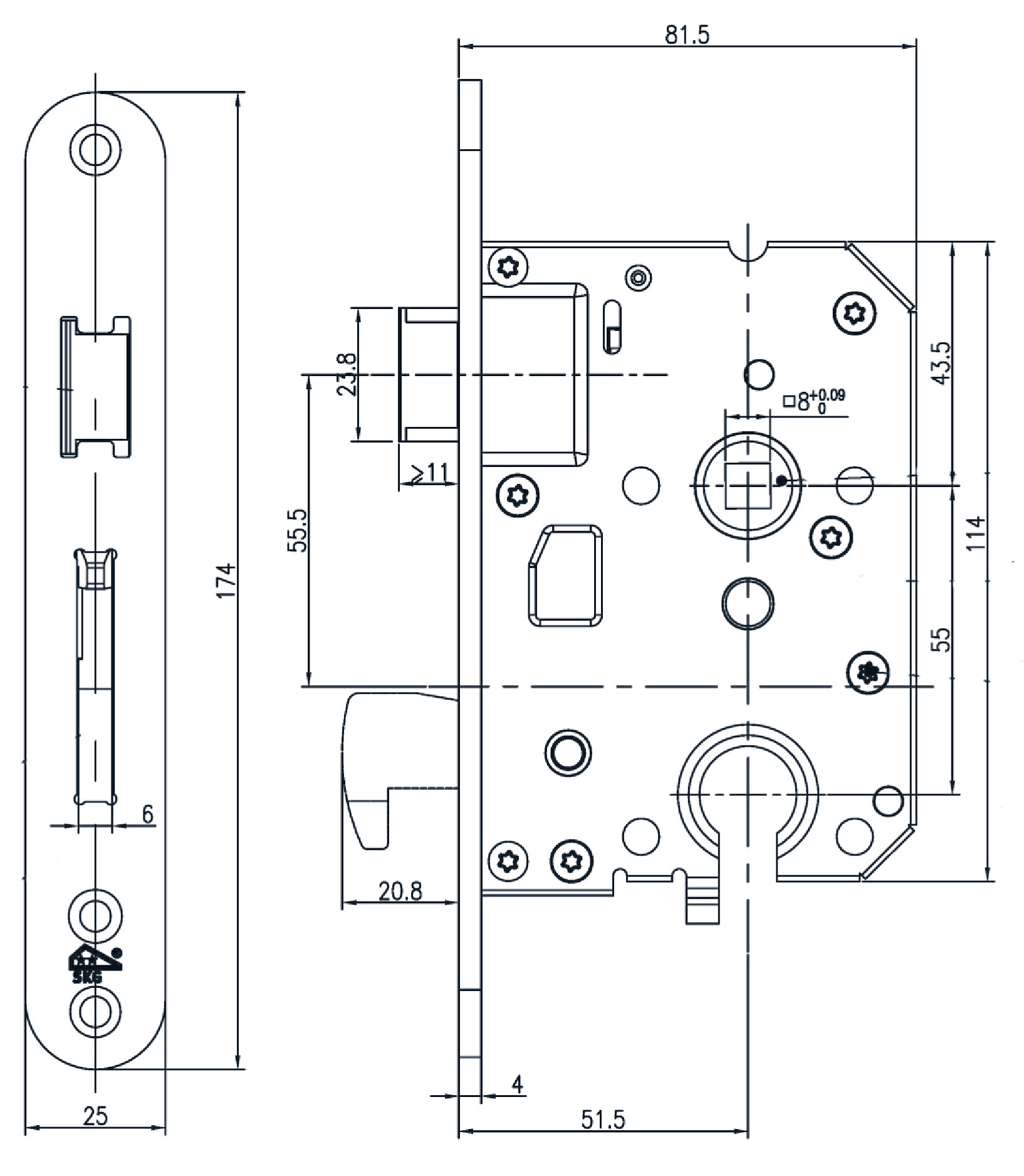

The dimensions below are fully adapted to the standard router templates for PC 55 mortise locks. It can also be used universally with all EURO profile cylinders.
The brushed front plate provides an aesthetic solution and is available in a straight and rounded version.
Application | Exterior doors |
Backset | 50mm |
PC size | 55mm |
Lock case material | Steel painted black |
Front plate material | stainless steel |
Latch bolt material | Zamac nickel plated |
Hook bolt material | Steel nickel plated |
Front plate dimensions | 174x25x4 mm |
Direction of rotation | latch bolt reversible |
Number of turns | 1 round |
Assembly instruction | included |
Standardization | SKG**® |
Model faceplate | Straight |
Lock | Cylinder (not included) SKG ® |
