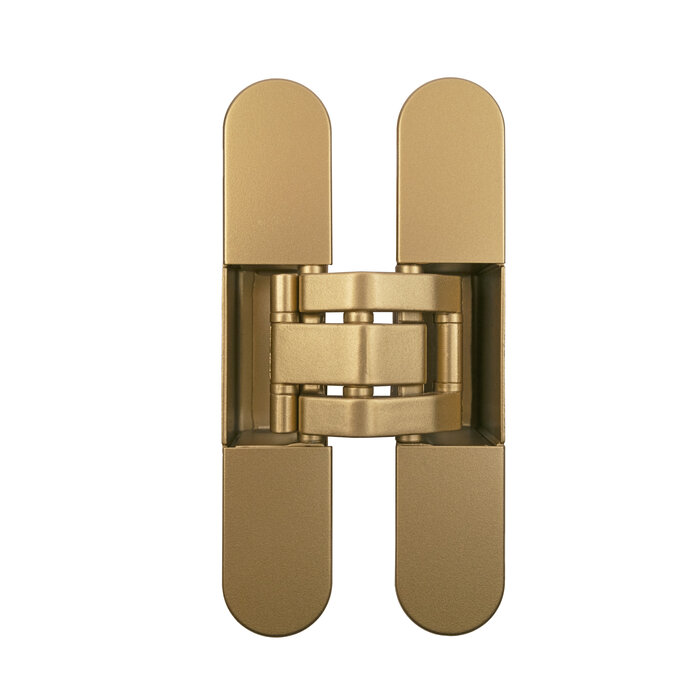

Invisible 3D hinge Otlav Invisacta IN230120 - 23x120mm - Matt gold (60kg)

These gold 3D hinges are from the Italian company Otlav, which has been known for their hinges for years.

The matte gold 3D hinges are available in widths of 23mm and 30mm. This model is the 23mm version.

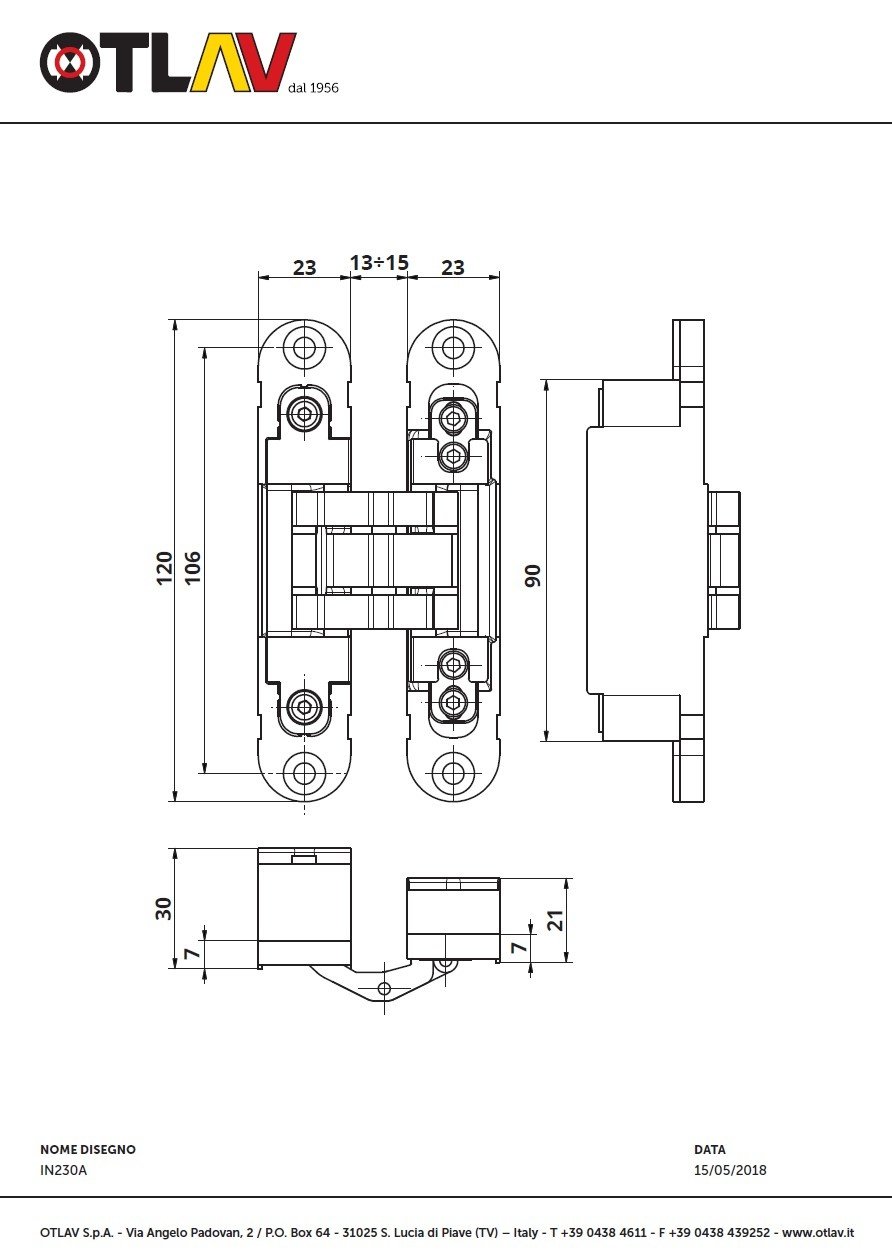

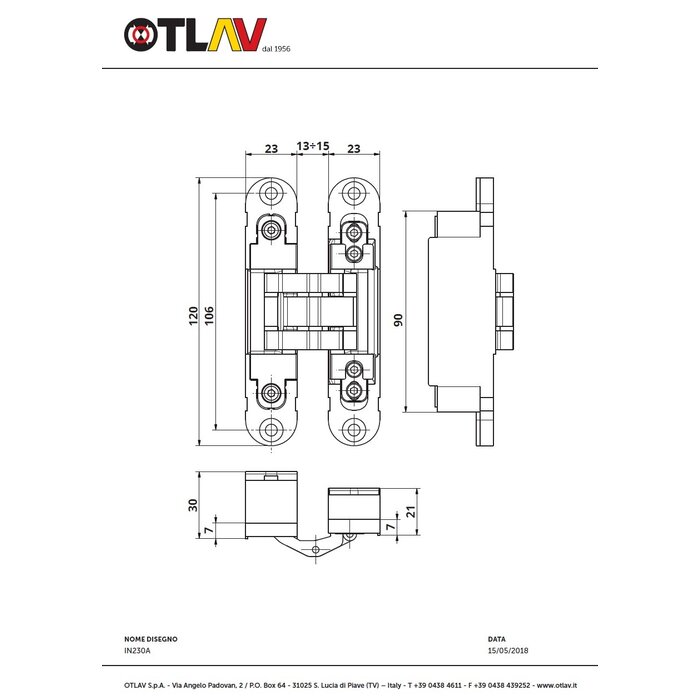

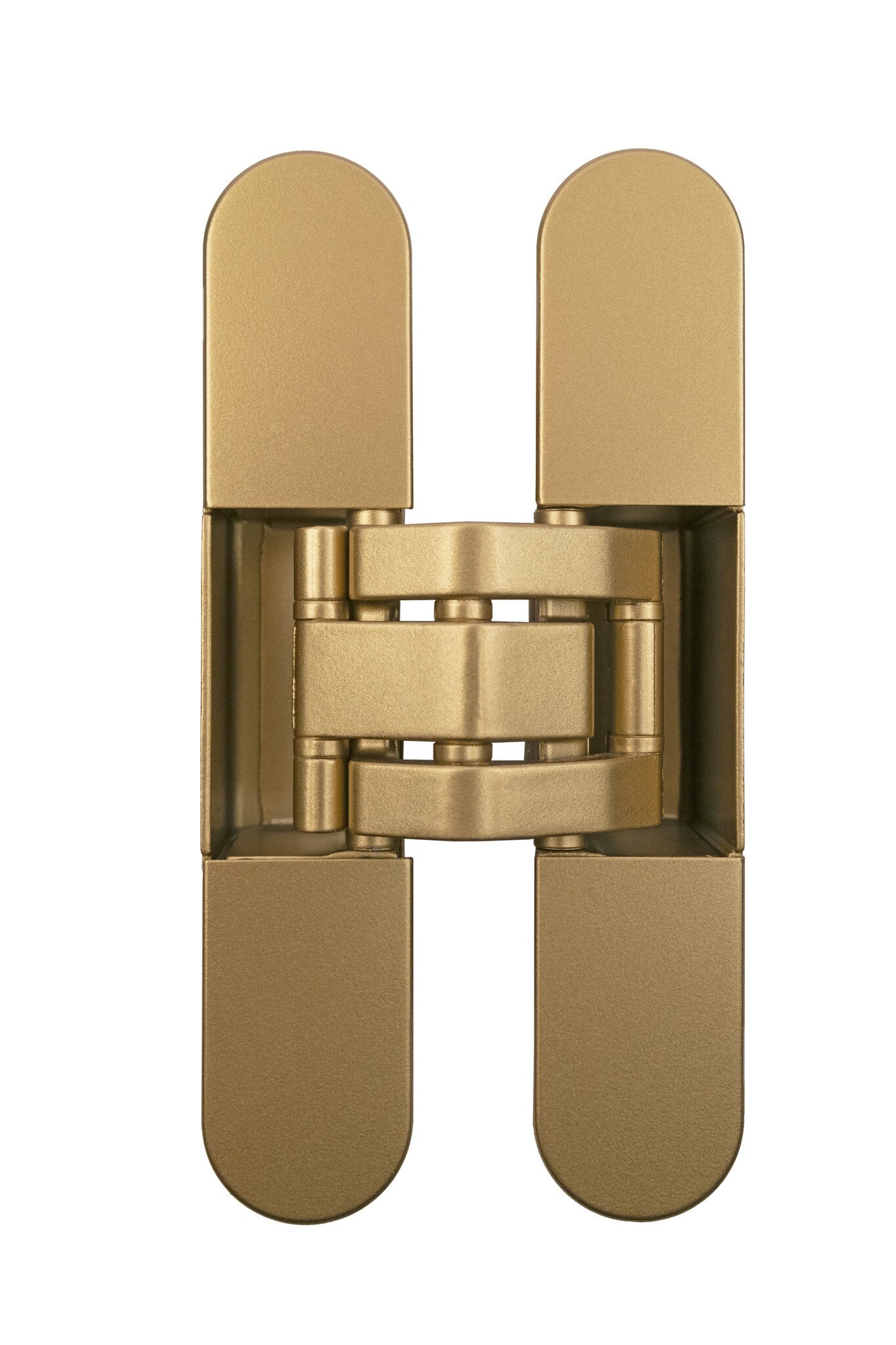

These matte gold invisible hinges have a height of 120mm, a width of 23mm and have a beautiful, fully matte gold finish, which looks great with black doors, for example. They are supplied with 4 matt gold cover caps which nicely cover the screws. These 4 covers fit well over the hinges and stay in place well. The whole forms a beautifully finished matte gold 3D hinge.

The advantage of this model is the metal covers compared to the comparable plastic covers. The advantage of the wider Otlav model (30x120mm, IN300120) is that you can mill them nicely in the middle, so that each door can be used on both the left and right (see related articles).

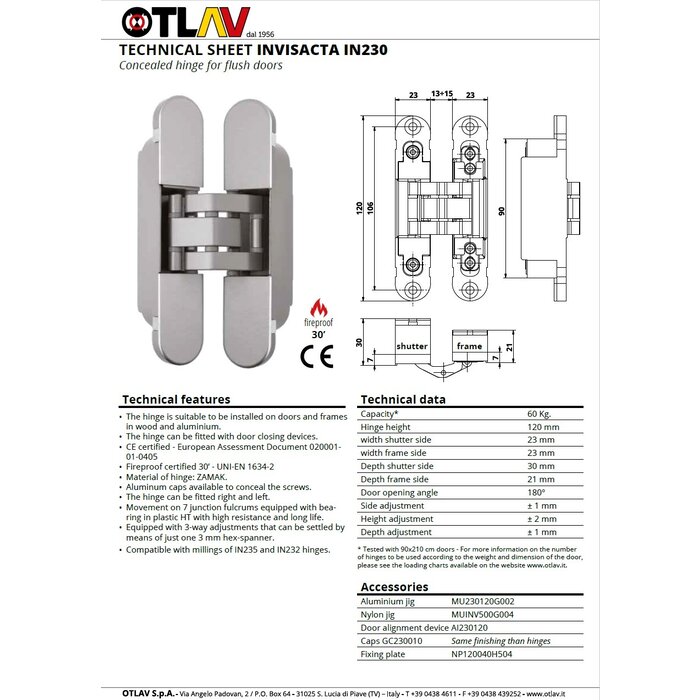

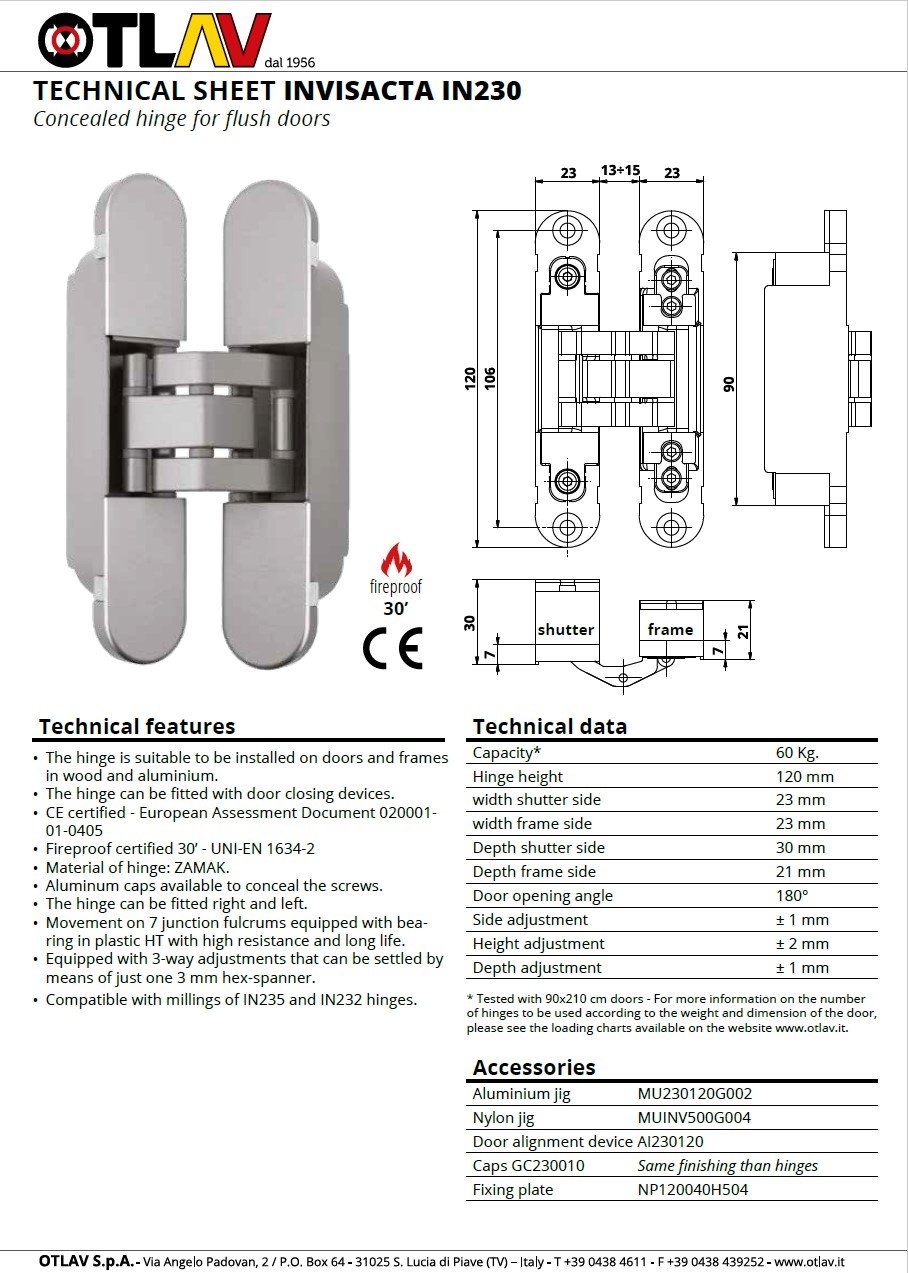

These matte gold blind Otlav Invisacta IN230120 hinges have a load capacity of 60kg. This load capacity is when using 2 hinges. They are also fire resistant for 30 minutes.

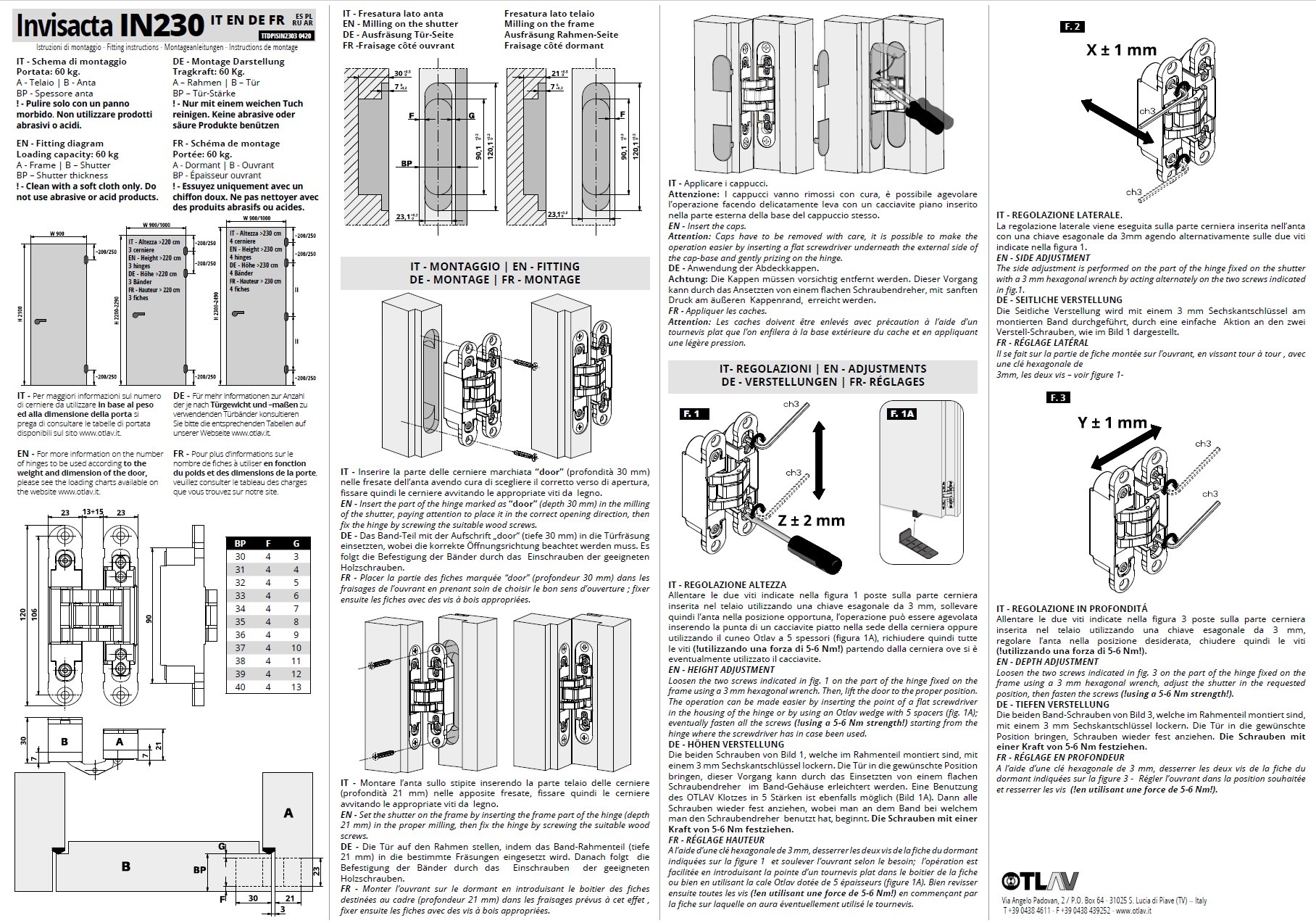

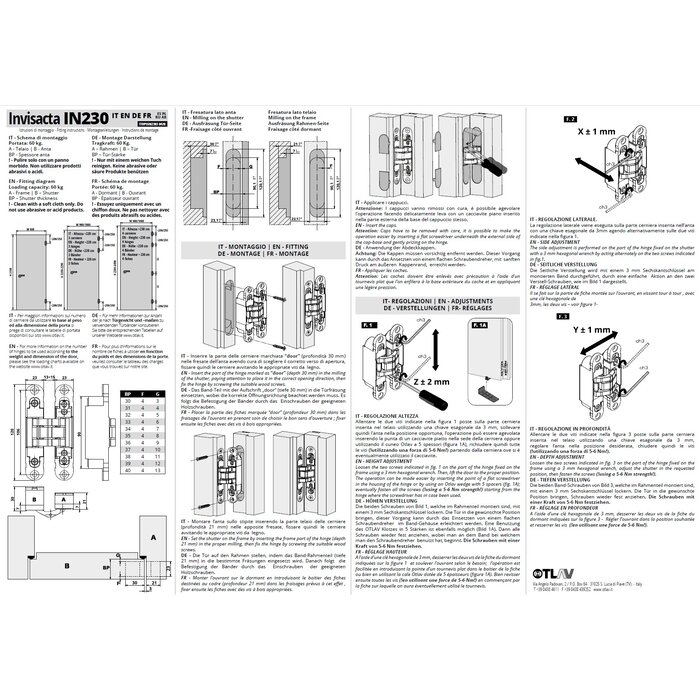

These gold hinges can open 180° and can be adjusted 3D (±1mm sideways - ±2mm height - ±1mm depth).

The base of these matte gold 3D hinges consists of Zamak. They are supplied individually without screws and including 4 cover caps.

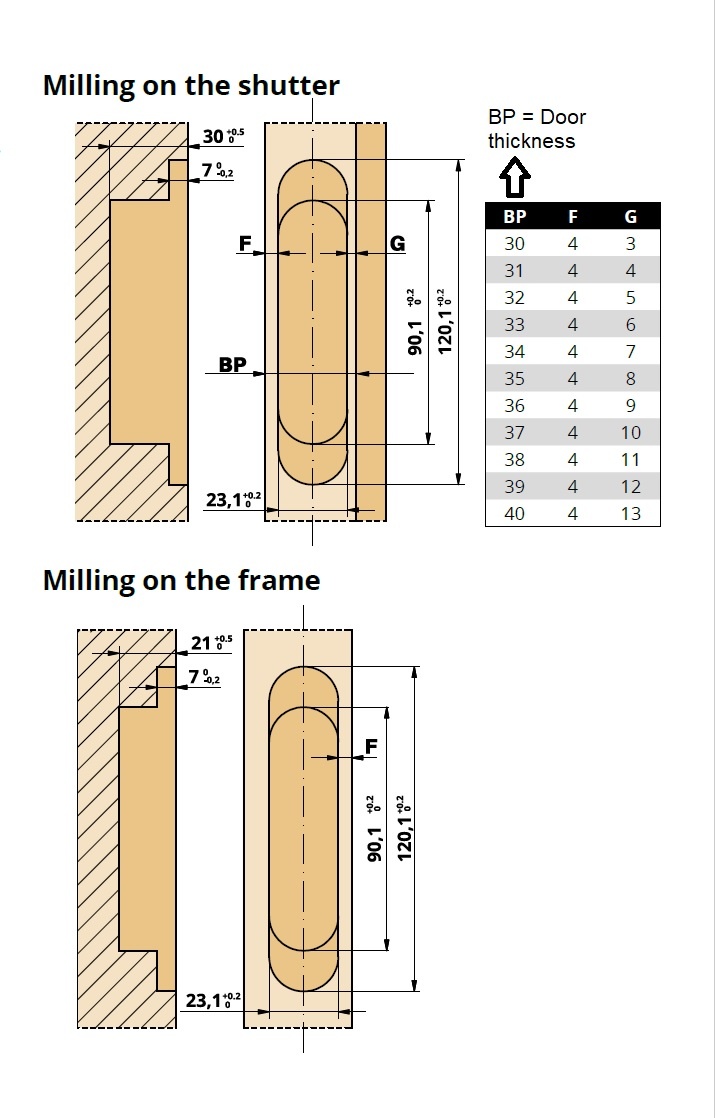

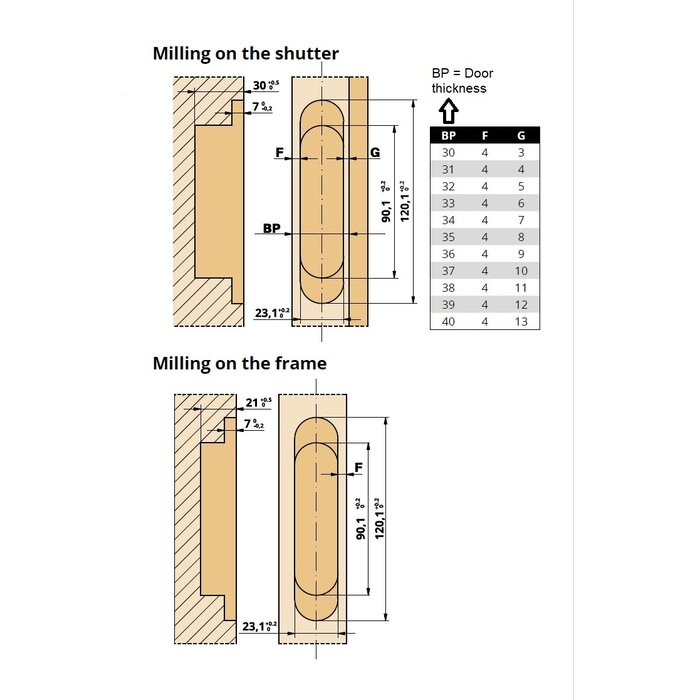

Need a milling jig? Below you can find a corresponding Nylon milling jig under related products.
