Description
Piet Boon PB230 sliding handle in white with sliding door handle blind or with opening for cylinder hole 69mm
Article code: DS2701Z001BMXX0 - PB230
When designing the "ONE" line, designer Piet Boon did not forget the sliding door. He designed the ONE PB230 lift-slide handle especially for this purpose.

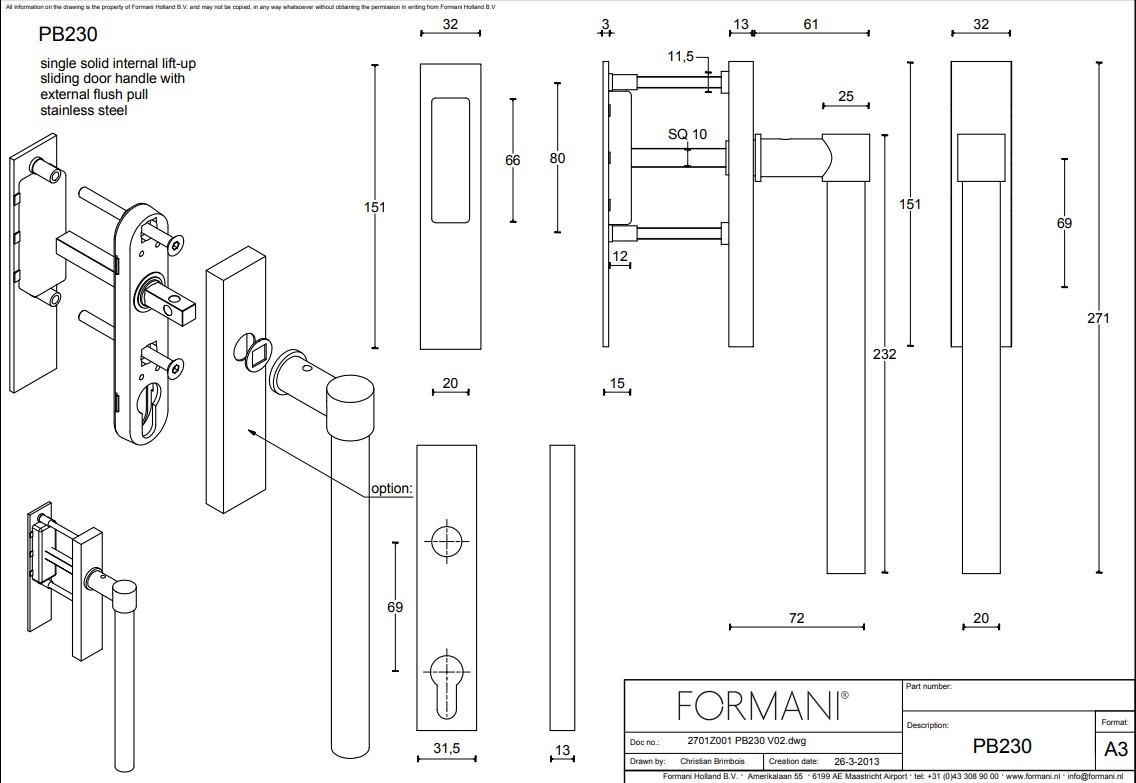

On the inside is the white L-shaped handle with a length of 232 mm and a Ø of 20 mm on a rectangular shield. This shield is 151 mm high, 32 mm wide and protrudes 13 mm.
On the outside, the blind cup is placed, which is 151 mm x 32 mm with a thickness of 3 mm.
We have this version in 2 variants, namely: without cylinder hole or with cylinder hole axle size 69 mm. Make the right choice in the scroll menu at the top right.
The white lifting/sliding handle is made of stainless steel that is provided with a white finishing coating at the end.
These white lift and slide handles are supplied per set with a blind sliding door cup. Also the complete mounting material including the square pin of 10x10 mm is supplied.
If the supplied bolts for continuous mounting are too long, they can be shortened.
