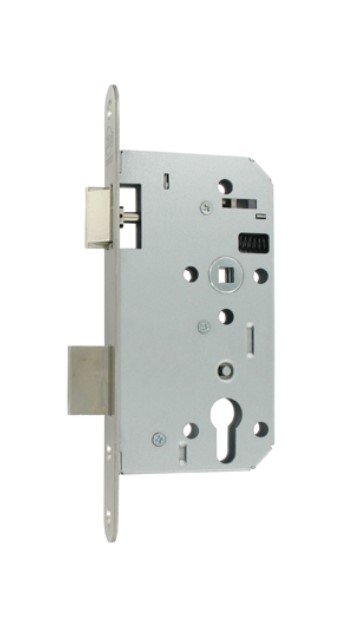

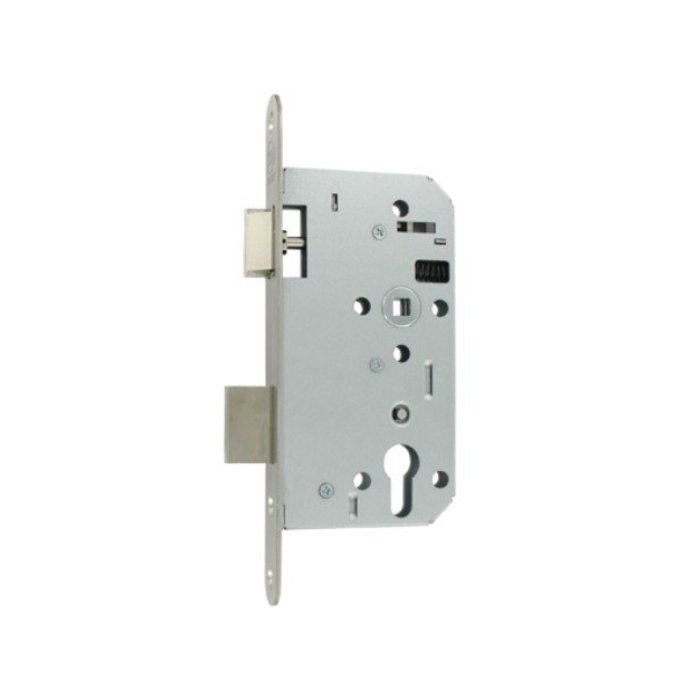

Litto project Cylinder lock E6 - shaft size 72mm - mandrel 60mm - straight front plate 235x24mm

This project cylinder lock has the following features:

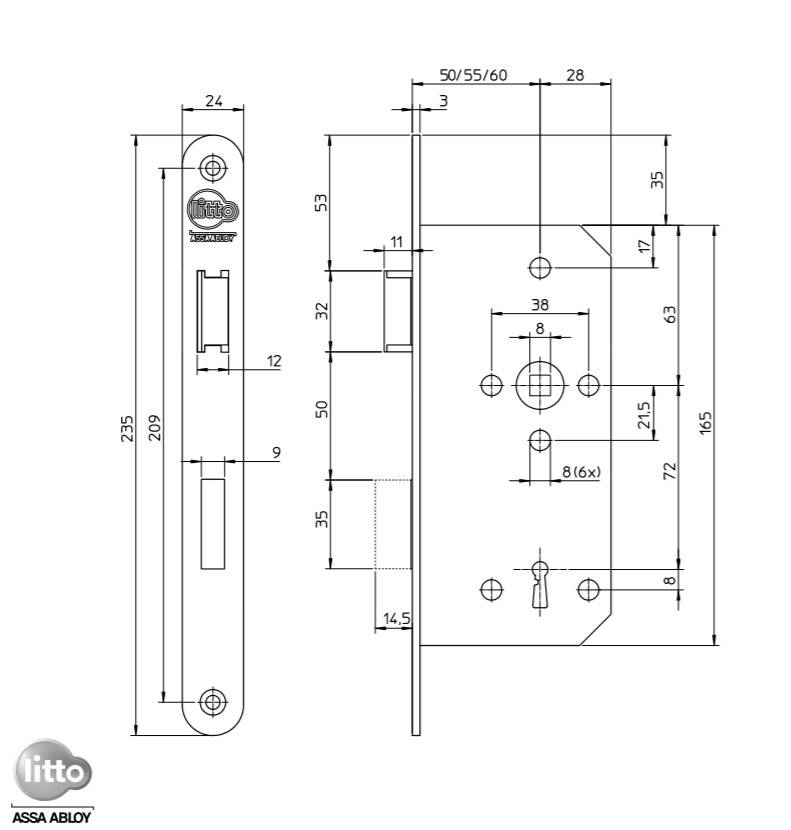

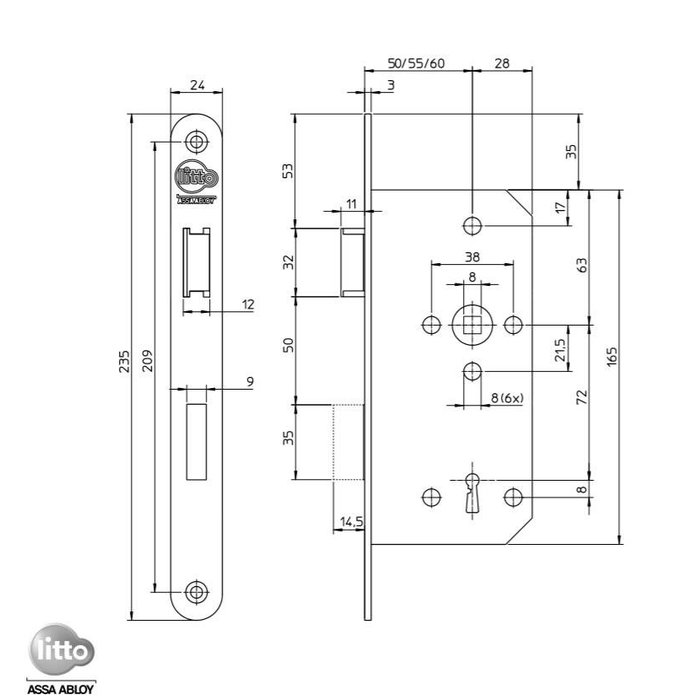

• 235 x 24mm straight faceplate (Picture is of a rounded faceplate)
• shaft size 72 mm
• mandrel: 60mm ( also available in 50 and 55mm)

Overview of the benefits

• Cylinder lock with day and dead bolt
• Closed lock case, galvanized
• Reversible latch bolt
• Steel crank nut, reinforced ring, 3-piece and self-tightening to avoid the clearance between the crank nut and the nut
• Suitable for fire-resistant doors
• Compliant with BENOR ATG RF30'/60' standard
• According to EN12209 - certificate 3M400F2HC00

The locks are of the built-in type with closed box in galvanized steel of ±1.2 mm thickness.

The 3mm front plate is painted steel and the 1.5mm thick striker plate is brushed stainless steel.

The reversible latch bolt is made of nickel-plated sintered steel and the single-speed dead bolt is made of solid nickel-plated zamac.

The nut made of steel is three-piece and interconnected.

The two outer parts are kept under constant tension by the return spring.

With this special construction, an optimal pin/nut connection is also obtained, the lock is particularly suitable for intensive use and we obtain a perfect horizontal position of the handles.

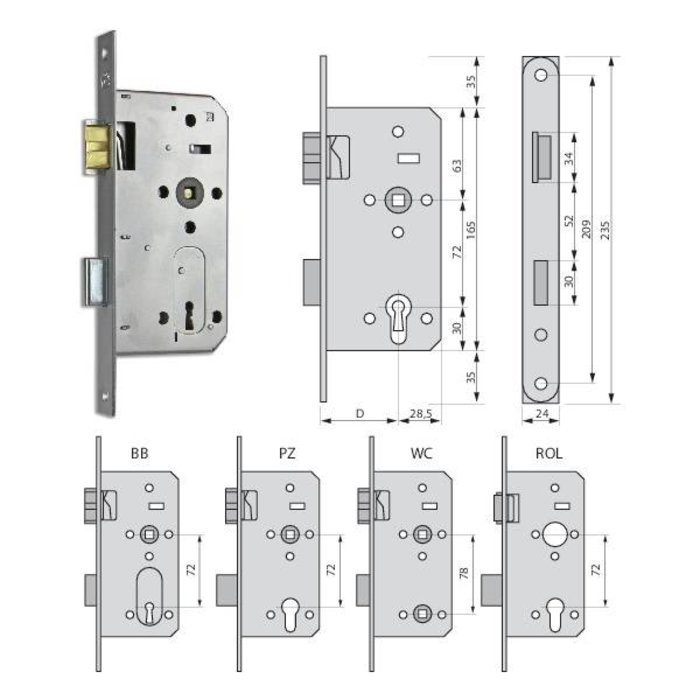

The different types of locks have the same dimensions of case, front and striker plate, so that the lock type can be switched without having to adjust the door leaf.

The locks are provided with patent holes for continuous mounting screws of plates and rosettes.

The locks are in accordance with standard EN 12209 (use category 3) and comply with fire tests BENOR ATG RF 30'/60'.
