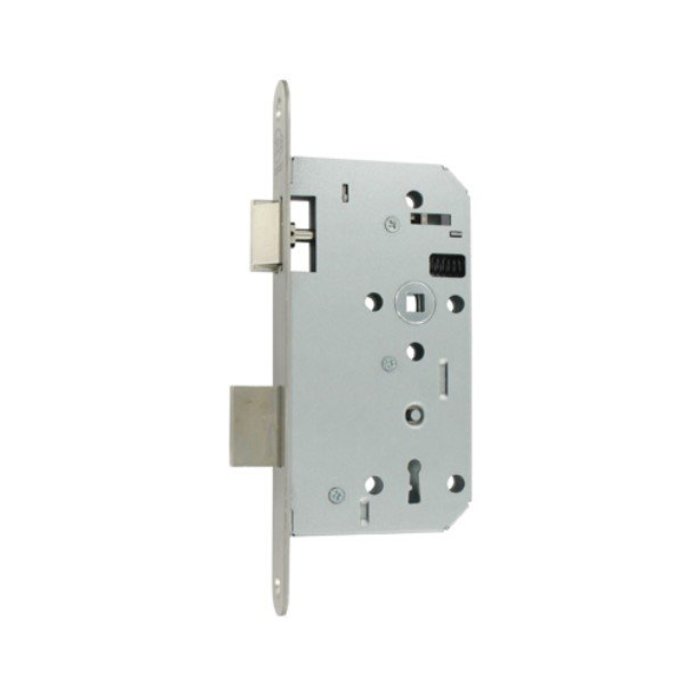

Litto project keyboard lock E6 - shaft size 72mm - mandrel 60mm - rounded front plate 235x24mm

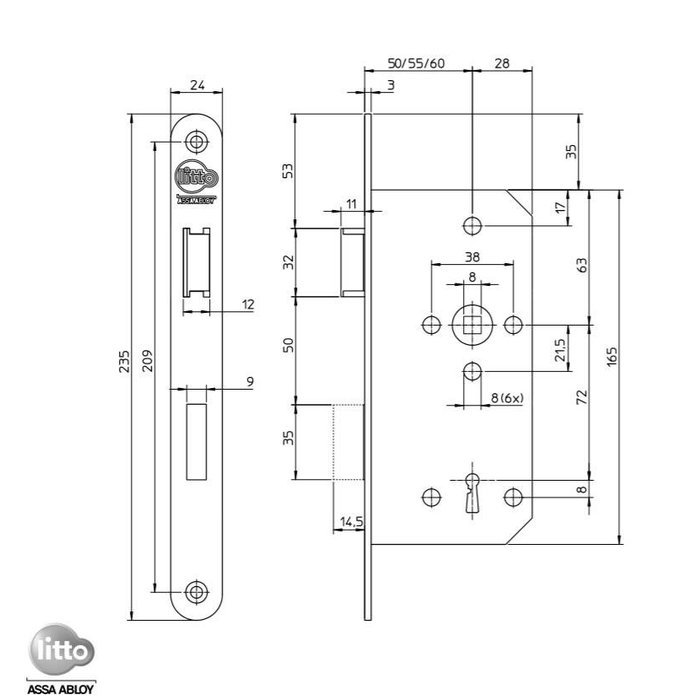

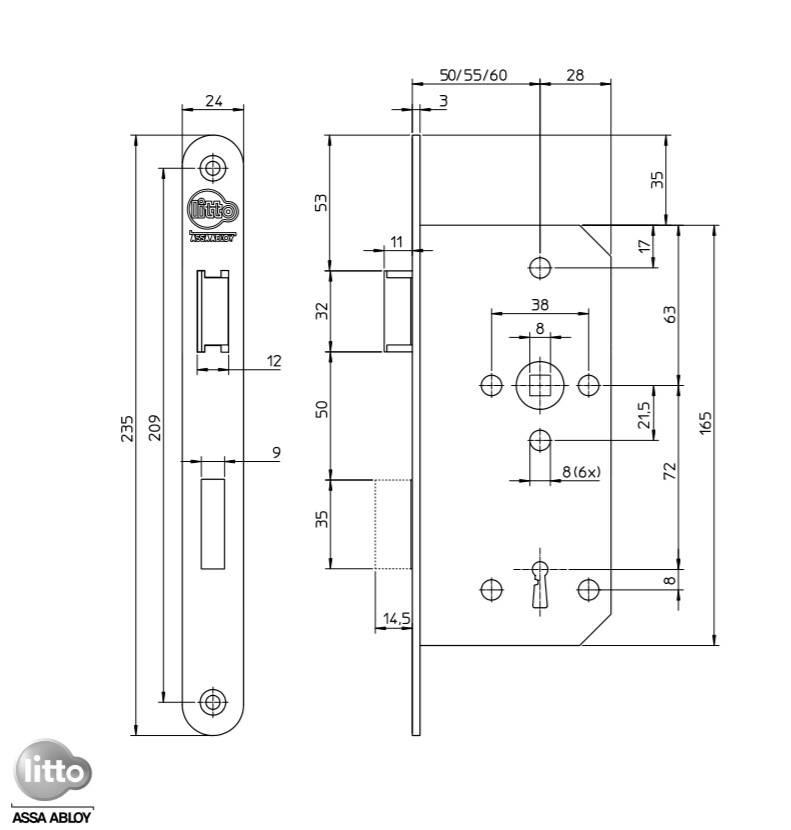

These project keyboard locks from Litto have a rounded front plate (stainless steel look lacquered) of 235x24mm, an axle size of 72mm and a mandrel of 60mm. They come with a strike plate and 1 key.

General characteristics

• rounded front plate 235x24mm stainless steel look
• axle size: 72mm
• mandrel: 60 mm (also available in 50 or 55 mm)
• Blind keyboard lock with latch and deadbolt
• Closed lock case galvanized
• Reversible latch (can be used both left and right)
• Steel crank nut reinforced ring 3-piece and self-tightening to avoid the play between the crank nut and the nut
• Suitable for fire resistant doors

These keypad locks are of the flush-mounted type with closed cabinet in galvanized steel of ± 1.2 mm thickness.
The 3 mm front plate is painted steel and the 1.5 mm thick strike plate is brushed stainless steel.
The reversible latch bolt is made of nickel-plated sintered steel and the single-speed dead bolt is made of solid nickel-plated zamac.
The steel nut is three-part and interconnected.
The two outer parts are kept under constant tension by the return spring.
With this special construction, an optimal pin / nut connection is also obtained, the lock is particularly suitable for intensive use and we obtain a perfect horizontal position of the handles.

The locks are provided with patent holes for through fastening screws of plates and rosettes.
The locks are in accordance with the EN 12209 standard (use category 3) and comply with fire tests BENOR ATG RF 30 '/ 60'.

These locks conform to the BENOR ATG RF30 '/ 60' standard.
According to EN12209 - 3M410F2HD30 certificate.
