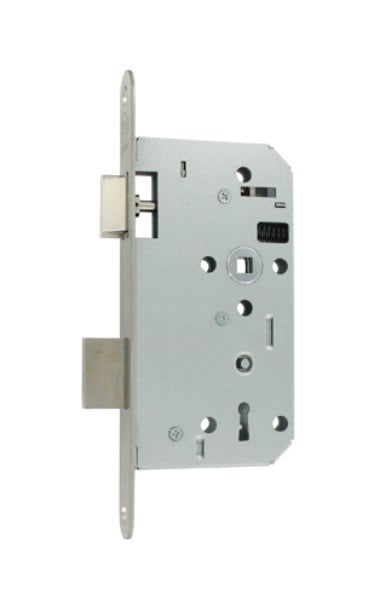

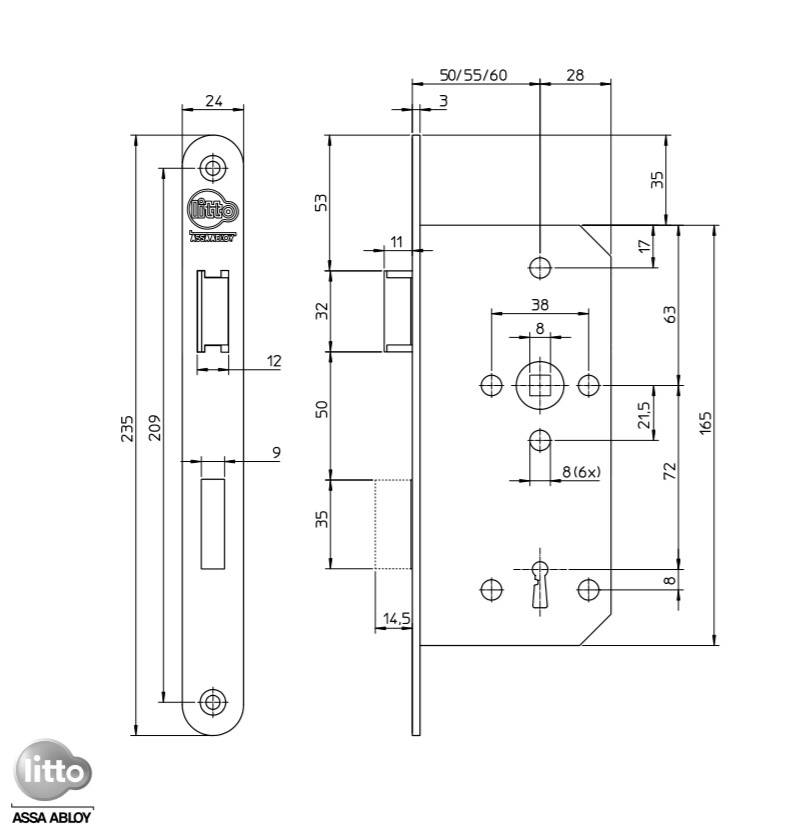

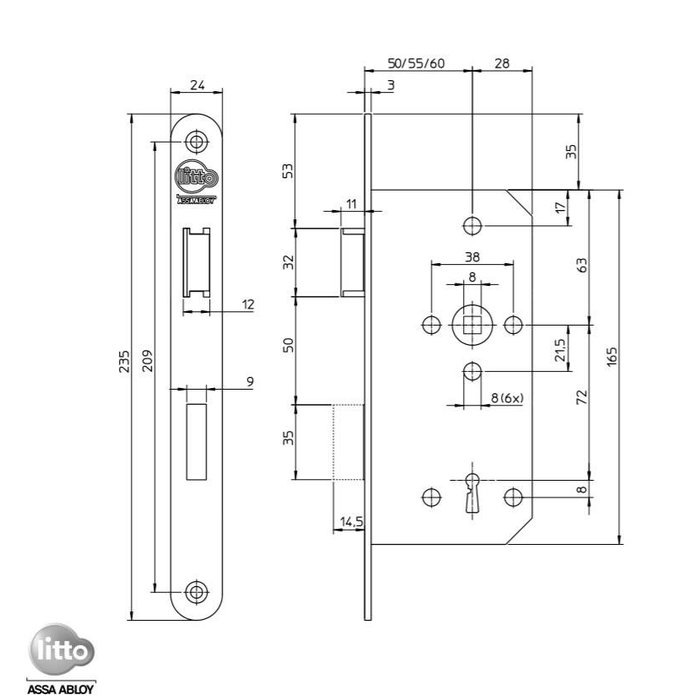

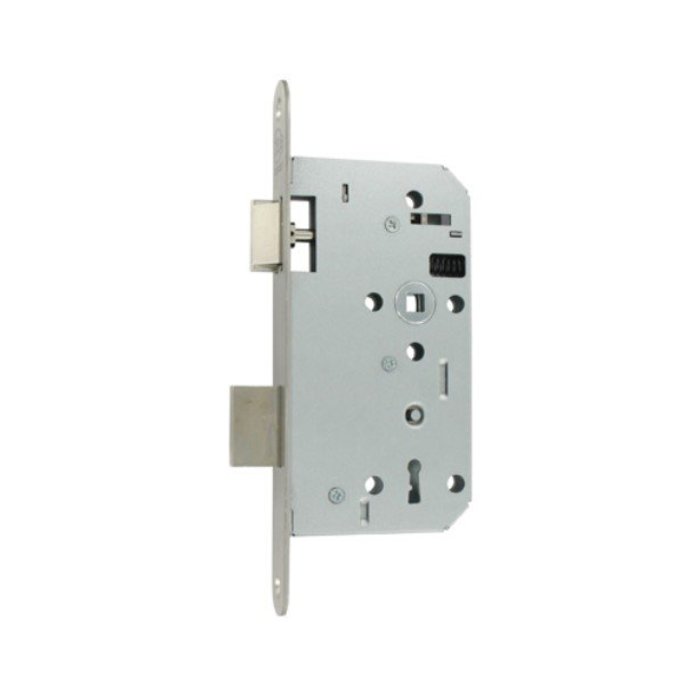

Litto project keyboard lock E6 - shaft size 72mm - mandrel 50mm - rounded front plate 235x24mm

These project keyboard locks from Litto have a rounded front plate (stainless steel look lacquered) of 235x24mm, an axle size of 72mm and a mandrel of 50mm. Comes with strike plate and 1 key.

These keypad locks are of the flush-mounted type with closed cabinet in galvanized steel of ± 1.2 mm thickness.
The 3 mm front plate is painted steel and the 1.5 mm thick strike plate is brushed stainless steel.
· The reversible latch bolt is made of nickel-plated sintered steel and the single-speed dead bolt is made of solid nickel-plated zamac.
The steel nut is three-piece and interconnected.
The two outer parts are kept under constant tension by the return spring.
With this special construction an optimal pin / nut connection is obtained, the lock is particularly suitable for intensive use and we obtain a perfect horizontal position of the handles.
· The locks are provided with patent holes for through fastening screws of plates and rosettes.
The locks are according to the standard EN 12209 (use category 3) and comply with fire tests BENOR ATG RF 30 '/ 60'.
General characteristics
Blind keyboard lock with latch and deadbolt.
Closed lock case galvanized.
Reversible latch.
Steel crank nut reinforced ring 3-piece and self-tightening to avoid the play between the crank nut and the nut.

Suitable for fire resistant doors.
Conforms to the BENOR ATG RF30 '/ 60' standard.
According to EN12209 - 3M410F2HD30 certificate.
