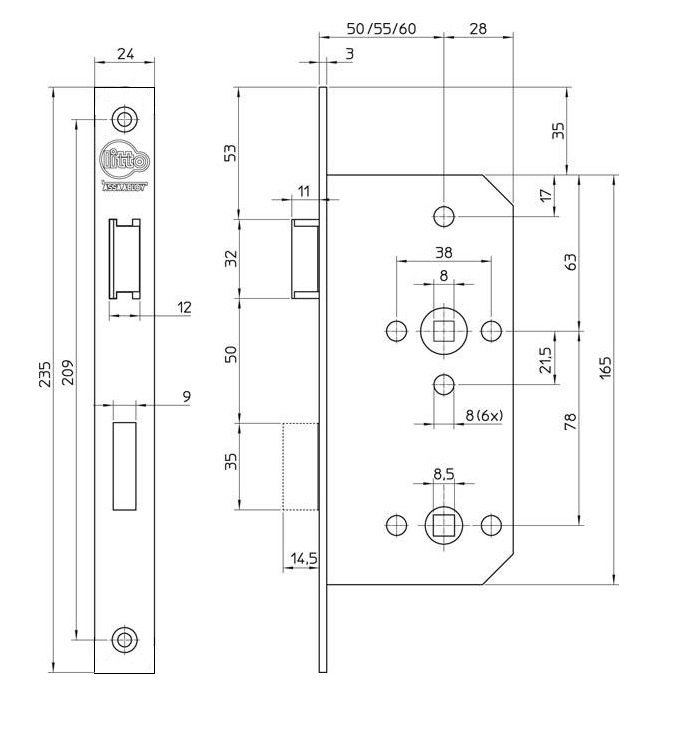

Litto project WC lock E6 - shaft size 78mm - mandrel 55 - straight front plate 235x24mm

These Litto Toilet Locks project have the following characteristics:

• Straight front plate 235x24mm
• Shaft size 78mm
• Mandrel 55mm (also available in 50 or 60mm)

Overview of the benefits

• Toilet lock with latch and deadbolt
• Closed lock case, galvanized
• Reversible latch bolt
• Steel crank nut, reinforced ring, 3-piece and self-tightening to avoid the play between the crank nut and the nut
• Suitable for fire resistant doors
• Conforms to the BENOR ATG RF30 '/ 60' standard
• According to EN12209 - 3M410F2HG30 certificate

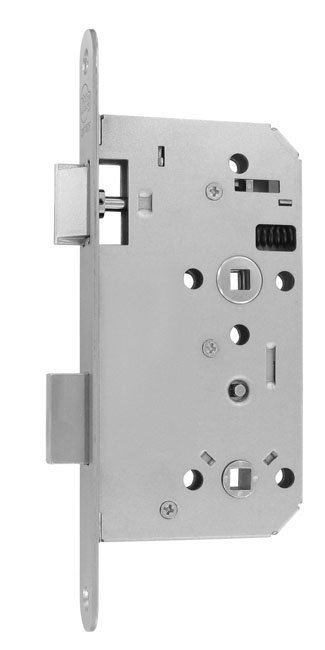

The locks are of the built-in type with closed box in galvanized steel of ± 1.2 mm thickness.

The 3 mm front plate is painted steel and the 1.5 mm thick strike plate is brushed stainless steel.

The reversible latch bolt is made of nickel-plated sintered steel and the single-speed dead bolt is made of solid nickel-plated zamac.

The steel nut is three-part and interconnected.

The two outer parts are kept under constant tension by the return spring.

With this special construction, an optimal pin / nut connection is also obtained, the lock is particularly suitable for intensive use and we obtain a perfect horizontal position of the handles.

The different types of locks have the same dimensions of box, front and striker plate, so that the lock type can be changed without having to adjust the door leaf.

The locks are provided with patent holes for through fastening screws of plates and rosettes.

The locks are in accordance with the EN 12209 standard (use category 3) and comply with fire tests BENOR ATG RF 30 '/ 60'.
