Description
Nickel lock for toilet or bathroom with an axle size of 90mm - Doorn 50mm - 22x238
Article code: 1010022

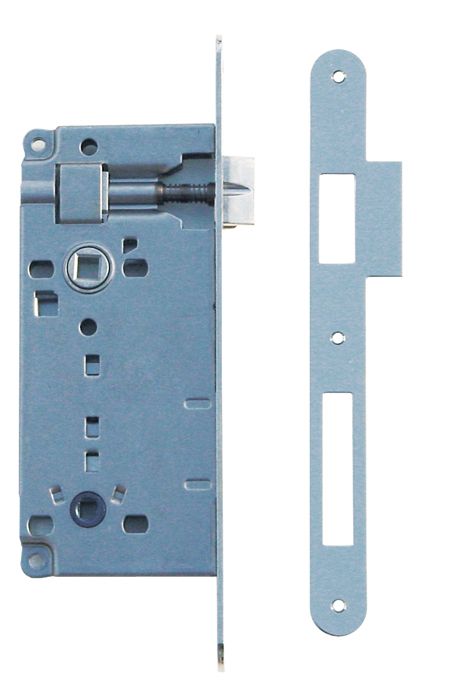

AGB lock from Nickel for toilet or bathroom.
This lock has 2 square holes and is therefore suitable for toilet locks.

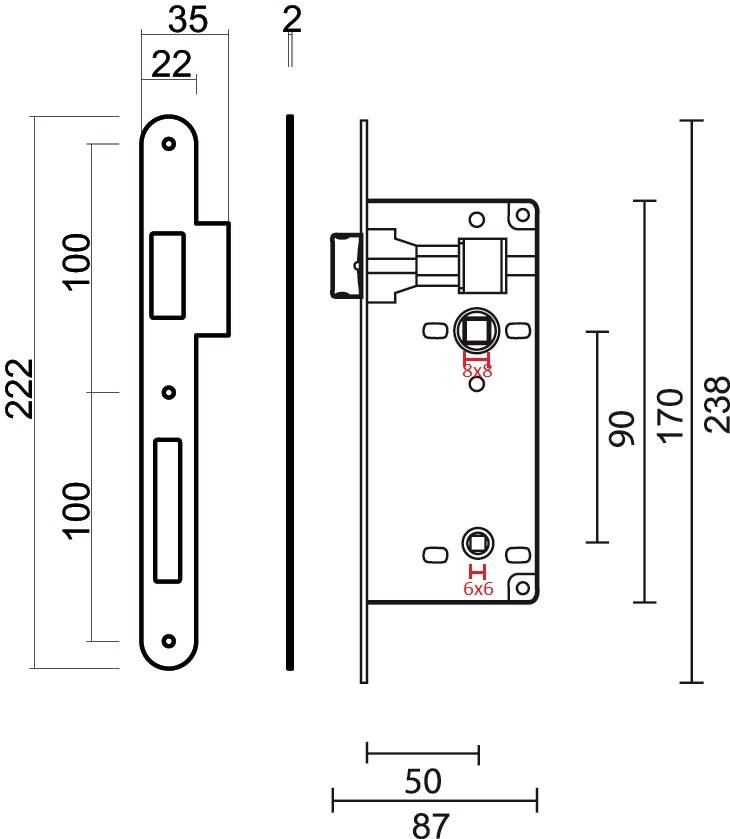

The upper hole is for the pin of the door handle (8x8mm) and the lower square hole for the pin of the toilet set.
Note: the bottom hole has the following dimensions: 6x6mm . If your toilet set has an opening of 8x8mm, you can solve this with other pins with adapters (see accessories).
The axle size of these locks is 90mm and the mandrel 50mm.
These locks are suitable for both directions of rotation and are equipped with matching closing plate and screws.
