Description

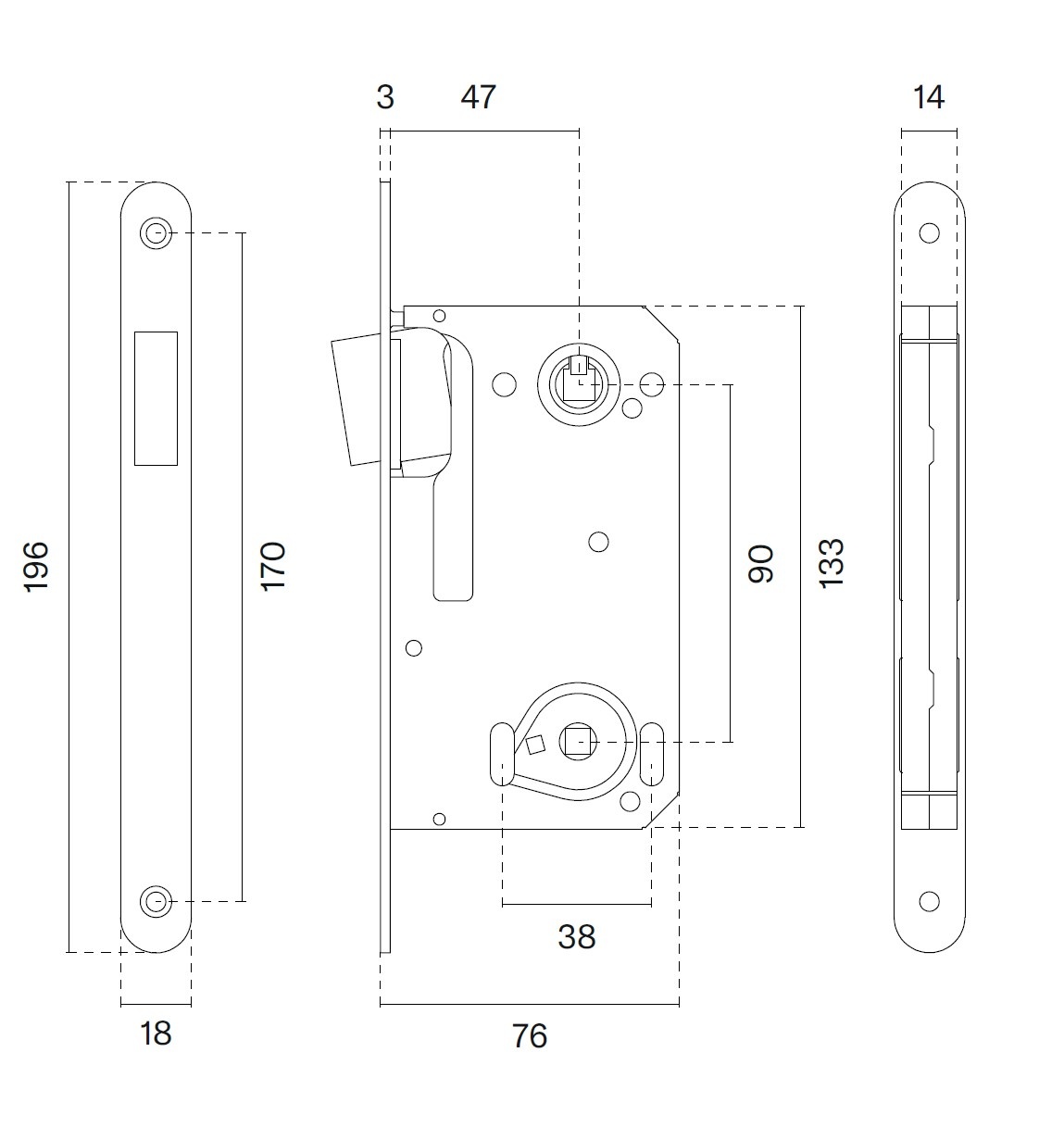

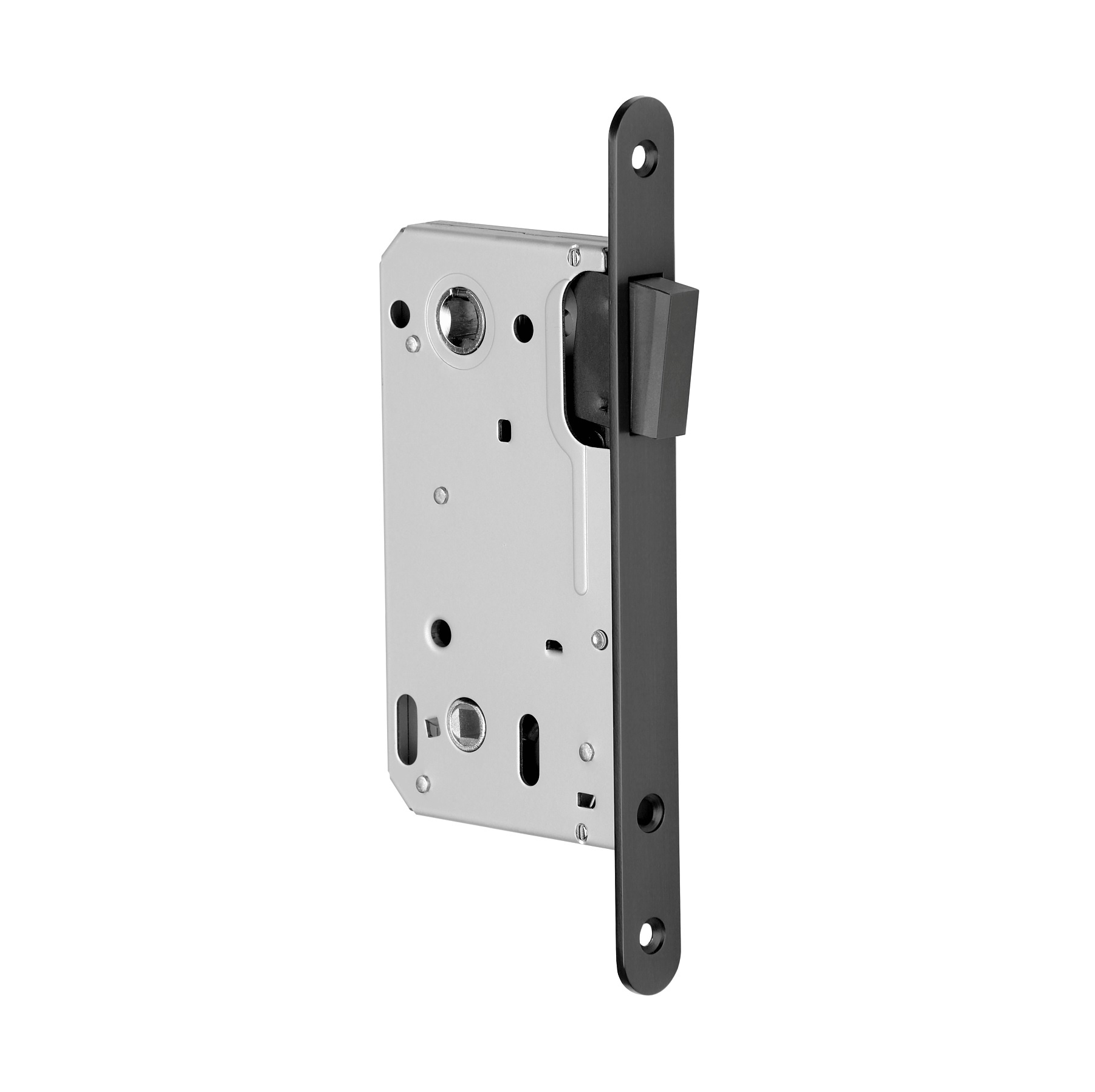

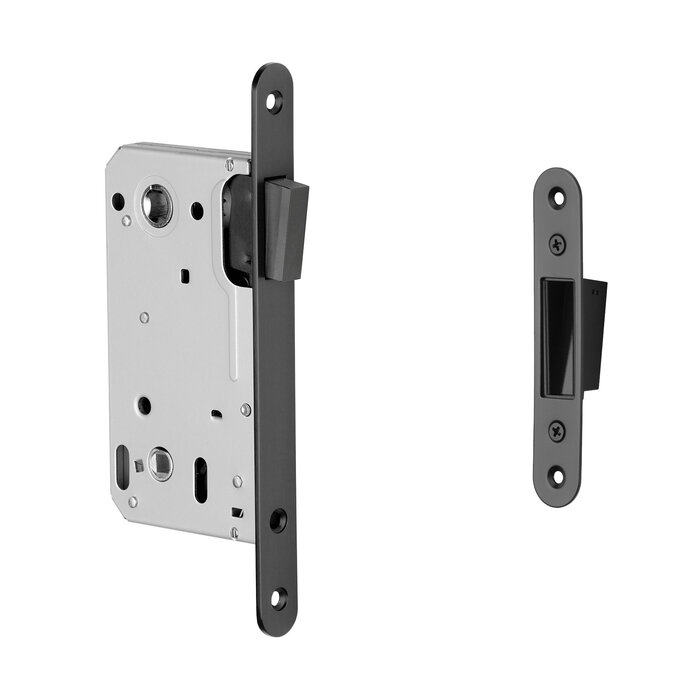

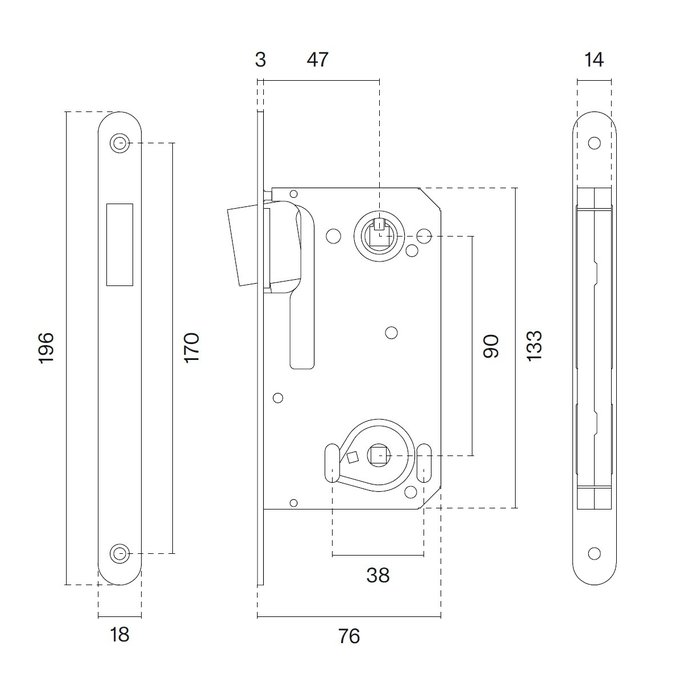

Matt black magnetic lock 2869 WC - shaft size 90 mm - rounded front plate 196x18mm
Article code: 3W ZAM 153 2869 WC
This magnetic lock in matt black version has a rounded front plate of 196x18mm.
The magnetic lock has a second square hole 6x6mm for a toilet set. The axle size is 90 mm and the backset 50 mm.
This magnetic lock with rounded front plate is supplied per piece including mounting material but without strike plate .

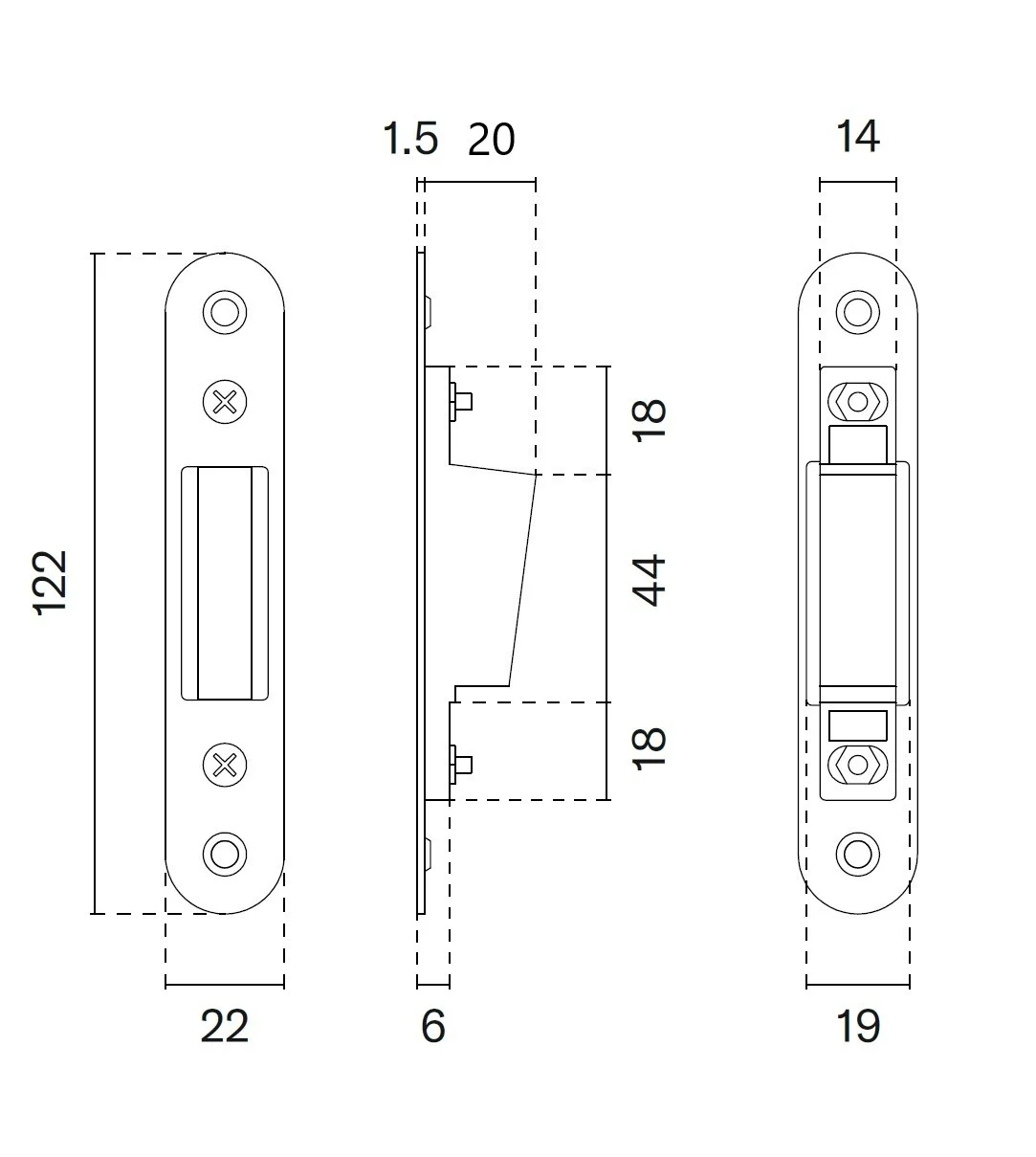

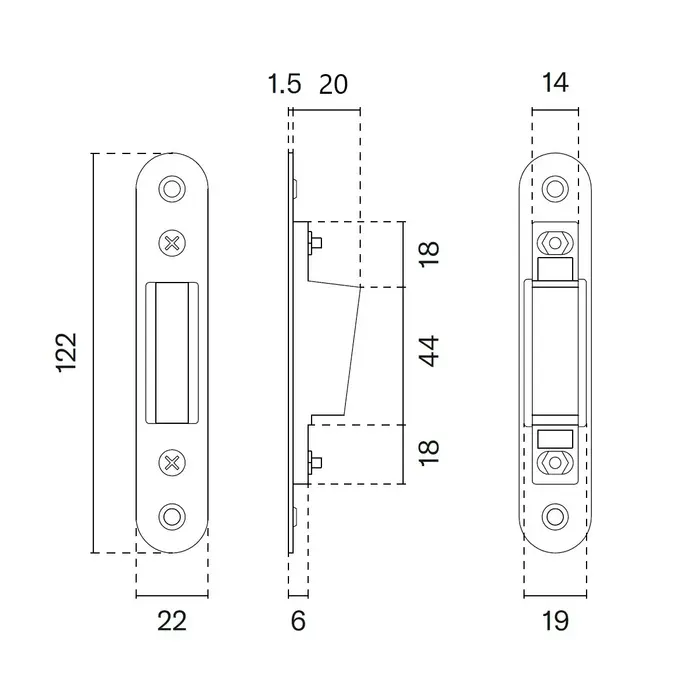

To complete the magnetic lock, you must purchase the 'strike plate model 2870' separately in the desired color (see below under Matching products).
unit: | per piece (without closing plate) |
colour: | Matt black |
performance: | hole for toilet |
front plate dimensions: | 196x18mm |
axle size: | 90mm |
backset: | 50mm |
crank hole opening | 8x8mm |
opening hole toilet fitting | 6x6mm |
fasteners: | included |
