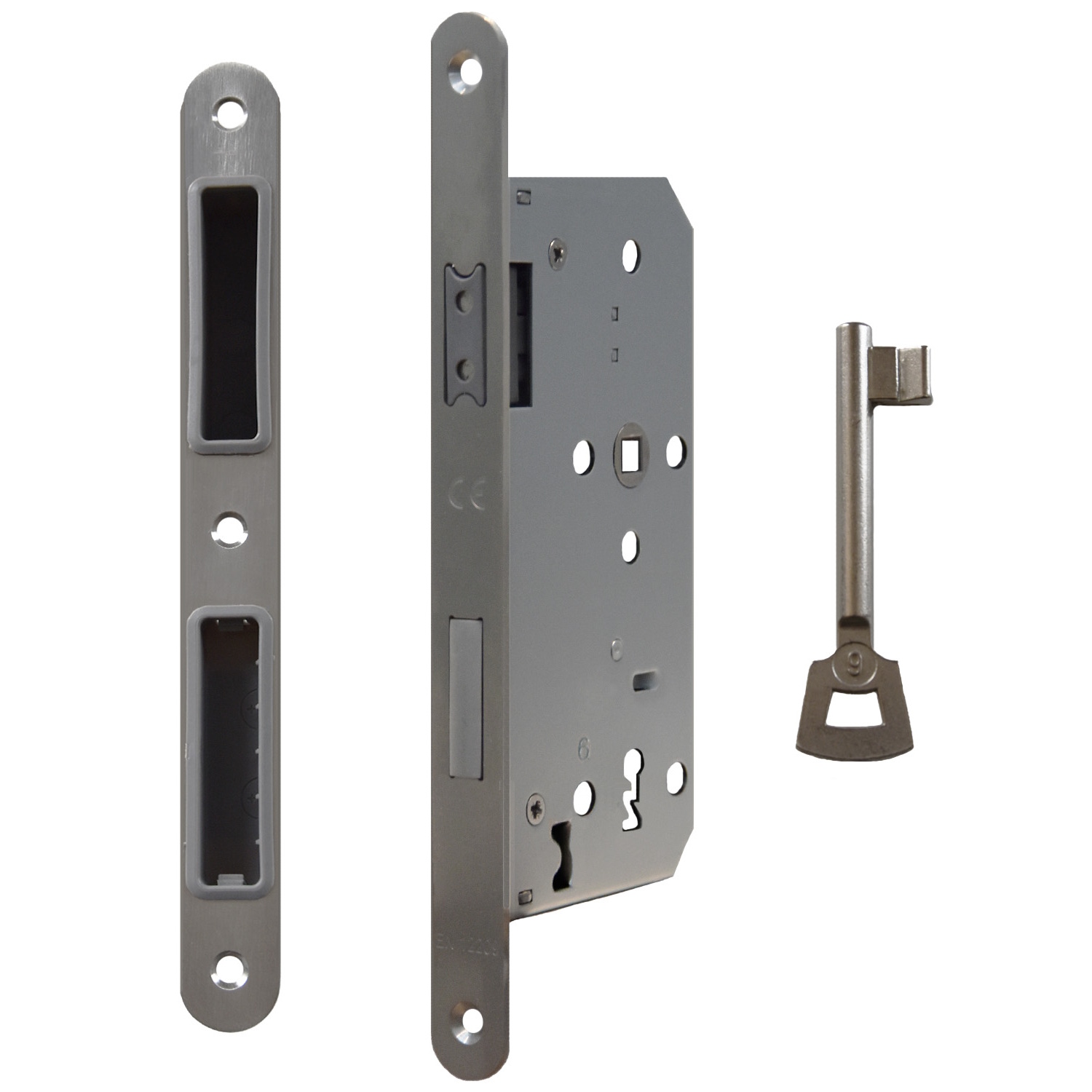

If you are looking for a solid and high-quality magnetic lock, then this magnetic lock is the perfect choice for you. This lock has a stainless steel rounded front plate of 20 mm wide that gives your door an elegant look.

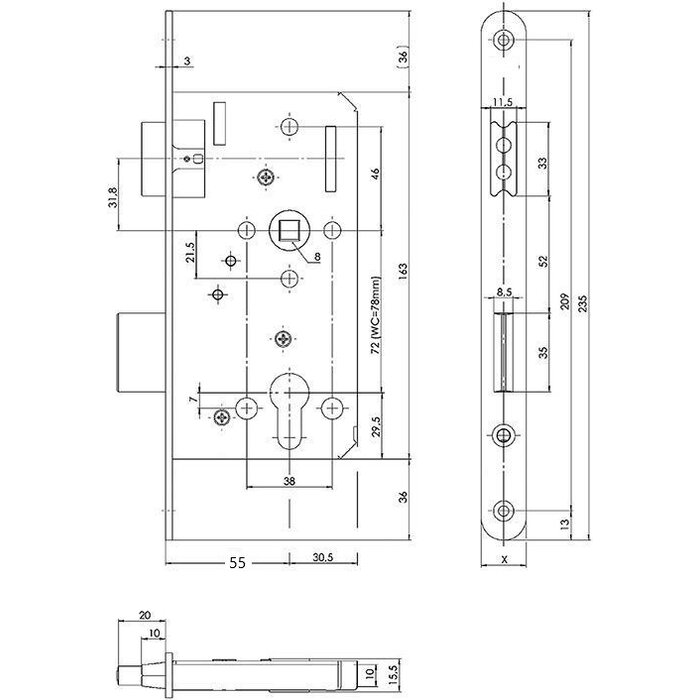

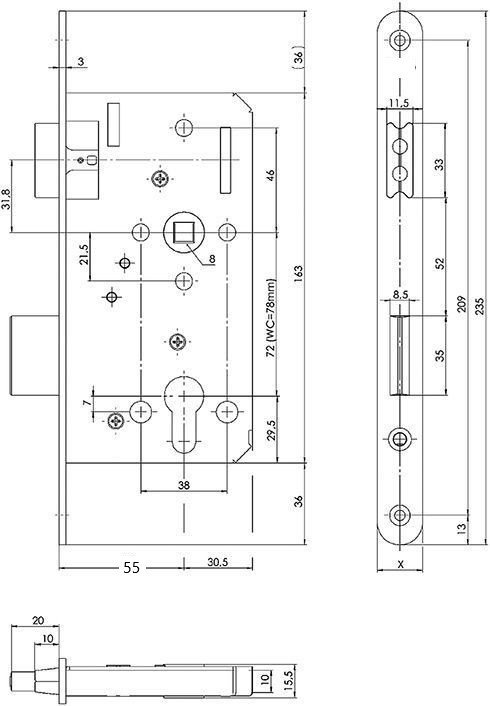

The magnetic lock has a keyhole opening, a center distance of 72mm and a backset of 55mm. It is suitable for both left and right-handed doors and is supplied per piece including the corresponding front plate.
The magnetic lock has many advantages for both processors and end users. Here are some of the most important:
- The lock is easy to install, because it can be used as a 1:1 replacement of traditional mortise locks.
- The supplied screws are in the same color as the front and strike plate.
- The lock has a pressure control thanks to a rotatable plastic filling, so that the lock always fits properly on the frame.
- The lock is available in BB, PZ and WC versions so you can choose the lock that best suits your door.
- The lock has a nice design, which does not require a locking plate with a lip and has no protruding corners and edges when opened.
- The lock has a rotating magnetic striker plate insert, which allows pressure control and automatically adjusts when the door sags.
With this magnetic lock you can enjoy a smooth-running and maintenance-free lock that closes your door silently and safely.
Designation | Project slot Proline |
Performance | Magnetic lock keyhole |
Axle size (mm) | 72 |
Backset (mm) | 55 |
Front plate dimensions (mm) | 20x235 |
Color front plate | Stainless steel |
Color strike plate | Stainless steel |

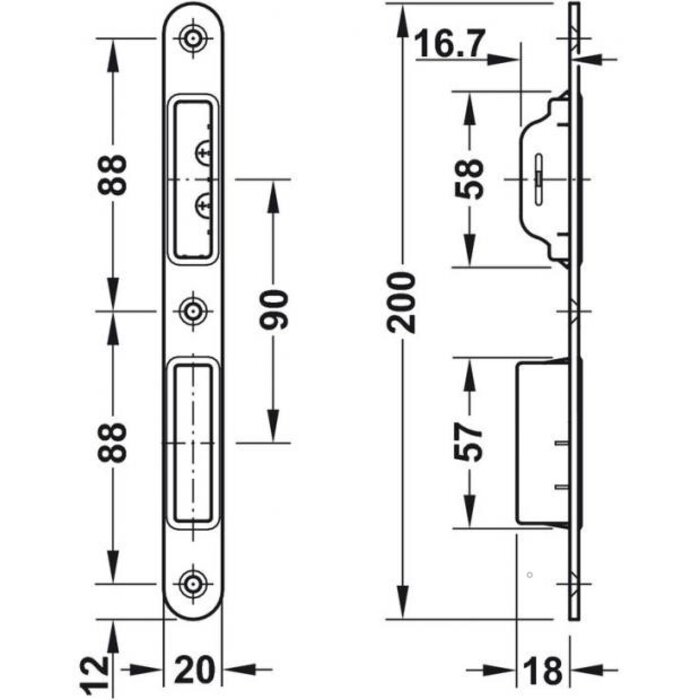

Strike plate dimensions (mm) | 20x200 |
Mounting materials included | Screws in the same stainless steel color |
Strike plate | Included |
