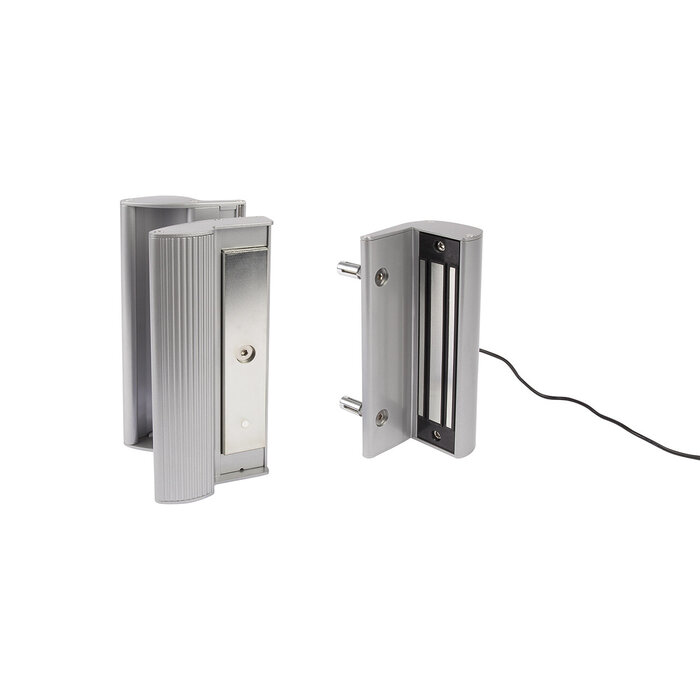

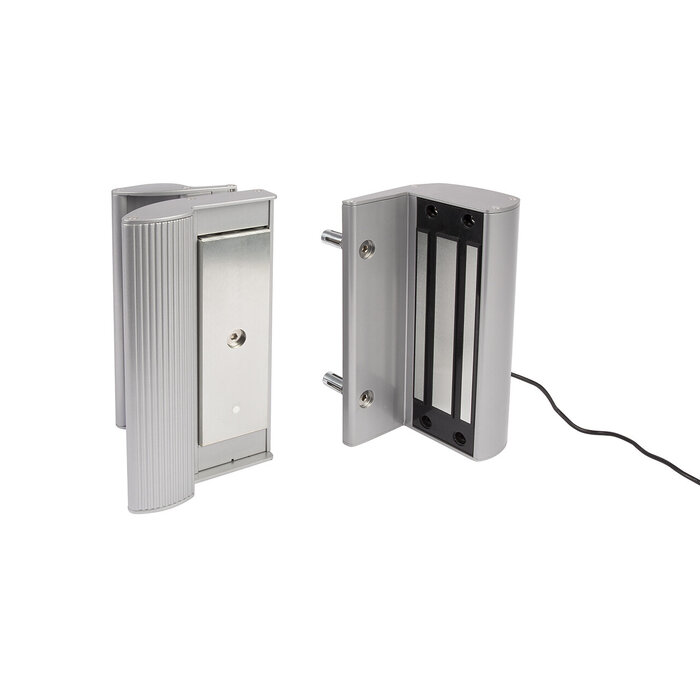

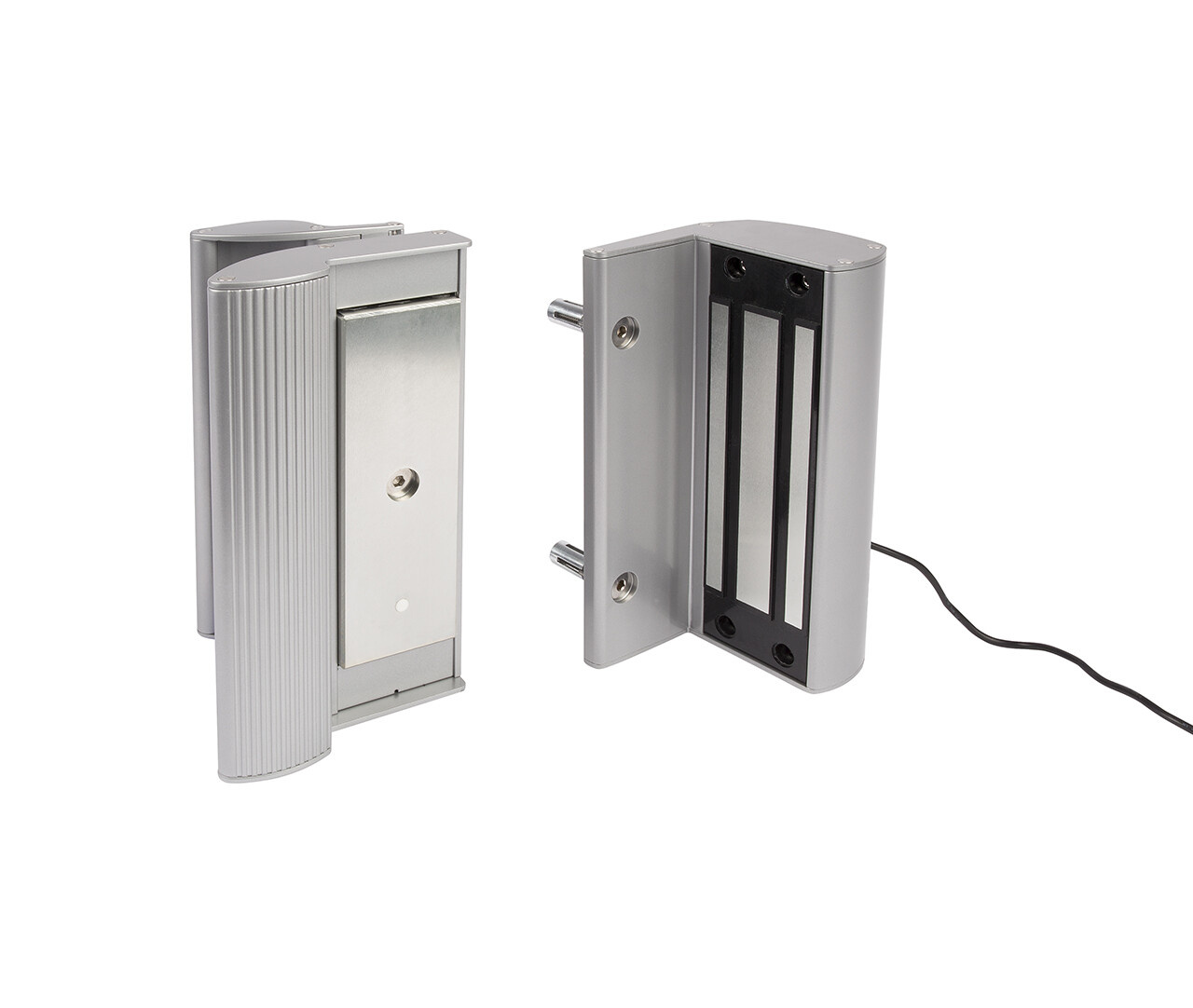

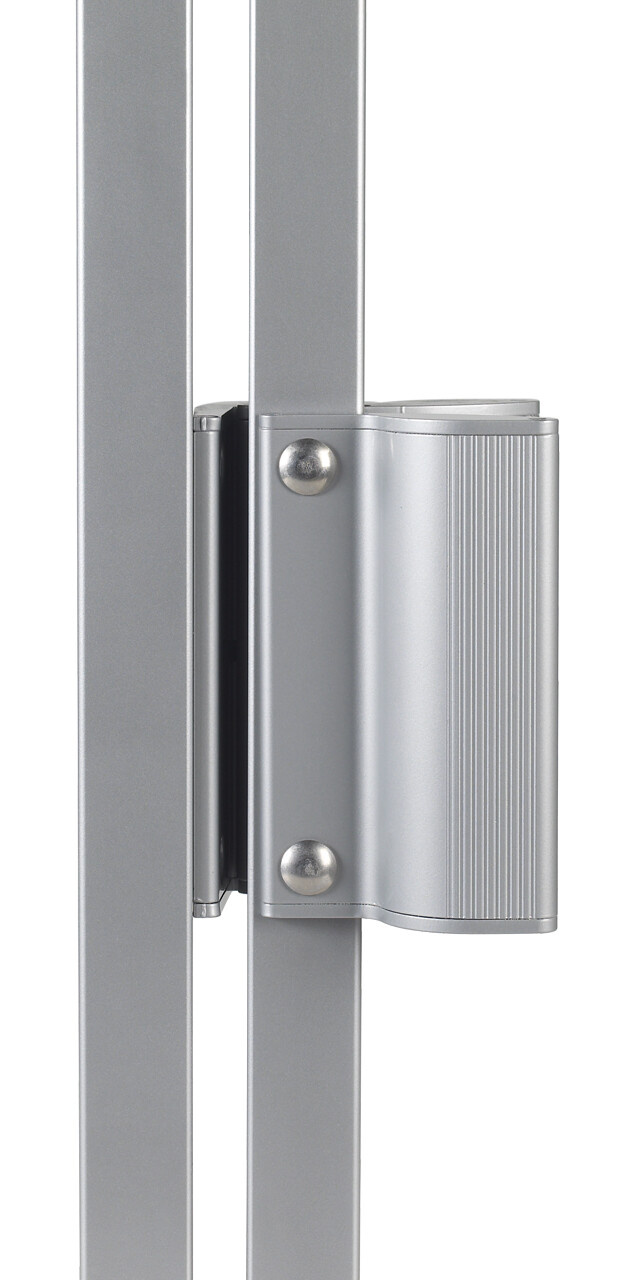

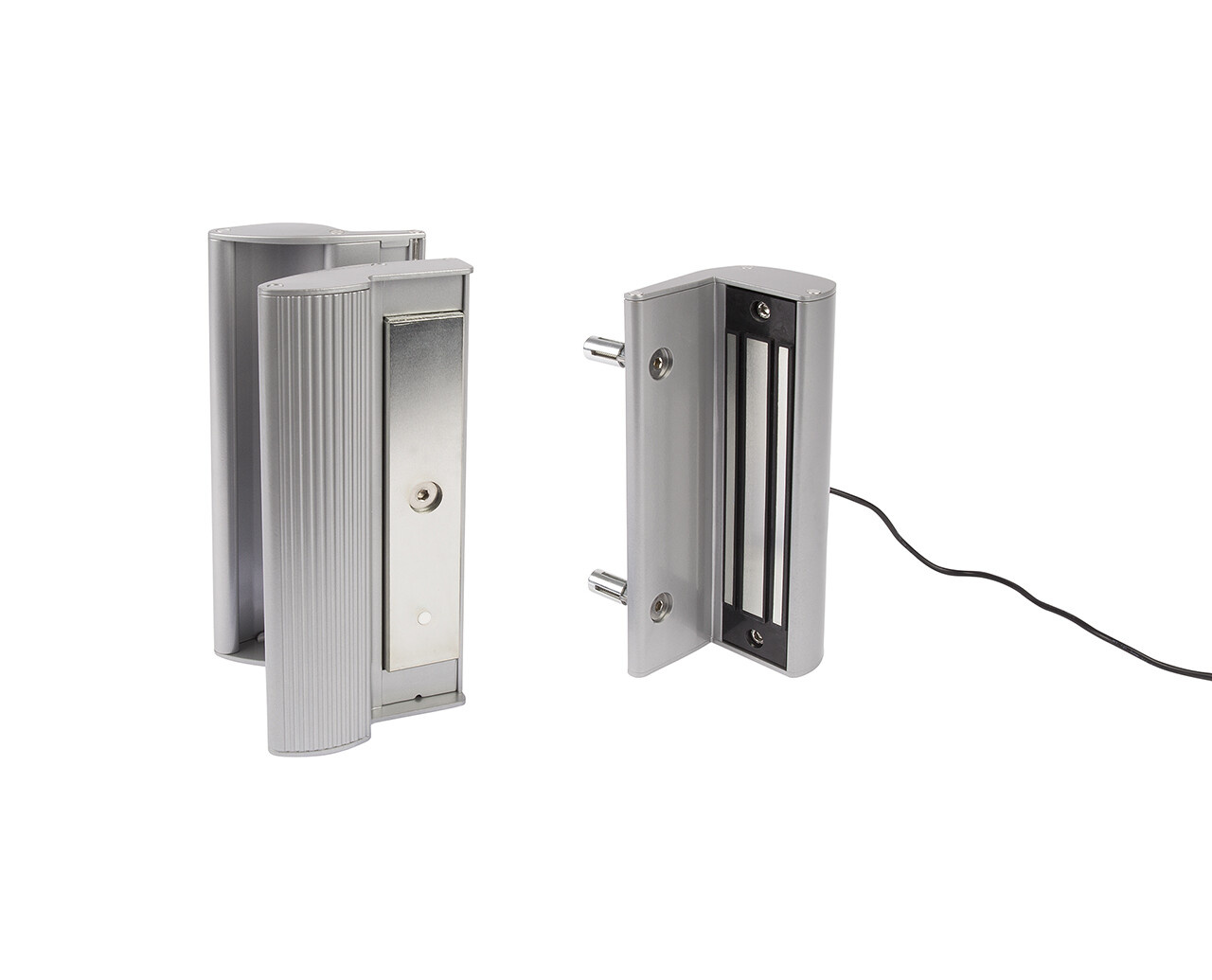

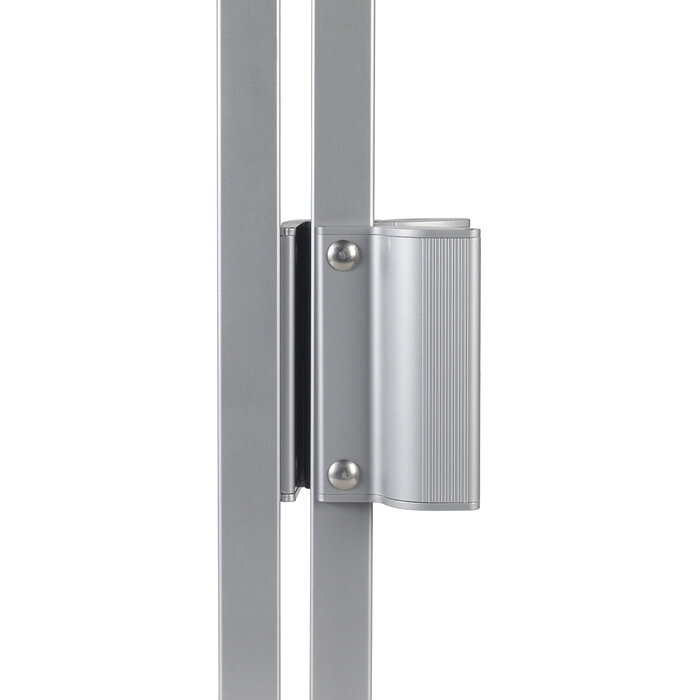

Locinox surface-mounted magnetic lock MAG 3000 - with handles

Upgrade your access control with our screw-on magnetic lock. Choose from two powerful versions: the MAG3000 with 300 kg of adhesive force or the MAG6000 with 600 kg of adhesive force. This article concerns the MAG 3000.

The aluminum painted housing with integrated handles and unique Quick-Fix mounting ensures quick installation, without time-consuming welding. Just drilling 7 holes is enough to attach the lock. With a two-layer protective coating, our magnetic locks can withstand the elements and guarantee years of trouble-free outdoor use.

Rely on our magnetic locks for reliable security and convenience. Upgrade your access control system today for optimal security and efficiency.

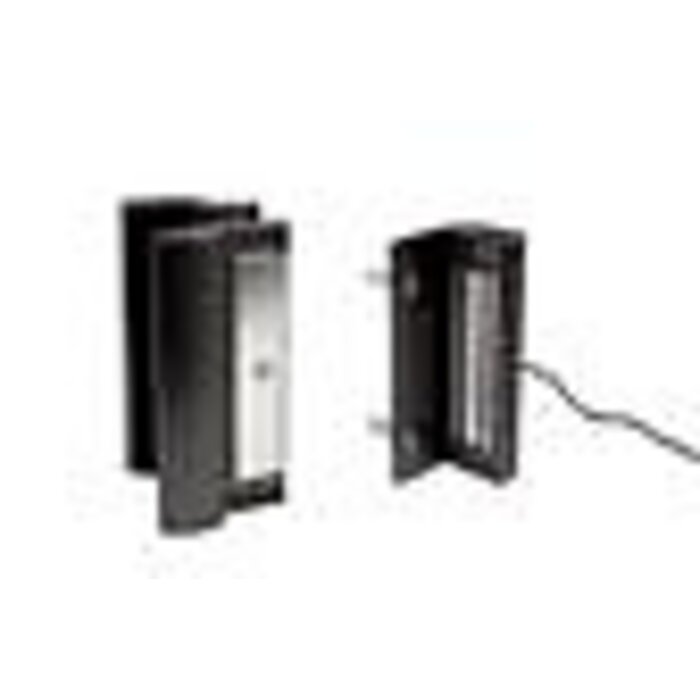

The magnetic lock is available in two colors, black and silver, which you can select in the scrolling menu at the top right

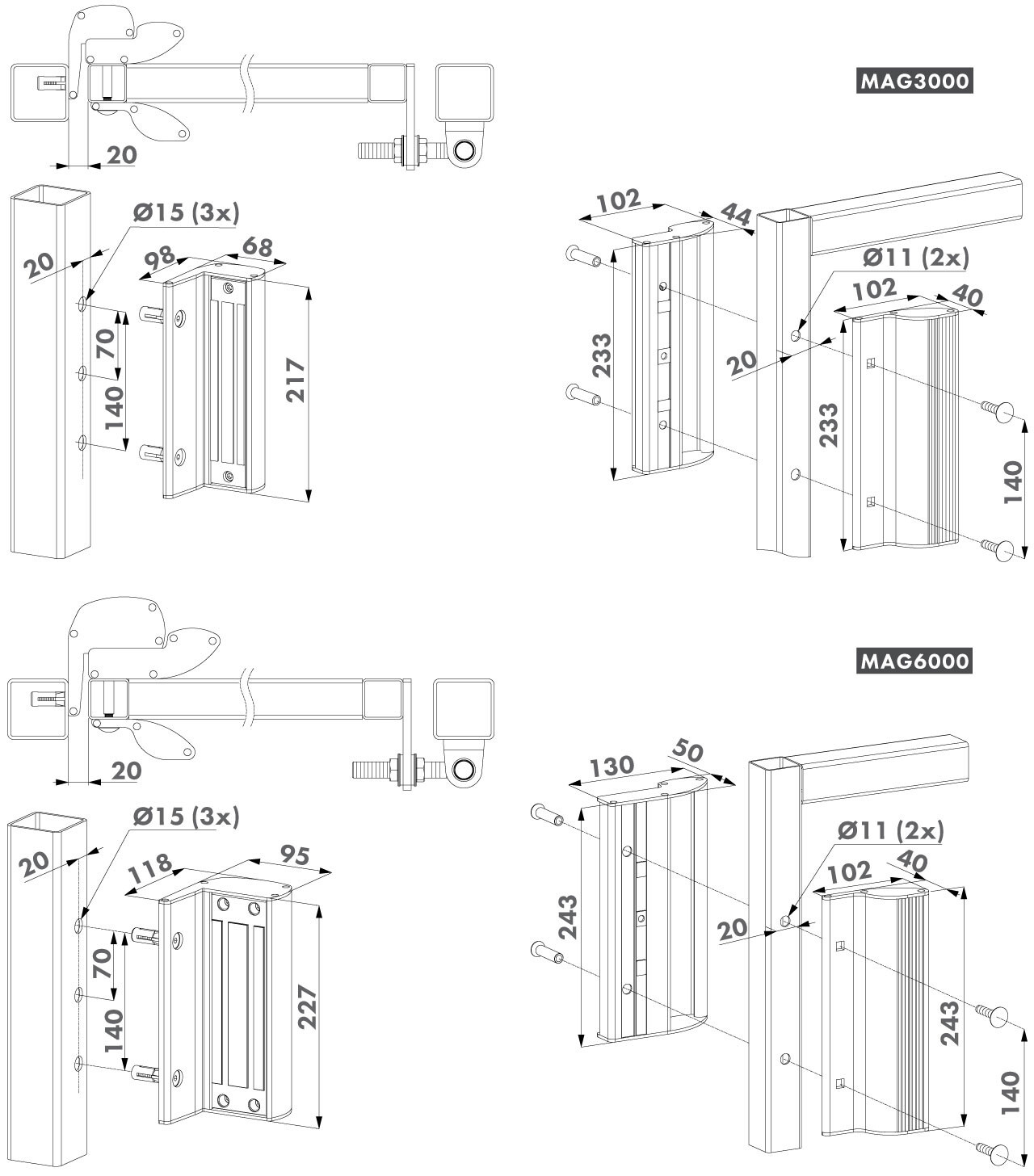

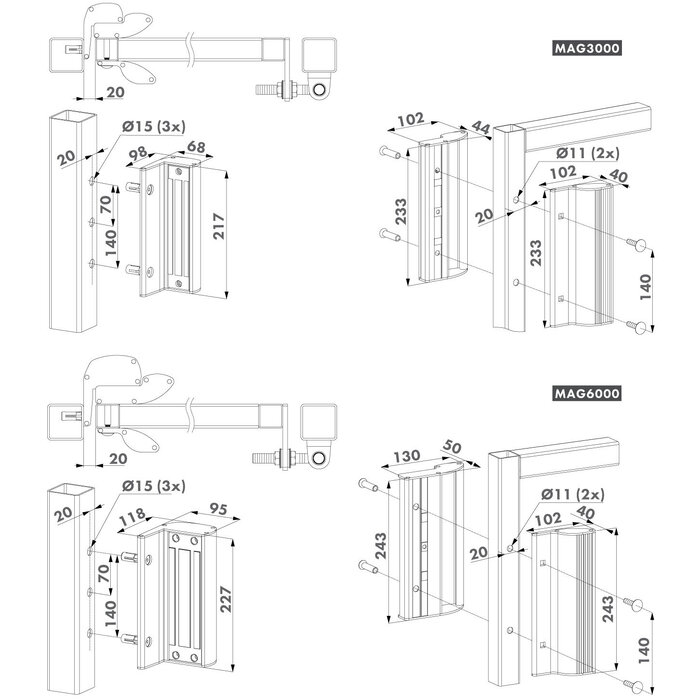

You will find all dimensions on the attached drawing.

Download the manual here.

Read the specific features here.

• Guaranteed pulling force tested on every magnetic lock
• 500 hours salt spray resistant. SGS certified (ISO 9227)
• Tested according to ISO standard 9227 by SGS
• Specially developed protective two-layer coating for outdoor use
• Powder-coated aluminum housing
• With kick-off system against residual magnetism
• A raised edge on the magnet housing prevents you from getting between the magnet and the attraction plate with a crowbar
• Normal Open operation
• Quick and easy installation thanks to 5 holes with Quick-Fix
• Voltage: 12V / 24V DC
• MAG3000: Minimum adhesive force: 3000N (300 kg)
• MAG6000: Minimum adhesive force: 6000N (600kg)
• Consumption MAG3000: 500 mA/12V or 250mA/24V
• Consumption MAG6000: 460 mA/12V or 230mA/24V
