Locinox surface-mounted magnetic lock MAGMAG 3000 - without handles

Equip your security system with our screw-on magnetic lock without a door handle. Choose from two powerful versions: the MAGMAG3000 with 300 kg of adhesive force or the MAGMAG6000 with 600 kg of adhesive force. This article concerns the MAGMAG3000 version.

The aluminum painted housing with unique Quick-Fix mounting allows quick installation without time-consuming welding; just drilling 5 holes is sufficient. With a two-layer protective coating, our magnetic locks are designed for years of trouble-free outdoor use.

Rely on our magnetic locks for reliable security without a door handle. Upgrade your access control system today for optimal security and efficiency.

The magnetic lock is available in two colors, black and silver, which you can select in the scrolling menu at the top right

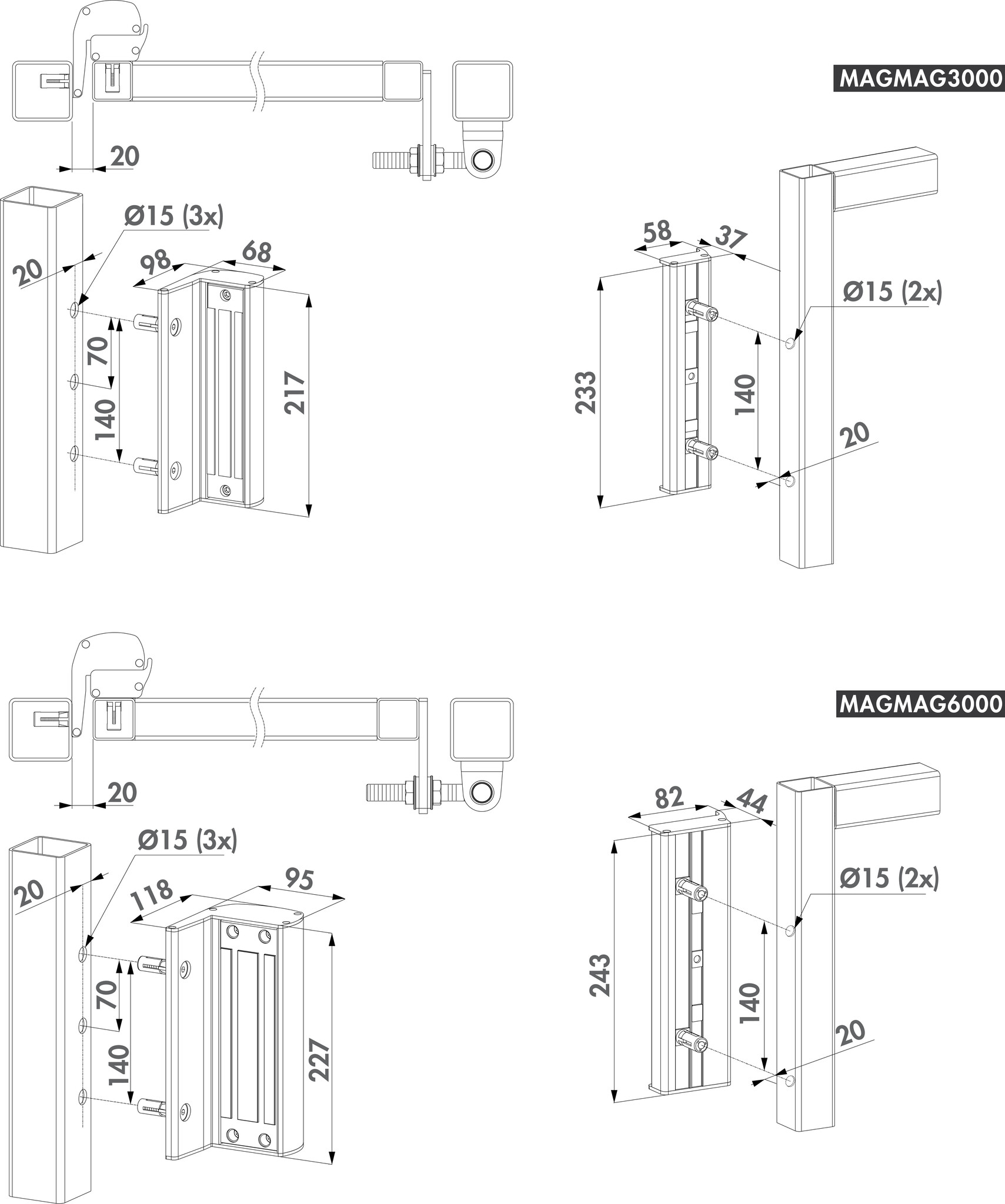

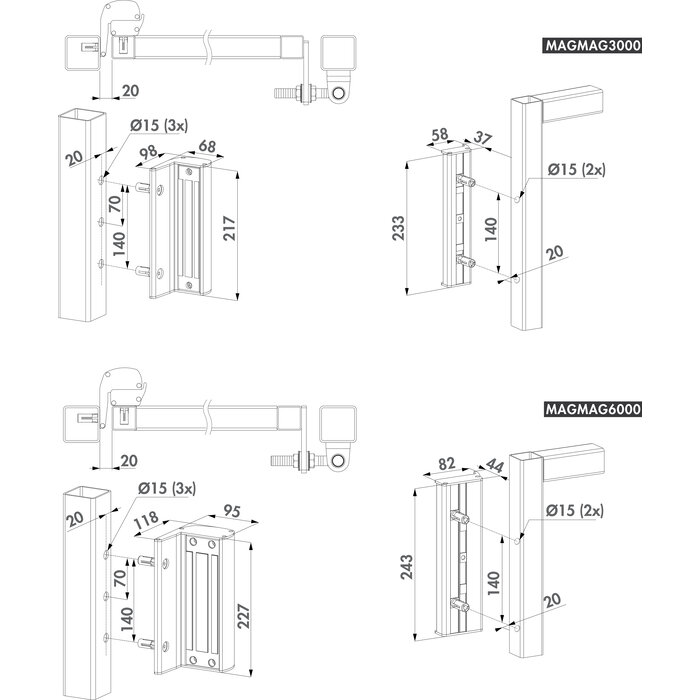

You will find all dimensions on the attached drawing.

Download the manual here.

Read the specific features here.

• 500 hours salt spray resistant. SGS certified (ISO 9227)
• Specially developed protective two-layer coating for outdoor use
• SGS Certified
• Powder-coated aluminum housing
• With kick-off system against residual magnetism
• A raised edge on the magnet housing prevents you from getting between the magnet and the attraction plate with a crowbar
• Normal Open operation
• Fast and finished mounting through 5 holes with Quick-Fix
• Consumption MAGMAG3000: 500 mA/12V or 250mA/24V
• Consumption MAGMAG6000: 460 mA/12V or 230mA/24V
• Voltage: 12V / 24V DC
• MAG3000: Minimum adhesive force: 3000N (300 kg)
• MAG6000: Minimum adhesive force: 6000N (600kg)
• Guaranteed pulling force tested on every magnetic lock
