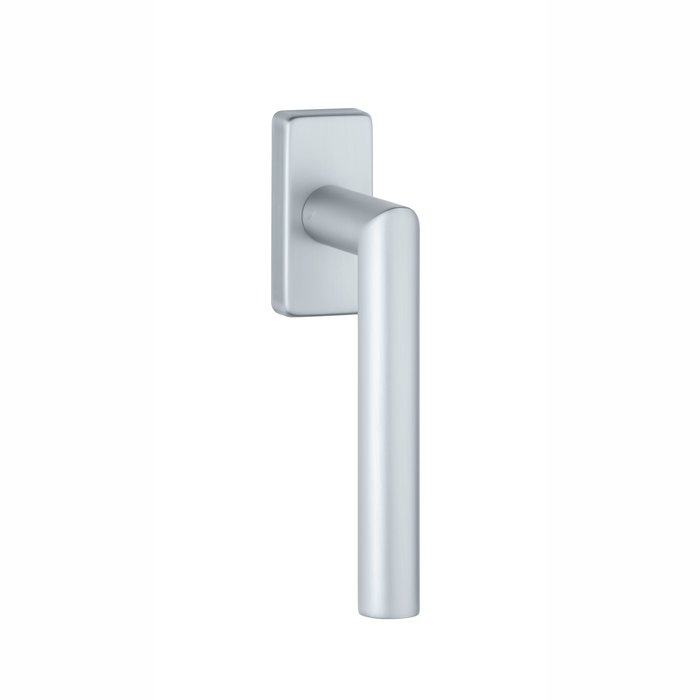

The chrome-polished window handle ARABIS in turn-tilt version has a sleek L-shaped handle at an angle of 90°.
The window handle consists of solid zamac finished with a matte Chrome coating.

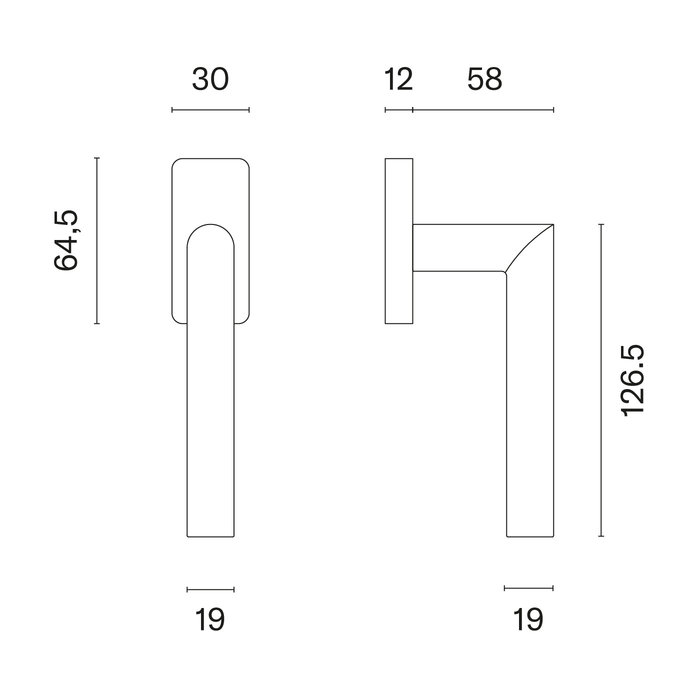

The L-shaped handle has a Ø of 19 mm and stands on a rectangular rosette of 64.5 x 30 mm.
The solid window handle with the Aprile logo is supplied per piece including mounting materials and a pin of 7 X 7 X 35 mm. The mounting holes are spaced 43 mm apart
Combine these window handles with the matching door handles from Aprile to furnish your interior in the same style.
At the top of the scroll menu, choose between a left or right window handle!
Both window handles rotate 360°. The only difference is the position of the Aprile logo.
With a left window handle the Aprile logo is on the left, with a right window handle the Aprile logo is on the right.
base | zamak |
performance | turn-tilt |
colour | Chrome Satiné (matt) |
dimensions rosette | 64.5x30x12mm |
depth | 70mm |
drilling distance | 43mm |
marker | 7x7x35mm |
thickness handle | diameter 19mm |
mounting material | 2 bolts M5 x 40 mm included |
