Description

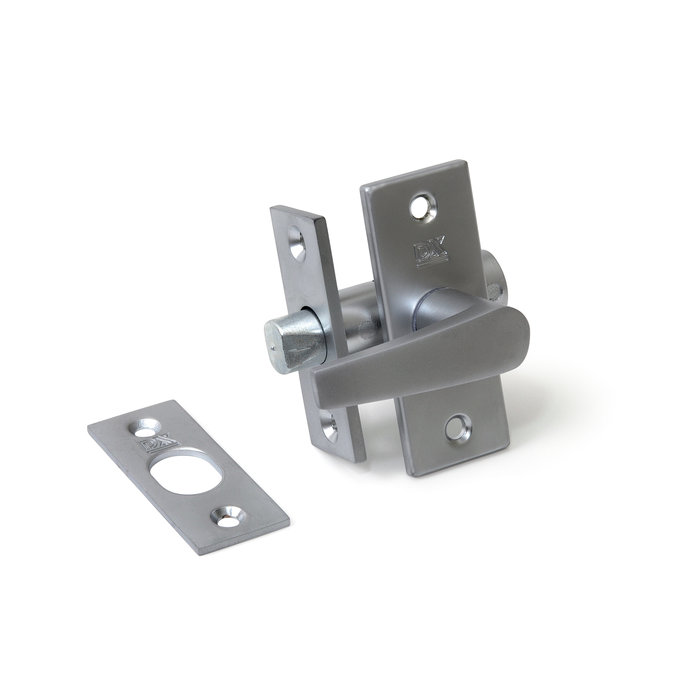

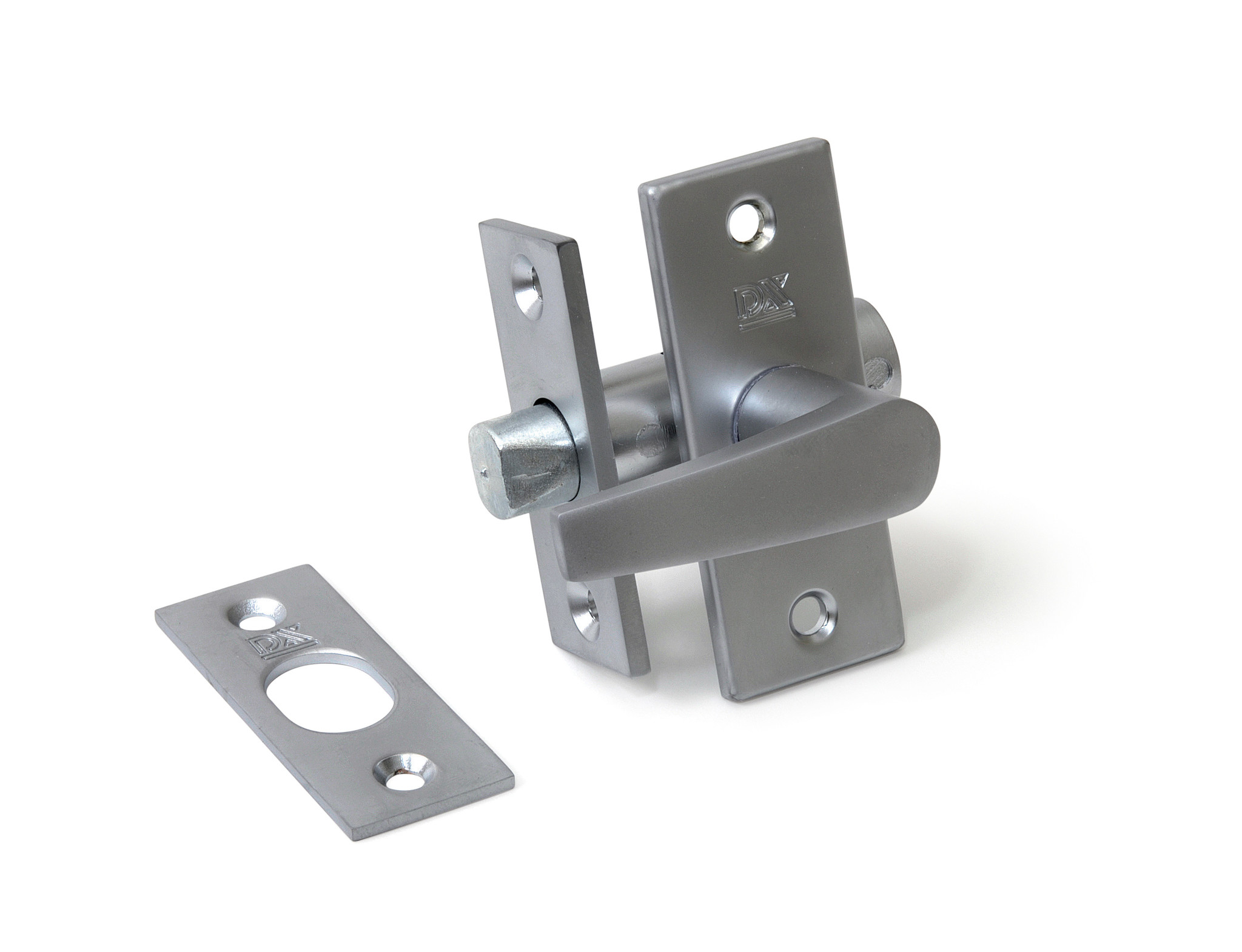

Silver-grey mortise bolt with striker plate length 70 mm for locking a window or door
Article code: DS0160.100.0500
Mortise bolts have been used for a long time to temporarily lock your door, but they are actually intended to lock a window or door.
Due to its common dimensions, these silver-grey mortise bolts can be used for both renovation and new construction projects and on both inward and outward opening windows and doors.
Material | Zamac |
Finish | Satin chrome plated |
Lockout | cut |
Diameter (mm) | 18 |
School result (mm) | 13 |
Spindle length (mm) | 25 |
Fixing material | Included |
accessories | Strike plate (included) |
Application | Windows and exterior doors |

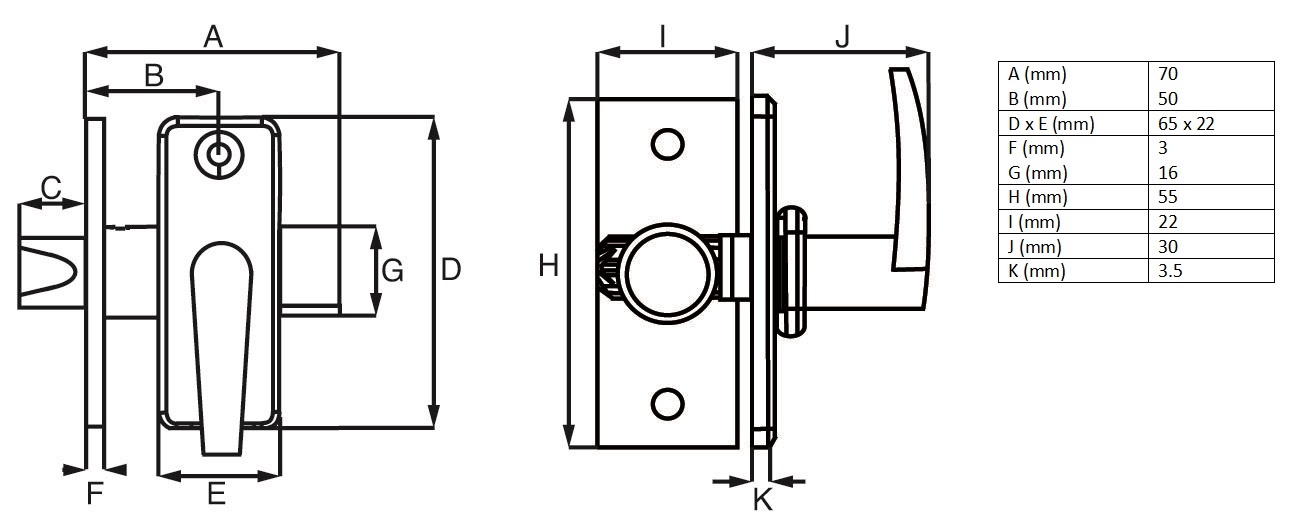

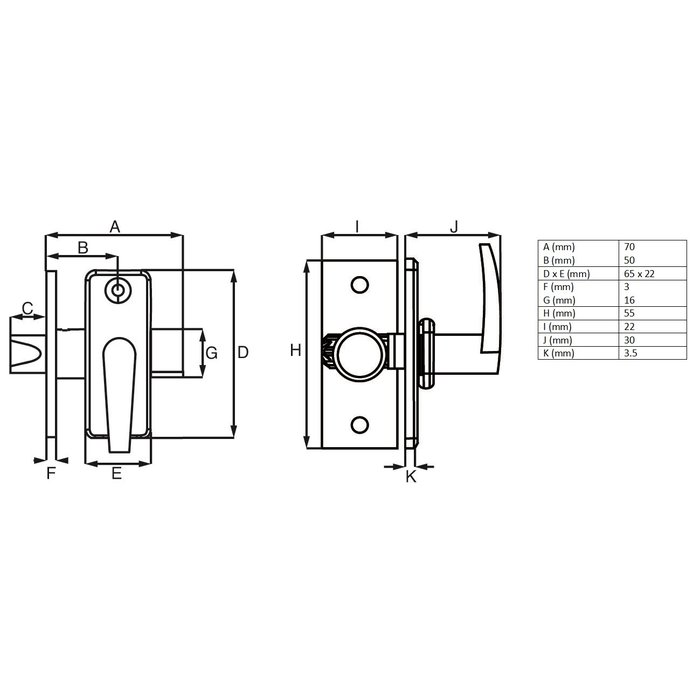

A (mm) |
70 |
B (mm) |
50 |
D x E (mm) |
65 x 22 |
F (mm) |
3 |
G (mm) |
16 |
H (mm) |
55 |
I (mm) |
22 |
J (mm) |
30 |
K (mm) |
3.5 |
