Back Locinox Mortise lock H-METAL for profiles from 60 mm - mandrel 35mm
LOCINOX Locinox Mortise lock H-METAL for profiles from 60 mm - mandrel 35mm LOCINOX Locinox Mortise lock H-METAL for profiles from 60 mm - mandrel 35mm LOCINOX Locinox Mortise lock H-METAL for profiles from 60 mm - mandrel 35mm LOCINOX Locinox Mortise lock H-METAL for profiles from 60 mm - mandrel 35mm LOCINOX Locinox Mortise lock H-METAL for profiles from 60 mm - mandrel 35mm
LOCINOX

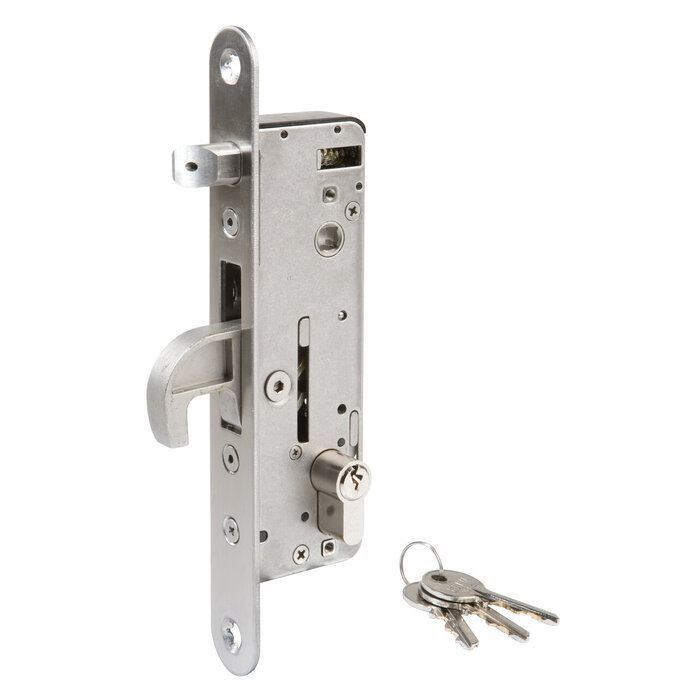

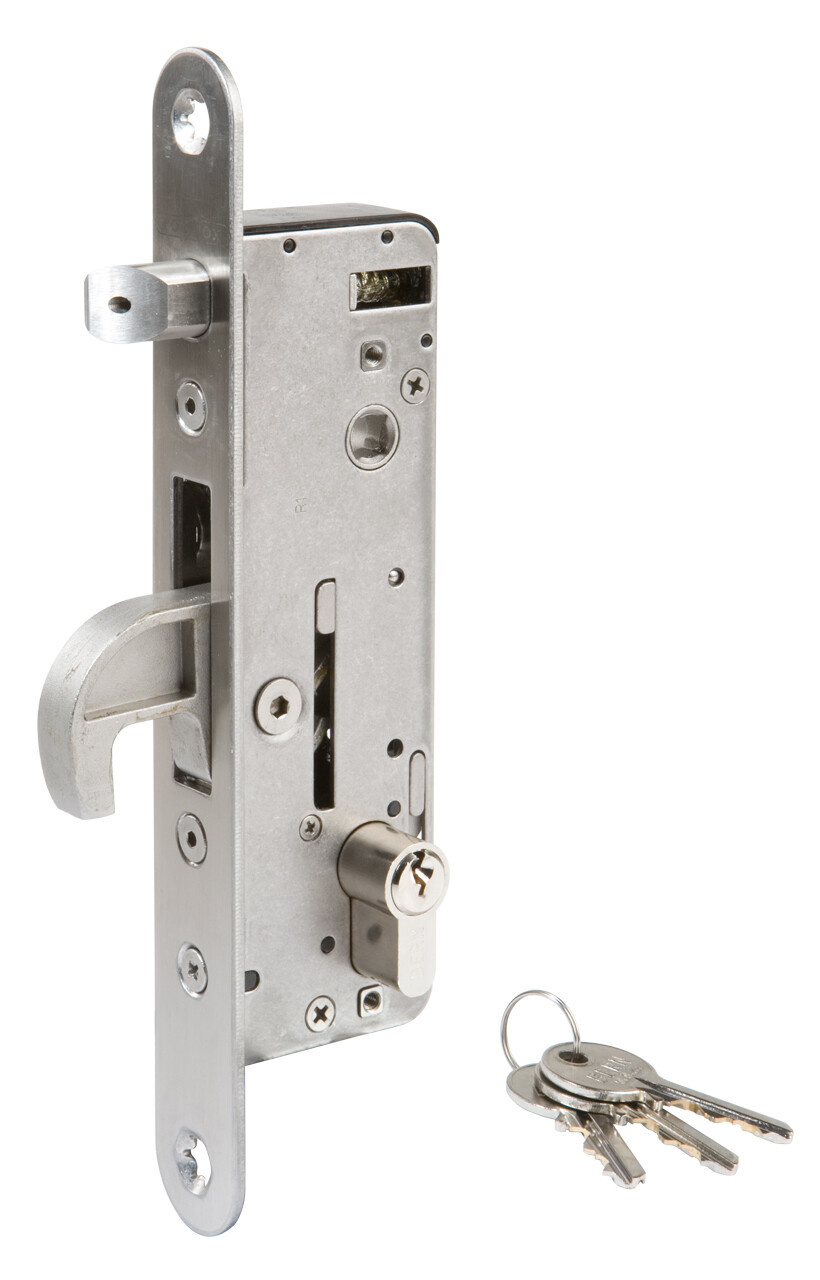

Locinox Mortise lock H-METAL for profiles from 60 mm - mandrel 35mm

0 Review(s)
Add to wishlist
€50,95 €61,65 Incl. tax per piece
- +
Delivered in: 7-10 Days
Europe-wide shipping
Money back guarantee
For private and professional customers
Become a business customer and take advantage of special purchase prices! Click here to request an account.
Description Locinox Mortise lock H-METAL for profiles from 60 mm supplied without door handles with a backset of 35 mm
Article code: DSP00008042 - H-METAL

Discover our high-quality mortise lock, equipped with a 100% stainless steel mechanism for optimal durability.

With its solid stainless steel drop hook and adjustable latch, this lock offers unparalleled security. The perfect combination of the fall hook and stop prevents the gate from pulling apart, keeping your property well protected.

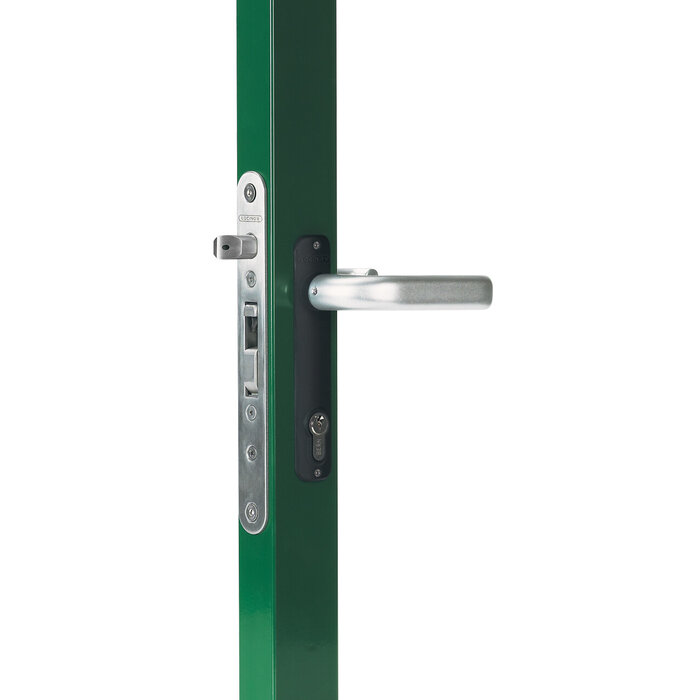

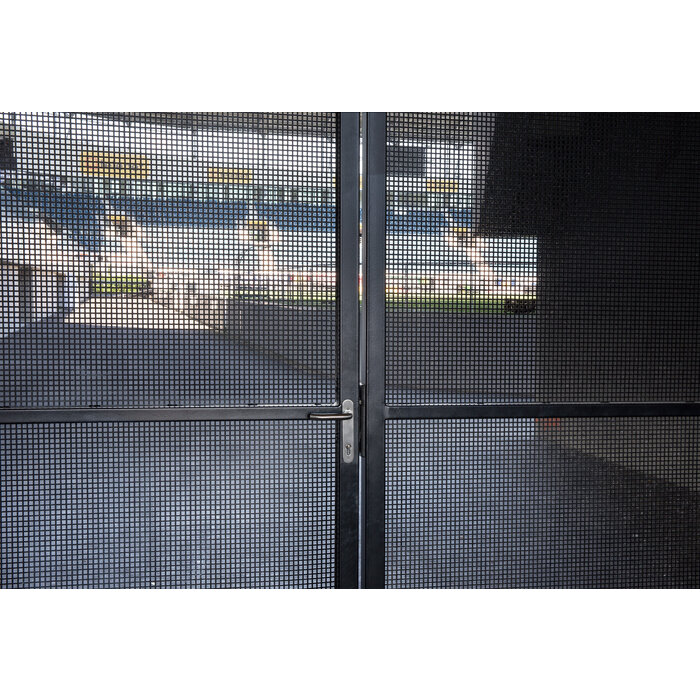

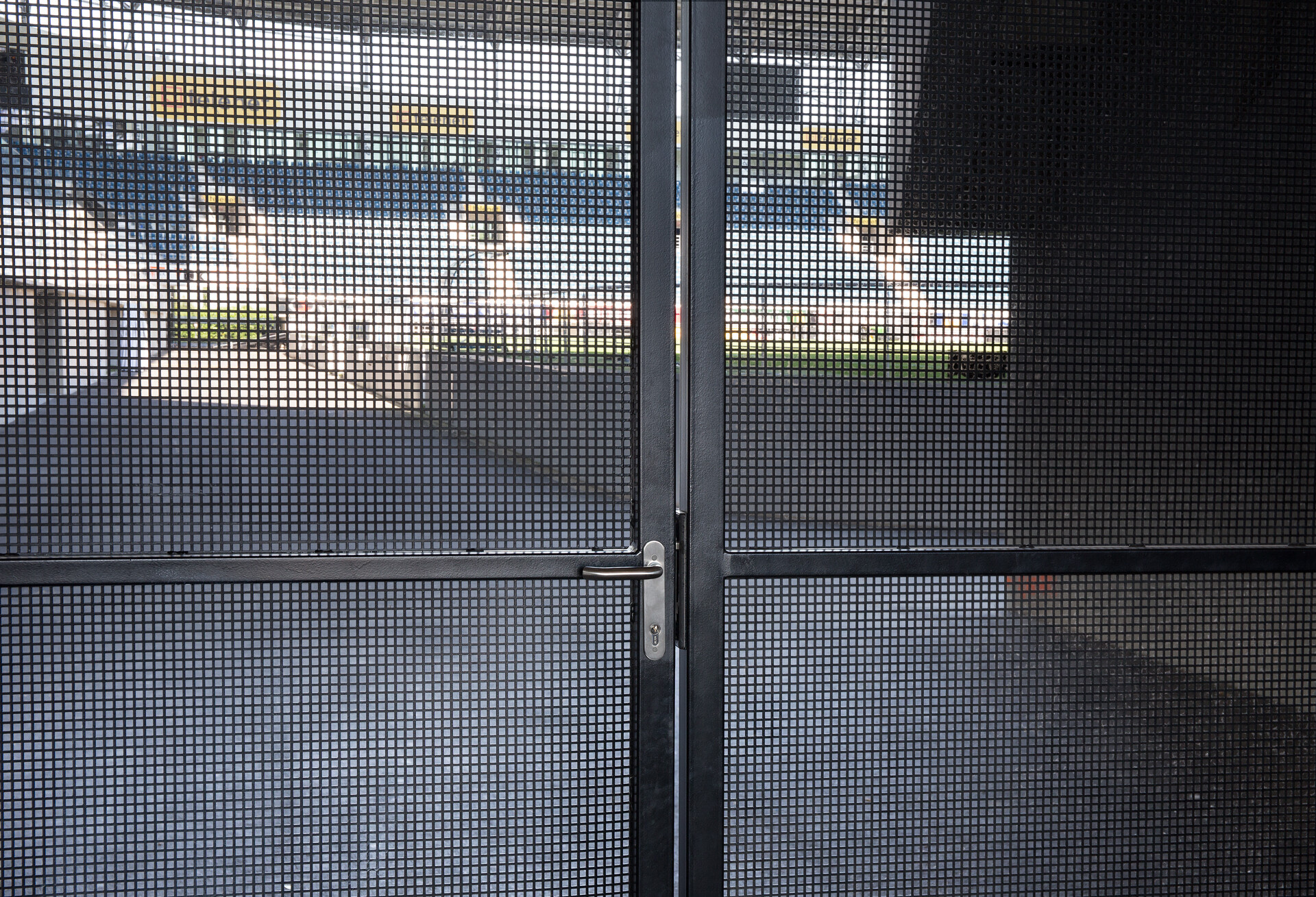

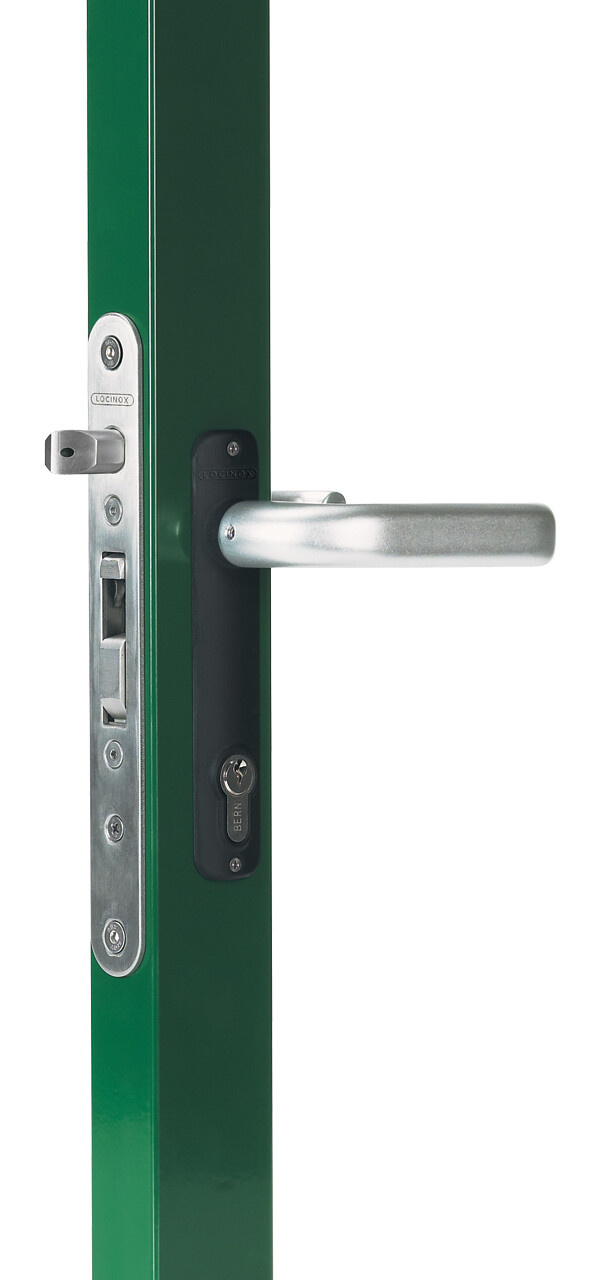

This versatile lock is suitable for both metal and aluminum gates and can be easily installed on our prepared profiles. Choose peace of mind and protection with our innovative mortise lock.

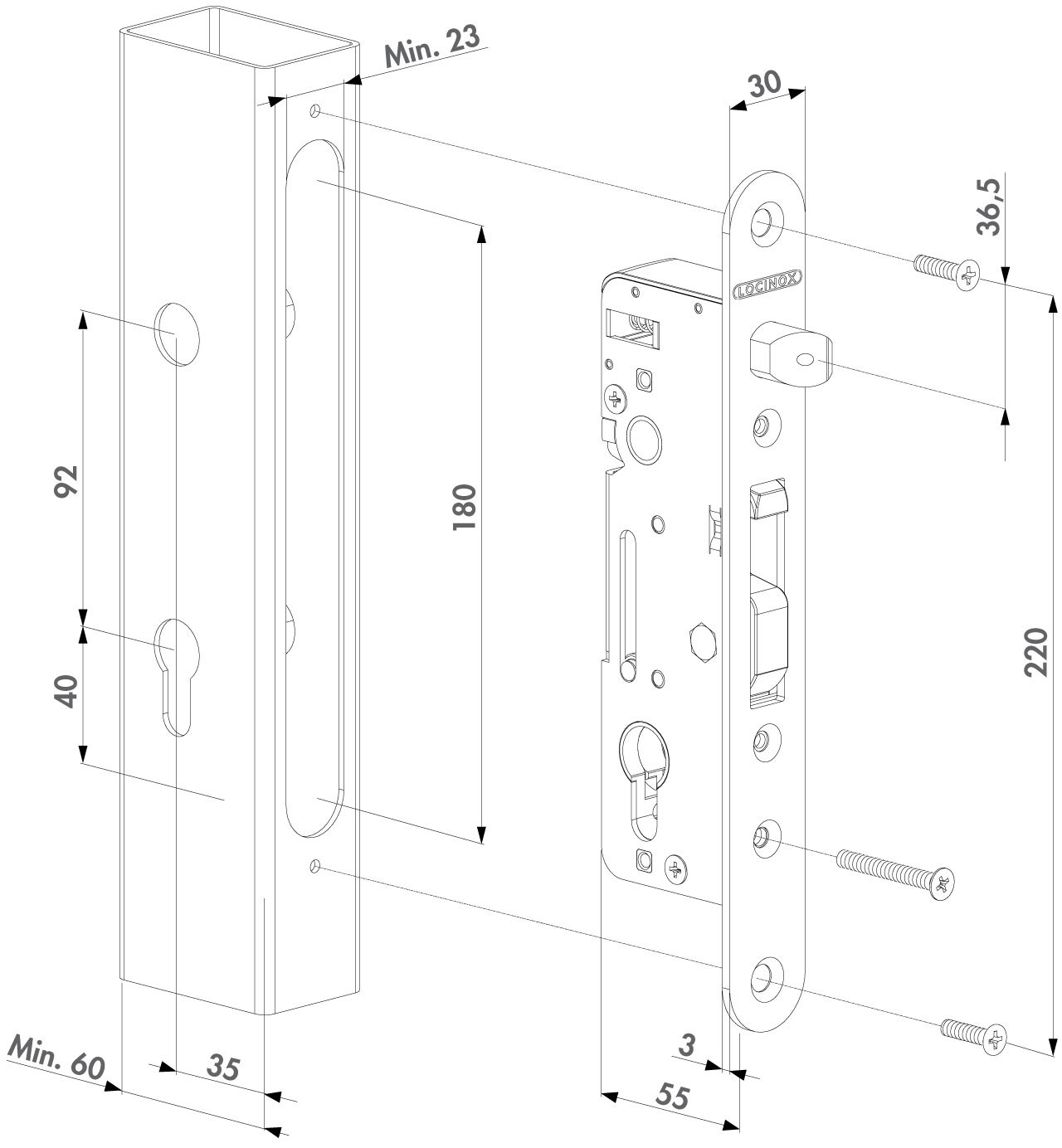

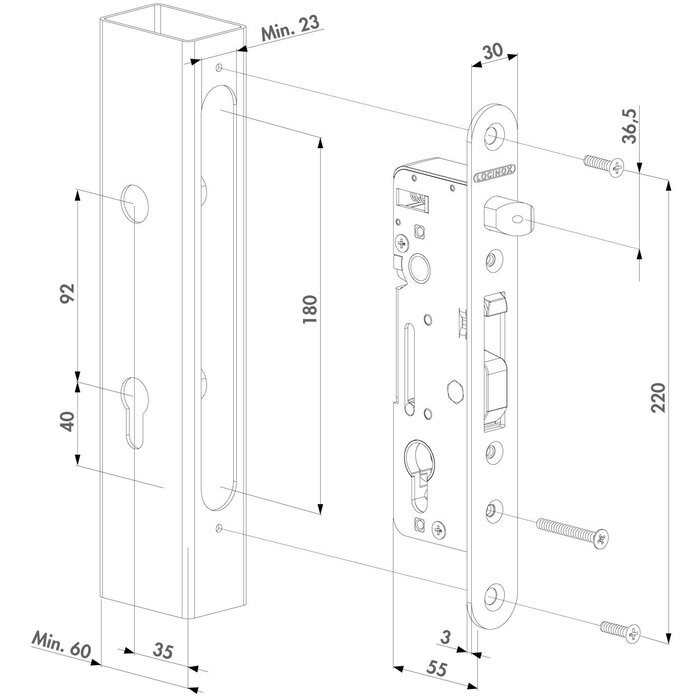

You will find all dimensions on the attached drawing.

Download the manual here.

Read the specific features below:

  • Simple left and right conversion of the day pin
  • Key operation of the day pen
  • Continuous adjustability of the day pin up to 20 mm without dismantling the lock
  • Mechanism, drop hook, front plate and latch pin: stainless steel
  • Cranks and cylinder can be ordered separately
  • Depth lock of the drop hook: 33 mm
  • Center distance: cylinder <=> crank hole = 92 mm
  • Fall hook in combination with the Locinox keeper ensures safe anchoring
  • With cover plate for lock mechanism to prevent dirt from entering the profile
  • Optional: cover plate for handle hole and cylinder in aluminium, polyamide or stainless steel
  • Stools to be ordered separately
  • Compatible with all Euro profile cylinders
Reviews Read or write a review No reviews found Add your review
