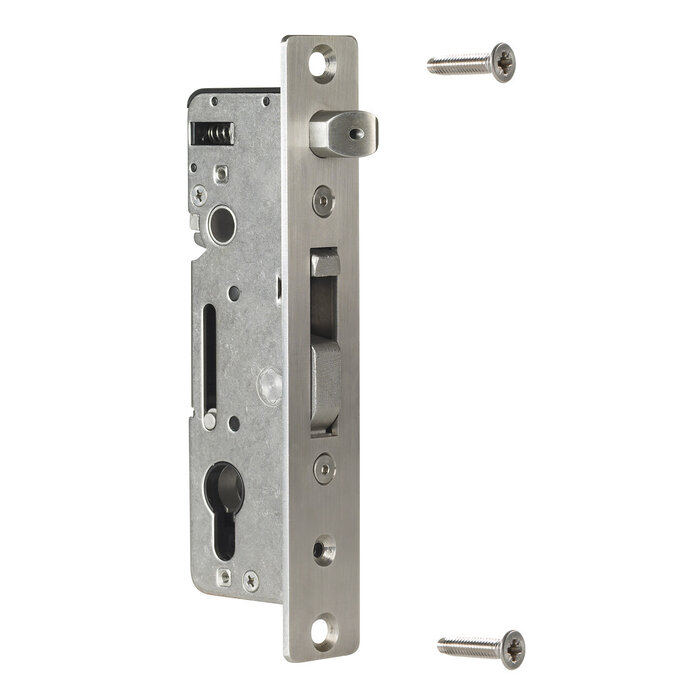

Back Locinox Mortise lock H-METAL-WB for weld-in cabinet - Mandrel 35mm
LOCINOX Locinox Mortise lock H-METAL-WB for weld-in cabinet - Mandrel 35mm LOCINOX Locinox Mortise lock H-METAL-WB for weld-in cabinet - Mandrel 35mm LOCINOX Locinox Mortise lock H-METAL-WB for weld-in cabinet - Mandrel 35mm LOCINOX Locinox Mortise lock H-METAL-WB for weld-in cabinet - Mandrel 35mm LOCINOX Locinox Mortise lock H-METAL-WB for weld-in cabinet - Mandrel 35mm LOCINOX Locinox Mortise lock H-METAL-WB for weld-in cabinet - Mandrel 35mm LOCINOX Locinox Mortise lock H-METAL-WB for weld-in cabinet - Mandrel 35mm LOCINOX Locinox Mortise lock H-METAL-WB for weld-in cabinet - Mandrel 35mm
LOCINOX

Locinox Mortise lock H-METAL-WB for weld-in cabinet - Mandrel 35mm

0 Review(s)
Add to wishlist
€53,22 €64,40 Incl. tax per piece
- +
Delivered in: 7-10 Days
Europe-wide shipping
Money back guarantee
For private and professional customers
Become a business customer and take advantage of special purchase prices! Click here to request an account.
Description Locinox mortise lock H-METAL-WB especially for the welding cabinets HWLB
Article code: DSP00008044 - H-METAL-WB

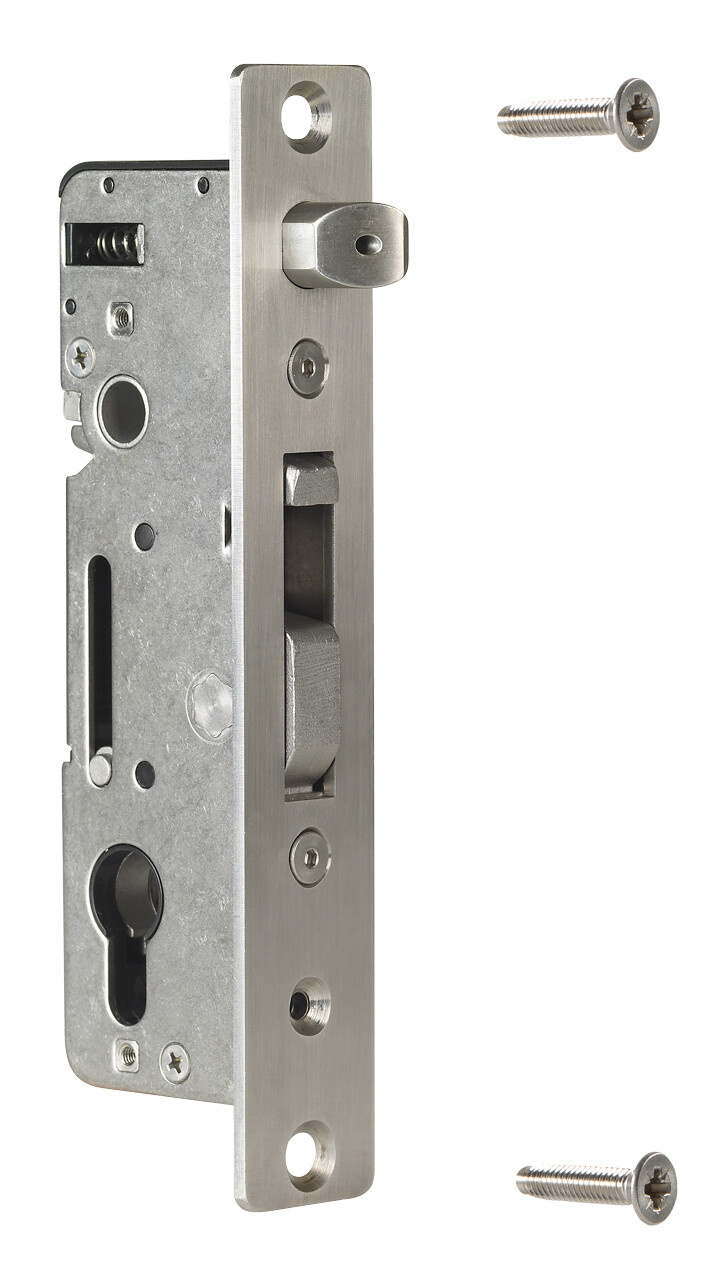

Discover our high-quality mortise lock, equipped with a 100% stainless steel mechanism for optimal durability.

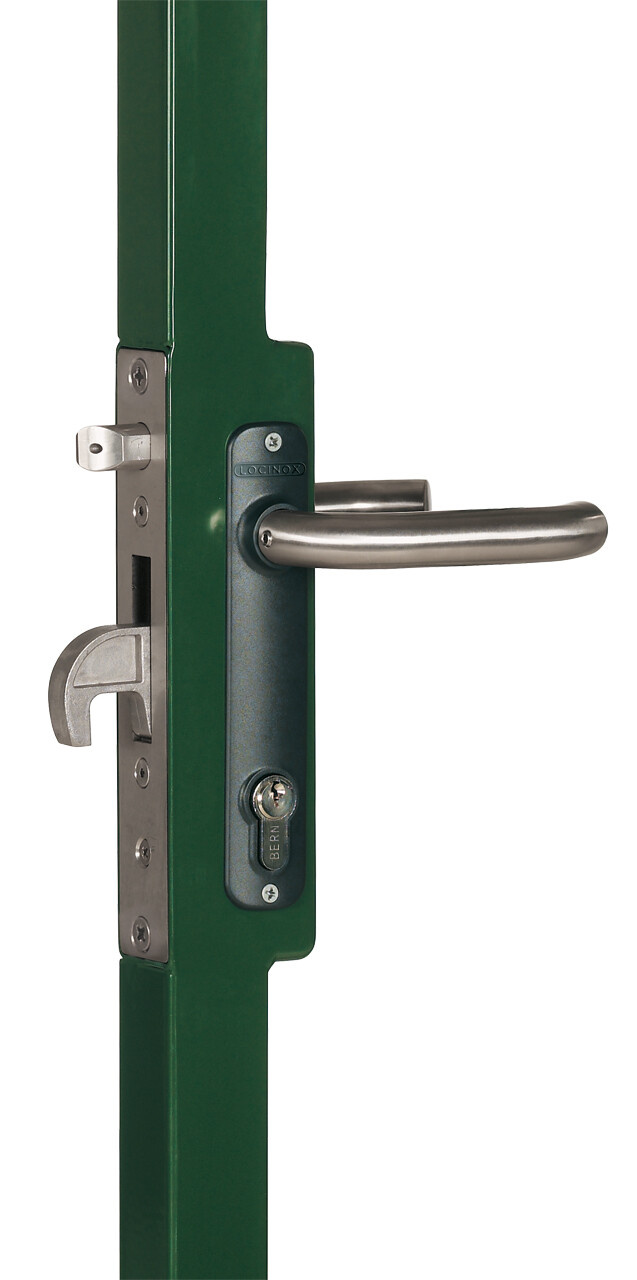

With its solid stainless steel drop hook and adjustable latch, this lock offers unparalleled security. The perfect combination of the fall hook and stop prevents the gate from pulling apart, keeping your property well protected.

This versatile lock is suitable for wooden gates and is easy to install. Choose peace of mind and protection with this innovative mortise lock.

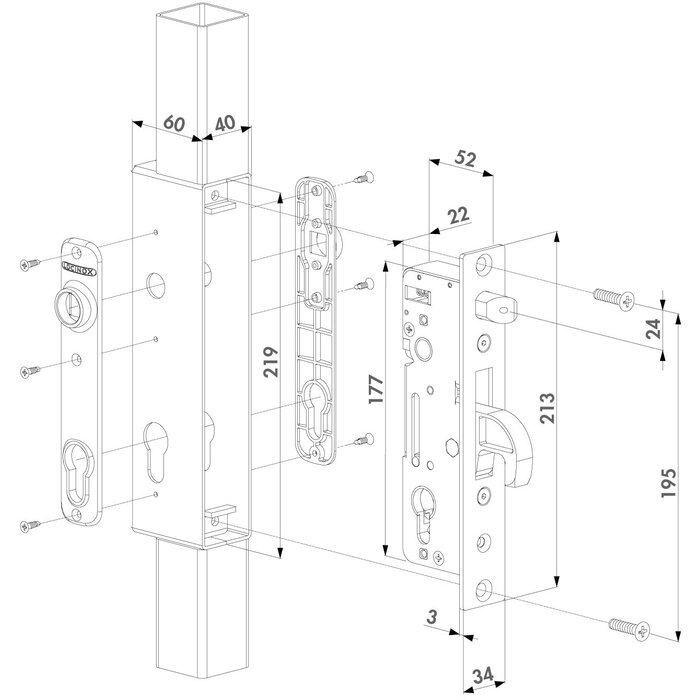

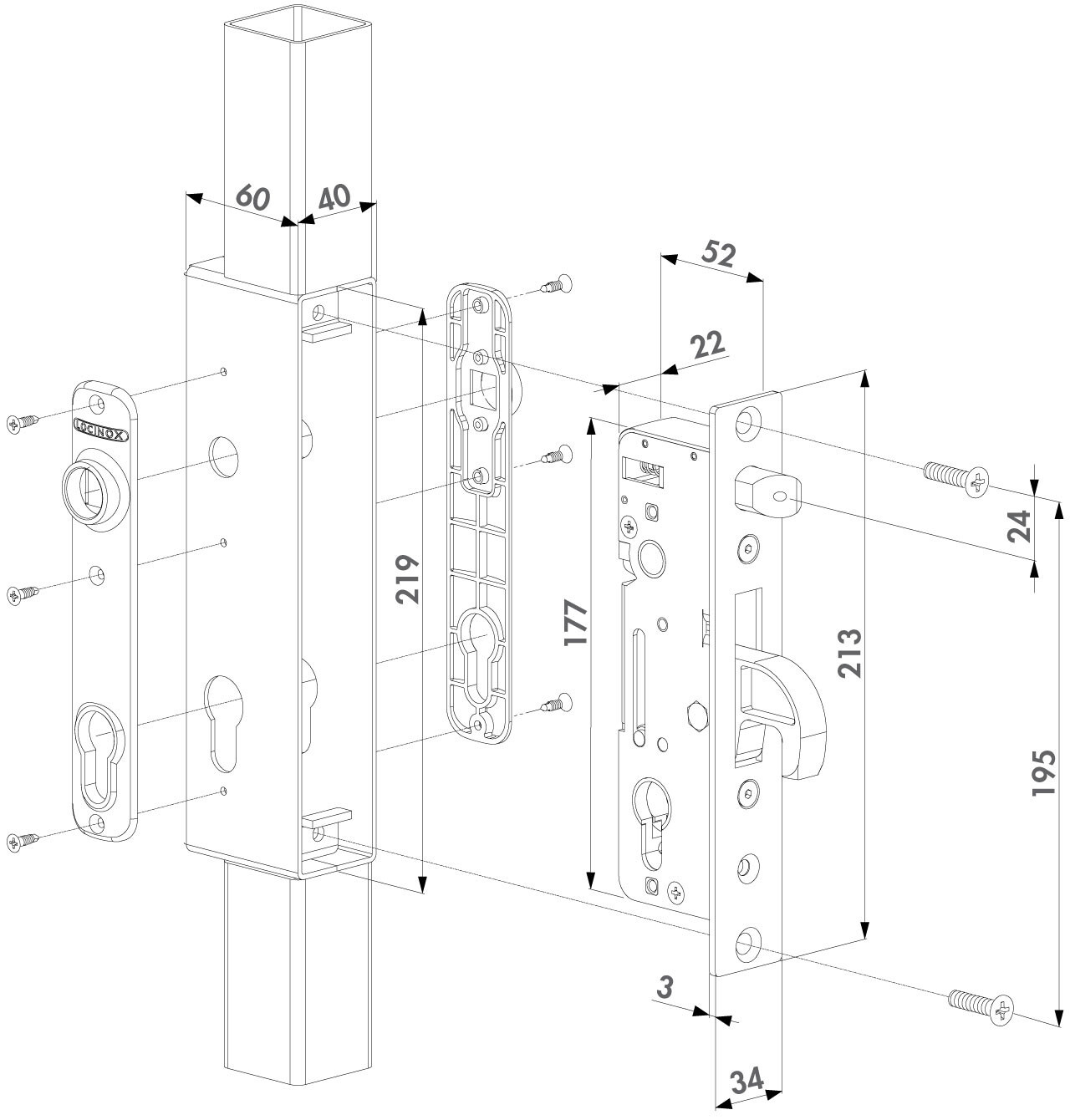

You will find all dimensions on the attached drawing.

Download the manual here.

Read the specific features below:

  • Simple left and right conversion of the day pin
  • Key operation of the day pen
  • Continuous adjustability of the day pin up to 20 mm without dismantling the lock
  • Mechanism, drop hook, front plate and latch pin: stainless steel
  • Stainless steel drop hook for safe anchoring
  • Depth lock of the drop hook: 33 mm
  • Center distance: cylinder <=> crank hole = 92 mm
  • Backset 60 mm
  • With cover to prevent dirt from entering the lock mechanism
  • Compatible with all Euro profile cylinders
  • Cranks and cylinder can be ordered separately
  • Optional: Cover plate for crank hole and cylinder
