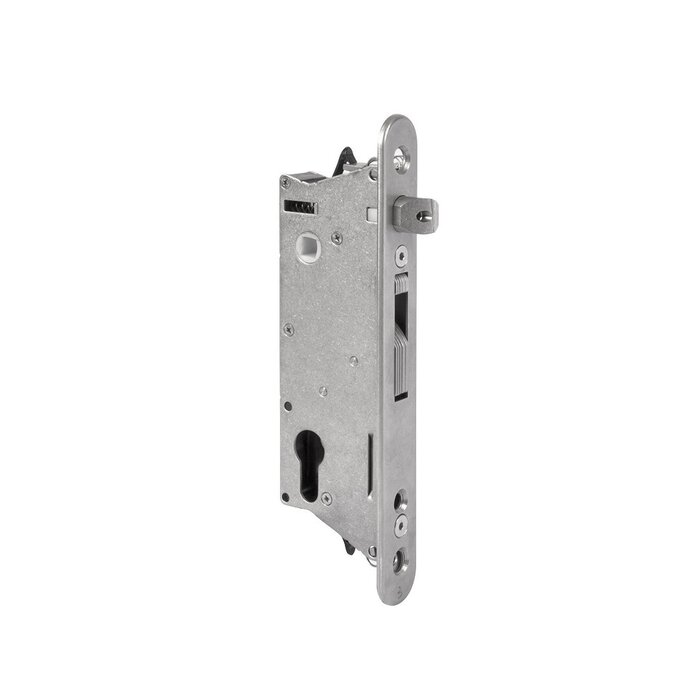

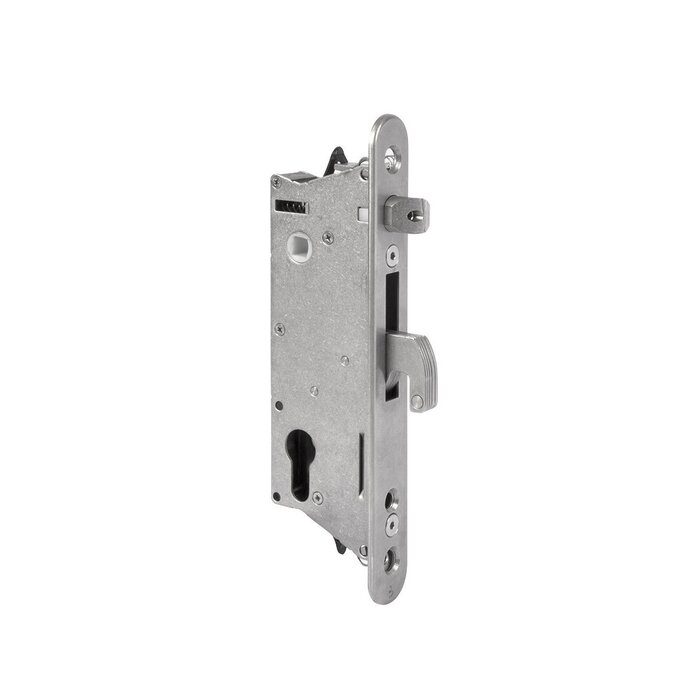

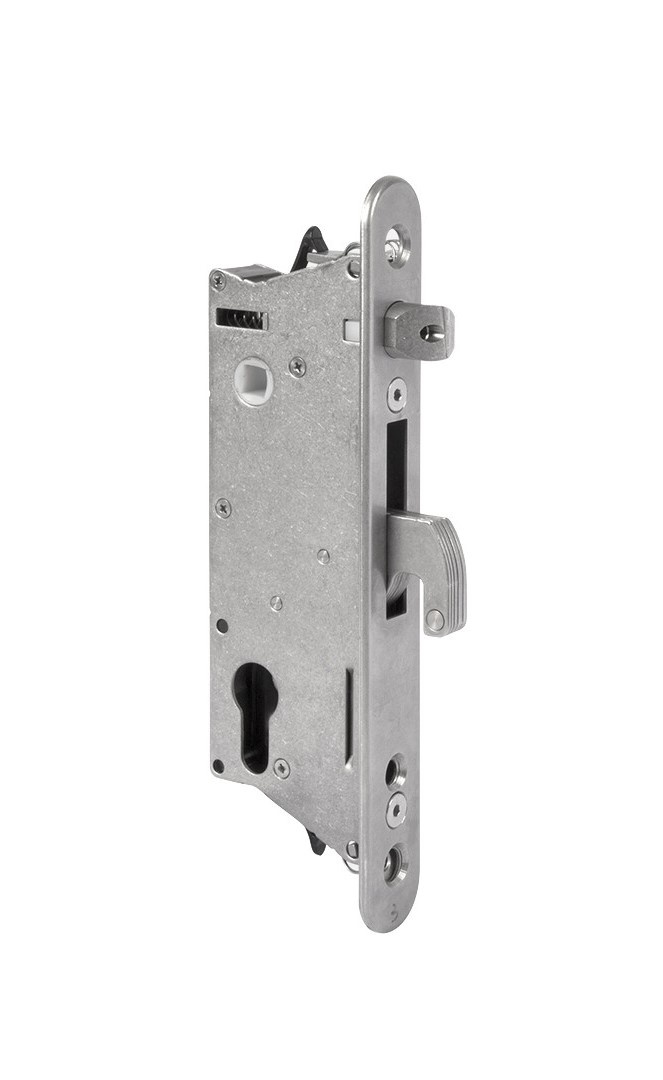

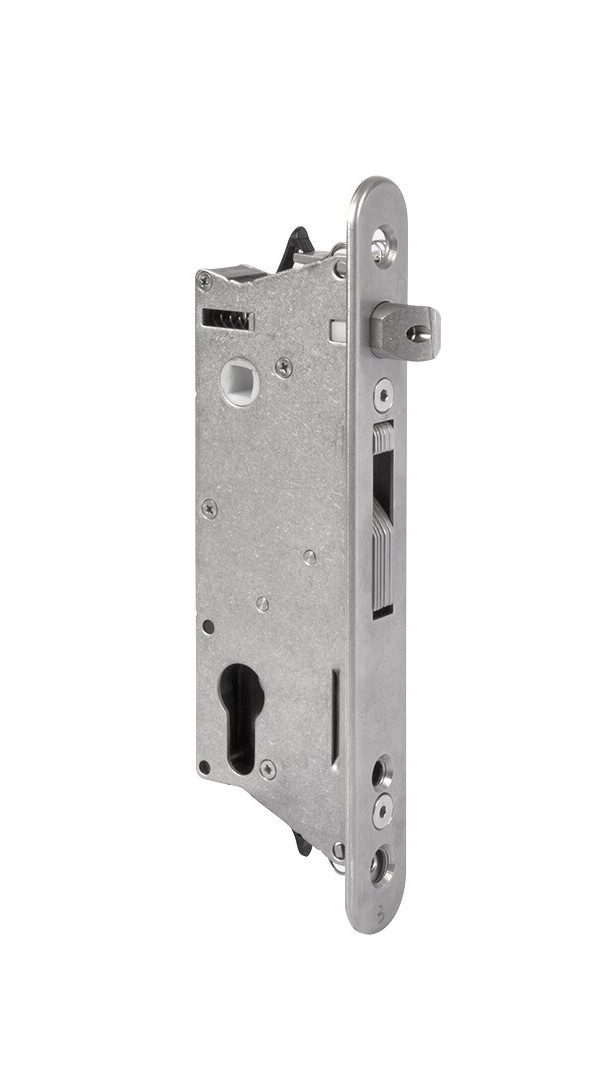

Locinox Mortise lock SIXTYLOCK for profiles from 60 mm - 40 mm mandrel

Discover our high-quality mortise lock with a 100% stainless steel mechanism.

The sturdiness is ensured by the stainless steel drop hook and the adjustable day pin, which together with the correct stop ensure reliable closure so that the gate leaves cannot be pulled apart.

This versatile lock can be effortlessly integrated into metal, aluminium and PVC gates, making it suitable for a variety of applications. Thanks to the clever "Click-It" mounting system, installation is a breeze and takes just seconds.

With a 20mm backset, this lock offers not only excellent performance but also convenience and ease of use. Choose optimum security and comfort with our innovative mortise lock.

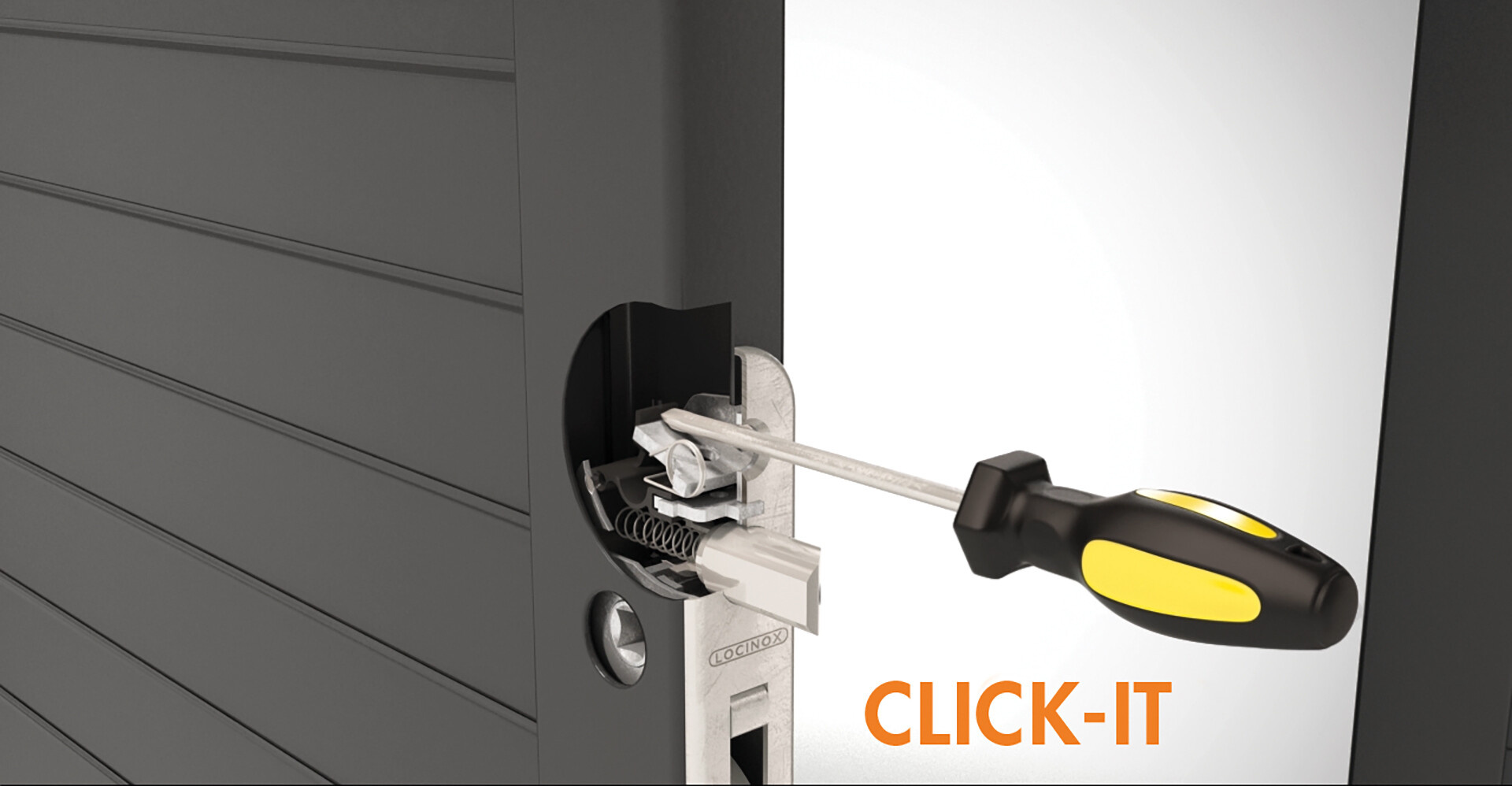

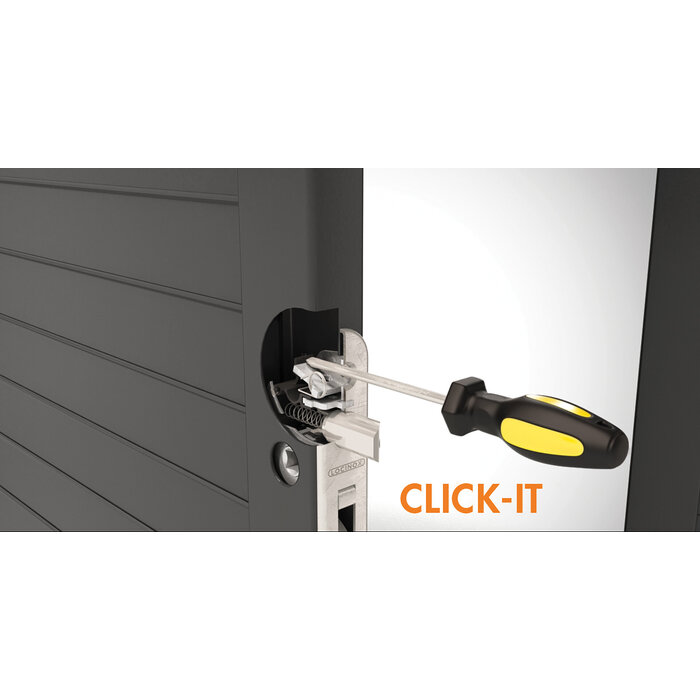

The lock is equipped with the patented "Click-It" mounting system, which means that no wire needs to be pulled into the profile.

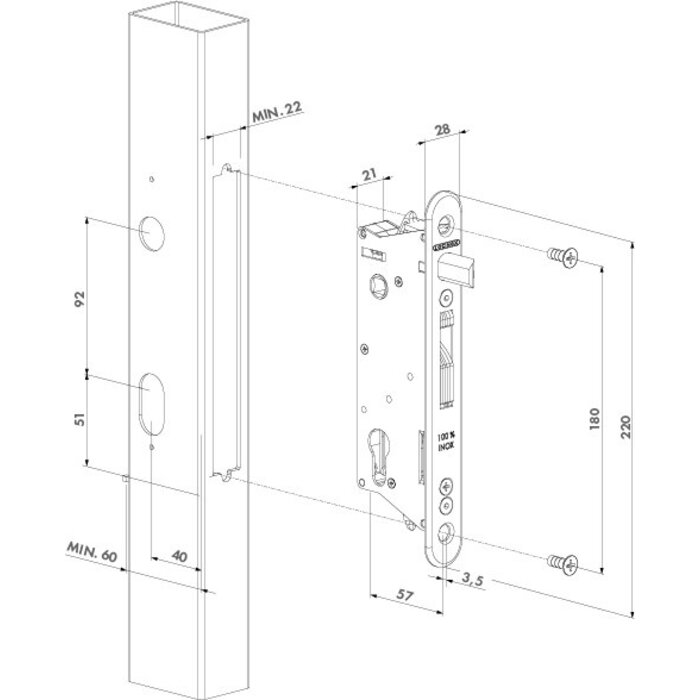

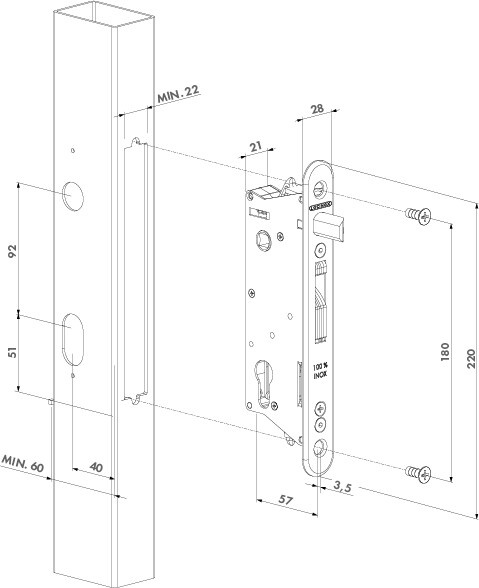

You will find all dimensions on the attached drawing.

Download the manual here.

Read the specific features below:

• Stainless steel chassis with removable front panel, 100% protected against dirt and fine metal residues
• Mechanism, drop hook, front plate and day pin: stainless steel
• Continuous adjustability of the day pin up to 10 mm without disassembling the lock
• Key operation of the day pen
• Mechanism, drop hook, front plate and day pin: stainless steel
• Easy left and right conversion of the day pin
• Depth of lock of the fall hook: 21 mm
• Center distance: cylinder <=> crank bore = 92 mm

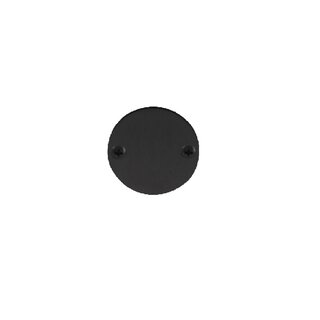

• Optional: cover plate for crank hole and cylinder in aluminium, polyamide or stainless steel
• Crutches can be ordered separately
• Compatible with all Europrofile cylinders.
