Description

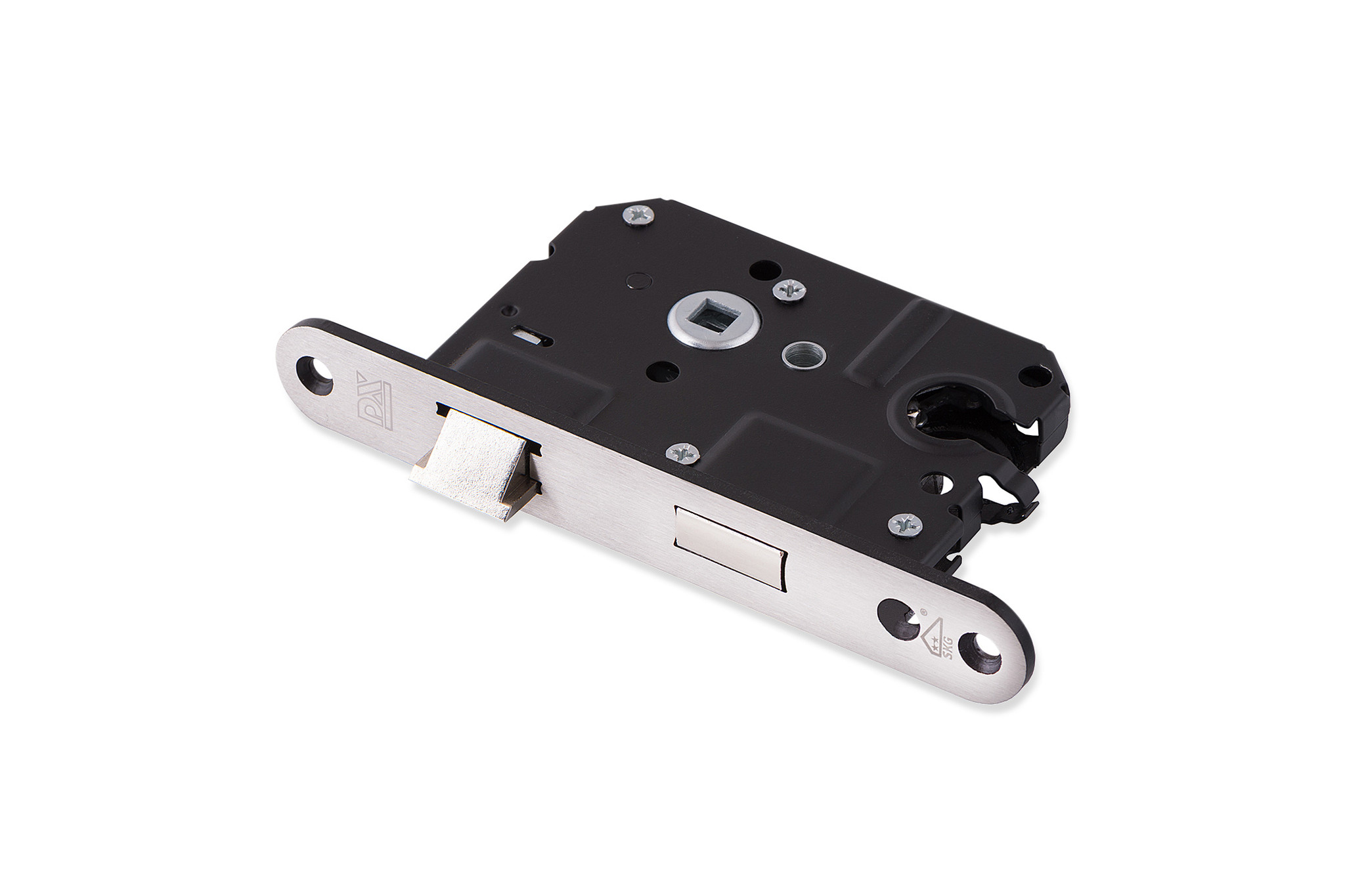

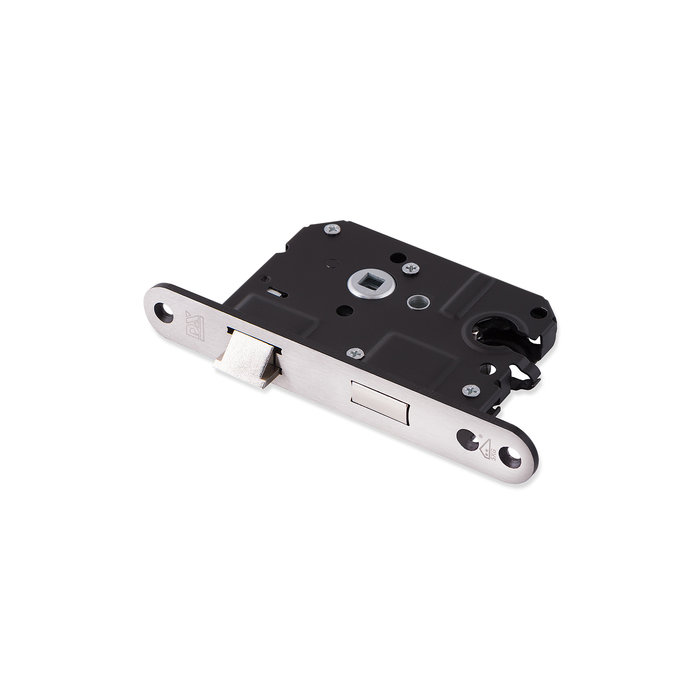

Security mortise lock SKG** approved with safety day and deadbolt lock in round version
Article code: DS0160.295.5050
If you are looking for a master lock for your front or back door, this SKG** approved mortise lock is the perfect sustainable solution.
The dimensions below are fully adapted to the standard router templates for PC 55 mortise locks. It can also be used universally with all EURO profile cylinders.
The brushed front plate provides an aesthetic solution and is available in a straight and rounded version.
Application | exterior doors |
Backset | 50mm |
PC size | 55mm |
Lock case material | Steel painted black |
Front plate material | stainless steel |
Latch bolt material | Zamac nickel plated |
Front plate dimensions | 174x25x4 mm |
Direction of rotation | latch bolt reversible |
Number of turns | 1 round |
Assembly instruction | included |
Standardization | SKG**® |
Model faceplate | round |
Lockout | Cylinder (not included) SKG ® |
