Description

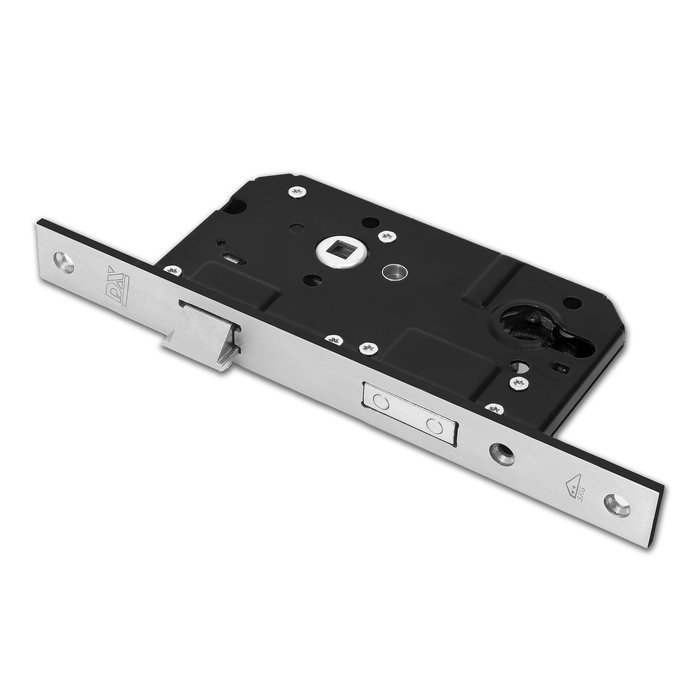

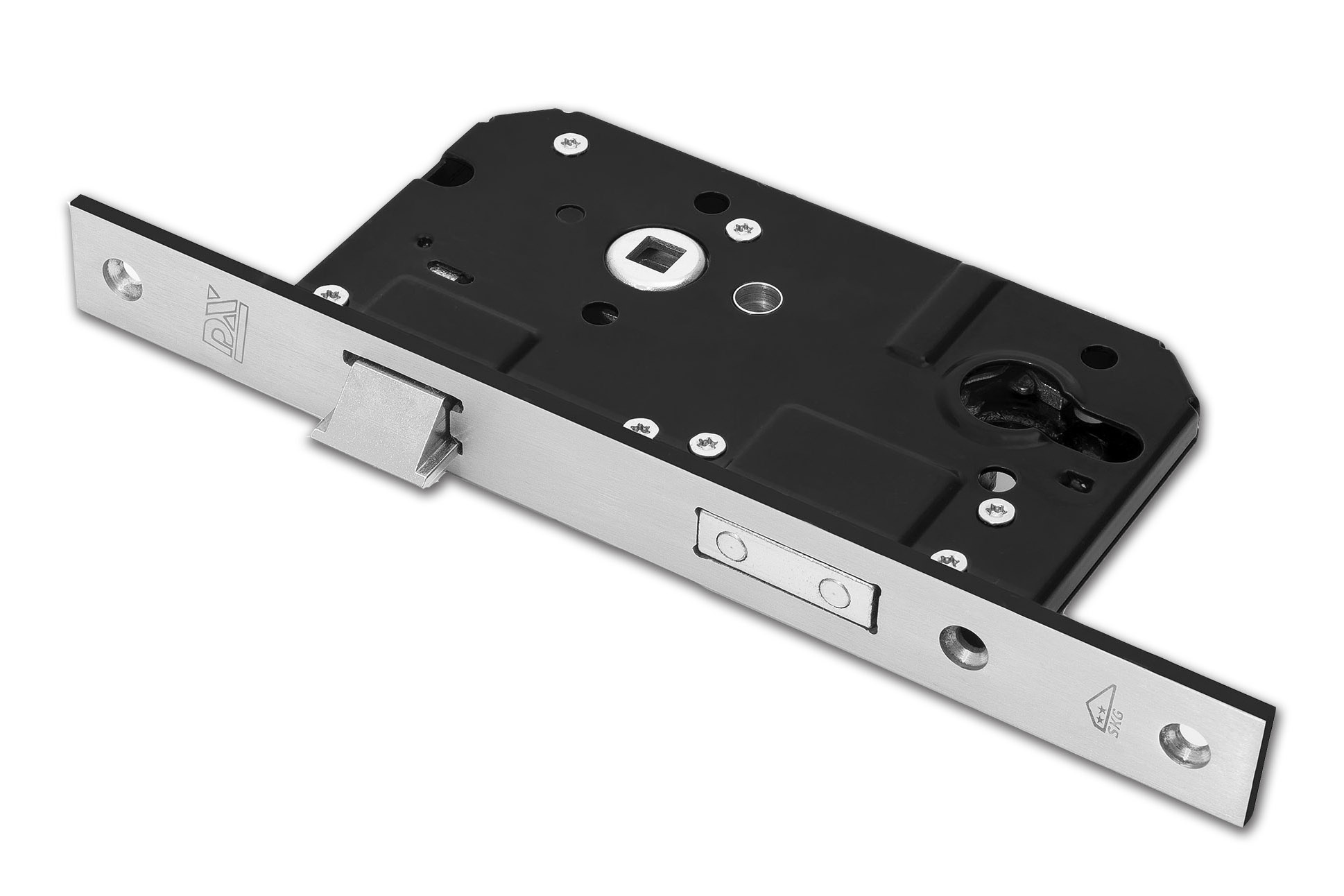

Security mortise lock SKG** approved with safety day and deadbolt lock in a straight version
Article code: DS0160.295.7000
If you are looking for a master lock for your front or back door, this SKG** approved mortise lock is the perfect sustainable solution.

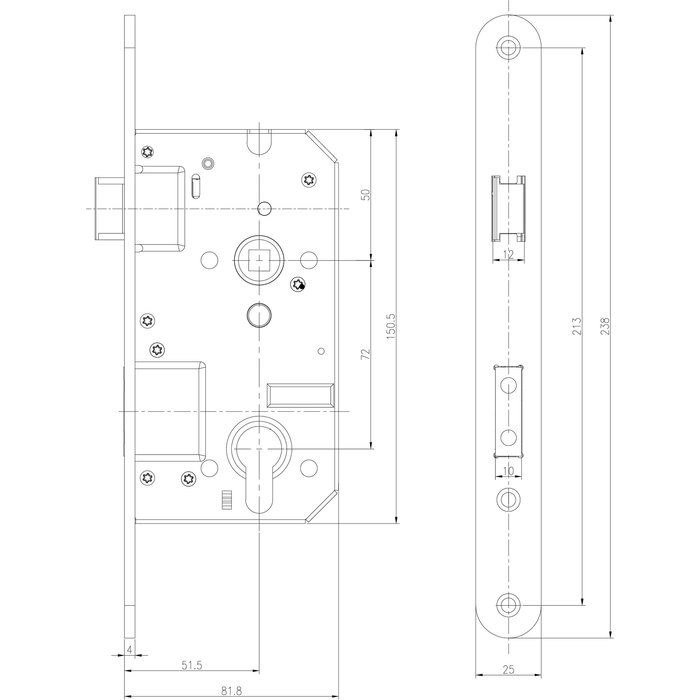

The dimensions below are fully adapted to the standard router templates for PC 72 mortise locks. It can also be used universally with all EURO profile cylinders. The deadbolt is additionally equipped with 2 steel pins.
The brushed front plate provides an aesthetic solution and is available in a straight and rounded version.
Application | Exterior doors |
Backset | 50mm |
PC size | 72mm |
Lock case material | Steel painted black |
Front plate material | stainless steel |
Latch bolt material | Zamak nickel plated |
Deadbolt material | Zamak nickel plated with 2 steel pins |
Front plate dimensions | 238x25x4 mm |
Direction of rotation | latch bolt reversible |
Number of turns | 1 round |
Assembly instruction | included |
Standardization | SKG**® |
Model faceplate | round |
Lock | Cylinder (not included) SKG ® |
