Description

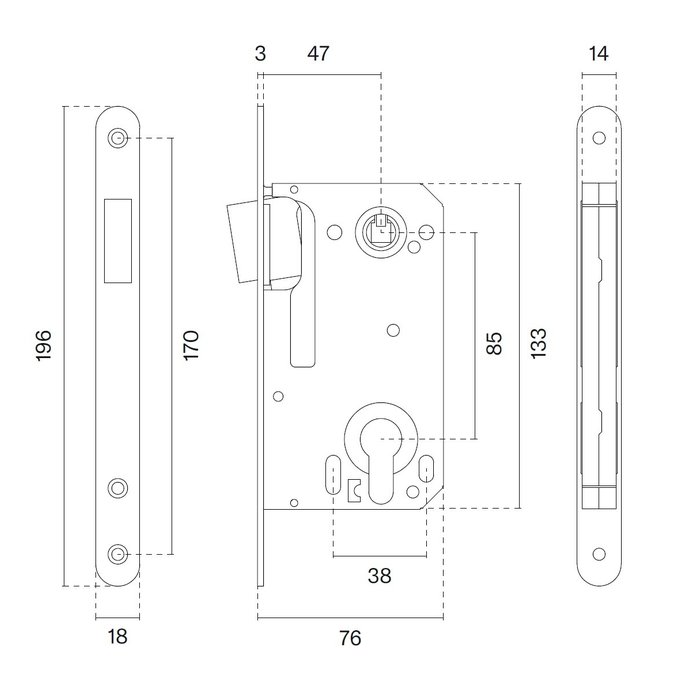

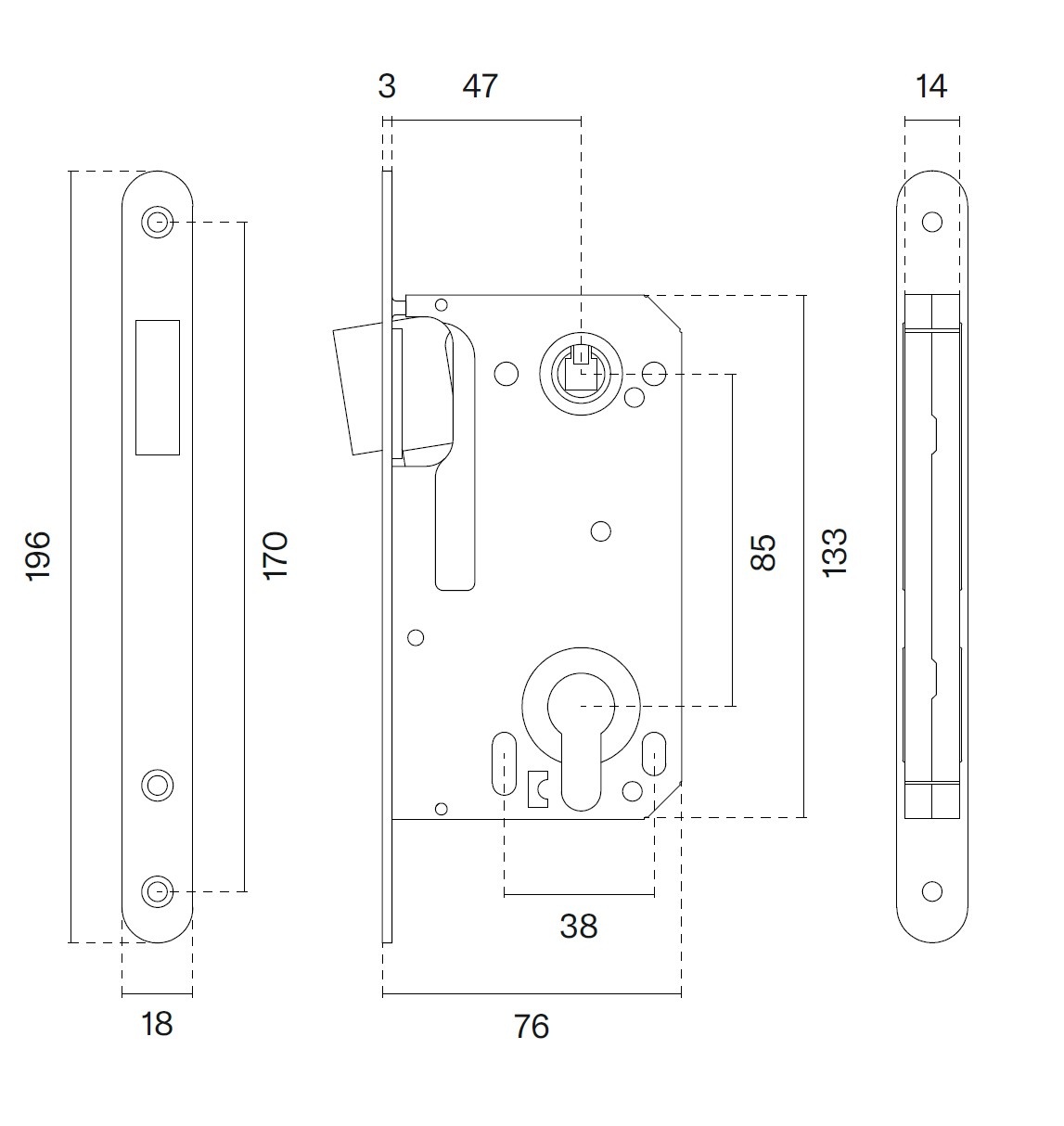

Magnetic lock 2868 with cylinder hole shaft size 85 mm - rounded front plate 196x18 mm - brushed Nickel
Article code: 3W ZAM 36 2868 PZ

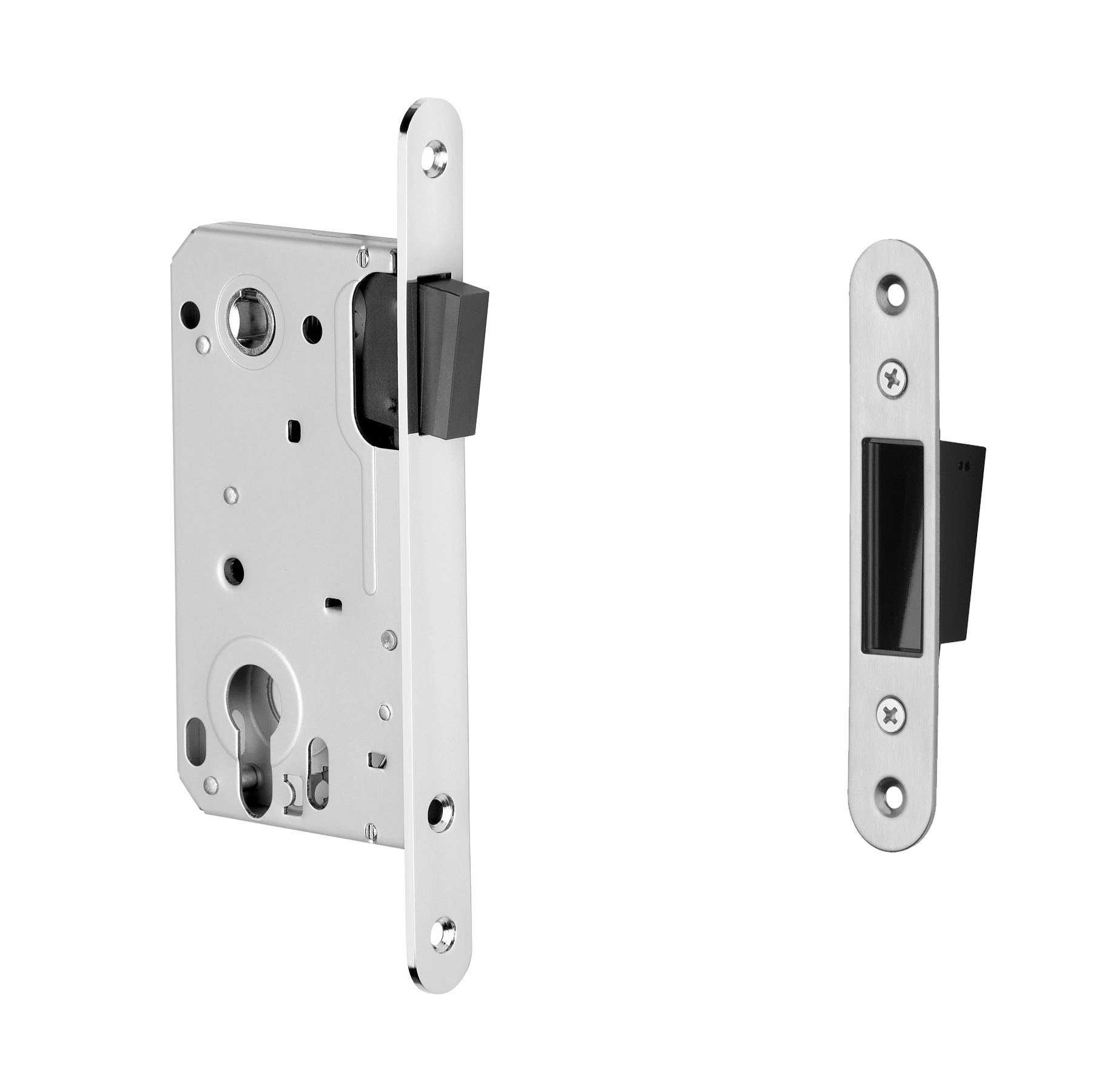

This magnetic cylinder lock in brushed Nickel has a rounded front plate of 196x18mm. Due to its brushed appearance, this magnetic lock has the appearance of stainless steel.
The magnetic locks have a cylinder hole with an axle size of 85mm and a backset of 50mm.
This magnetic lock is supplied per piece including mounting material but without strike plate .

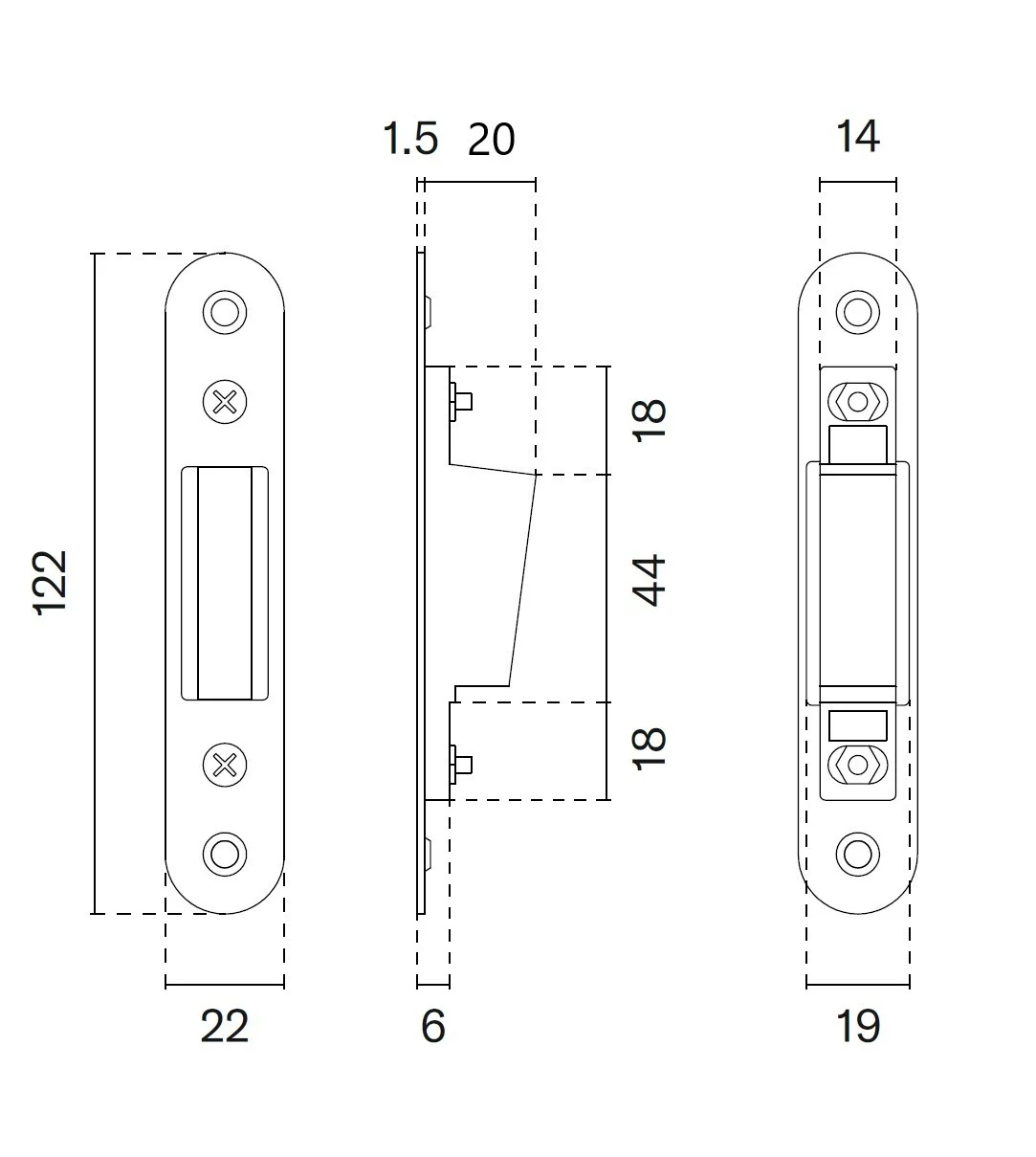

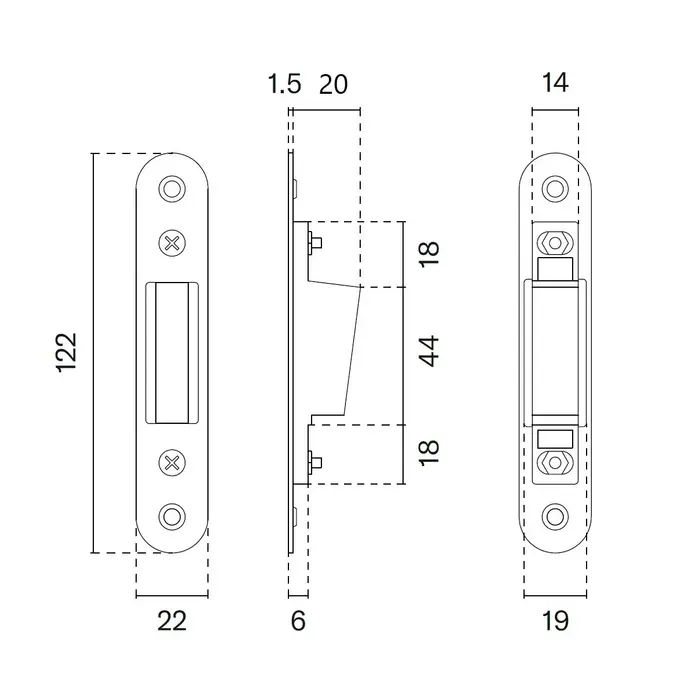

To complete the magnetic lock, you must purchase the 'strike plate model 2870' separately in the desired color (see below under Matching products).
unit: | per piece (without closing plate) |
colour: | brushed nickel |
performance: | cylinder hole |
front plate dimensions: | 196x18mm |
axle size: | 85mm |
backset: | 50mm |
crank hole opening | 8x8mm |
fasteners: | included |
