Description

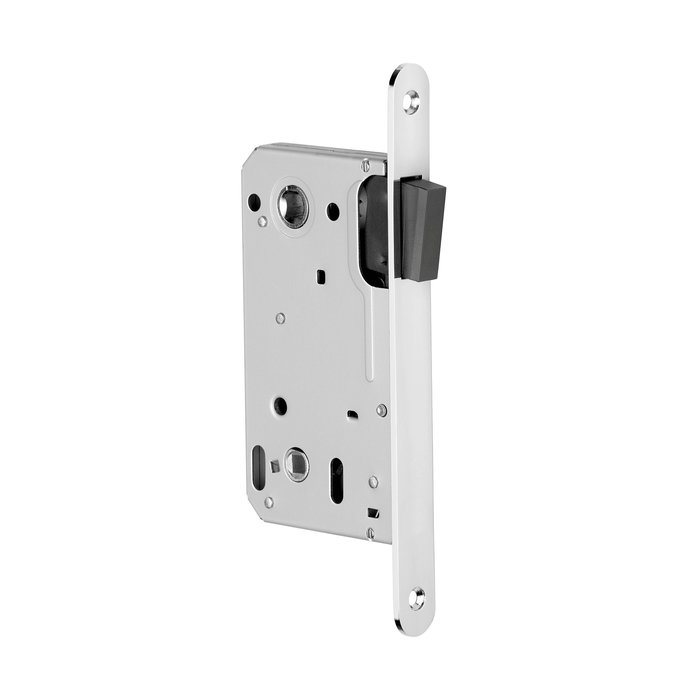

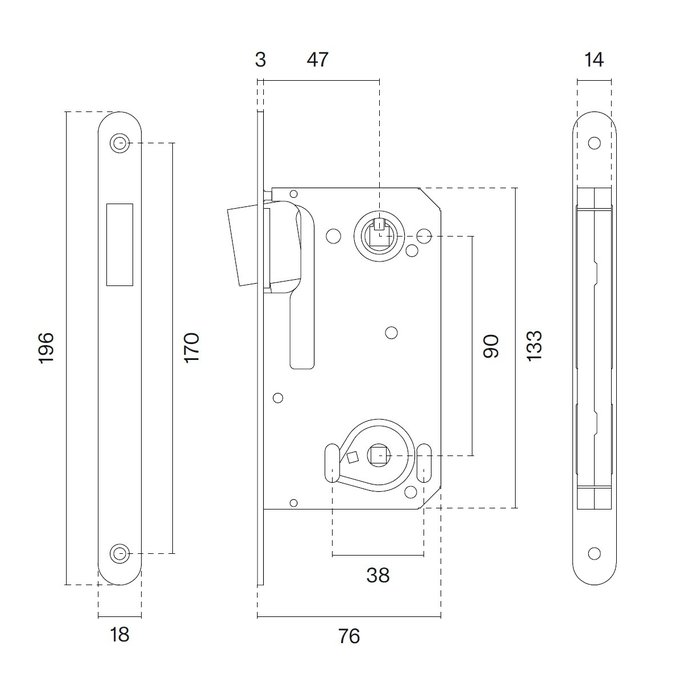

Magnetic lock 2869 WC - shaft size 90 mm - rounded front plate196x18mm - brushed Nickel
Article code: 3W ZAM 36 2869 WC
This brushed Nickel magnetic lock has a rounded front plate of 196x18mm. Due to its brushed appearance, this magnetic lock has the appearance of stainless steel.
The magnetic lock has a second square hole 6x6 mm for a toilet set. The axle size is 90 mm and the backset 50 mm.
This magnetic lock with rounded front plate is supplied per piece including mounting material but without strike plate .

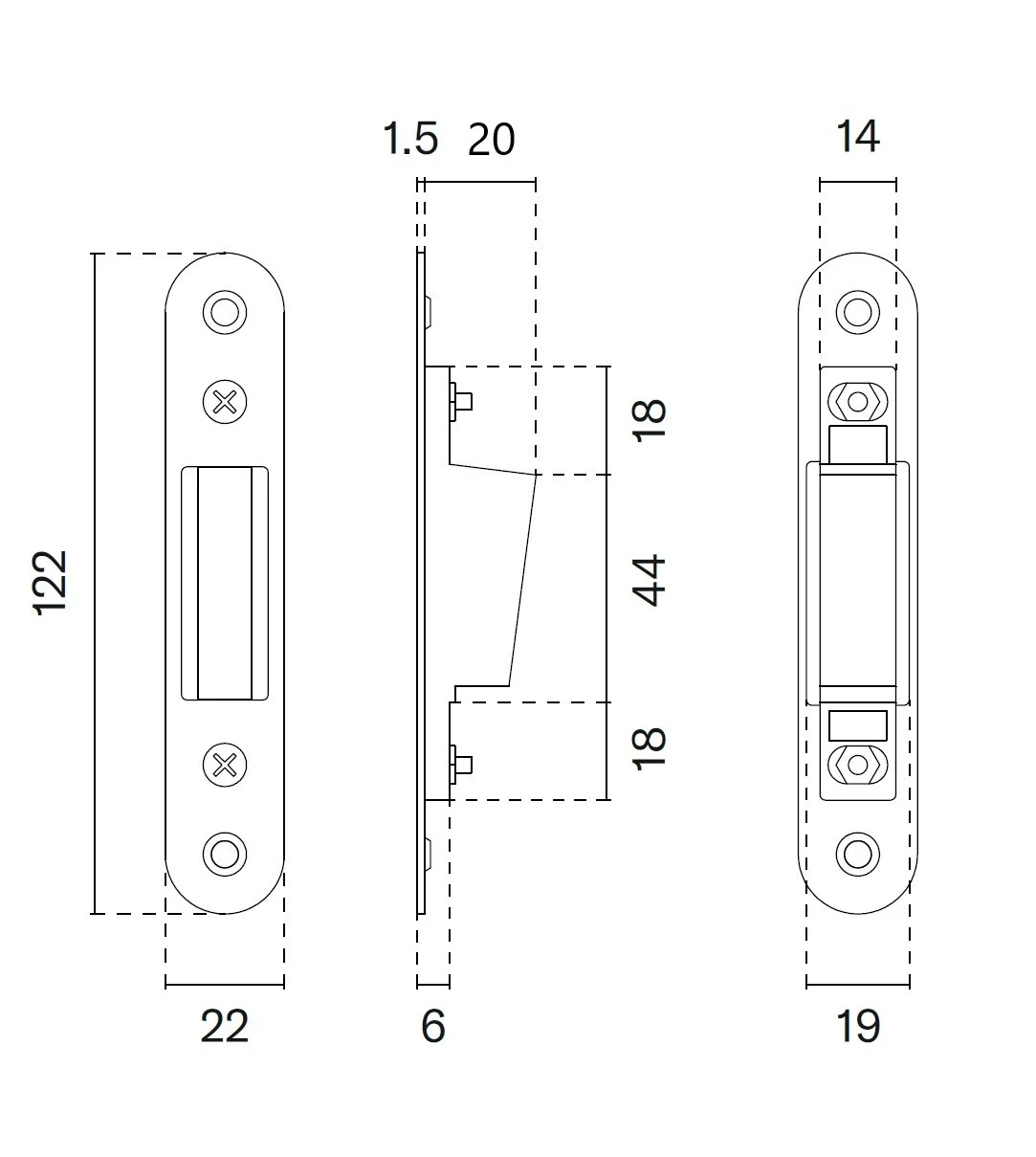

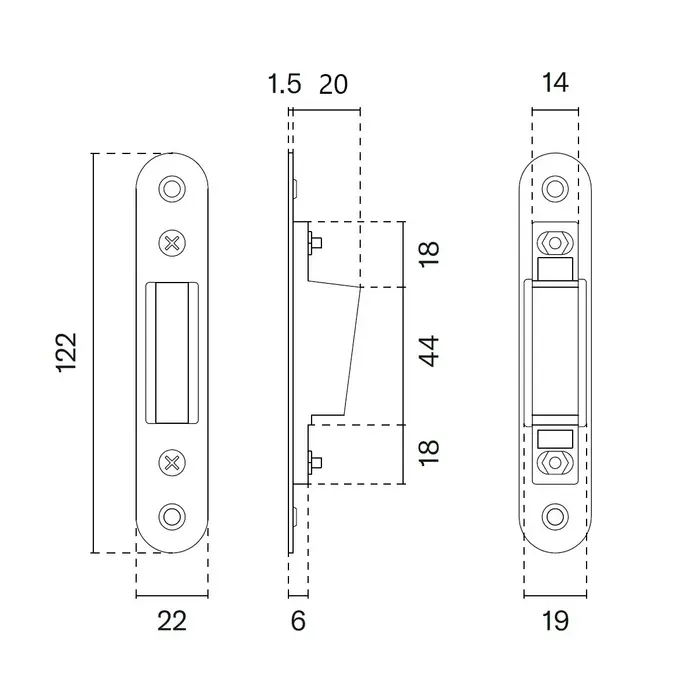

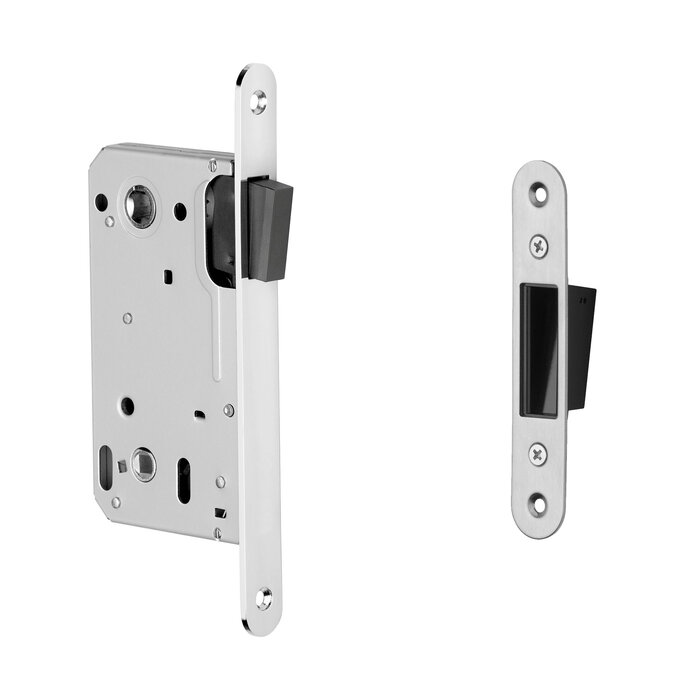

To complete the magnetic lock, you must purchase the 'strike plate model 2870' separately in the desired color (see below under Matching products).
unit: | per piece (without closing plate) |
colour: | brushed nickel |
performance: | hole for toilet |
front plate dimensions: | 196x18mm |
axle size: | 90mm |
backset: | 50mm |
crank hole opening | 8x8mm |
opening hole toilet fitting | 6x6mm |
fasteners: | included |
