Description

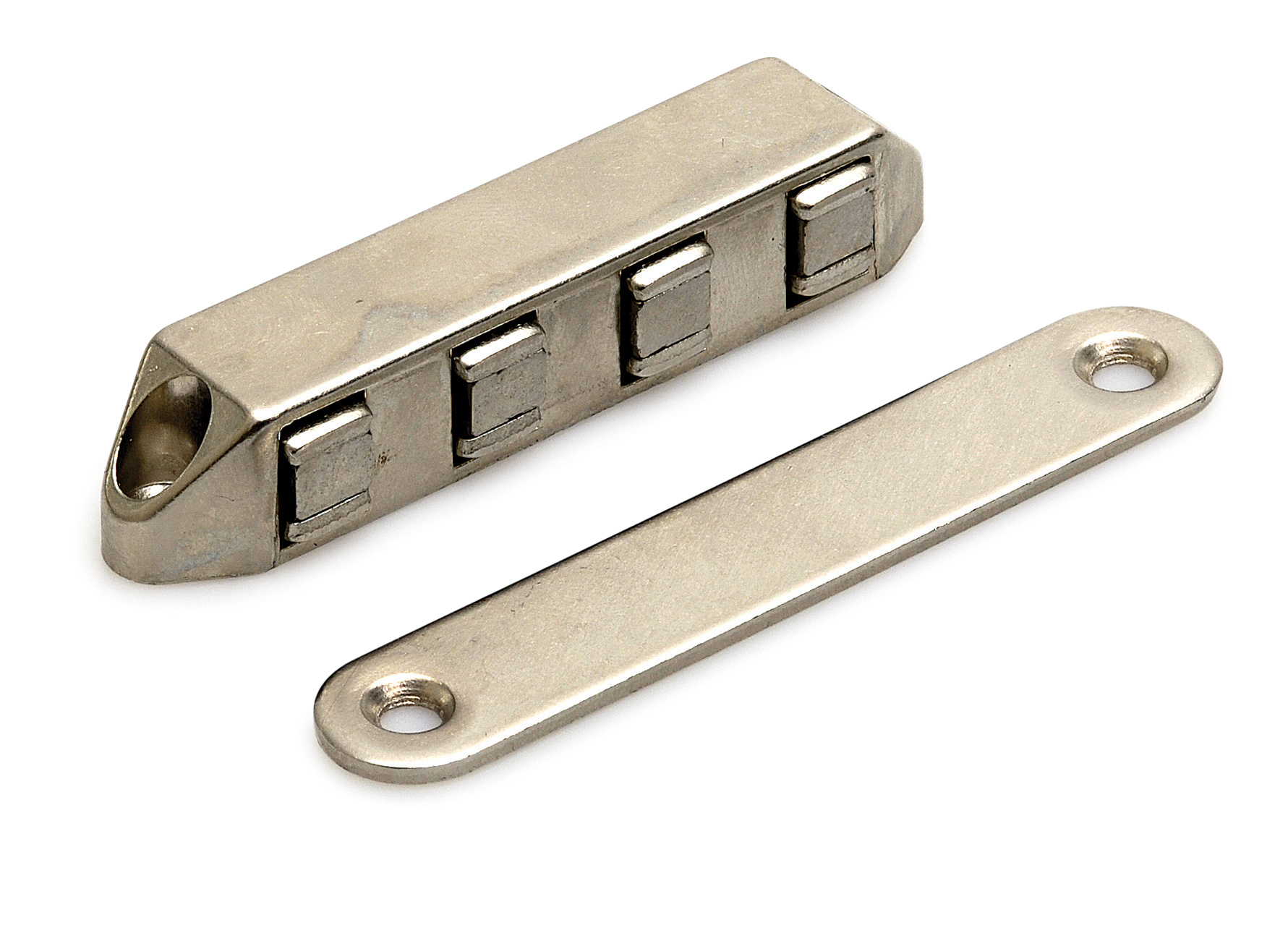

Magnetic snapper super polar 12 kg nickel-plated surface-mounted type 5203E
Article code: DS0414.800.1200
A magnetic snapper can easily hold your door. It opens very easily by pressing it. In this way the design of your kitchen remains very sleek.
This nickel-plated magnetic snapper is supplied per piece, excluding mounting materials .
Material | Zamac |
Finish | nickel plated |
Counter plate material | Metal |
Confirmation | screwing up |
magnetic force | 12 kg |

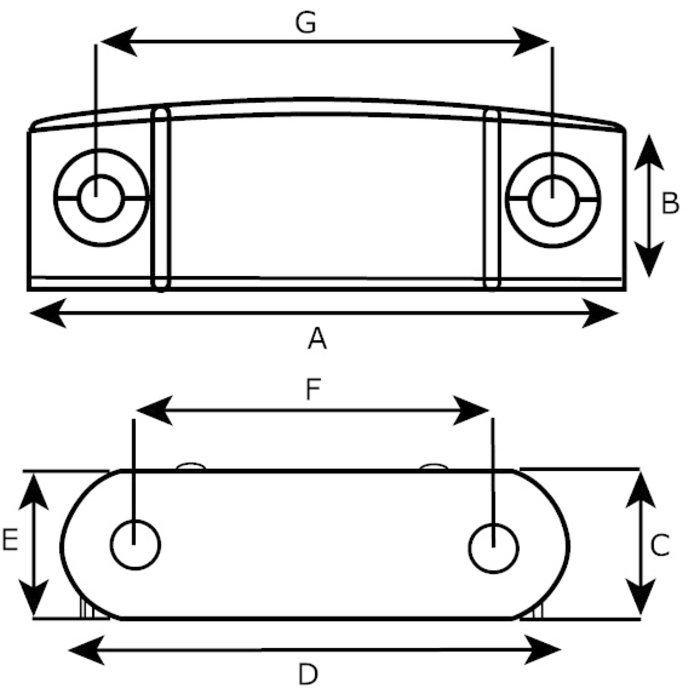

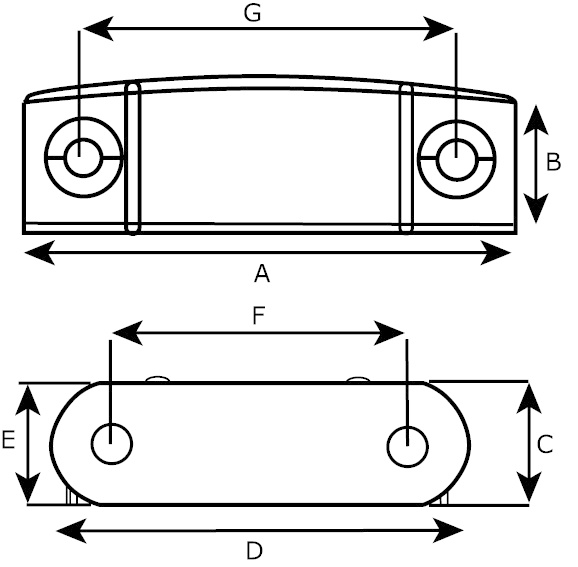

A (mm) |
86 |
B (mm) |
16 |
C (mm) |
15 |
D (mm) |
92 |
E (mm) |
16 |
F (mm) |
74 |
G (mm) |
74 |
