Description
Invisible confirmation
Article code: 0180-0050-00

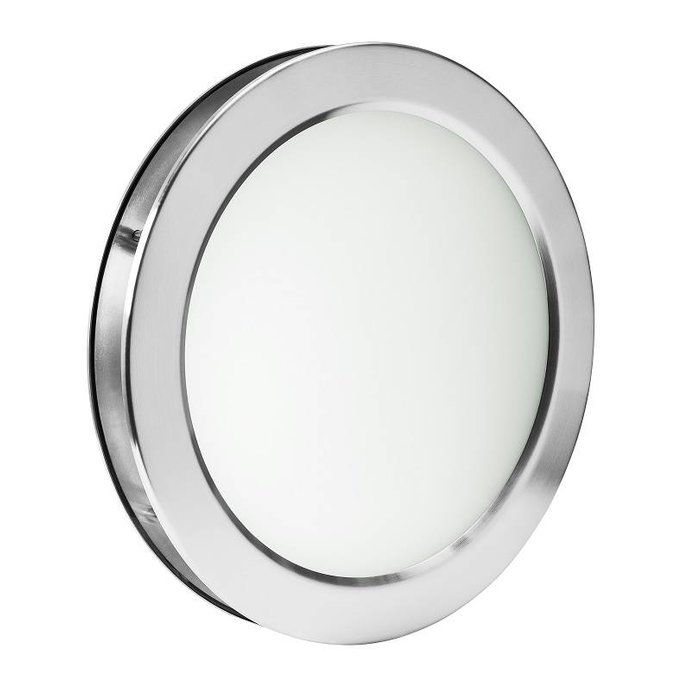

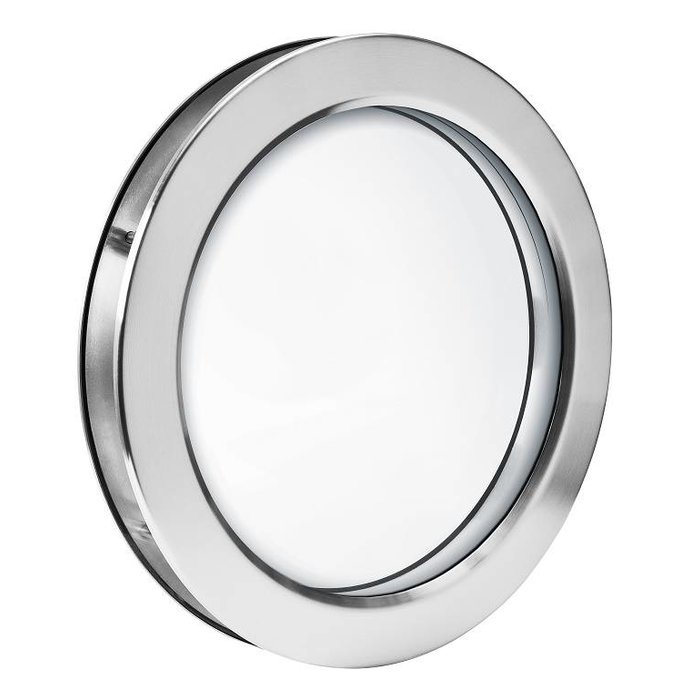

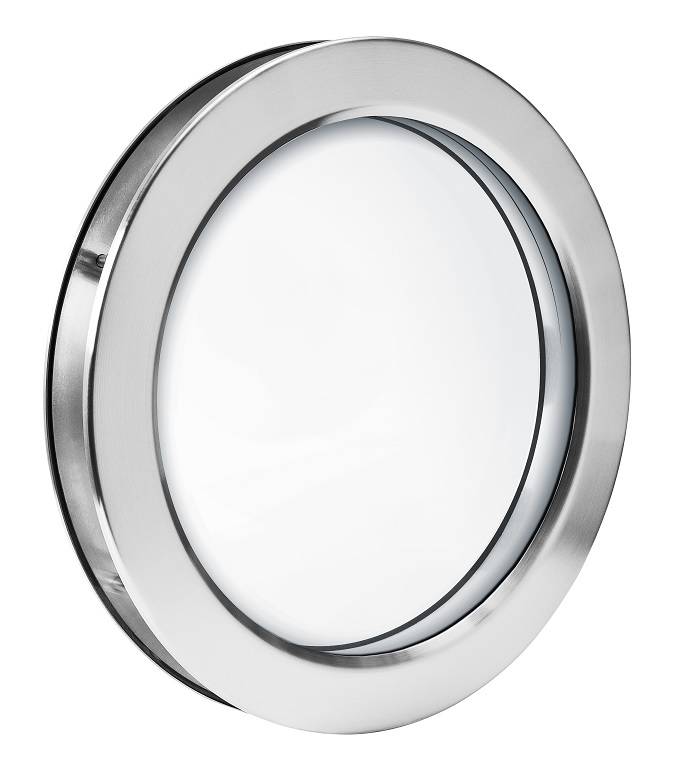

These portholes are suitable for indoors and outdoors.
Because these portlights are equipped with laminated safety glass on both sides, there is less trouble with condensation.
These portlights have the following features:
- professional quality
- VSG laminated transparent safety glass of 4 mm on both sides
- 2 rings in brushed stainless steel (EN 1.4016 – AISI 430)
- suitable for door thicknesses of 35-45 mm

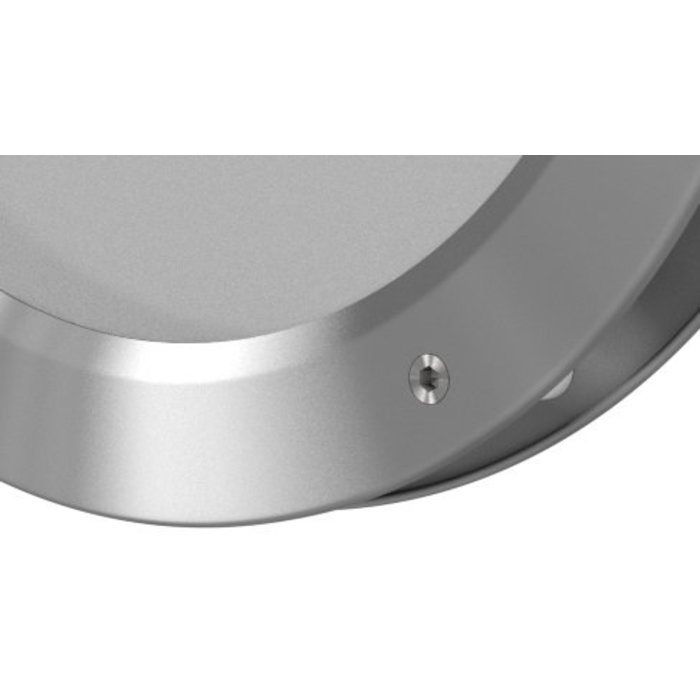

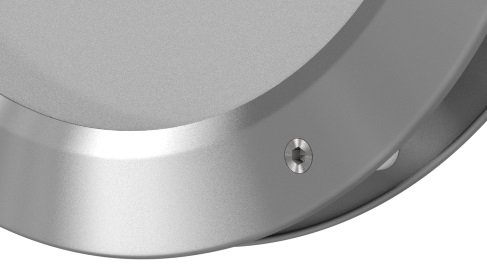

- invisible mounting

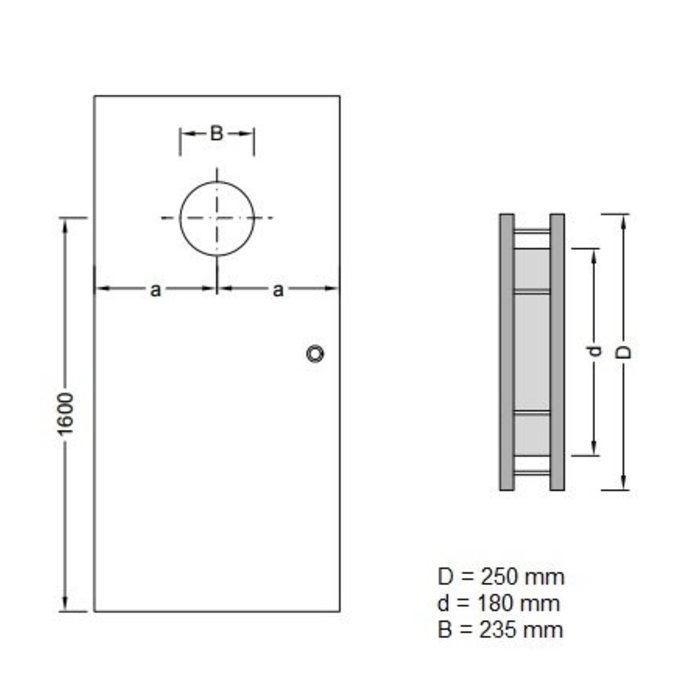

The outside size of this porthole is 250 mm, the inside size of the rings is 180 mm.
The diameter of the opening that must be provided in the door is 235 mm.
This porthole is supplied as a complete set (for 1 door) .
These models must be glued or cemented, sleeves are also provided so that the 2 parts slide together.
The 2 laminated glasses are already attached to the portholes, which makes installation easier.

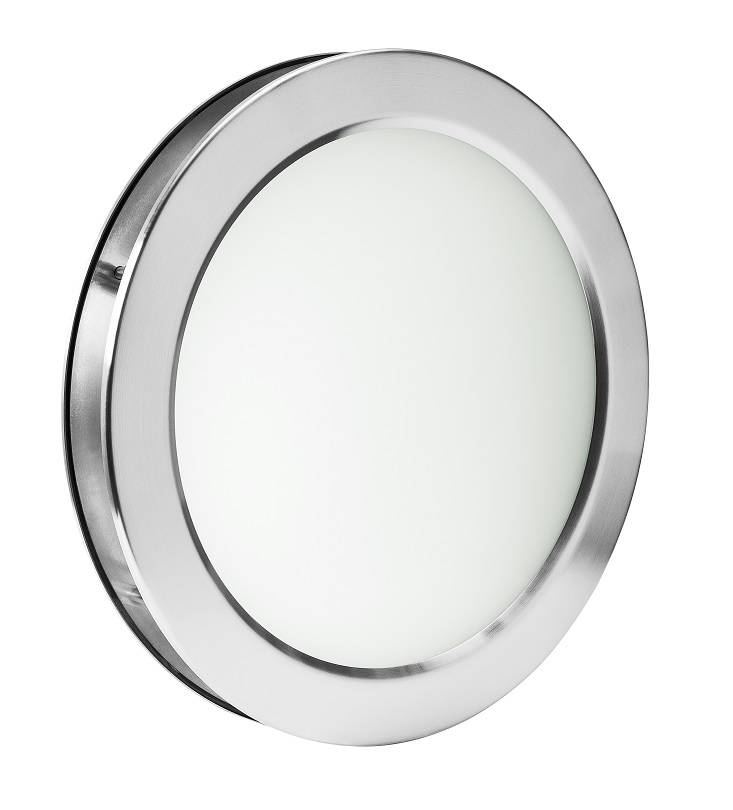

Above you can choose between frosted or transparent glass.
