Description

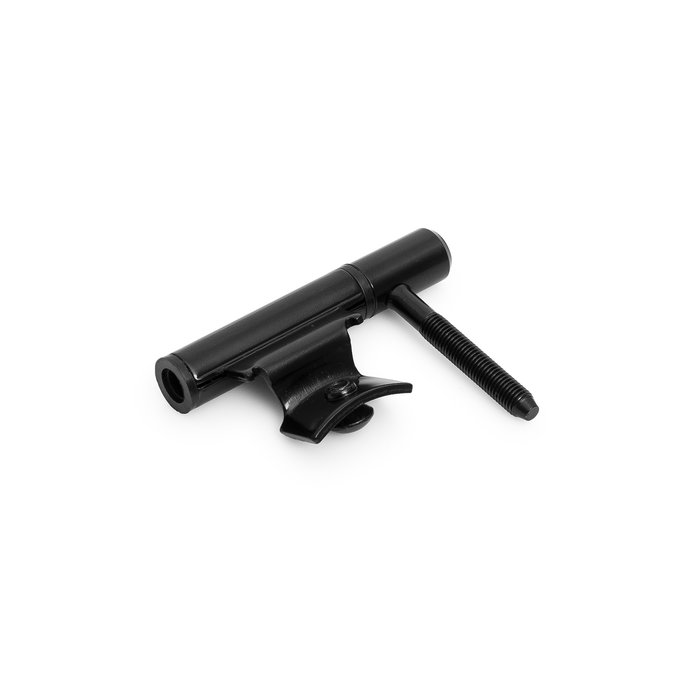

Black painted steel drill hinge for brick-in frame with nylon ring
Article code: DS6001.480.5443

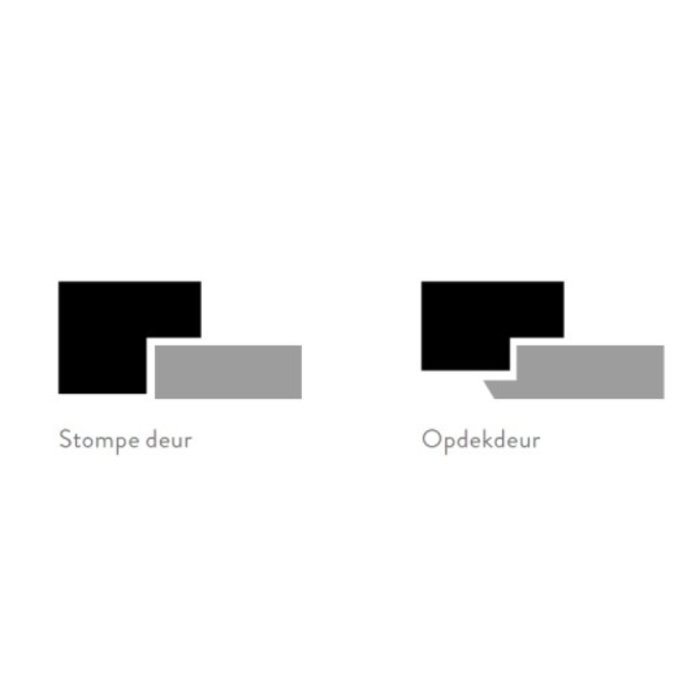

Built-in hinges are for hanging rebated doors. A rebated door falls on the frame, while a blunt door falls into the frame (see images).
This model is specially designed for hanging rebated doors in steel Theuma Solid (formerly Polynorm Z) in masonry frames or to replace existing Z hinges.
The hinges can be used on rebated doors that open to the left or to the right that are used indoors.
This hinge is provided with a black nylon ring, which ensures a long-lasting and silent operation.
This hinge is supplied per piece excluding mounting material .
Material | Steel |
Finish | Black lacquered |
Type of frame | Steel masonry frame |
Application | for rebated doors |

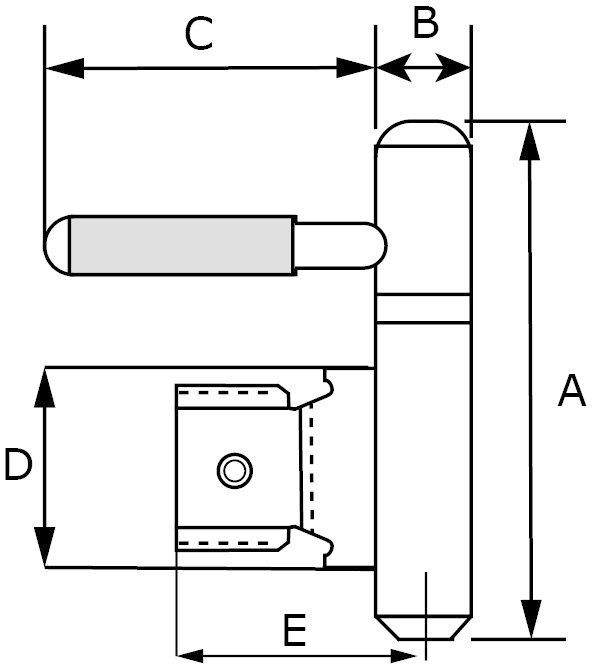

A (mm) |
78 |
B (mm) |
14 |
C (mm) |
50 |
D (mm) |
34 |
E (mm) |
33 |
Carrying capacity per piece | 20 KG |
