Description
Hinge 110 x 70 x 3.0 mm galvanized steel with straight angles available in 2 versions: DIN right - Belgian left or DIN left - Belgian right
Article code: DS6810.115.1170
French or hamburger hinges are suitable for several wooden doors indoors. Think for example of a wooden cabinet door of a classic piece of furniture.
The installation of this hinge is easy because the two parts can be attached separately. A big advantage of this hinge is that the door can be easily lifted in and out of the frame.
In the scroll menu at the top right, select a DIN left hinge (Belgian right) or a DIN right hinge (Belgian left)

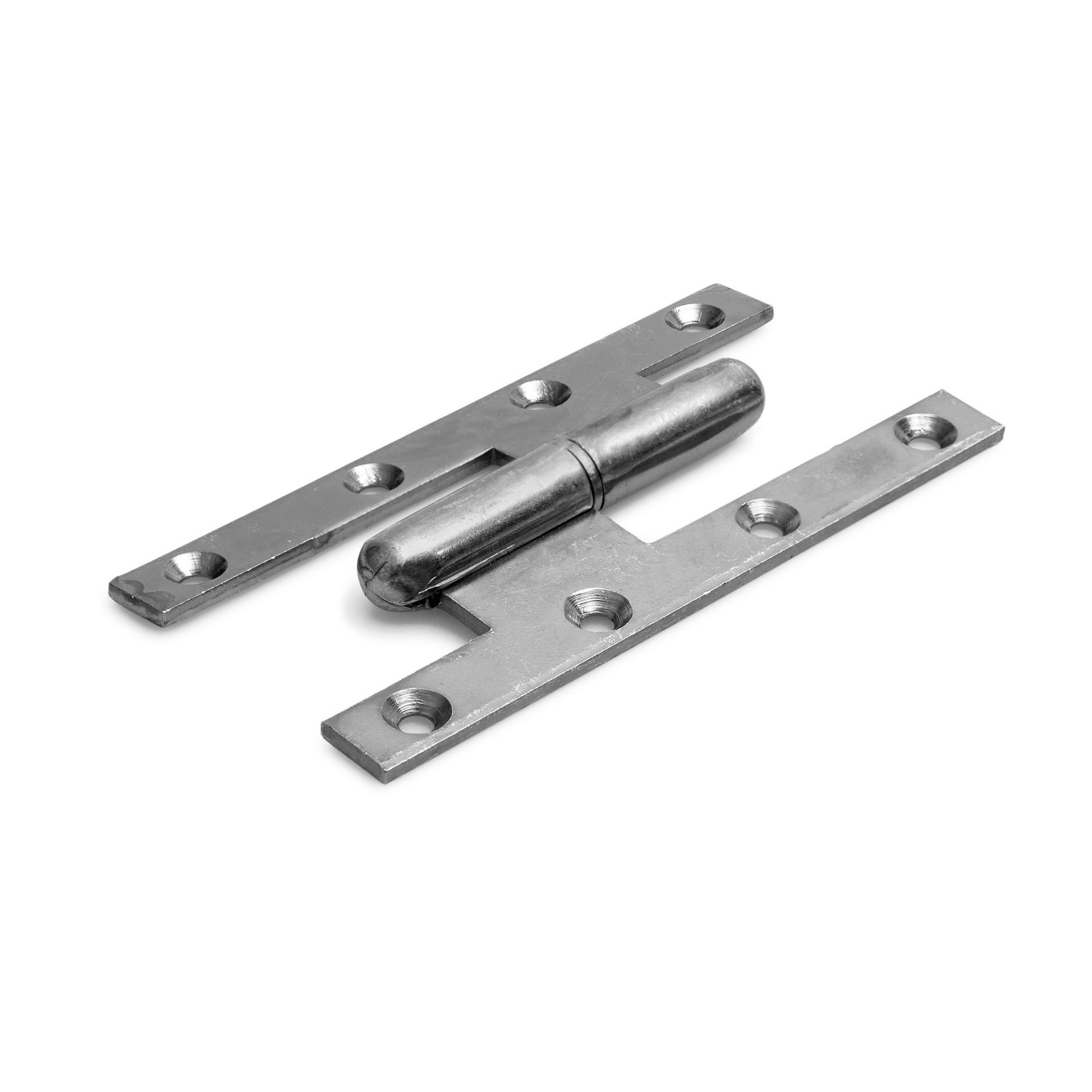

The image is of a DIN left - Belgian right hinge

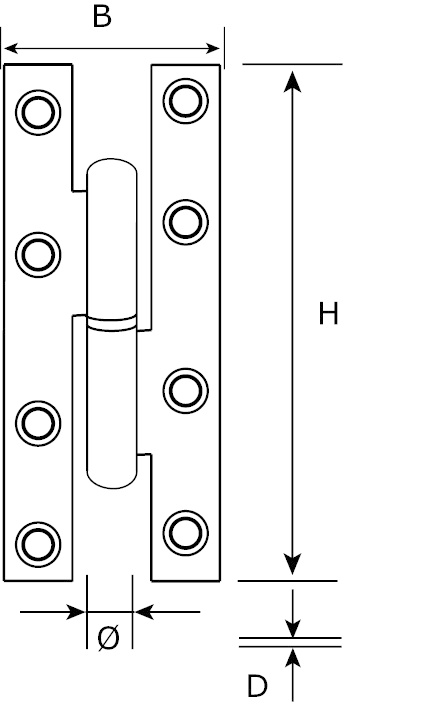

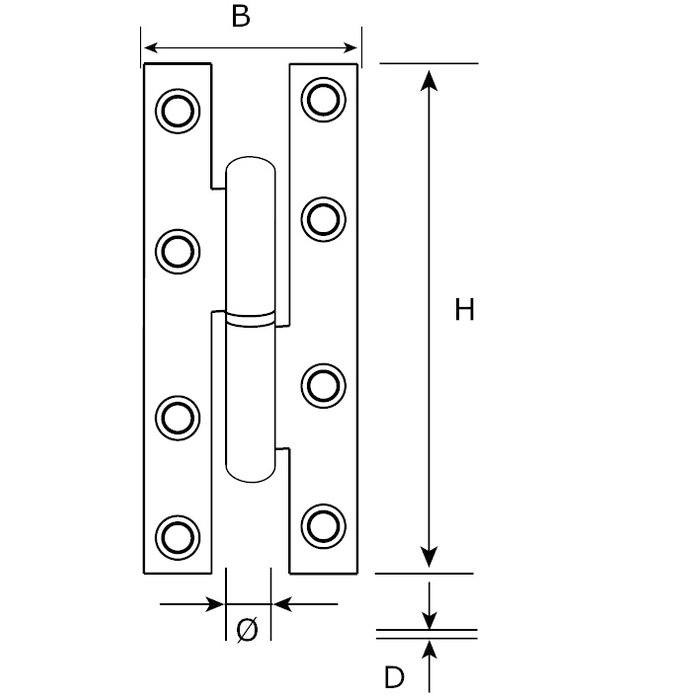

NOTE: Belgium uses a different direction of rotation than the DIN standard. Therefore, order only using the enclosed drawing. This way you will always receive the correct hinges.
Material | Steel |
Finish | Bright galvanized |
Finishing corner | Right angles |
Application | For various purposes |
H (mm) |
110 |
B (mm) |
70 |
D (mm) |
3.0 |
Direction of rotation | see selection menu |
Ø (mm) |
14 |
Mounting material | Not included |
This hinge is supplied per piece, excluding mounting material .
