Description
Intersteel Plain bearing hinge 89 x 89 x 3 mm DIN right/left brushed stainless steel
Article code: 0035.462566

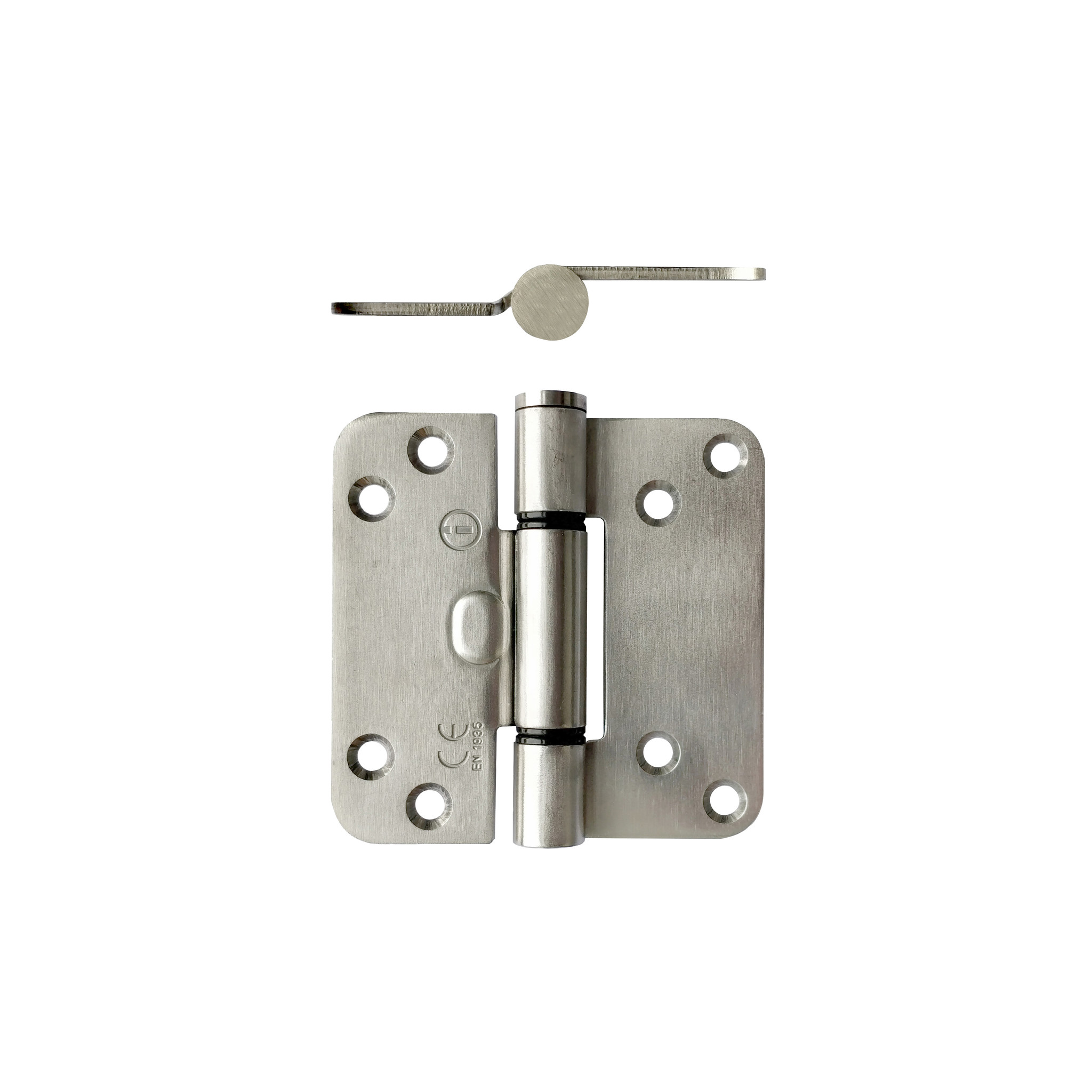

This plain bearing hinge is made of stainless steel and has been brushed afterwards, giving it a matt appearance.
The hinge has rounded corners and a button through. This means that the knot (the pivot point of the hinge) is placed off center, so that the knot in the frame is not required to be crimped in.

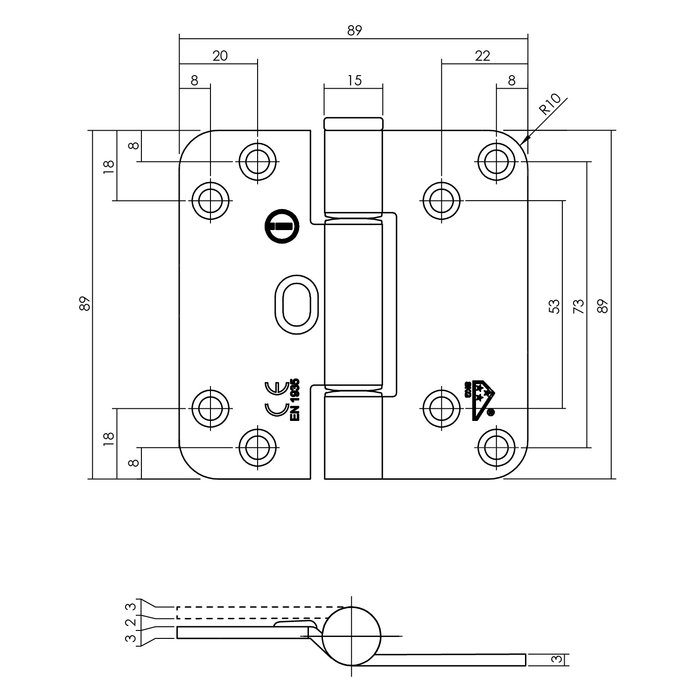

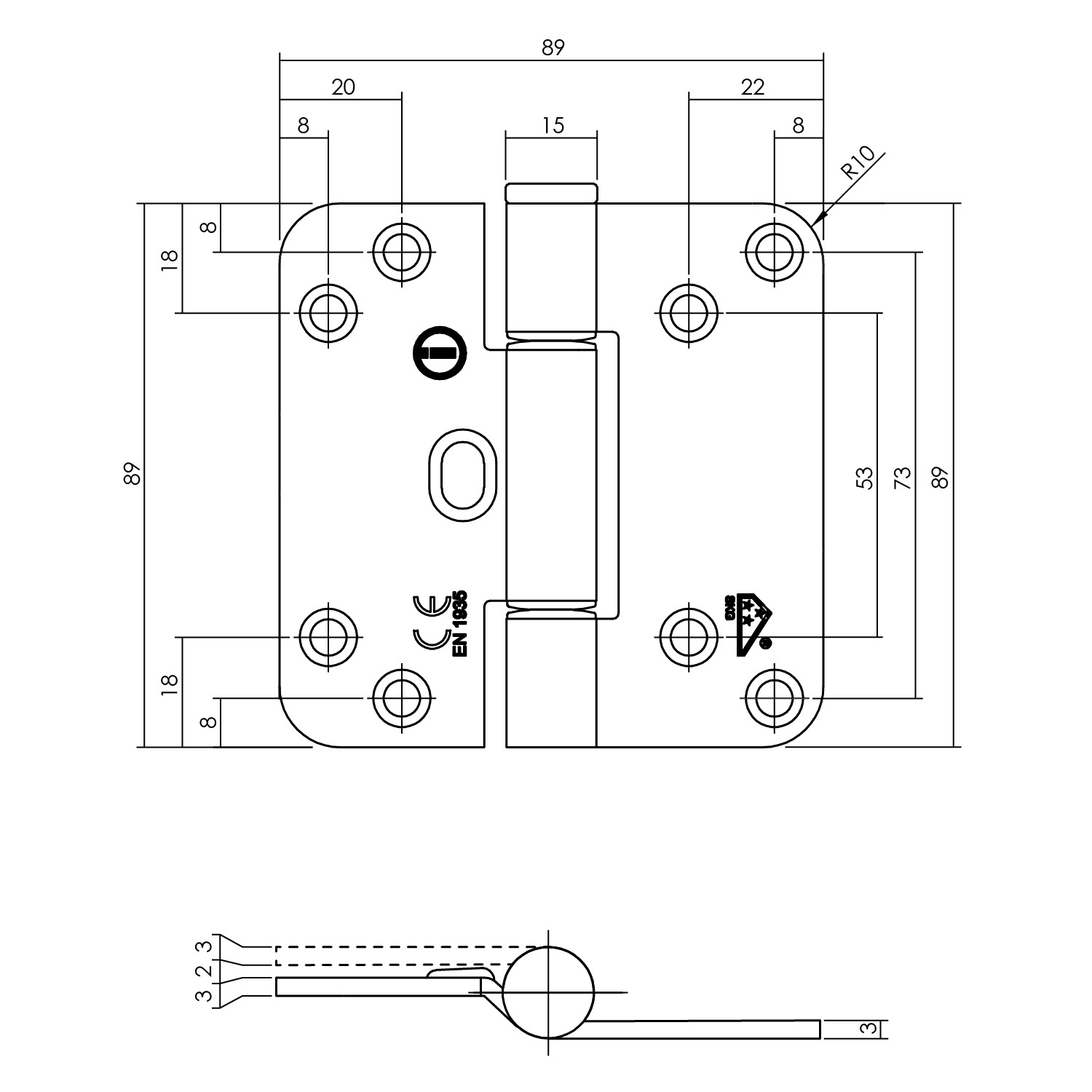

In addition, the plain bearing hinge is maintenance-free, due to the self-lubricating properties of the plastic plain bearing. It can be used on both right-hand and left-hand doors, because you can remove the pin. The plain bearing hinge is 89 mm high, 89 mm wide when unfolded and has 3 mm thick blades.
The hinge has a CE mark and is certified according to the European Norm EN1935:2002+AC:2003 and falls into hinge class 13 and user class 4.
These stainless steel plain bearing hinges are suitable for both left and right-hand doors.
This hinge is supplied per piece excluding mounting material.
