Description

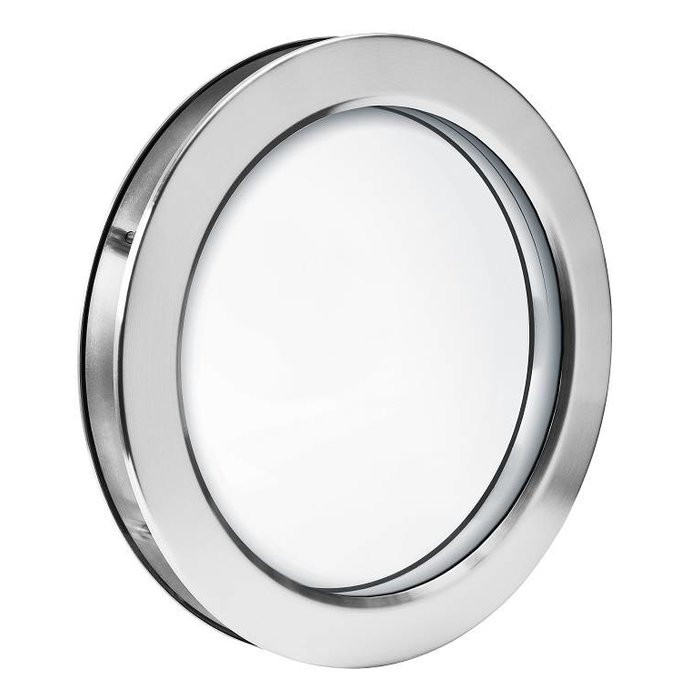

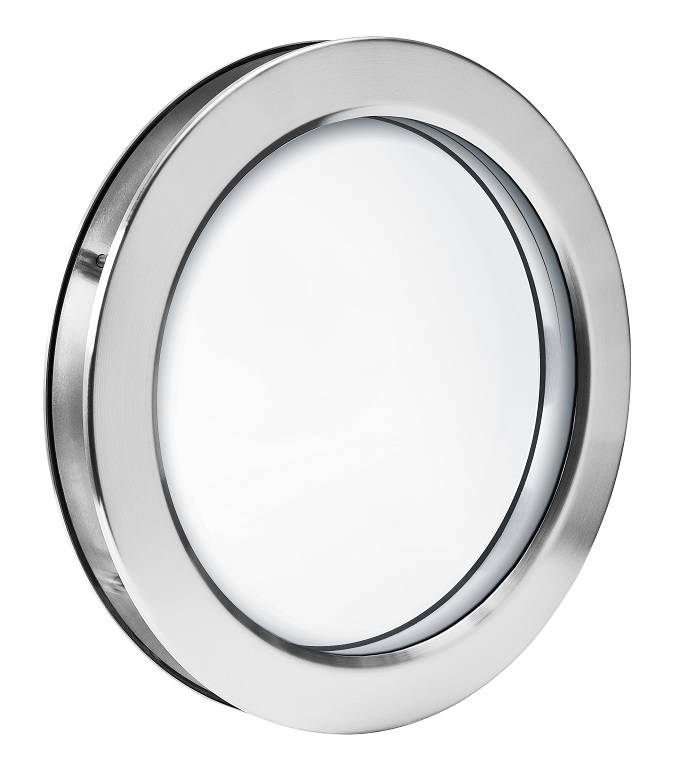

Stainless steel porthole B2000 300 mm + double transparent safety glass, invisible mounting
Article code: 0180-0051-00
These portlights are suitable for indoors and outdoors and are mounted without screws.
Because these portlights are equipped with laminated safety glass on both sides, there is less trouble with condensation.
These portlights have the following features:
- professional quality
- VSG laminated transparent safety glass of 4 mm on both sides
- 2 rings in brushed stainless steel (EN 1.4016 – AISI 430)
- suitable for door thicknesses of 35-45 mm

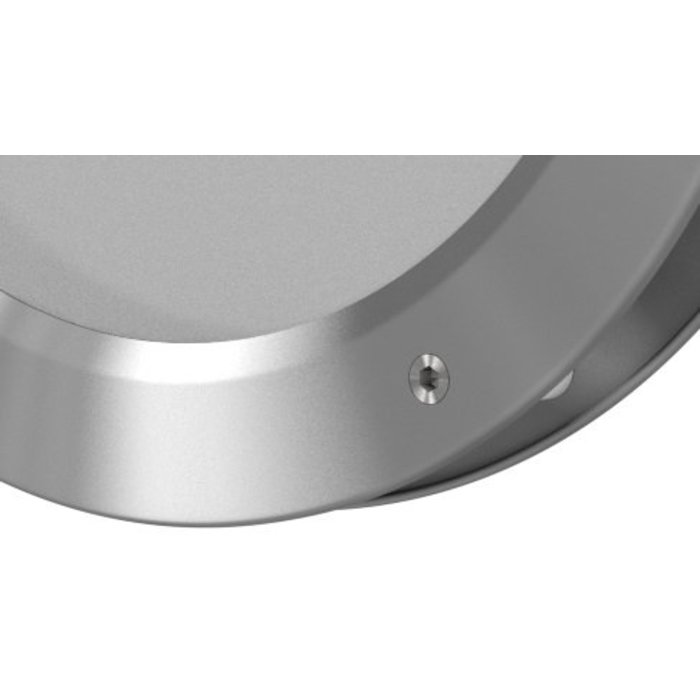

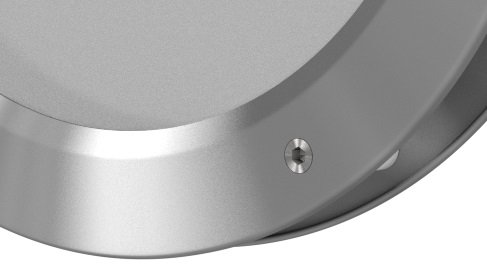

- invisible mounting

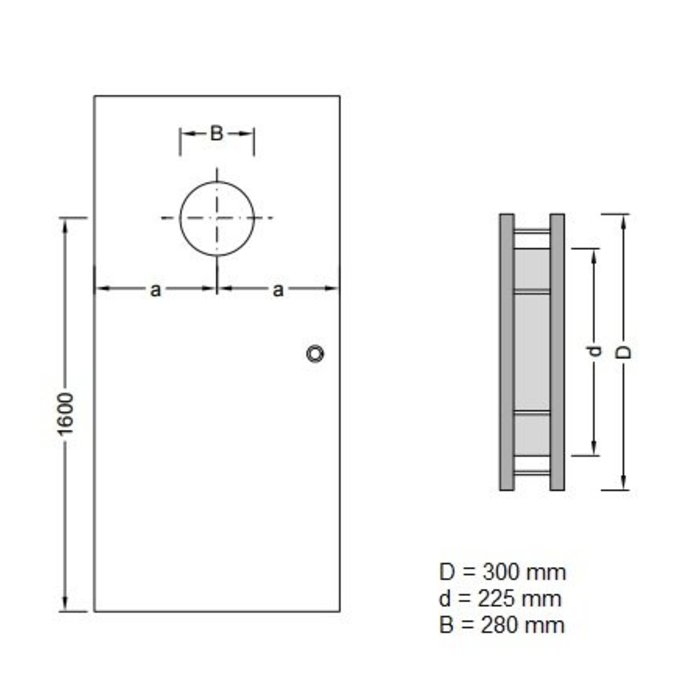

The outside size of this porthole is 300 mm, the inside size of the rings is 225 mm.
The diameter of the opening that must be provided in the door is 280 mm.
This porthole is supplied as a complete set (for 1 door).
These models are glued together, sleeves are also provided so that the 2 parts slide together.
The 2 laminated glasses are already attached to the portholes, which makes installation easier.

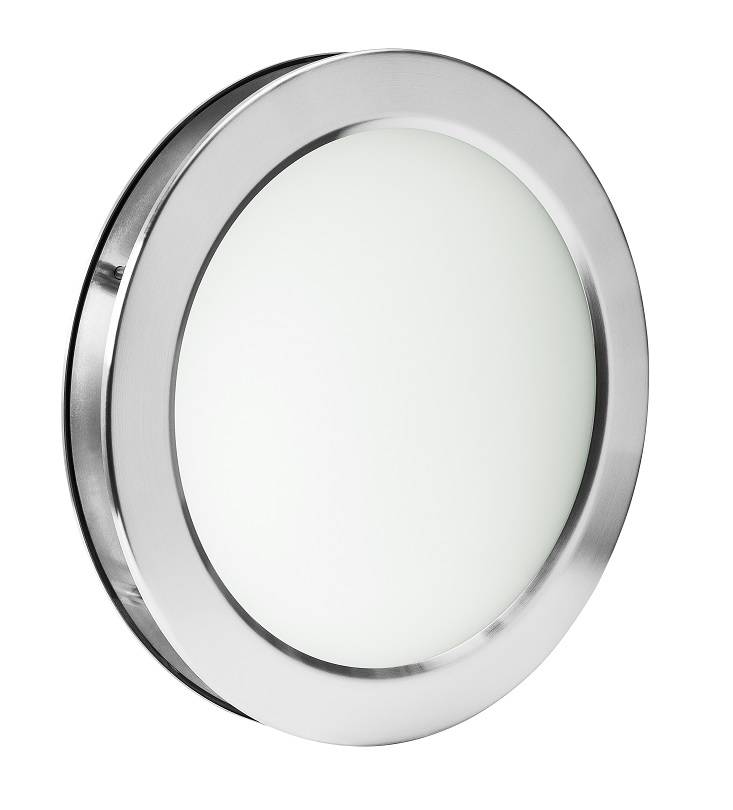

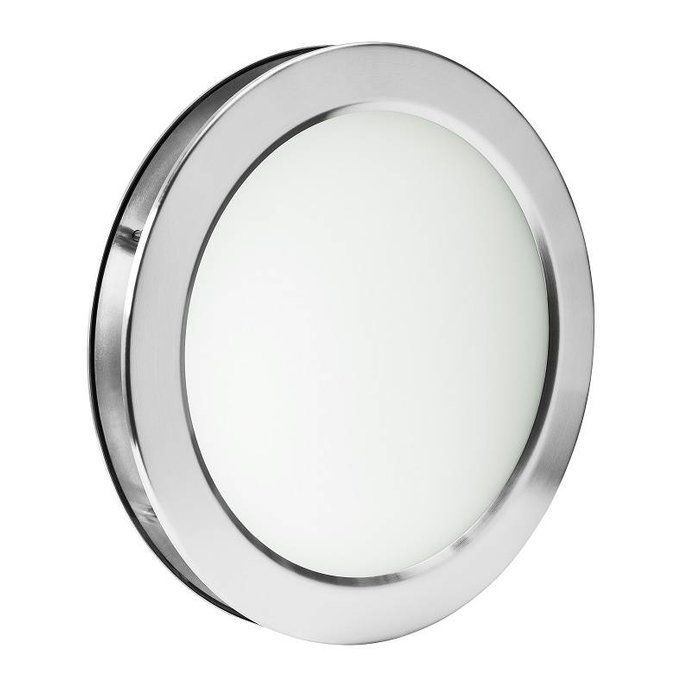

Above you can choose between transparent or frosted glass.
