Invisible 3D hinge Otlav Invisacta IN300120 - 30x120mm - matt silver

These silver 3D hinges are from the Italian company Otlav, which has been known for their hinges for years.

The gray 3D hinges are available in widths of 23mm and 30mm. This model is the 30mm version.

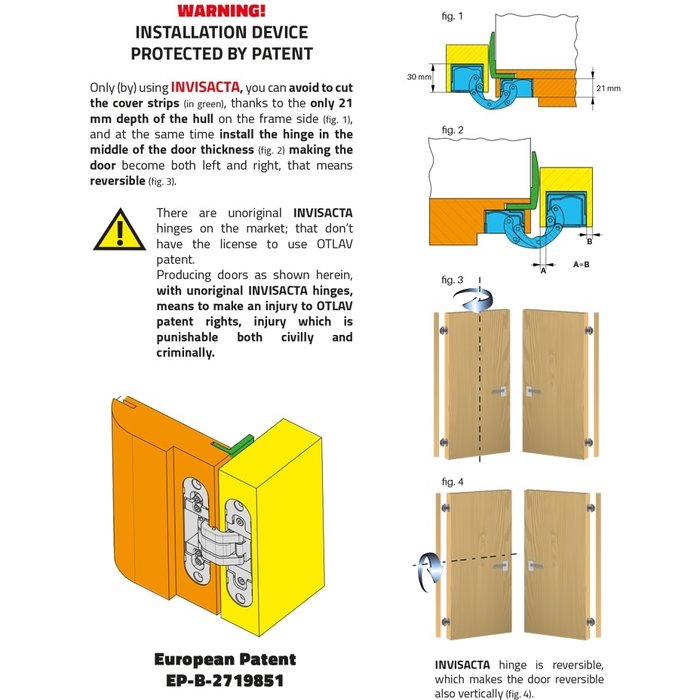

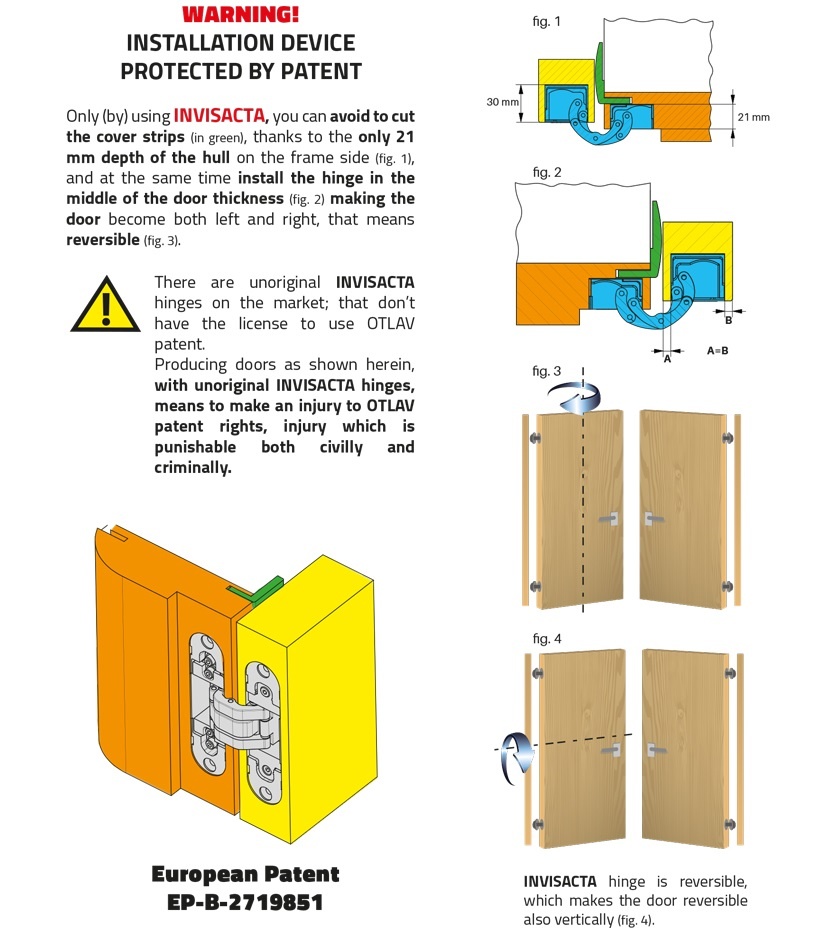

These 30x120mm 3D hinges are unique and patented , meaning you can mill the 3D hinge perfectly in the middle thanks to their 30mm width. This means there is no difference between left or right doors.

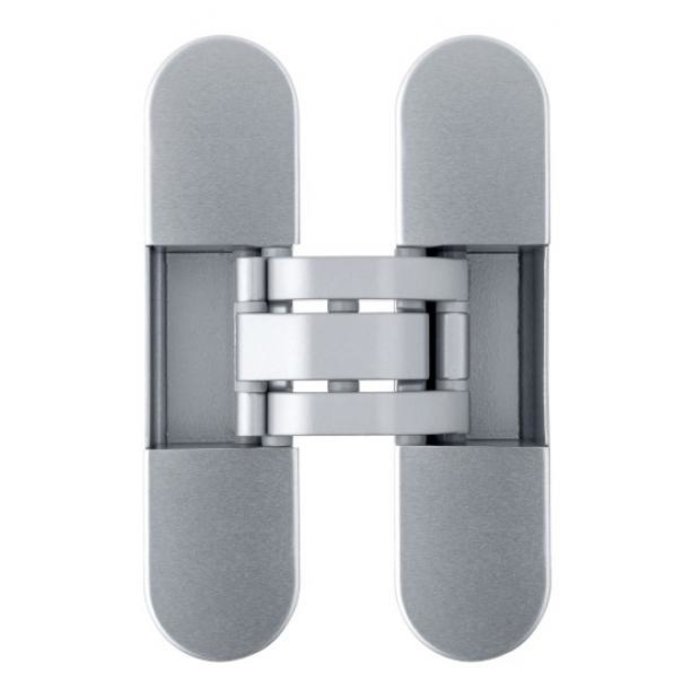

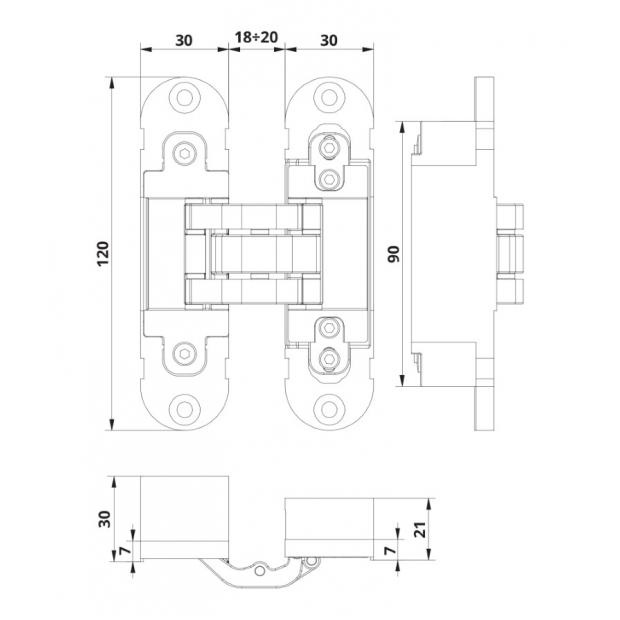

These silver invisible hinges have a height of 120mm, a width of 30mm and are beautiful, completely silver. They are supplied with 4 silver cover caps. These 4 covers fit well over the hinges and stay in place well. The whole forms a beautifully finished silver 3D hinge.

The advantage of Otlav 3D hinges are the metal covers compared to the comparable plastic covers.

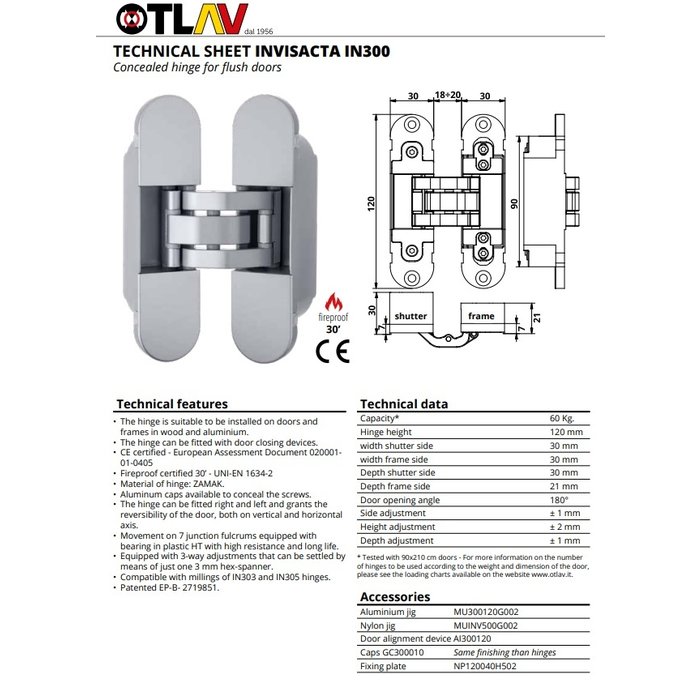

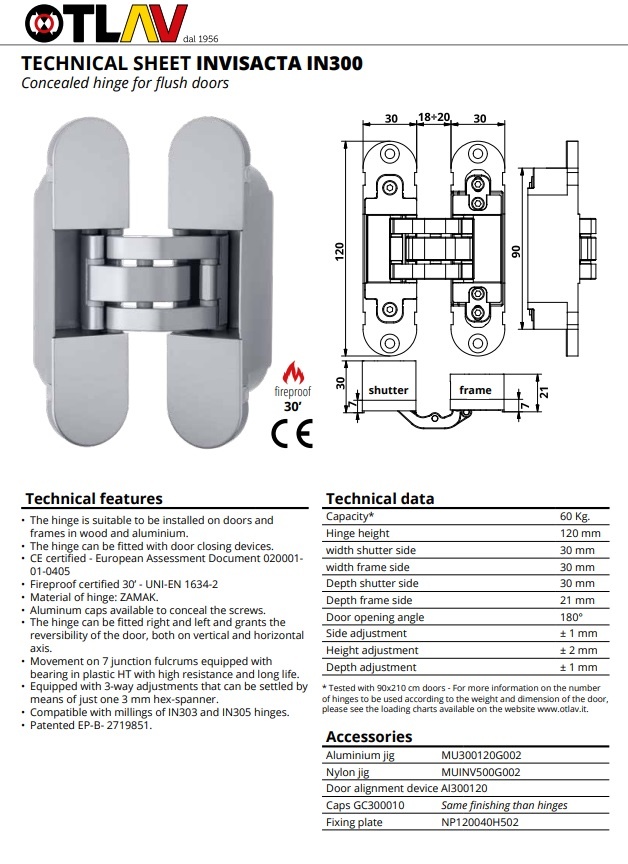

These blind Otlav Invisacta IN300120 hinges have a load capacity of 60kg. This load capacity is when using 2 hinges. They are also fire resistant for 30 minutes.

These 3D hinges can open 180° and can be adjusted 3D (±1mm sideways - ±2mm height - ±1mm depth).

The base of these silver 3D hinges consists of Zamak. They are supplied individually without screws and including 4 cover caps.

Need a milling jig? Below you can find a corresponding Nylon milling jig under related products.
