Description
Nickel sliding door bowl FRA oval supplied per set of HDD including lock
Article code: 3126022

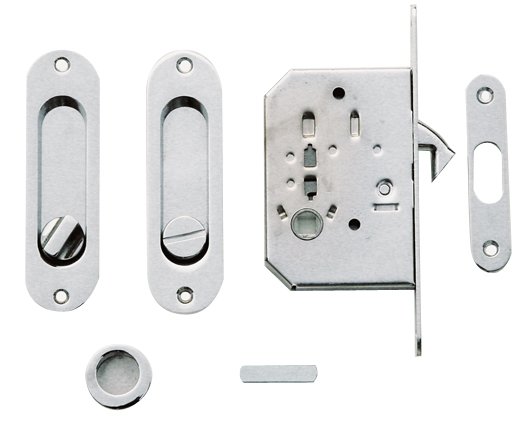

Oval nickel sliding door bowl with matching lock.
These nickel sliding door bowls have a total height of 120 mm, are 35 mm wide and have a depth of 8 mm.

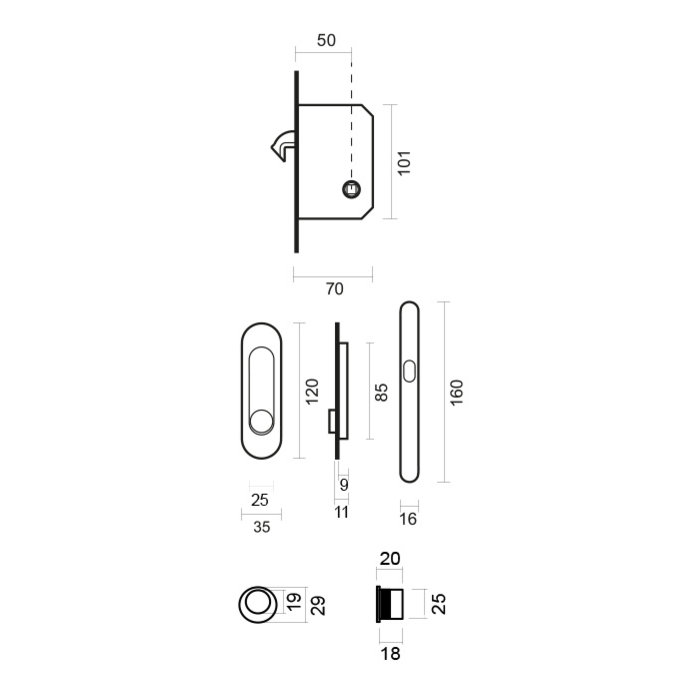

The mandrel size of the matching lock is 50 mm. All the sizes of the complete set can be found on the attached drawing.
The glossy sliding door bowls are supplied complete per set for a complete door including mounting materials, key plate and square pin.
The small circle is for the front side of the door so that when the door is fully retracted you can pull it forward again.
