Description
Stainless steel look sliding door bowl FRA oval supplied per set of HDD including lock
Article code: 3126002
Oval sliding door bowls with matching lock in stainless steel look
These sliding door bowls have a total height of 120 mm, are 35 mm wide and have a depth of 8 mm.

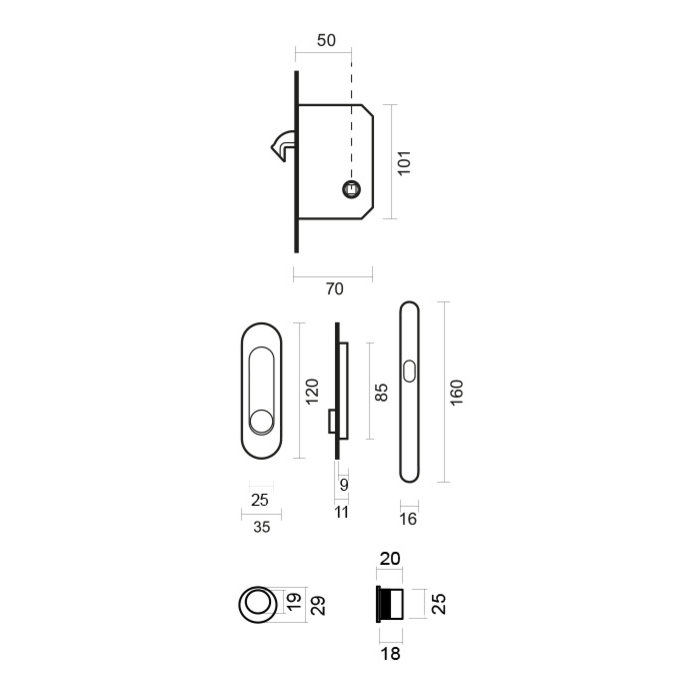

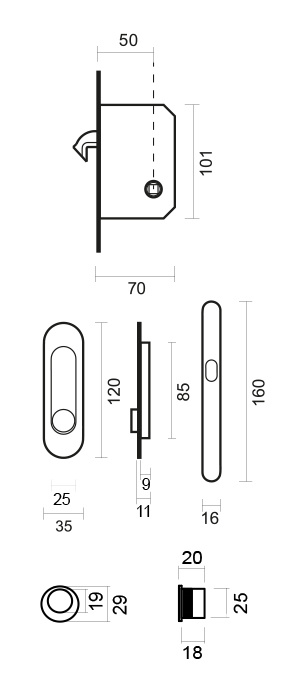

The mandrel size of the matching lock is 50 mm. You can find all the sizes of the complete set on the attached drawing.

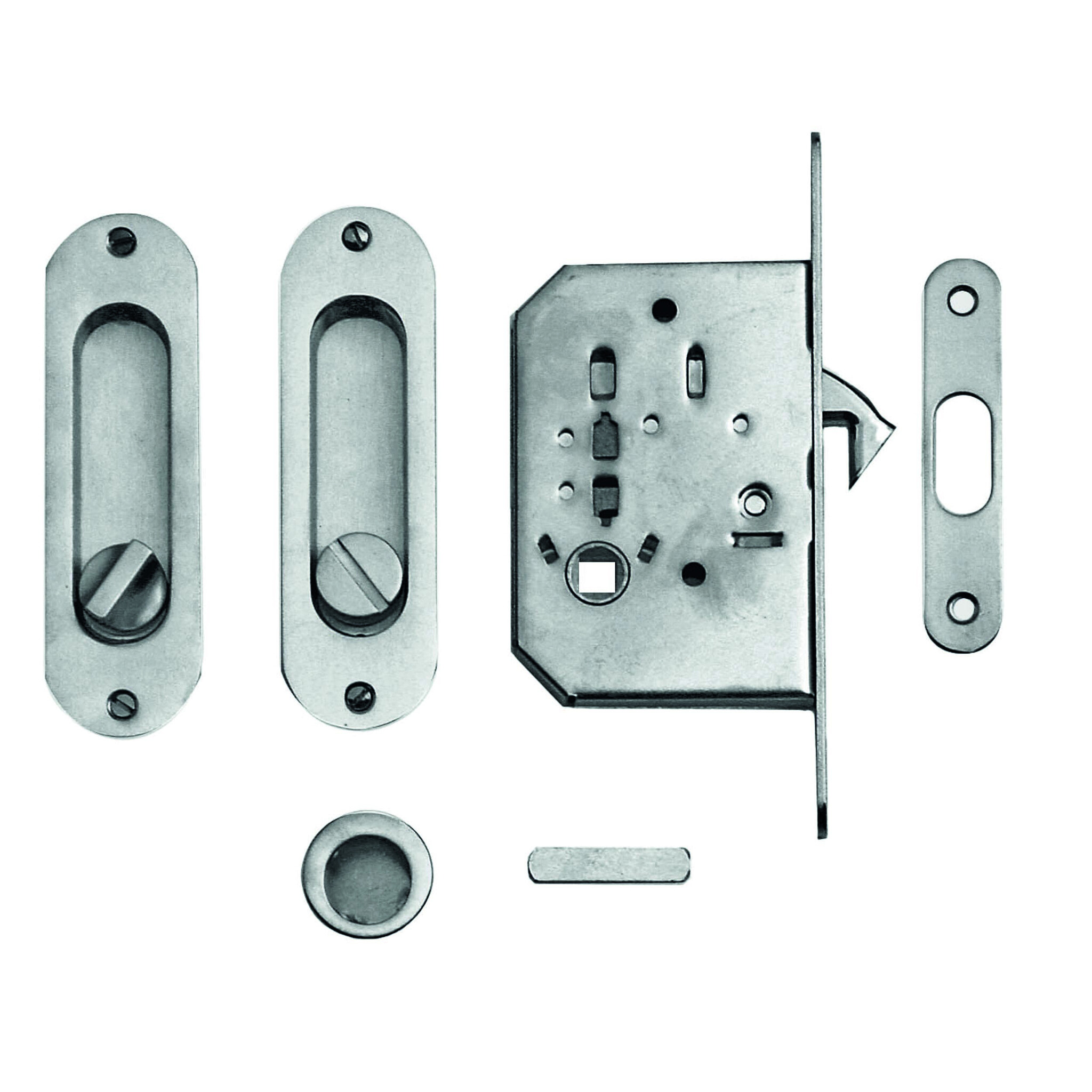

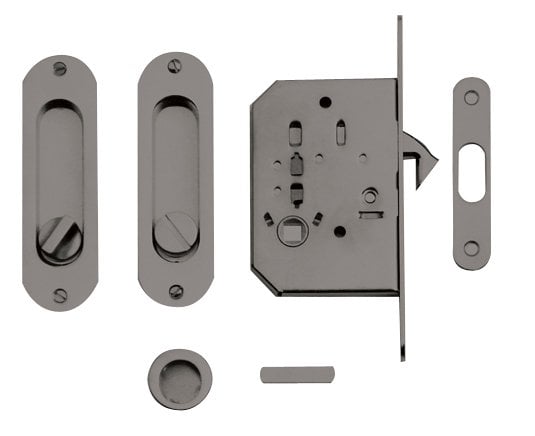

The sliding door bowls are supplied complete per set for a complete door including mounting materials, key plate and square pin.
The small circle is for the front side of the door so that when the door is fully retracted you can pull it forward again.
