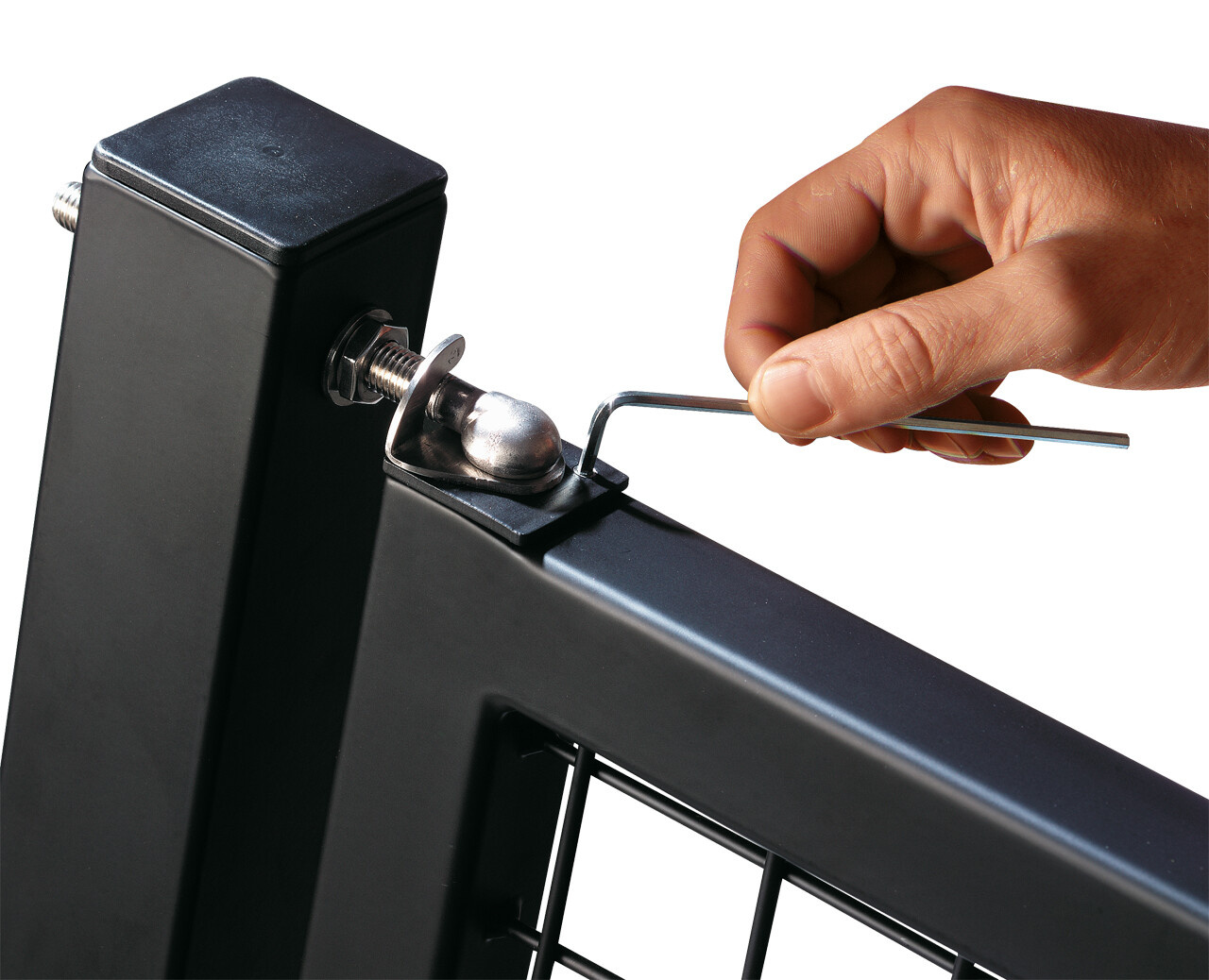

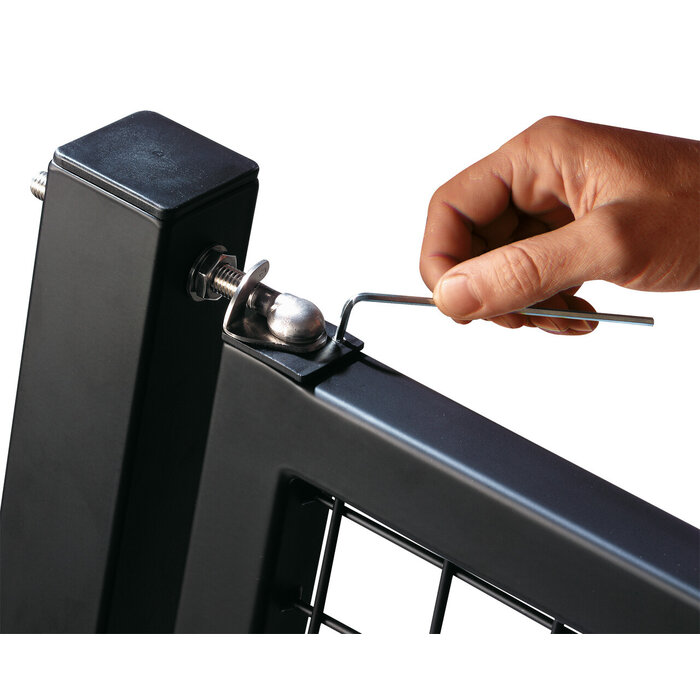

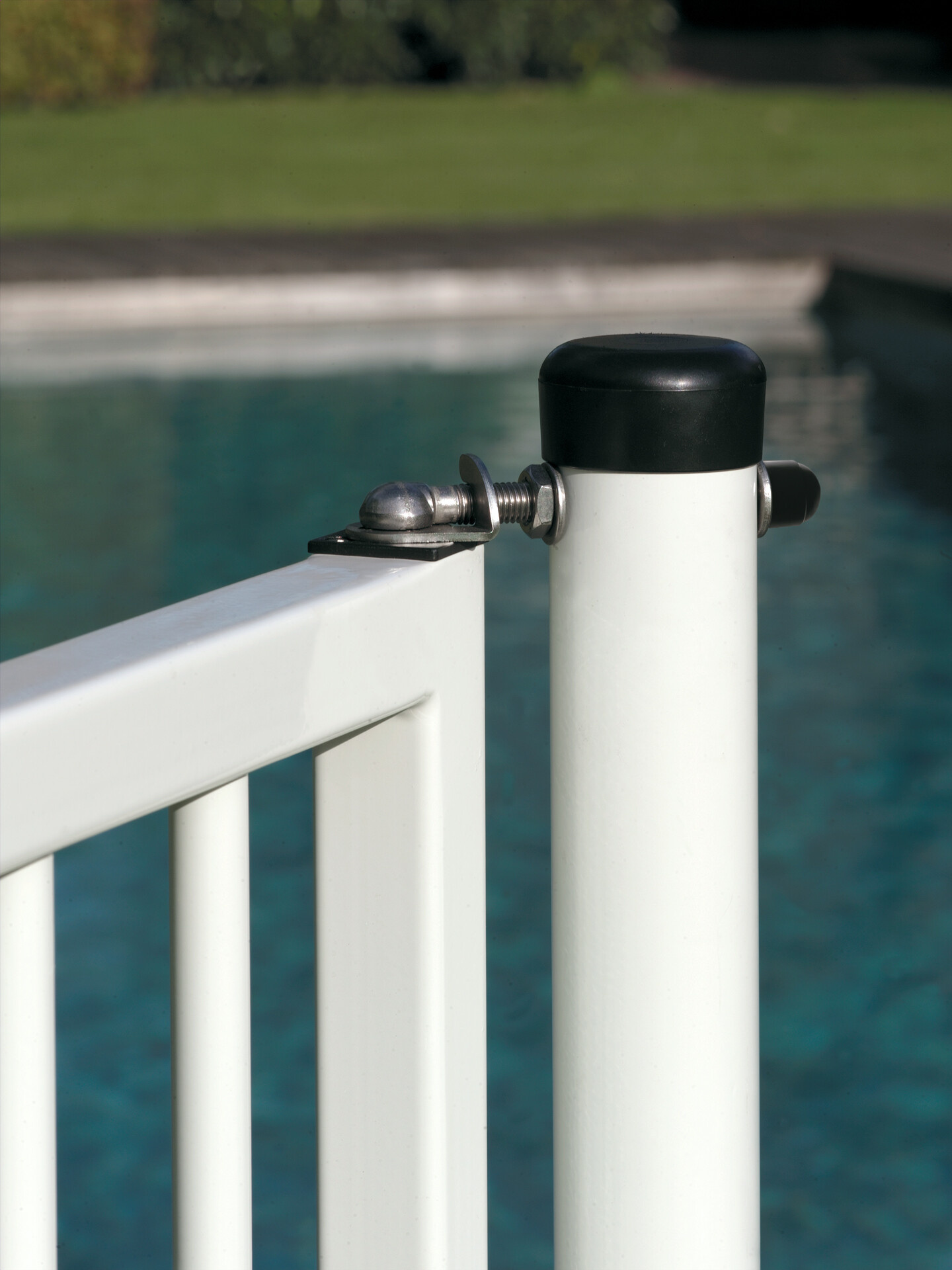

Discover our innovative spring hinges, perfect for garden and pedestrian gates! With a simple installation in a 40x40 mm gate frame, this set offers unparalleled convenience and functionality. The locking mechanism is easily adjustable from the outside with an Allen key.

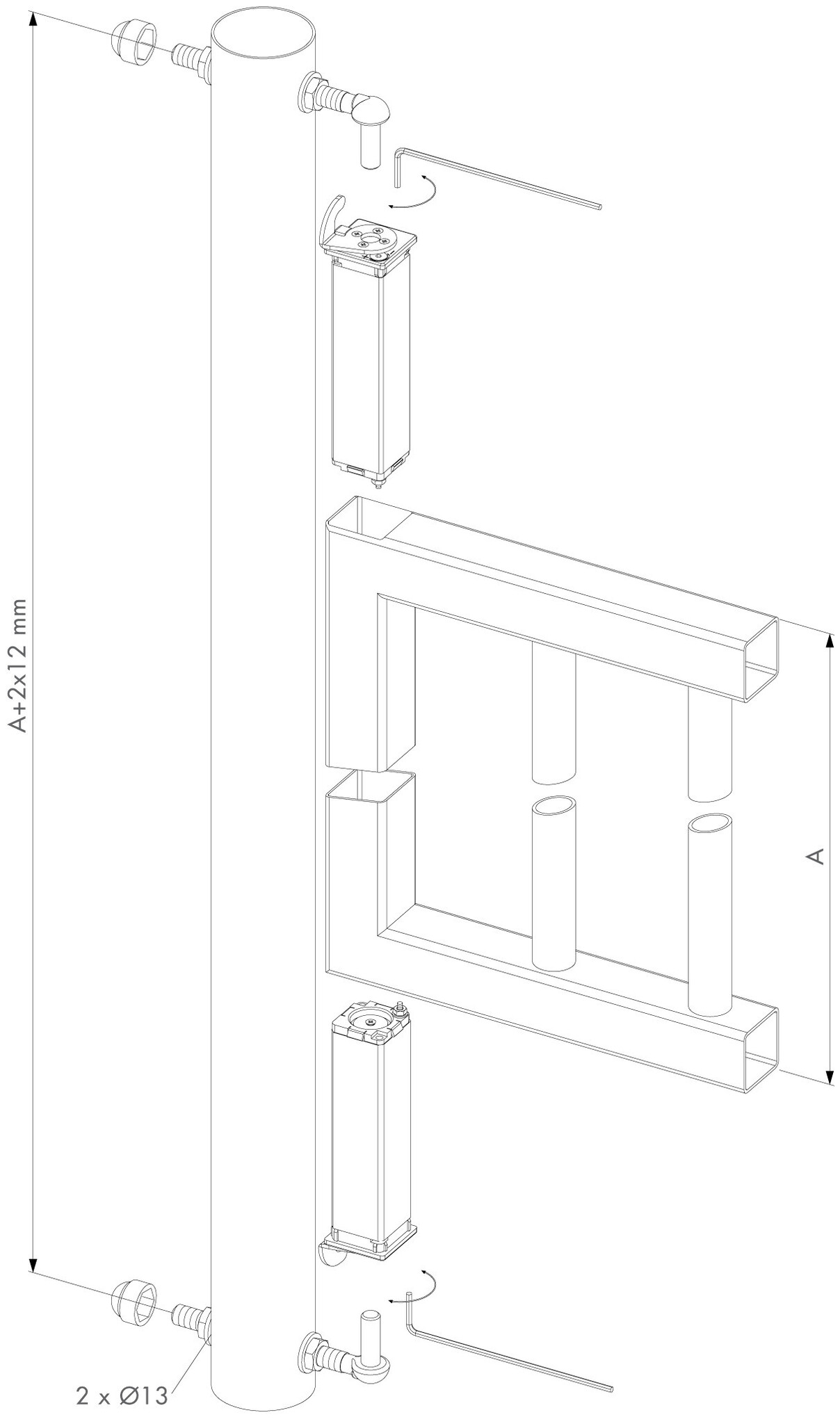

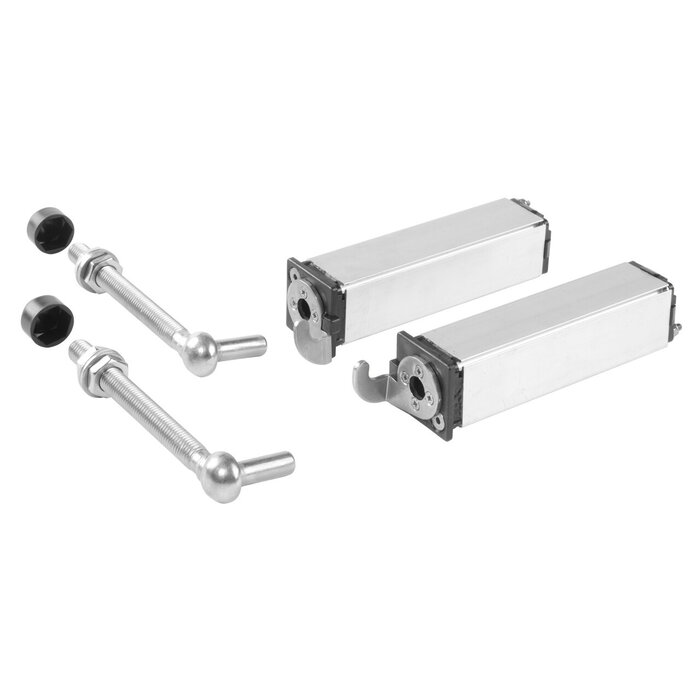

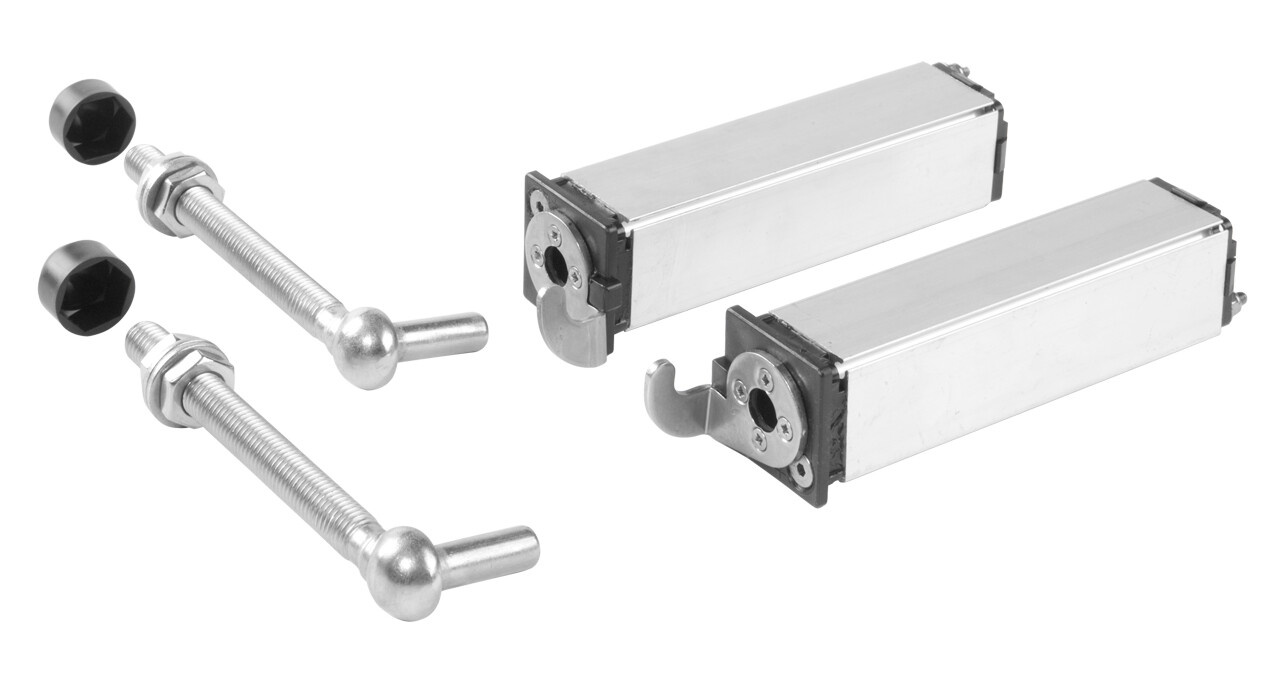

The set includes one spring hinge for the top and one for the bottom, ensuring your gate is supported firmly and evenly. The installation is simple as you can see in the installation video. Suitable for square gate profiles of 40x40 mm with a maximum profile thickness of 2 mm, these hinges are versatile and durable.
With a reversible design for left and right turning gates, these hinges offer maximum flexibility.
Upgrade your gate with our spring hinges and enjoy smooth operation and long-lasting reliability.
The hinge is available in 2 different versions that you can select in the scrolling menu at the top right

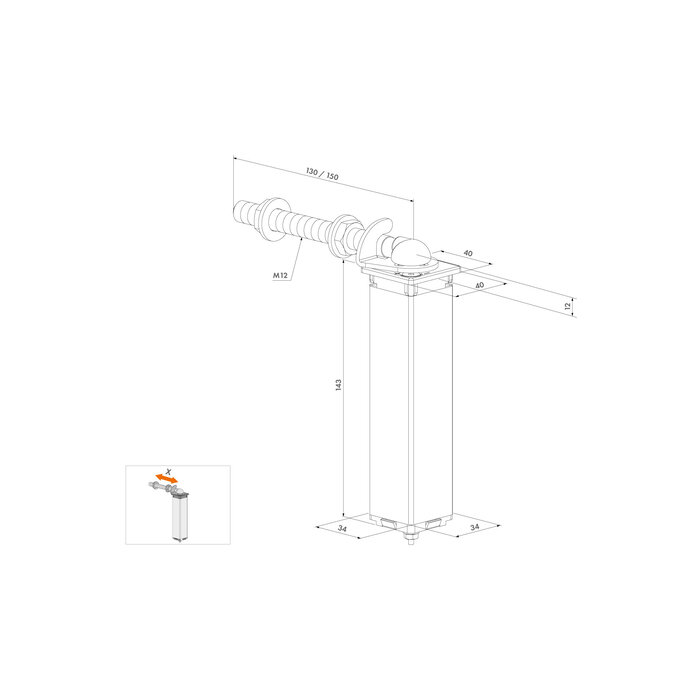

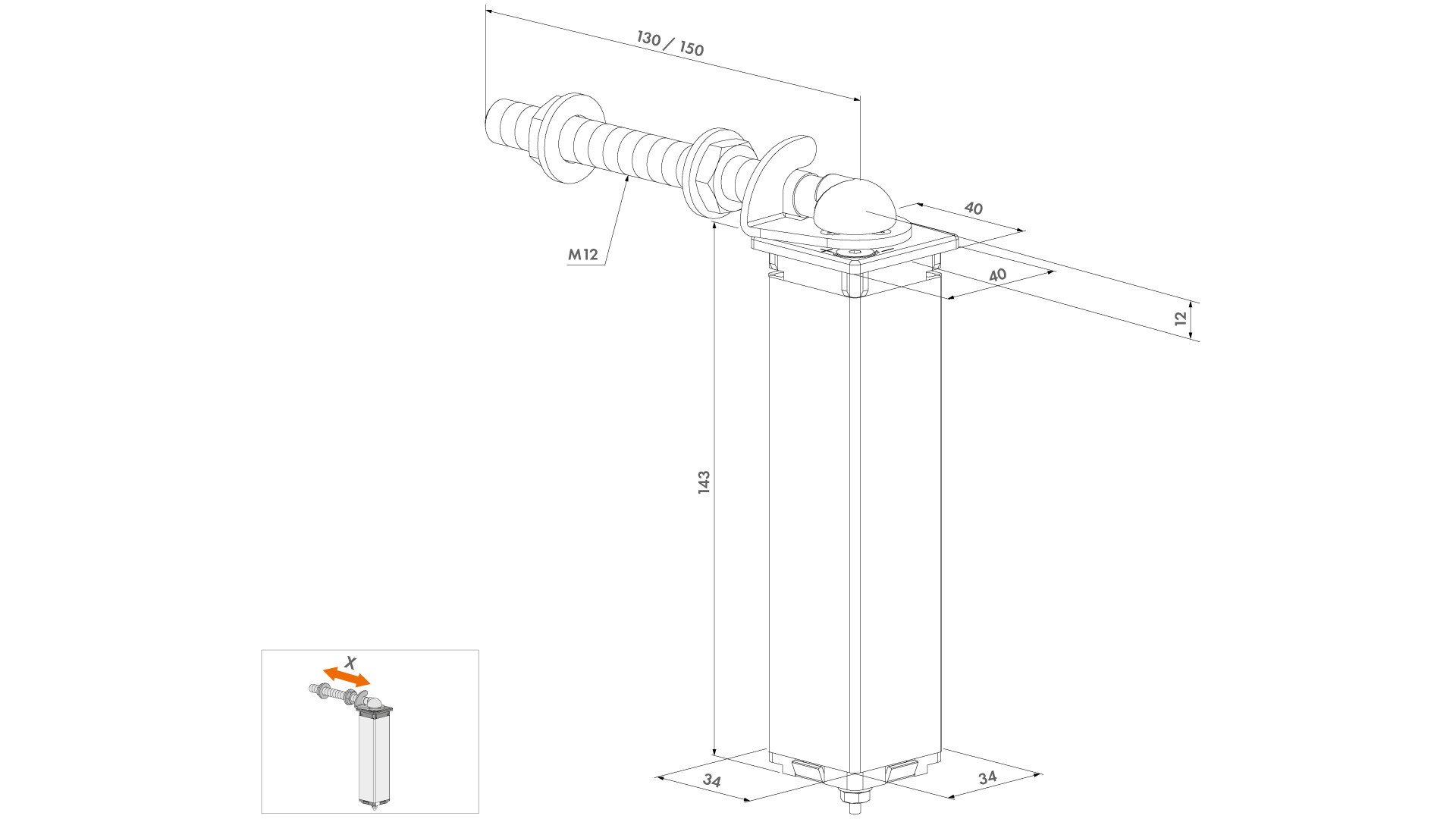

You will find all dimensions of the 2 versions on the attached drawing.
unit | 1xtop - 1xbottom |
suitable for | square profile 40x40mm |
maximum wall thickness profile | 2mm |
direction of rotation | reversible left/right |
length of thread axis | 130mm or 150mm |
thread shaft diameter | M12 |
maximum gate weight | 75 kg |
maximum gate width | 1300mm |
