Description

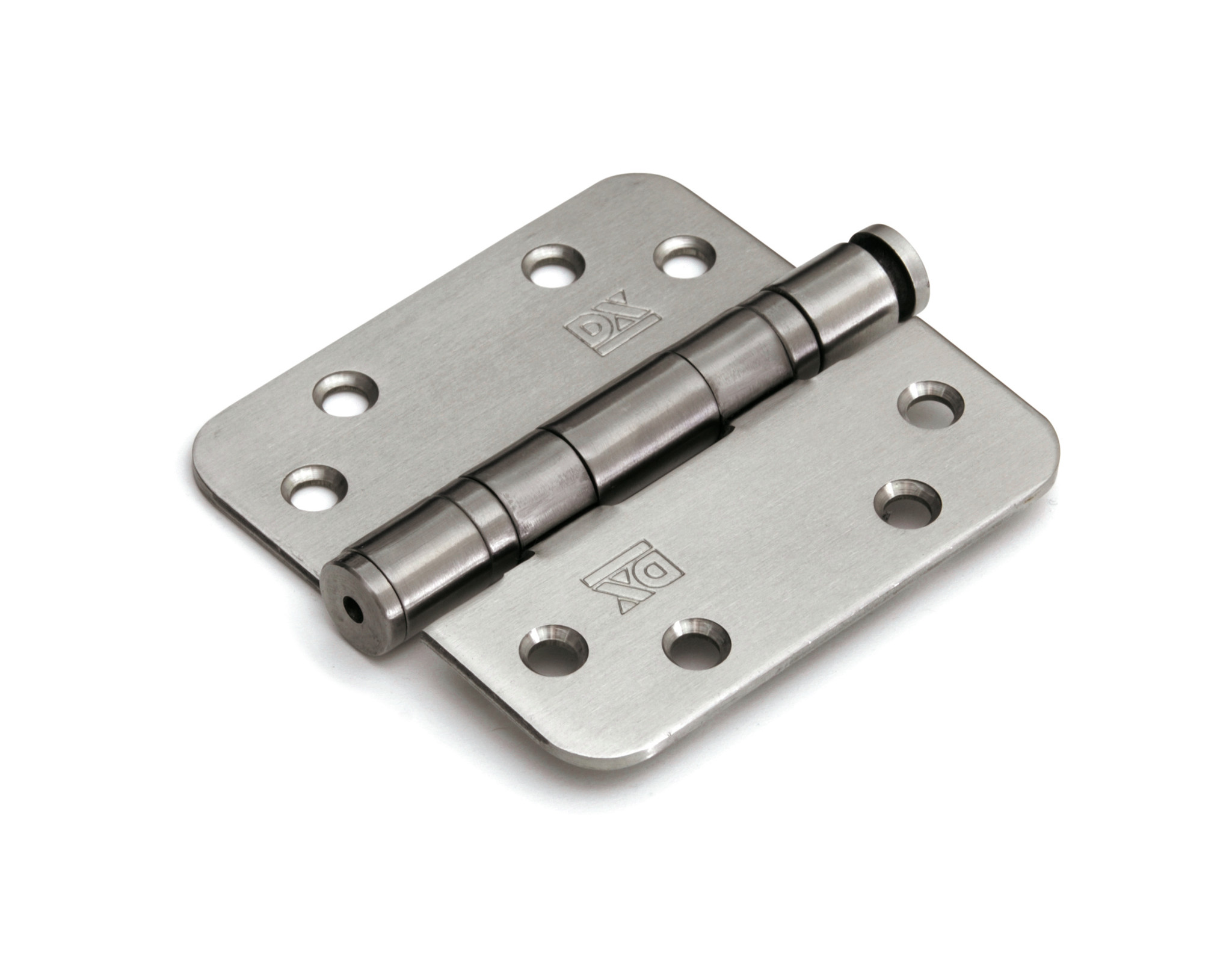

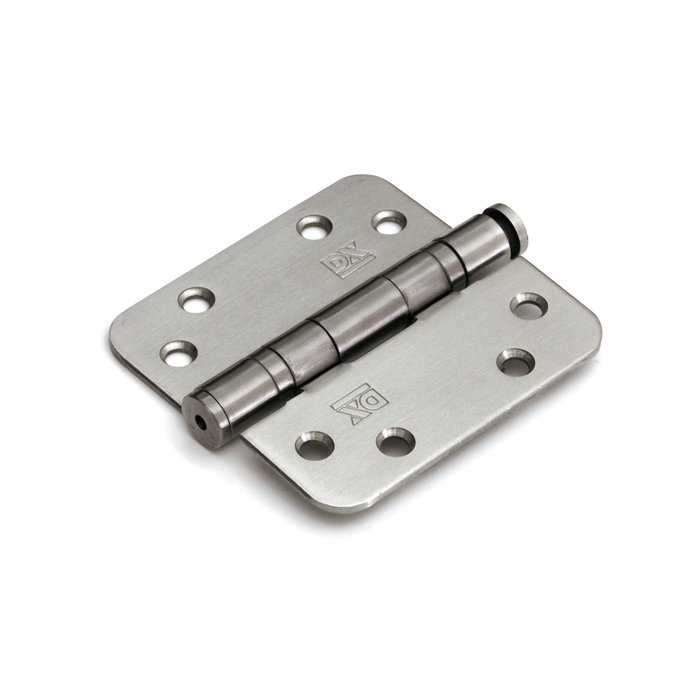

Stainless steel ball bearing hinge with loose pin 89 x 89 x 3.0 mm brushed - rounded corners
Article code: DS6730.133.8989-DT
This stainless steel ball bearing hinge DX CE marked is suitable for exterior doors. As a finishing touch, these hinges are brushed, giving them an elegant appearance and they can also be used on interior doors.
The hinge has rounded corners, making them very suitable for machining with a milling cutter. The loose pin of this hinge has a serrated edge so that the pin does not creep upwards. There is also a hole in the pen that allows quick disassembly if you are going to paint BV. You can easily tap the top pin up through this hole.
To ensure proper functioning of the hinge, it is recommended to lubricate the bearings annually with a silicone-based spray or ball bearing grease.
This hinge is supplied per piece excluding mounting material .
Material | stainless steel |
Finish | brushed stainless steel |
Pin version | Ball bearing knurled pin |
Finishing corner | Round corners |
Recommended Micrometer | 4.5 x 40mm (not included) |
Certification | CE |

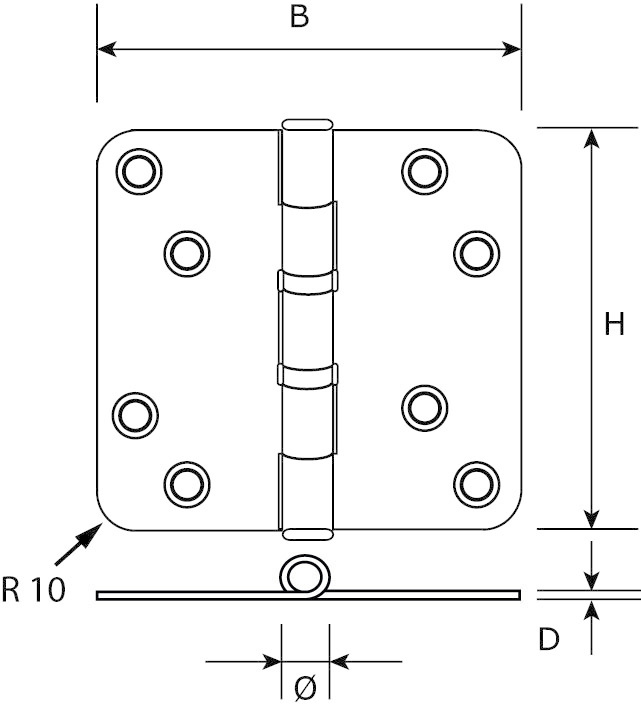

H (mm) |
89 |
B (mm) |
89 |
D (mm) |
3.0 |
Ø (mm) |
14 |
Load capacity per 3 (Kg) | 80 |
Load capacity per 4 (Kg) | 100 |
Button design | persevered |
Fixing material | Not included |
