Description

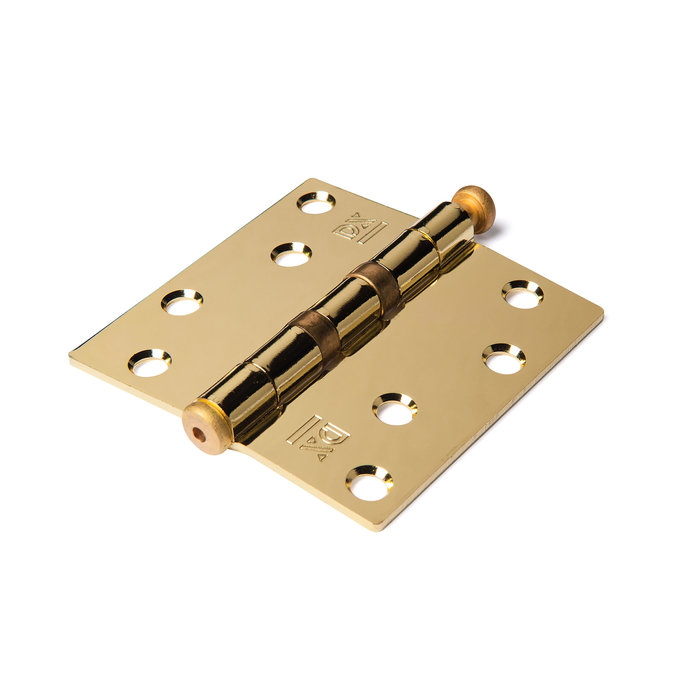

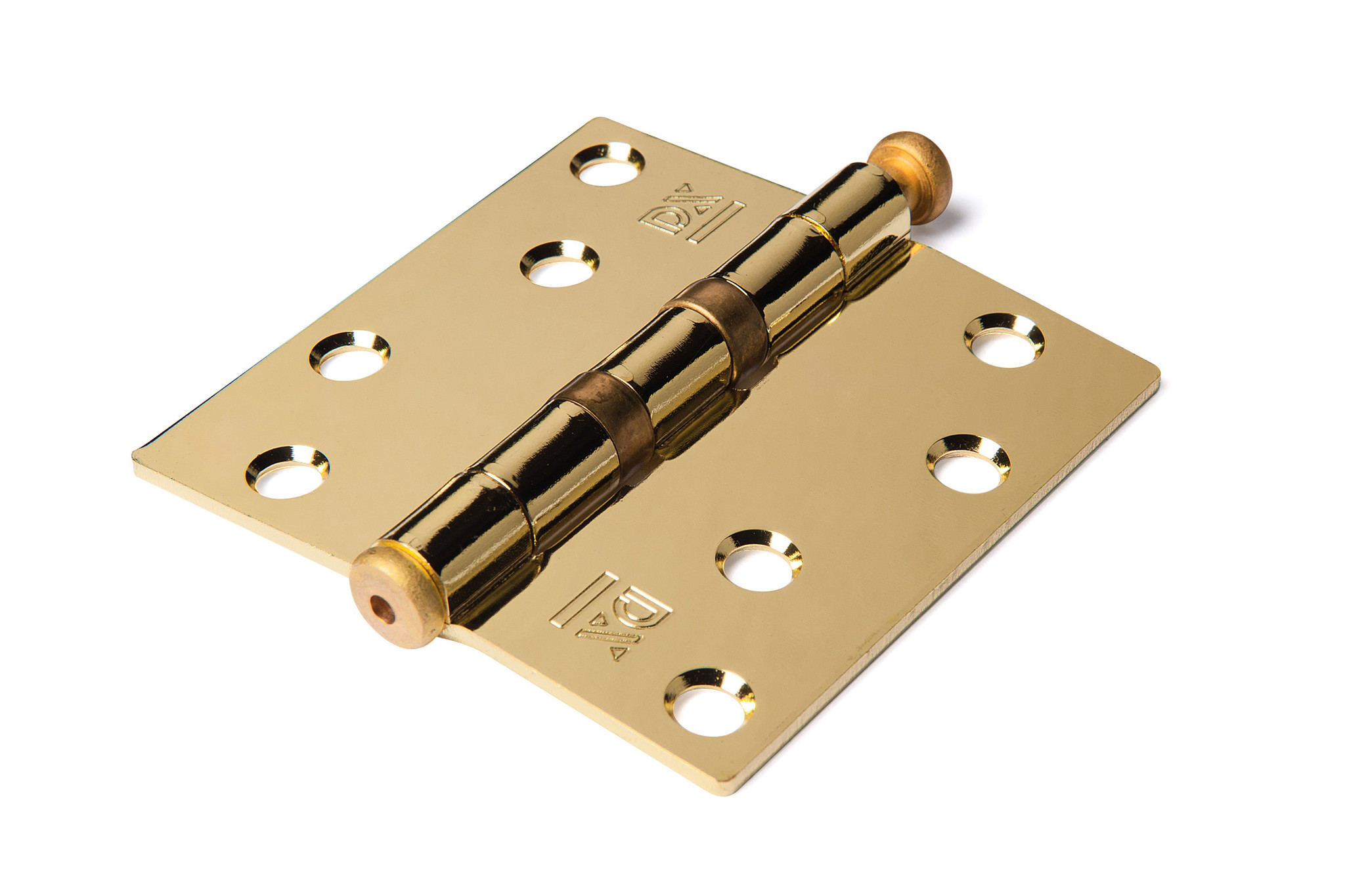

Ball bearing hinge with loose pin 89 x 89 x 2.4 mm brass-plated steel - right angles
Article code: DS6210.121.8989
This steel ball bearing hinge DX CE marked with a brass finish is suitable for interior doors. These brass hinges fit well in both a modern and retro interior.
The hinge has right angles, which makes it possible to work it in with a chisel if you don't have a router available. The loose pin of this hinge has a serrated edge so that the pin does not creep upwards. There is also a hole in the pen that allows quick disassembly if you are going to paint BV. You can easily tap the top pin up through this hole.
To ensure proper functioning of the hinge, it is recommended to lubricate the bearings annually with a silicone-based spray or ball bearing grease.
This hinge is supplied per piece excluding mounting material .
Material | Steel |
Finish | Brass |
Pin version | Ball bearing knurled pin |
Finishing corner | Straight corners |
Recommended Micrometer | 4.5 x 40mm (not included) |
Certification | CE |

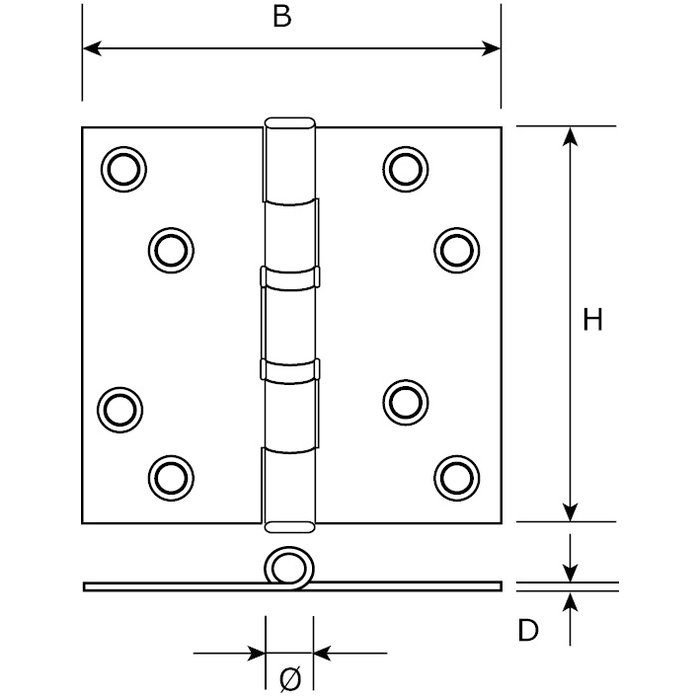

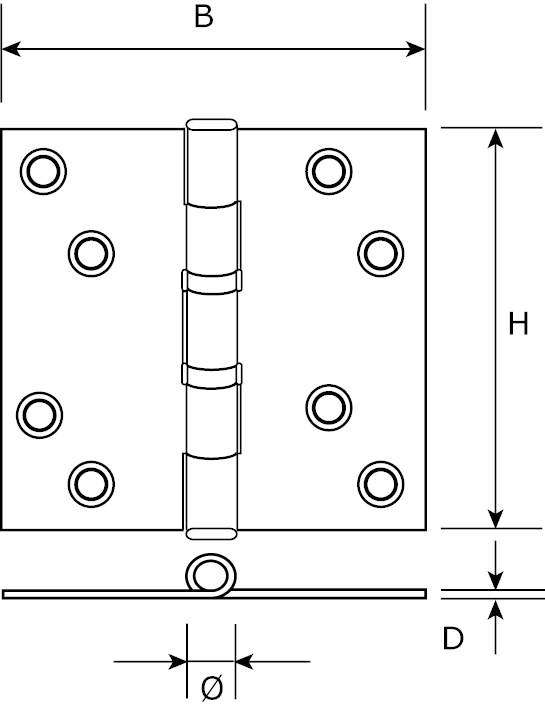

H (mm) |
89 |
B (mm) |
89 |
D (mm) |
2.4 |
Ø (mm) |
12 |
Load capacity per 3 (Kg) | 70 |
Load capacity per 4 (Kg) | 80 |
