Description

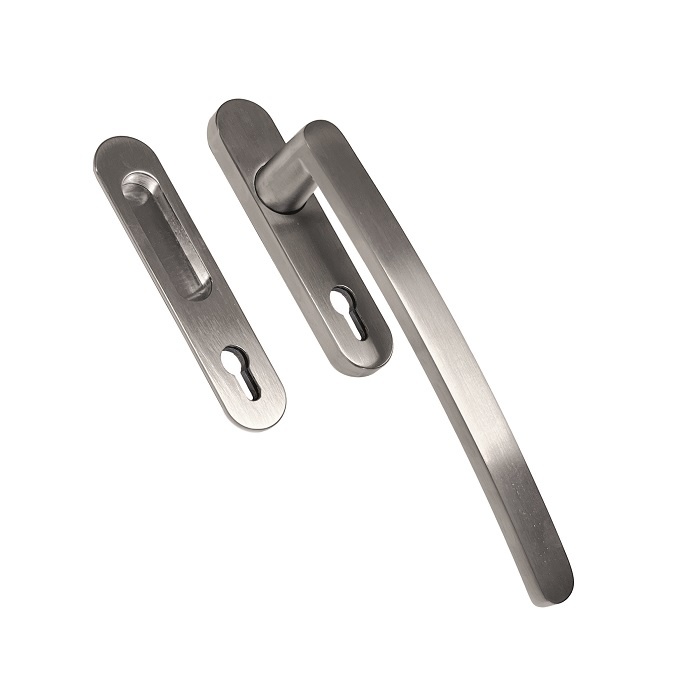

Lift/slide door handles oval C-SHAPE in stainless steel look with handle and sliding door bowl, both of which have an opening for a cylinder lock
Article code: 2353001
This combined lift/slide door system is specially designed for sliding doors. On one side there is the trade and on the other side a sliding door bowl, both of which have an opening for a cylinder lock.

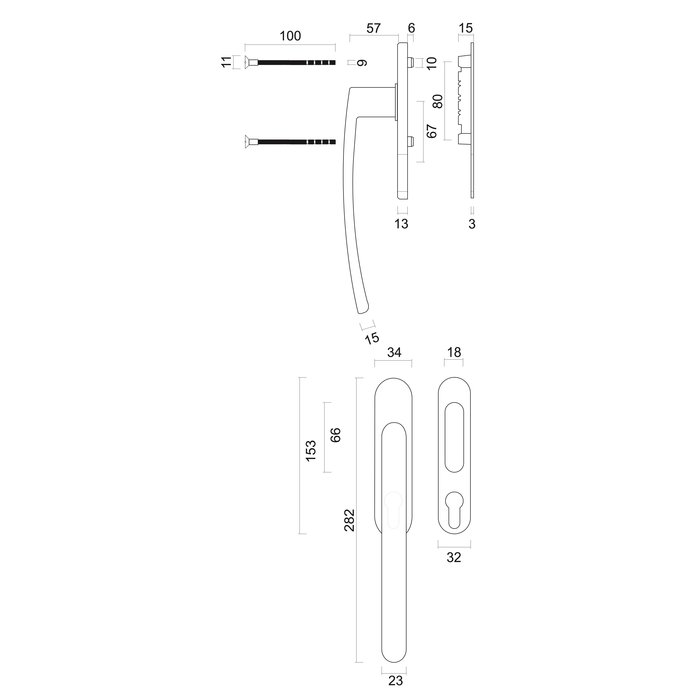

The handle is slightly curved and 23 mm wide. The basis of this set is brass, finished with a stainless steel look coating. The dimensions of the handle and the bowl can be found on the enclosed technical drawing.
The lever system is supplied per set with mounting material for continuous mounting. If the supplied bolts are too long, you can shorten them.
unit | set (lever & bowl) |
base | brass |
colour | Stainless steel look |
spacing screw holes | 80mm |
shield dimensions | 153x34x13mm |
bowl dimensions | 32x153x3mm |
mounting material | included (2x M6-100mm long) |
door thickness | up to 90mm |
