Description

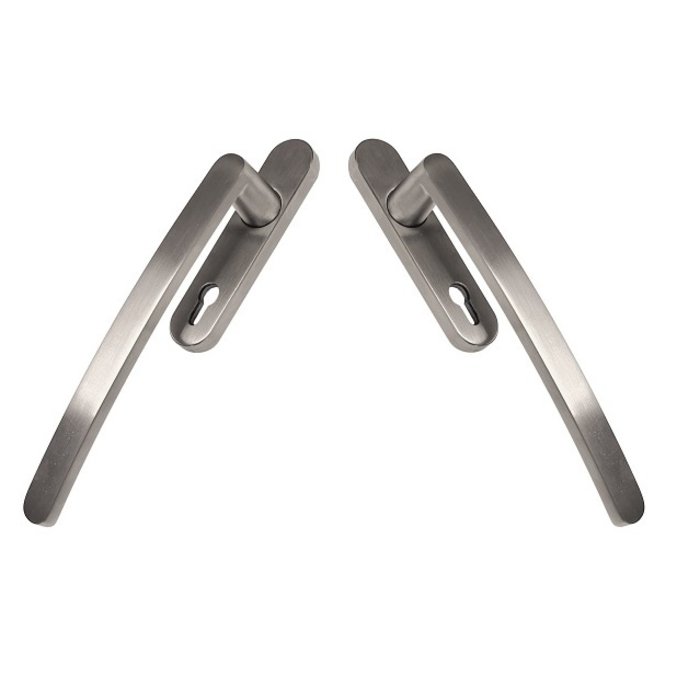

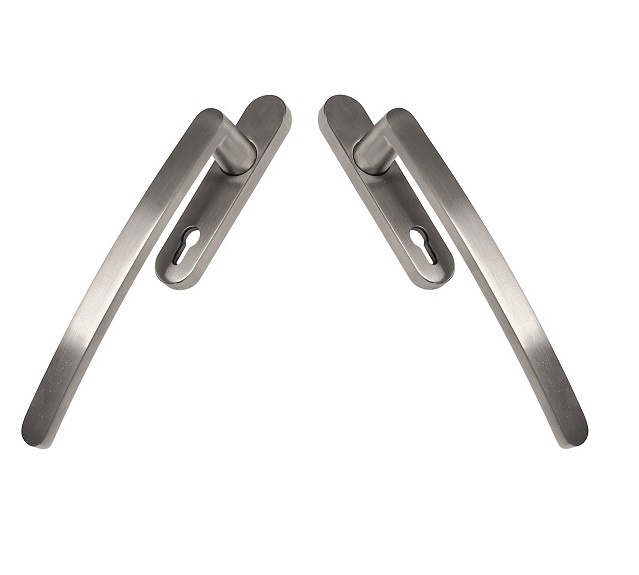

Pair of oval C-SHAPE lift/slide door handles in stainless steel look with opening for cylinder lock
Article code: 2383001
This lift/slide door system is specially designed for sliding doors and has an opening for installing a cylinder lock.

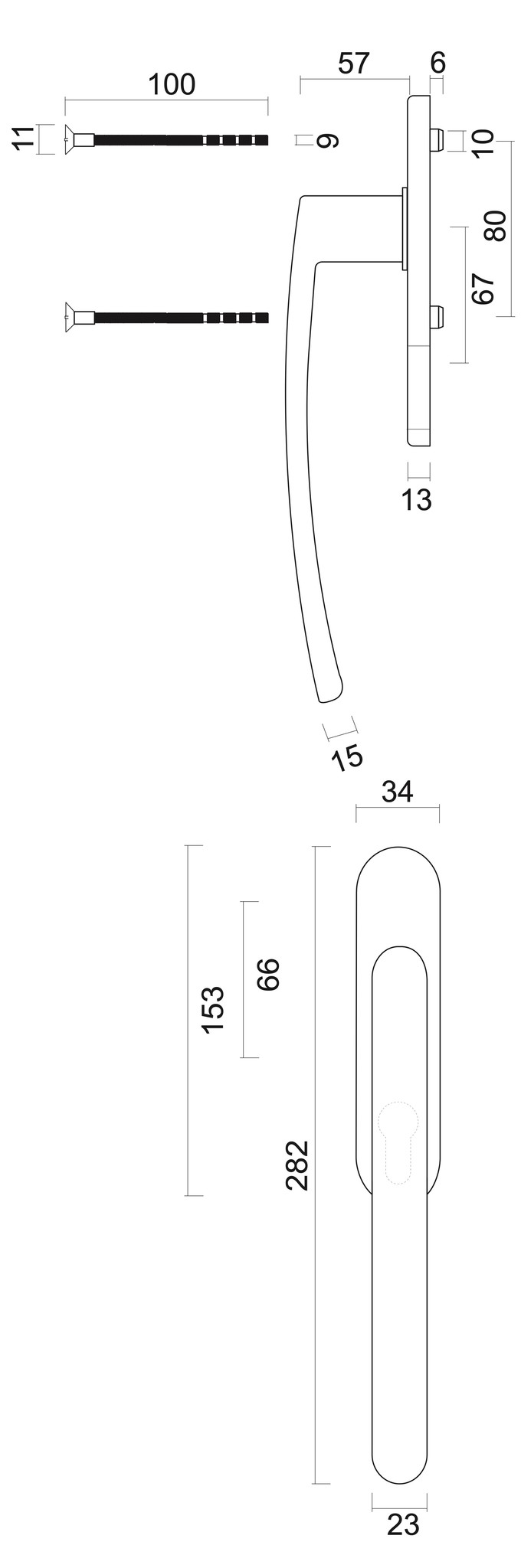

This set has slightly curved handles of 23 mm wide with a brass base, finished with a stainless steel look coating. The oval shield is 34x153 mm and protrudes 13 mm.
The lever system is supplied in pairs with mounting hardware for continuous mounting. If the supplied bolts are too long, you can shorten them.
unit | couple |
base | brass |
colour | Stainless steel look |
spacing screw holes | 80mm |
shield dimensions | 153x34mm |
thickness shield | 13mm |
mounting material | included (2x M6-100mm long) |
door thickness | up to 90mm |
