Description

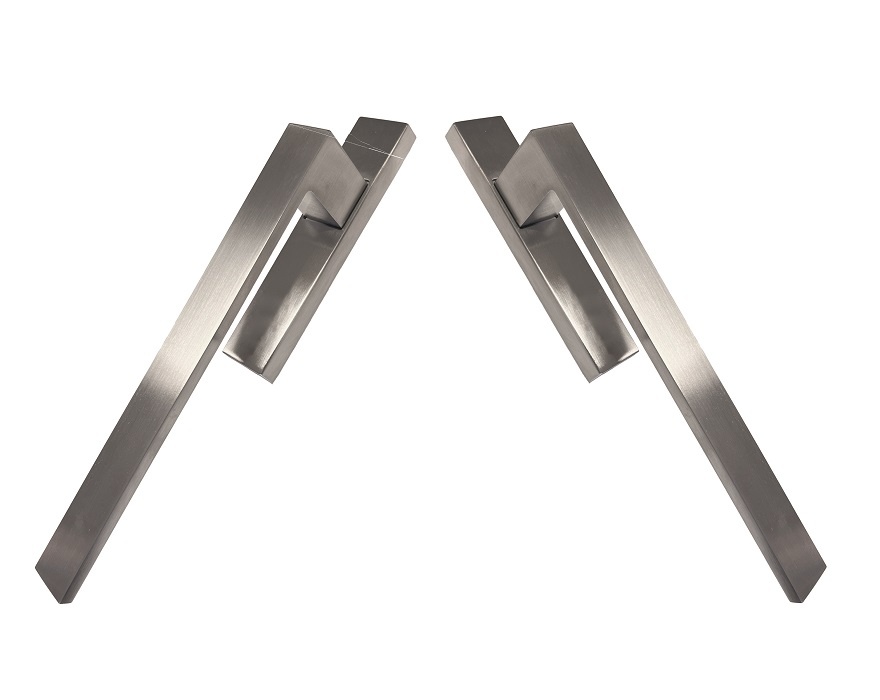

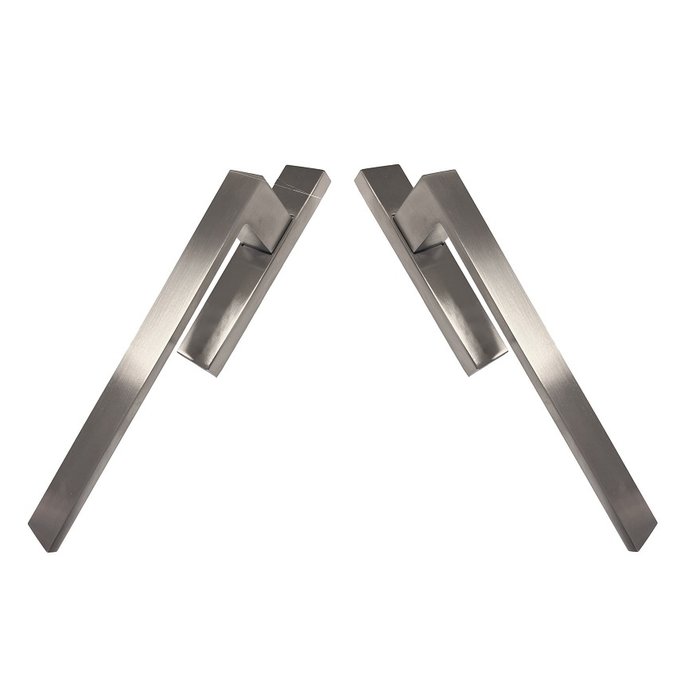

Pair of lift/slide door handles COSMIC in stainless steel look
Article code: 2382000
This lift/slide door system is specially designed for sliding doors.

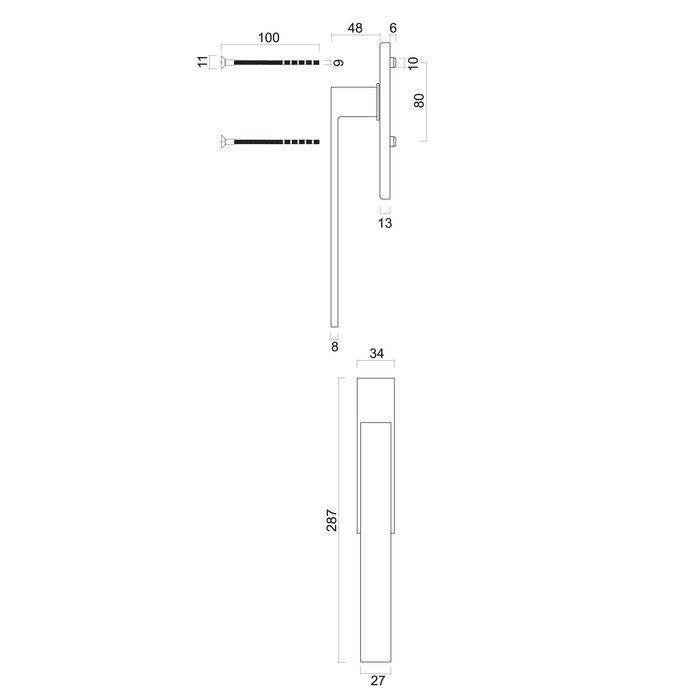

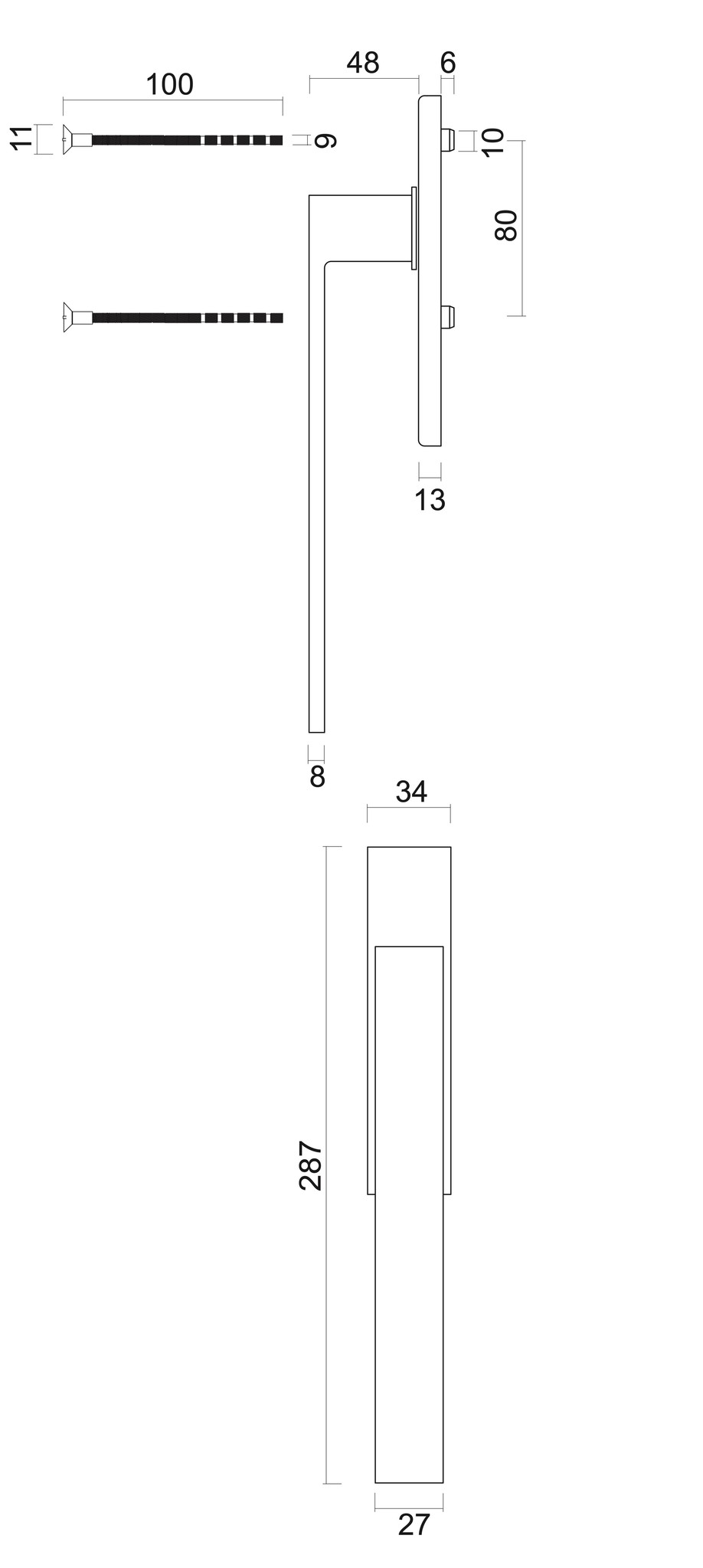

This set has slightly curved handles of 27 mm wide with a brass base, finished with a stainless steel look coating. The rectangular shield is 34x153 mm and protrudes 13 mm.
The lever system is supplied in pairs with mounting hardware for continuous mounting. If the supplied bolts are too long, you can shorten them.
unit | couple |
base | brass |
colour | Stainless steel look |
spacing screw holes | 80mm |
shield dimensions | 153x34mm |
thickness shield | 13mm |
mounting material | included (2x M6-100mm long) |
door thickness | up to 90mm |
