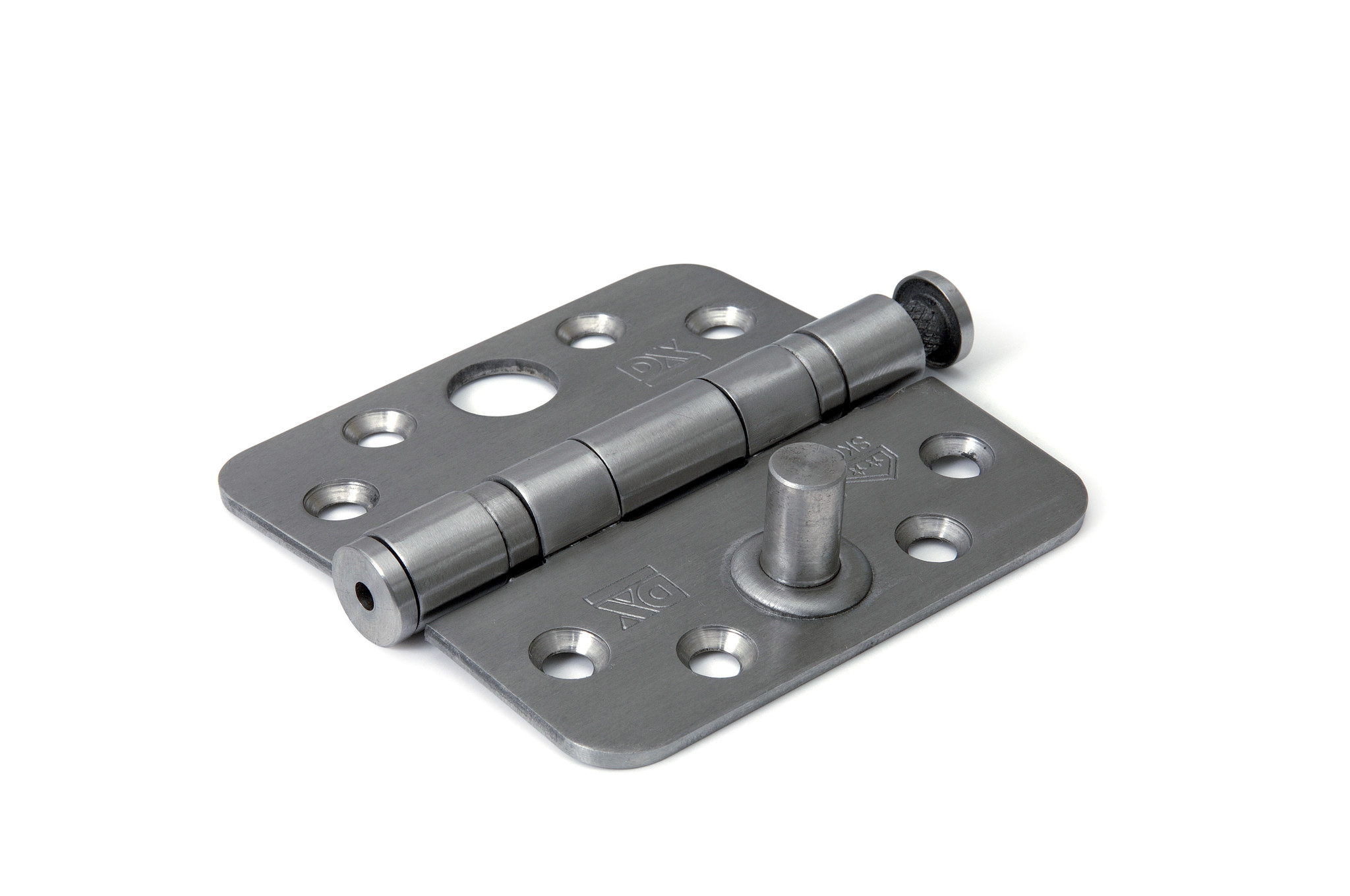

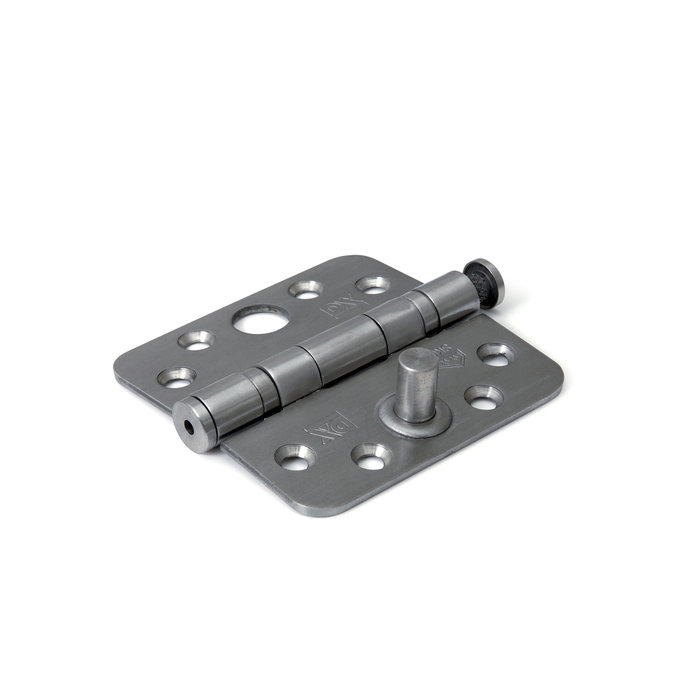

This SKG***® stainless steel ball bearing hinge DX CE marked safety hinge is suitable for exterior doors that are used very intensively. This hinge also meets all requirements for being used within the police quality mark for safe living (PKVW).
The hinge has rounded corners making them intended to be machined with a milling cutter. The loose pin of this hinge has a serrated edge that ensures that the pin does not creep up. There is also a hole in the pen that allows quick disassembly if you are going to paint BV. You can easily tap the top pin up through this hole.
To ensure proper functioning of the hinge, it is recommended to lubricate the bearings annually with a silicone-based spray or ball bearing grease.
This hinge is supplied per piece excluding mounting material .
Material | stainless steel |
Finish | brushed stainless steel |
Pin version | Ball bearing knurled pin |
Finishing corner | Round corners |
Recommended Micrometer | 4.5 x 45mm (not included) |
Standardization | SKG***® |
Certification | CE / SKH |

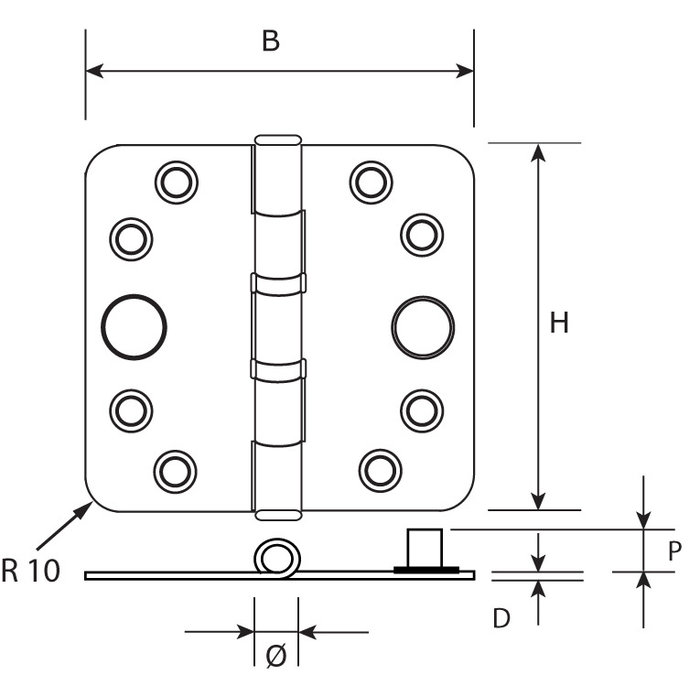

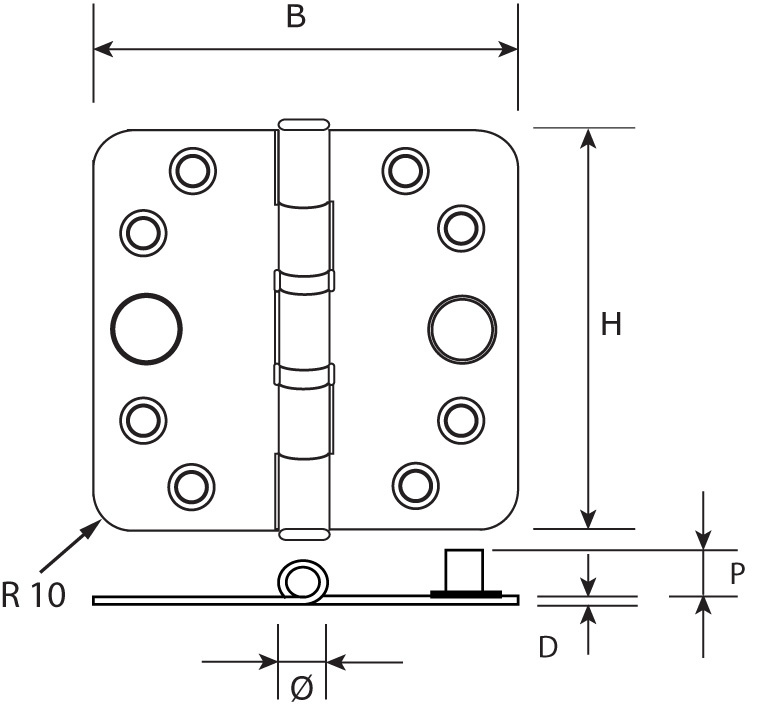

H (mm) |
89 |
B (mm) |
89 |
D (mm) |
3.0 |
Ø (mm) |
14 |
P (mm) |
18 |
Load capacity per 3 (Kg) | 80 |
Load capacity per 4 (Kg) | 100 |
Fixing material | Not included |
