Description
Standard window tree with ventilation position suitable for closing windows or as an extra closure on a door
Article code: DS0130.521.2005

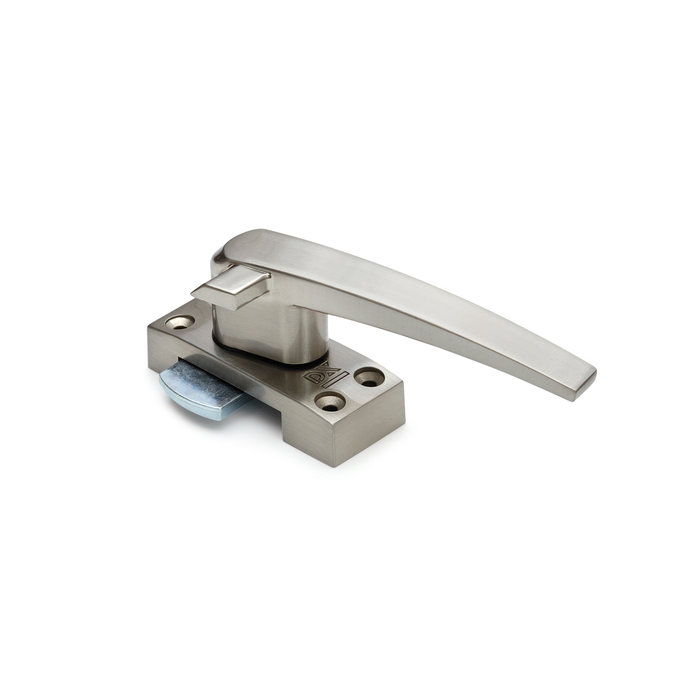

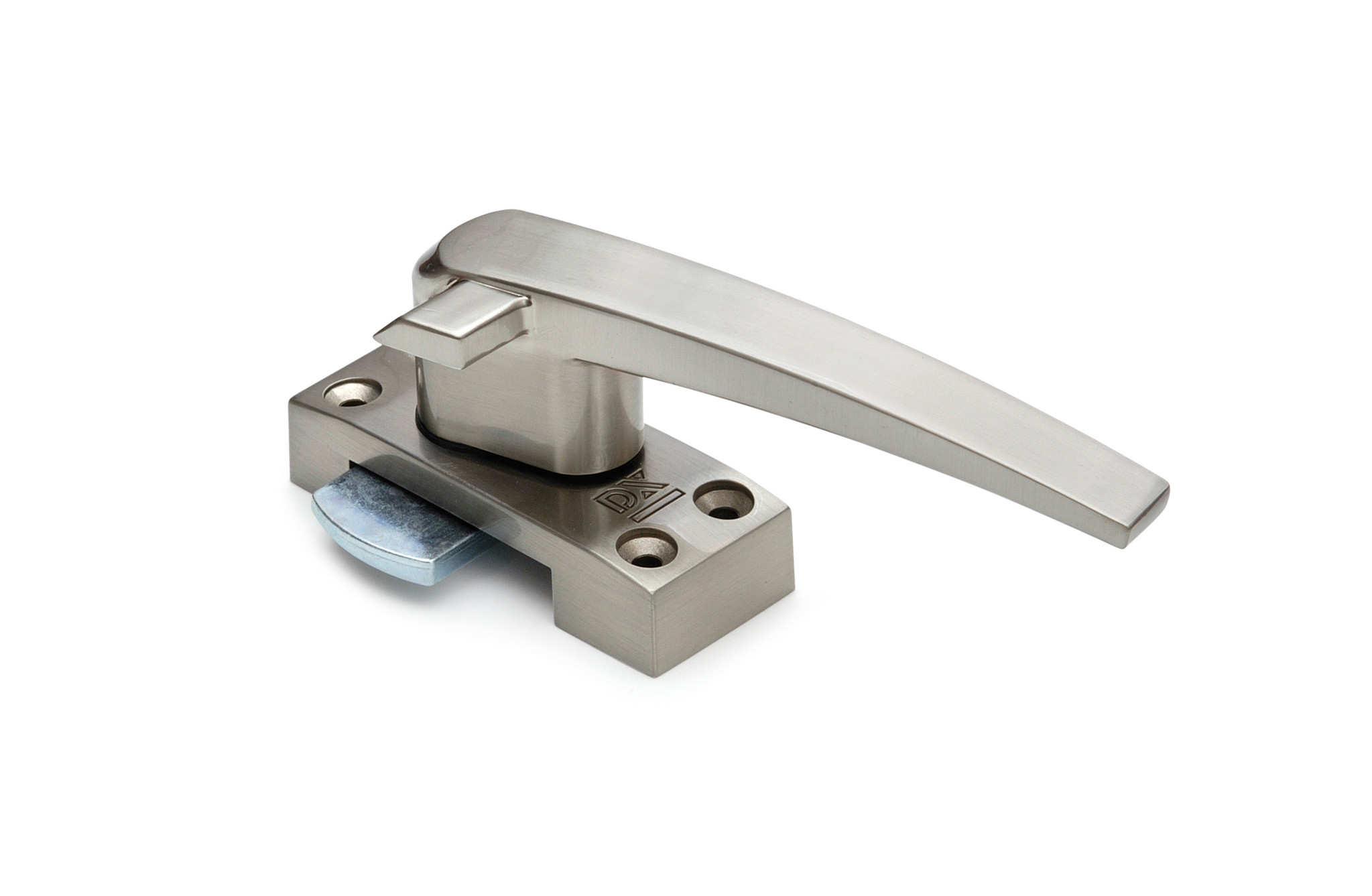

This standard window tree in zamac with a stainless steel finish is suitable for closing windows or as an extra closure on a door.
The big advantage of a window tree is the ventilation position.

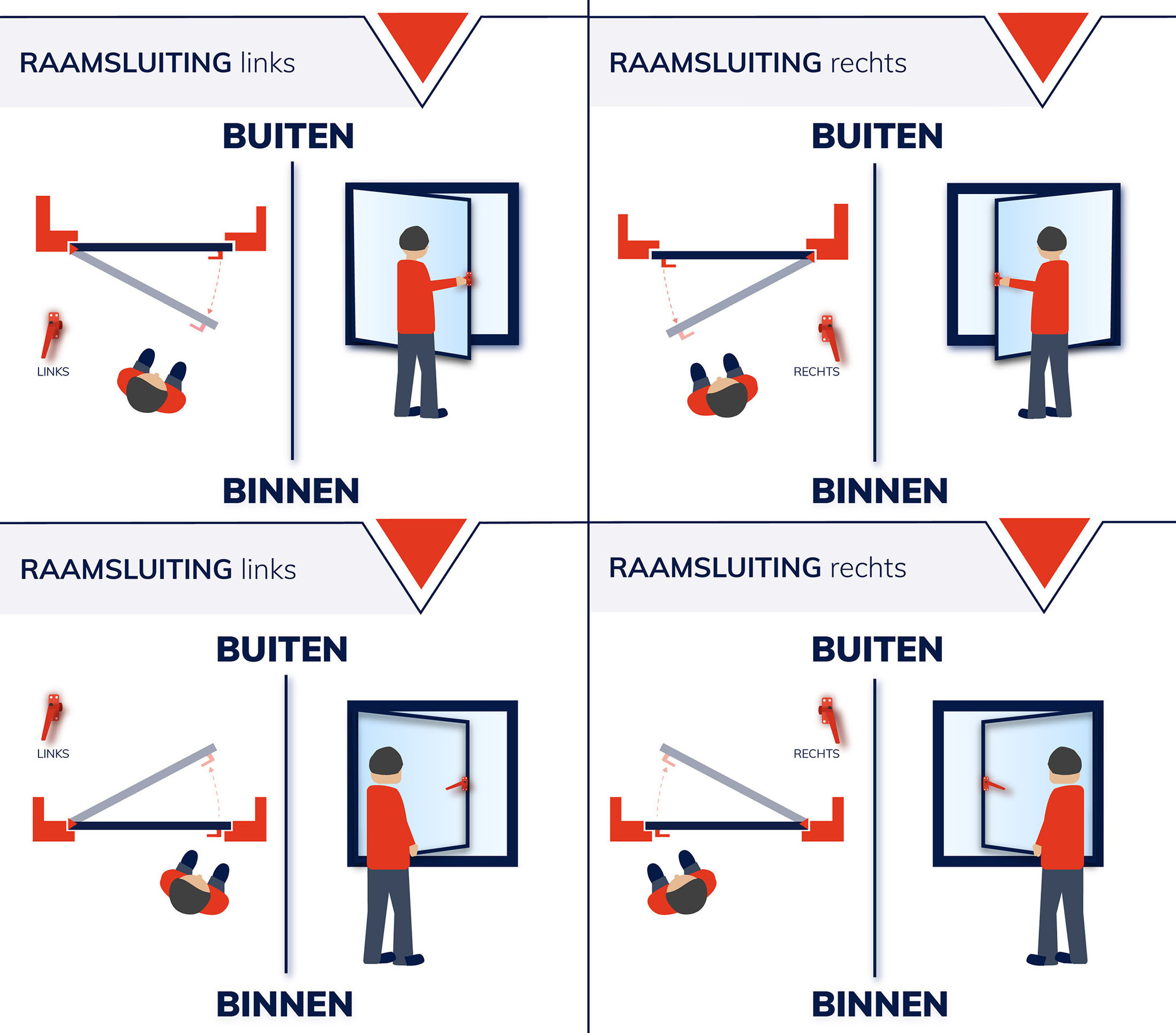

Window trees are not reversible so it is important that you look carefully at the attached image whether you should order a right or left window tree.
Are you looking for a burglar-resistant window tree as the main lock for your window? Then view the SKG ** window trees.
NB! The window tree plate is not included and must therefore be ordered separately.
Direction of rotation | right-handed |
Material | Zamac |
Colour | stainless steel |
Minimum window timber width: | 41mm |
Minimum frame timber depth: | 31mm |
accessories | Excluding strike plate |
Recommended Micrometer | 4.0 x 30mm (included) |
Closure | Block lock |
Additional functionality | Ventilation ridge |
Assembly instruction | Included |
