Description

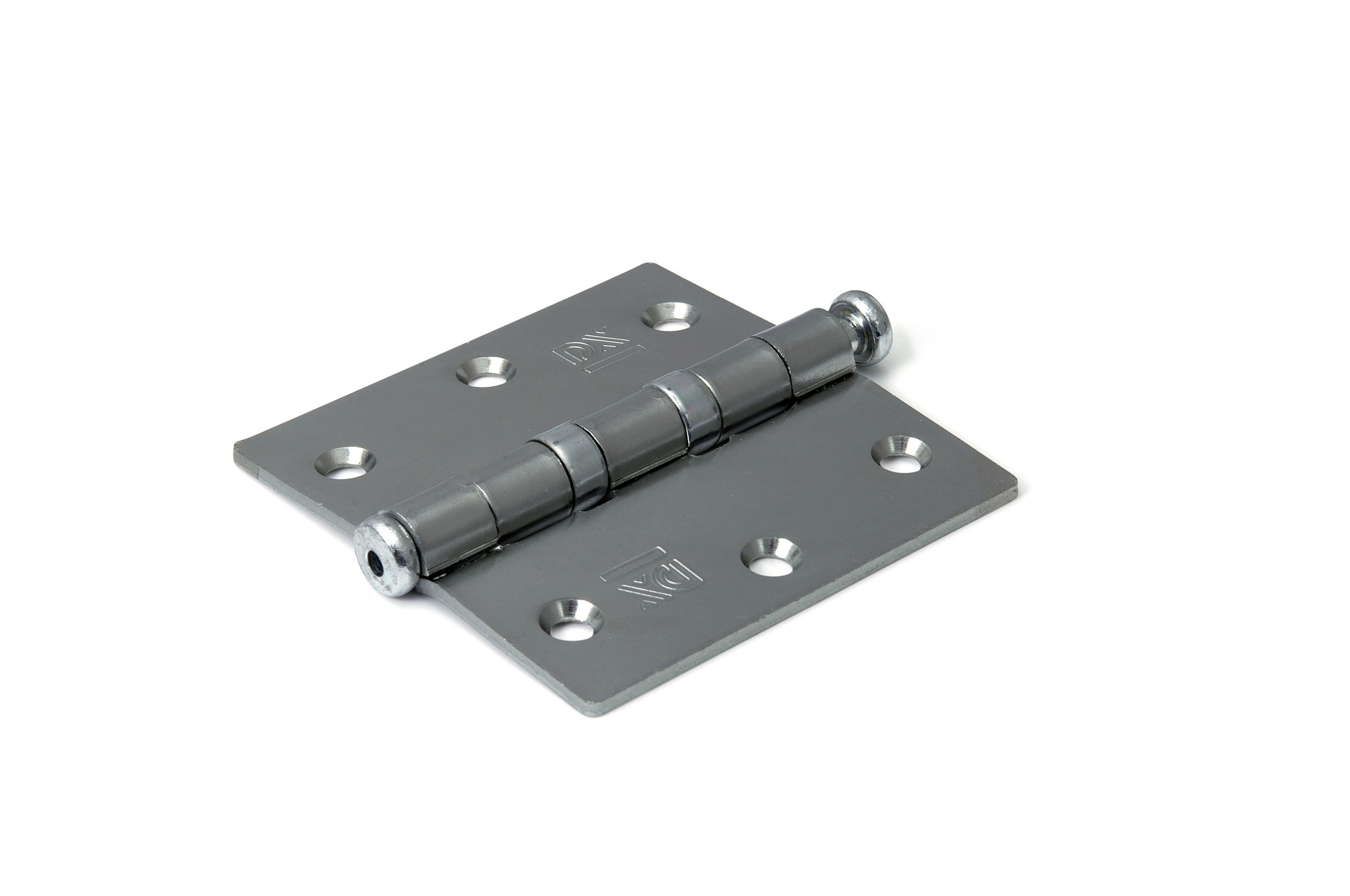

Ball bearing hinge with loose pin 76 x 76 x 2.4 mm galvanized steel with right angles
Article code: DS6210.125.7676
This steel galvanized ball bearing hinge DX CE marked is suitable for interior and exterior doors. Windows that are used intensively can also be placed with these hinges.
The hinge has right angles, which makes it possible to work it in with a chisel if you don't have a router available. The loose pin of this hinge has a serrated edge so that the pin does not creep upwards. There is also a hole in the pen that allows quick disassembly if you are going to paint BV. You can easily tap the top pin up through this hole.
To ensure proper functioning of the hinge, it is recommended to lubricate the bearings annually with a silicone-based spray or ball bearing grease.
This hinge is supplied per piece excluding mounting material .
Material | Steel |
Finish | bright galvanized |
Pin version | Ball bearing knurled pin |
Finishing corner | Straight corners |
Recommended Micrometer | 4.0 x 40mm (not included) |
Certification | CE |

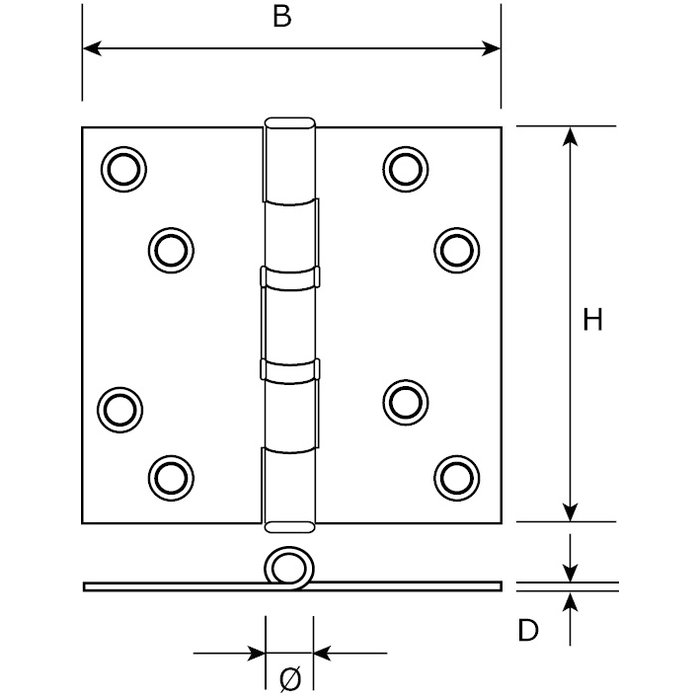

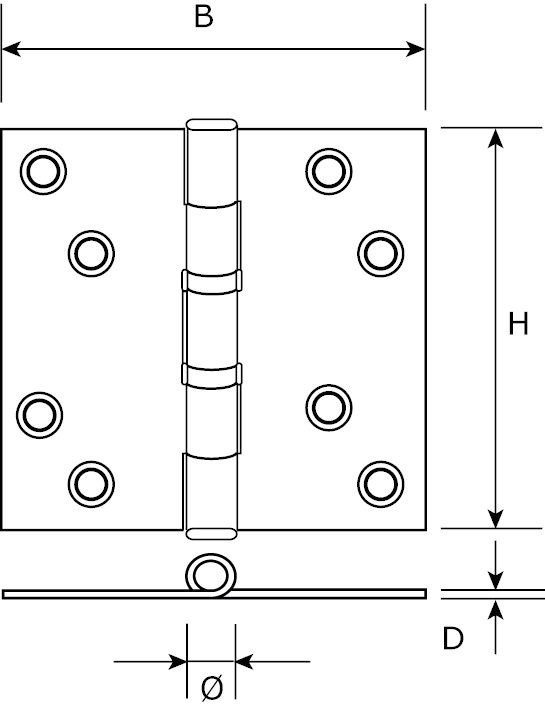

H (mm) |
76 |
B (mm) |
76 |
D (mm) |
2.4 |
Ø (mm) |
10 |
Load capacity per 3 (Kg) | 35 |
Load capacity per 4 (Kg) | 40 |
