Description

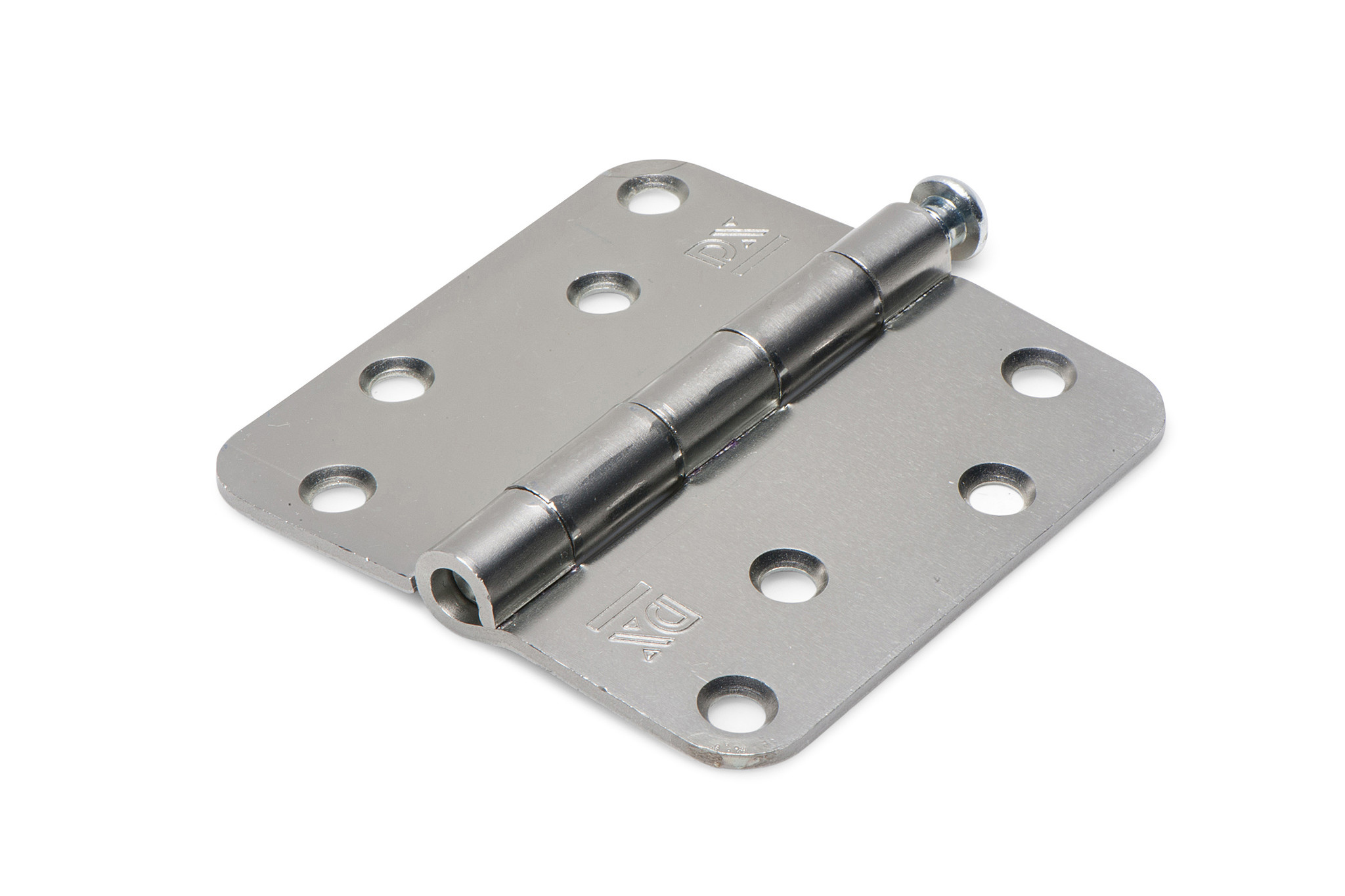

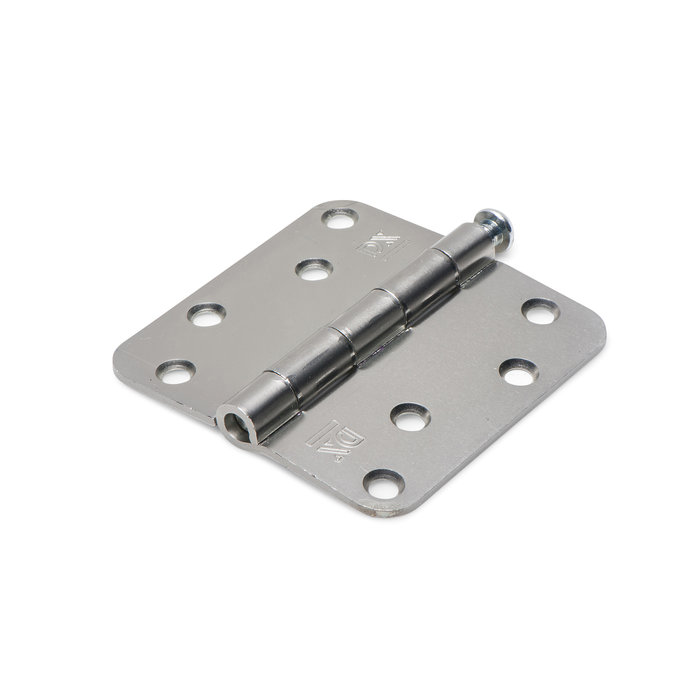

Steel hinge with loose pin 89 x 89 x 2.4 mm galvanized with rounded corners
Article code: DS6710.025.8989
This steel base hinge is galvanized. Hanging a light interior door that is not used too intensively with this hinge is a good choice.
The hinge has rounded corners, which means that they have to be milled in by machine. The loose pin of this hinge has a serrated edge so that the pin does not creep upwards.
This hinge is supplied per piece excluding mounting material .
Application | Indoor use |
Material | Steel |
Finish | bright galvanized |
Pin version | Loose steel galvanized knurled pin |
Finishing corner | Round corners |
Recommended Micrometer | 4.5 x 40mm |

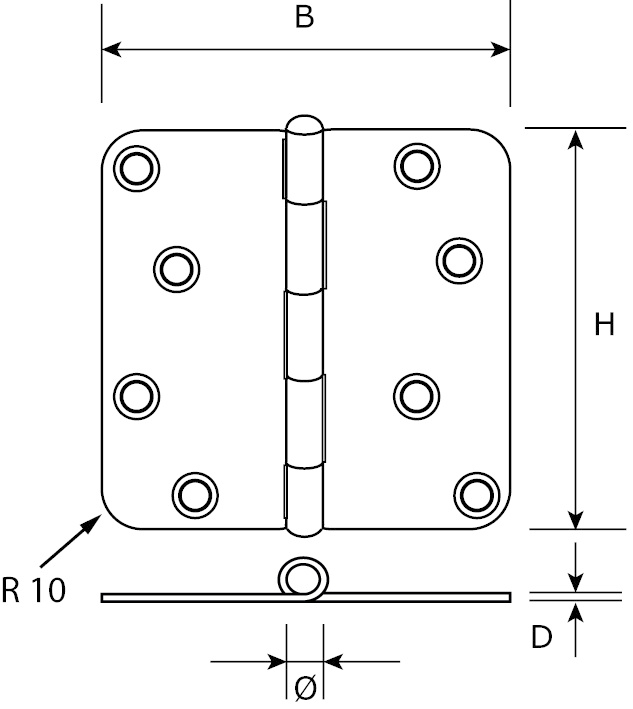

H (mm) |
89 |
B (mm) |
89 |
D (mm) |
2.4 |
Ø (mm) |
12 |
Load capacity per 3 (Kg) | 45 |
Load capacity per 4 (Kg) | 60 |
