Description
STILE window handle ADANA on a rectangular rosette with a flat handle of 10 x 23 mm in black
Article code: ST O ADANA Q BLACK-L

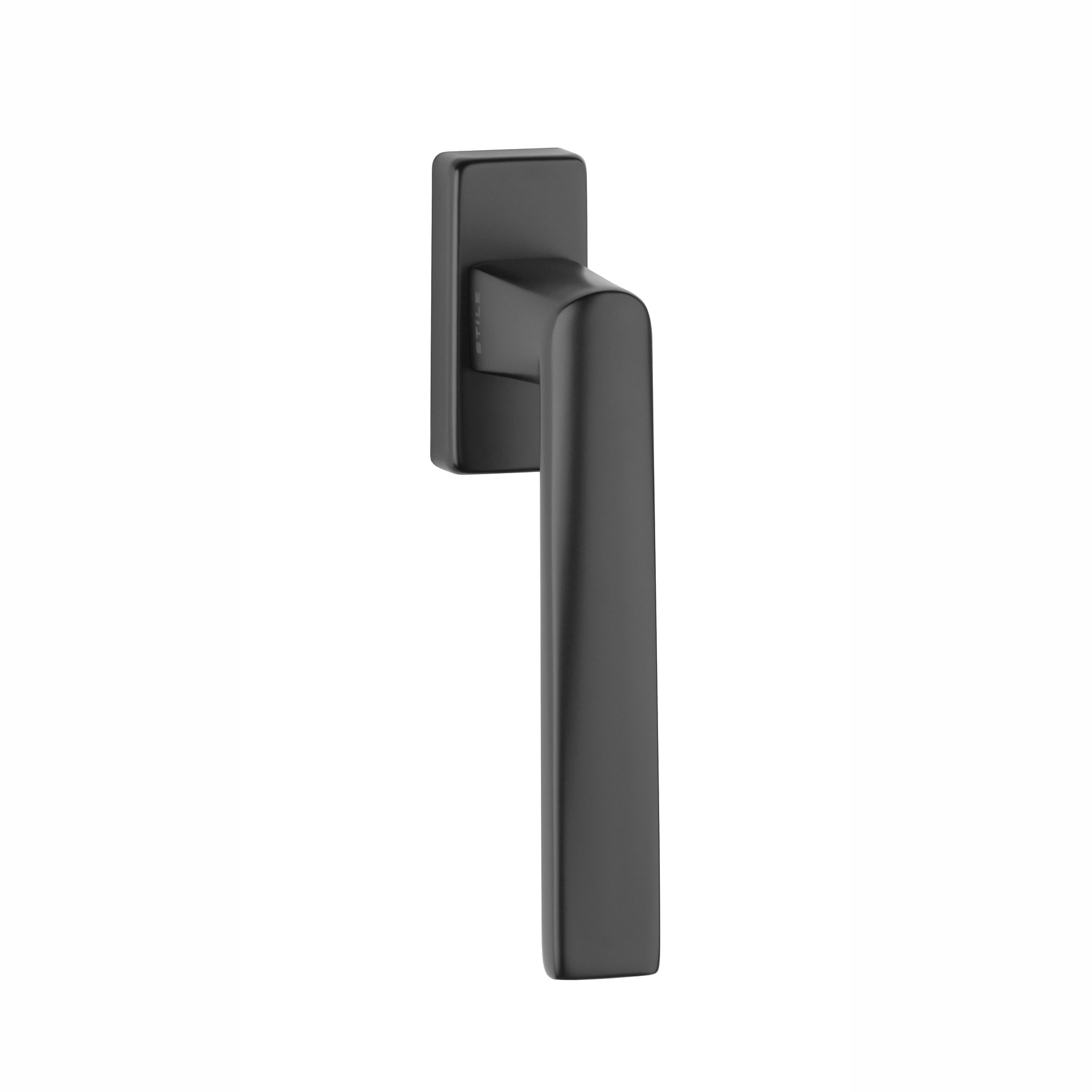

The matt black window handle 'ADANA' in turn-tilt version has a flat L-shaped handle.
The window handles have an aluminum base. Aluminum is known for the fact that the applied coating adheres very well, so that these handles have an extra long color fastness

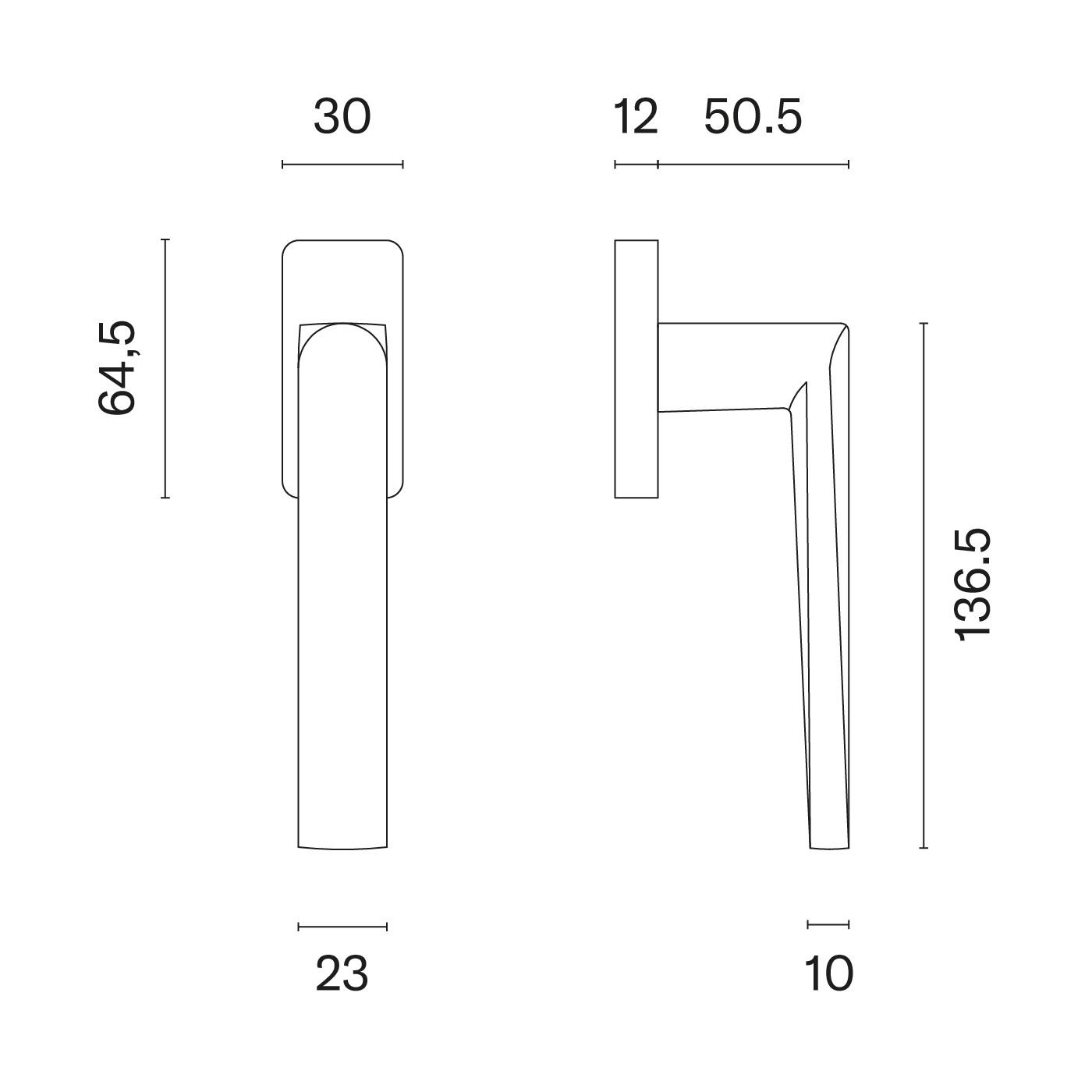

The handle of 10x23 mm stands on a rectangular rosette of 64.5x30x12 mm.
This black window handle, with the STILE logo, is supplied per piece including mounting materials and a pin of 7x7x35 mm. The mounting holes are spaced 43 mm apart
Combine the window handles with the matching STILE door handles and you will be amazed by the beautiful appearance.
At the top of the scroll menu, choose between a left or right window handle!
Both window handles rotate 360°. The only difference is the location of the STILE logo.
With a left window handle the logo is on the left, with a right window handle the logo is on the right.
| base | aluminium |
| performance | turn-tilt function |
| colour | Matt black |
| dimensions rosette | 64.5x30x12mm |
| depth | 62.5mm |
| drilling distance | 43mm |
| marker | 7x7x35mm |
| handle dimensions | 10x23mm |
| mounting material | 2 bolts M5 x 40 mm included |
