Description
Chrome polished STILE window handle AVA on an oval rosette with a flat handle of 24.5 x 13 mm
Article code: ST O AVA R CP-L

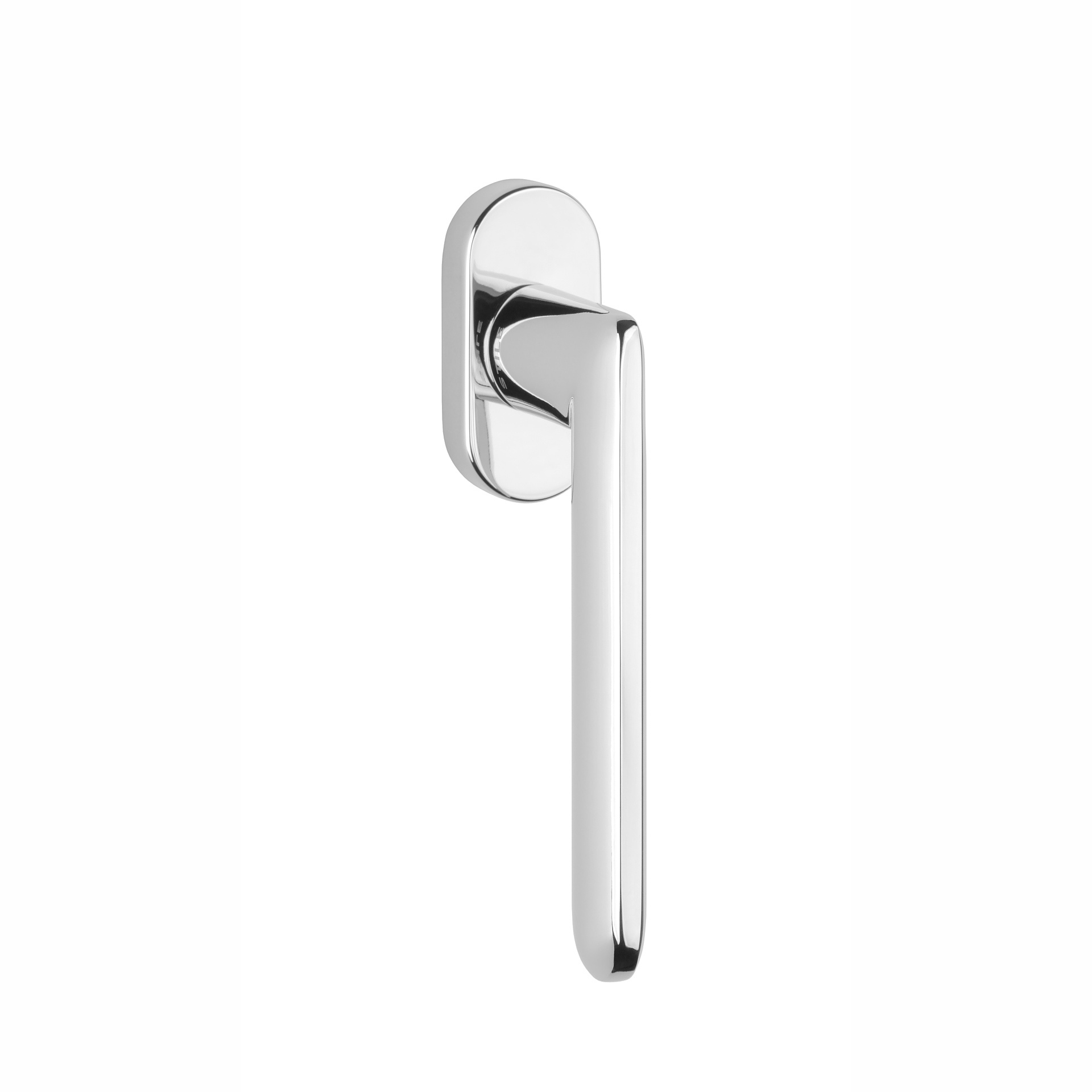

The chrome-polished window handle 'AVA' in turn-tilt version has a flat L-shaped handle that fits very well in the hand.
The window handles have an aluminum base. Aluminum is known for the fact that the applied coating adheres very well, so that these handles have an extra long color fastness

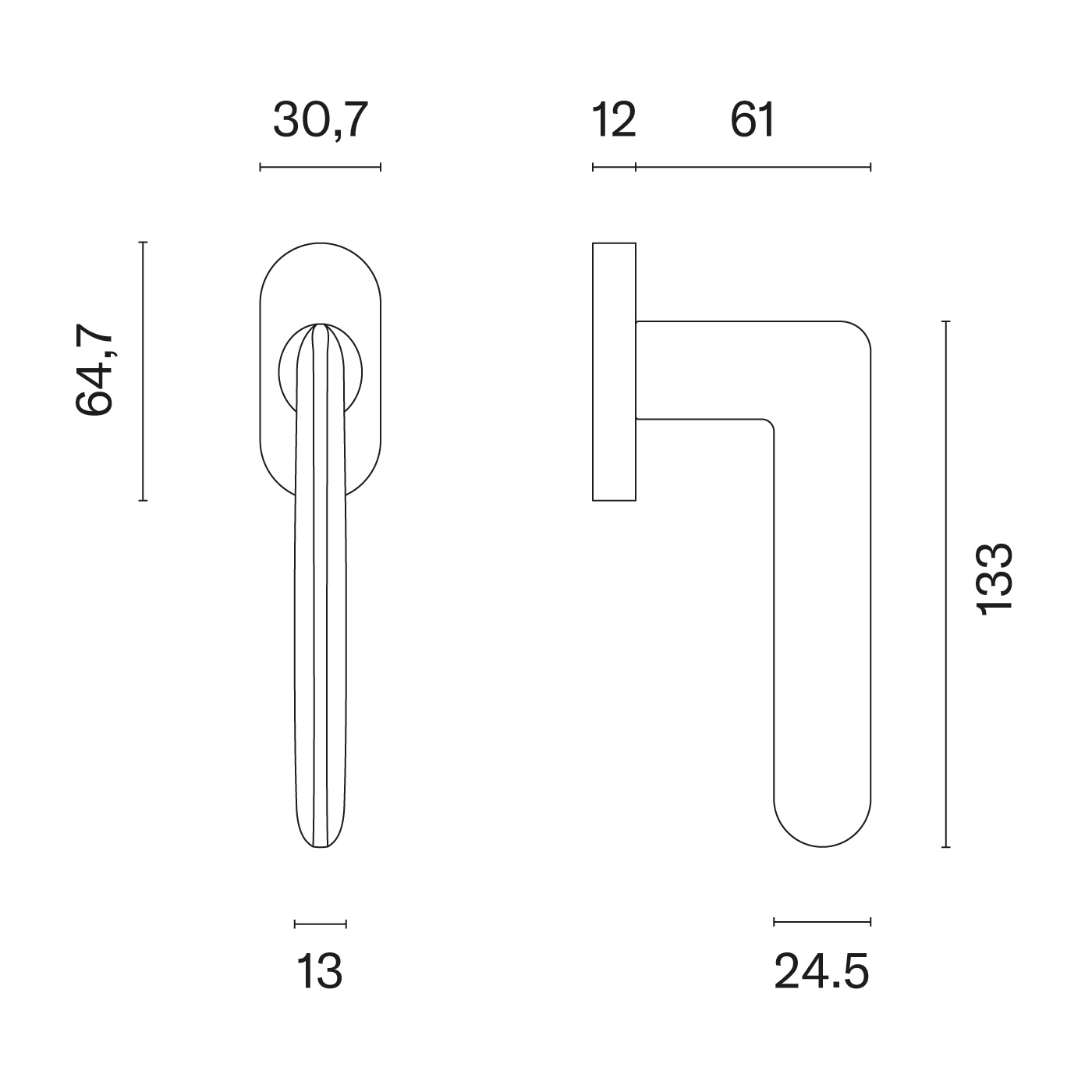

The handle of 24.5x13 mm stands on an oval rosette of 64.7x30.7x12 mm.
This window handle, with the STILE logo, is supplied per piece including mounting materials and a pin of 7x7x35 mm. The mounting holes are spaced 43 mm apart
By combining these window handles with the matching STILE door handles, your interior will meet all your wishes.
At the top of the scroll menu, choose between a left or right window handle!
Both window handles rotate 360°. The only difference is the location of the STILE logo.
With a left window handle the logo is on the left, with a right window handle the logo is on the right.
| base | aluminium |
| performance | turn-tilt function |
| colour | Chrome polished |
| dimensions rosette | 64.7x30.7x12mm |
| depth | 63mm |
| drilling distance | 43mm |
| marker | 7x7x35mm |
| handle dimensions | 24.5x13mm |
| mounting material | 2 bolts M5 x 40 mm included |
