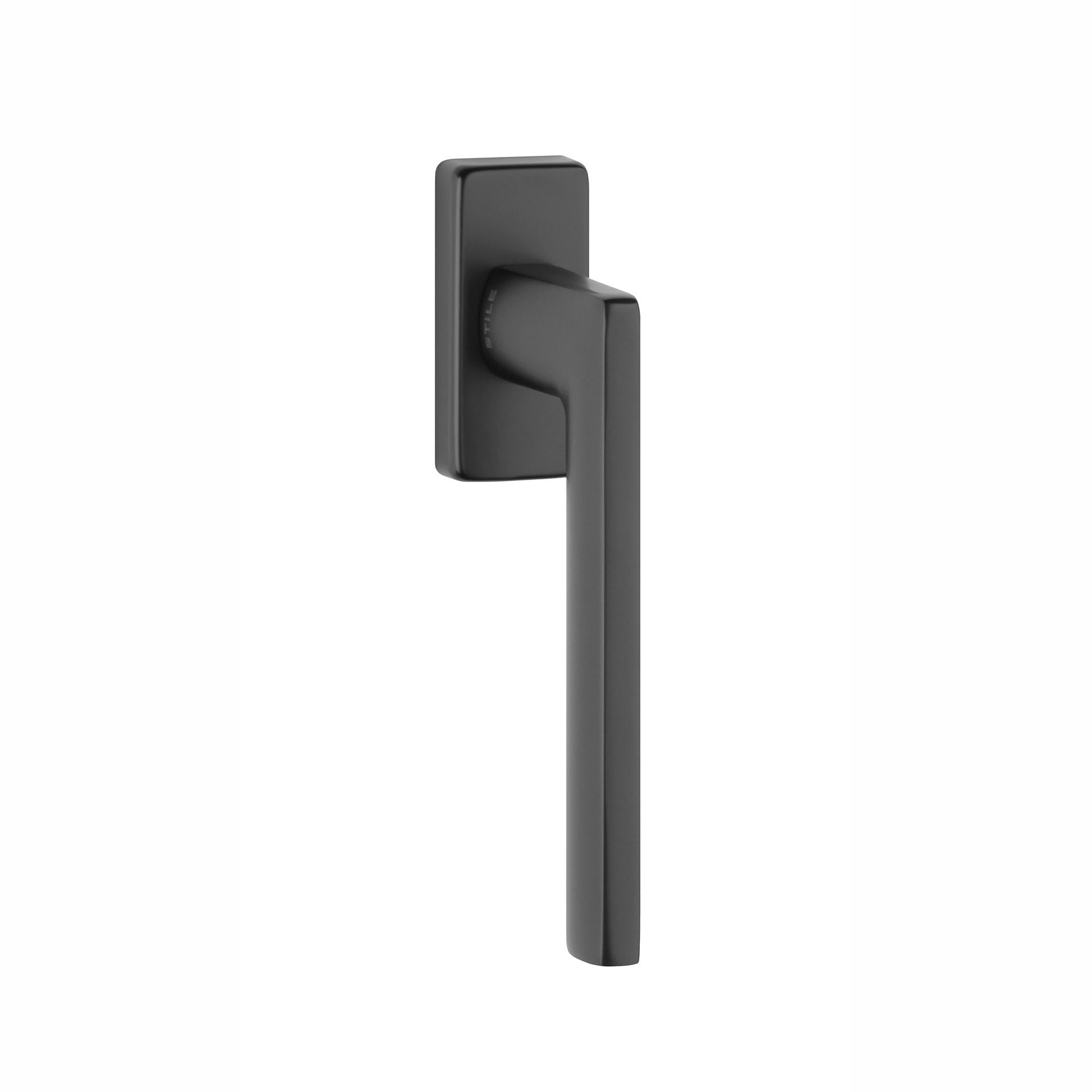

The black window handle 'EURA' in turn-tilt version has a narrow, sleek handle.
The window handles have an aluminum base. Aluminum is known for the fact that the applied coating adheres very well, so that these handles have an extra long color fastness

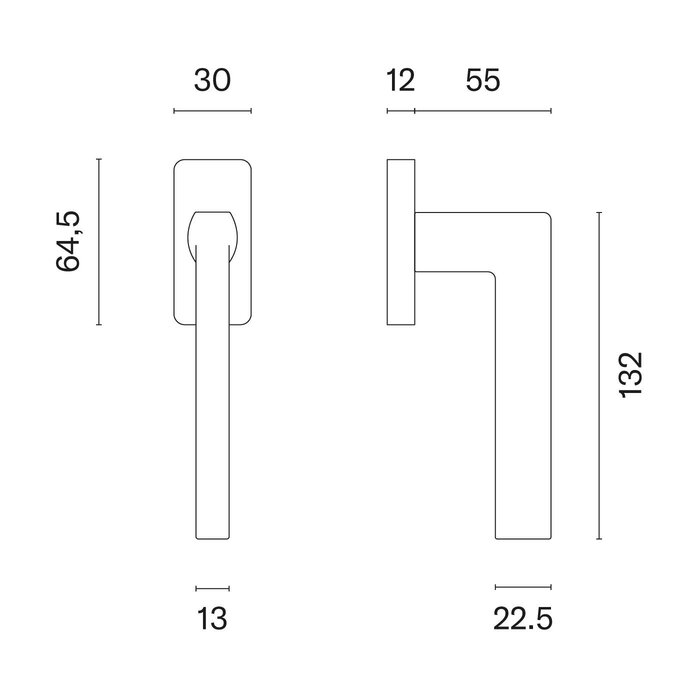

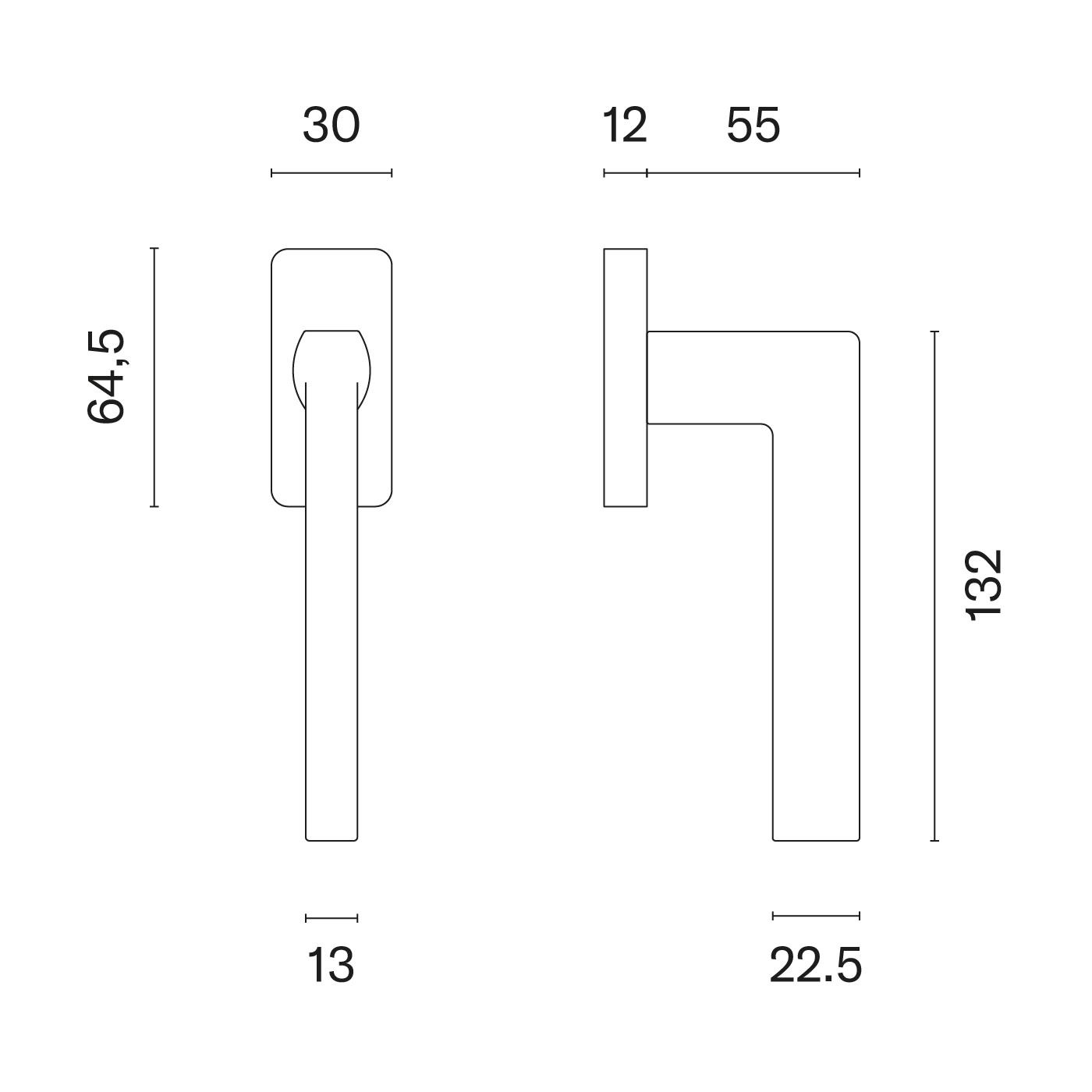

The handle of 22.5x13 mm stands on a rectangular rosette of 64.5x30x12 mm.
This matte black window handle features the STILE logo and is supplied per piece including mounting materials and a 7x7x35 mm pin. The mounting holes are spaced 43 mm apart
Combine the black window handles with the black STILE door handles and you will be amazed by the beautiful result.
At the top of the scroll menu, choose between a left or right window handle!
Both window handles rotate 360°. The only difference is the location of the STILE logo.
With a left window handle the logo is on the left, with a right window handle the logo is on the right.
base | aluminium |
performance | turn-tilt function |
colour | Matt black |
dimensions rosette | 64.5x30x12mm |
depth | 67mm |
drilling distance | 43mm |
marker | 7x7x35mm |
handle dimensions | 22.5x13mm |
mounting material | 2 bolts M5 x 40 mm included |
