Description

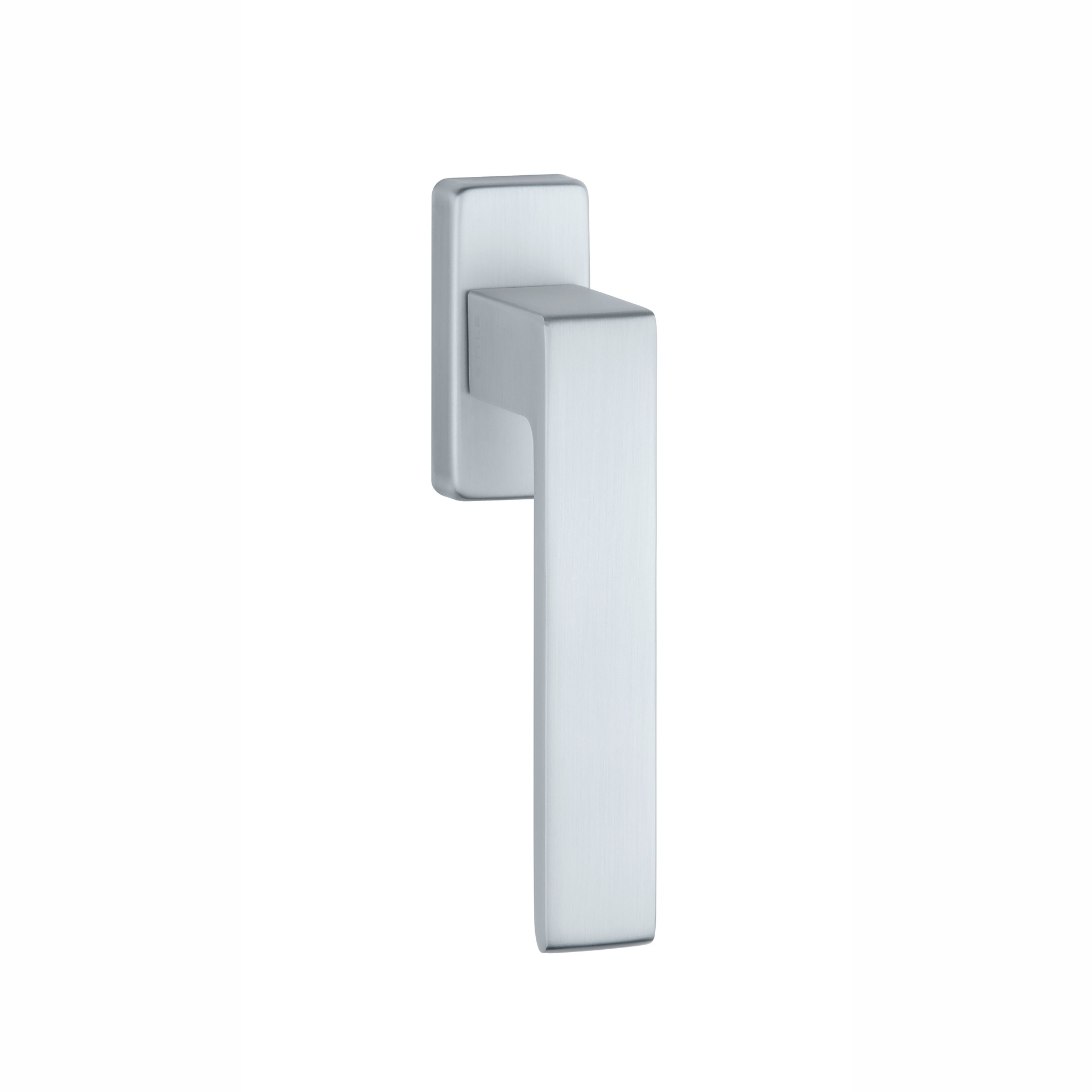

Matte Chrome STILE window handle HIRA on a rectangular rosette with a wider thin handle.
Article code: ST O HIRA Q PSC-L
The matte Chrome window handle 'HIRA' in turn-tilt version has a flat, wider handle.
The STILE window handles have an aluminum base. Aluminum is known for the fact that the applied coating adheres very well, so that these handles have an extra long color fastness

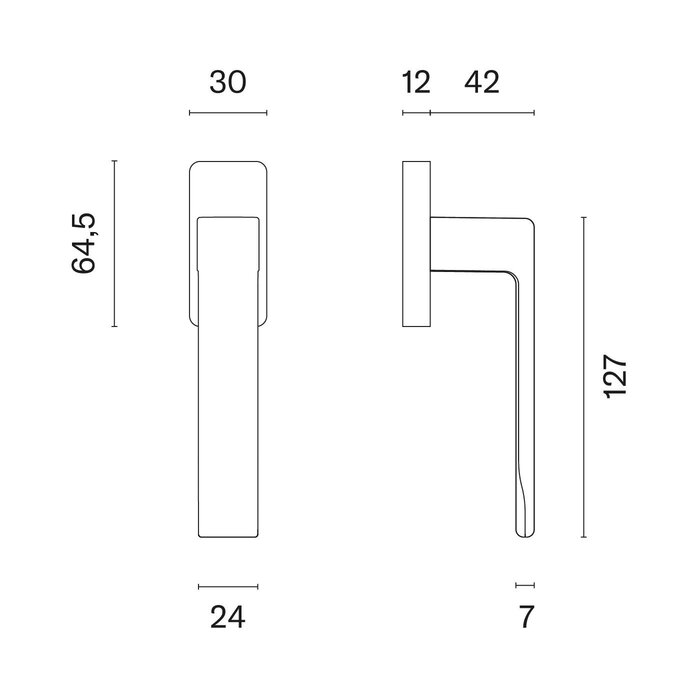

The handle of 24x7 mm stands on a rectangular rosette of 64.5x30x12 mm. The window handle only comes to 54 mm.
This window handle, with the STILE logo, is supplied per piece including mounting materials and a pin of 7x7x35 mm. The mounting holes are spaced 43 mm apart
Combine the sleek window handles with the matching door handles from STILE and you will be amazed by the beautiful result.
At the top of the scroll menu, choose between a left or right window handle!
Both window handles rotate 360°. The only difference is the location of the STILE logo.
With a left window handle the logo is on the left, with a right window handle the logo is on the right.
| base | aluminium |
| performance | turn-tilt function |
| colour | matte chrome |
| dimensions rosette | 64.5x30x12mm |
| depth | 54mm |
| drilling distance | 43mm |
| marker | 7x7x35mm |
| handle dimensions | 24x7mm |
| mounting material | 2 bolts M5 x 40 mm included |
