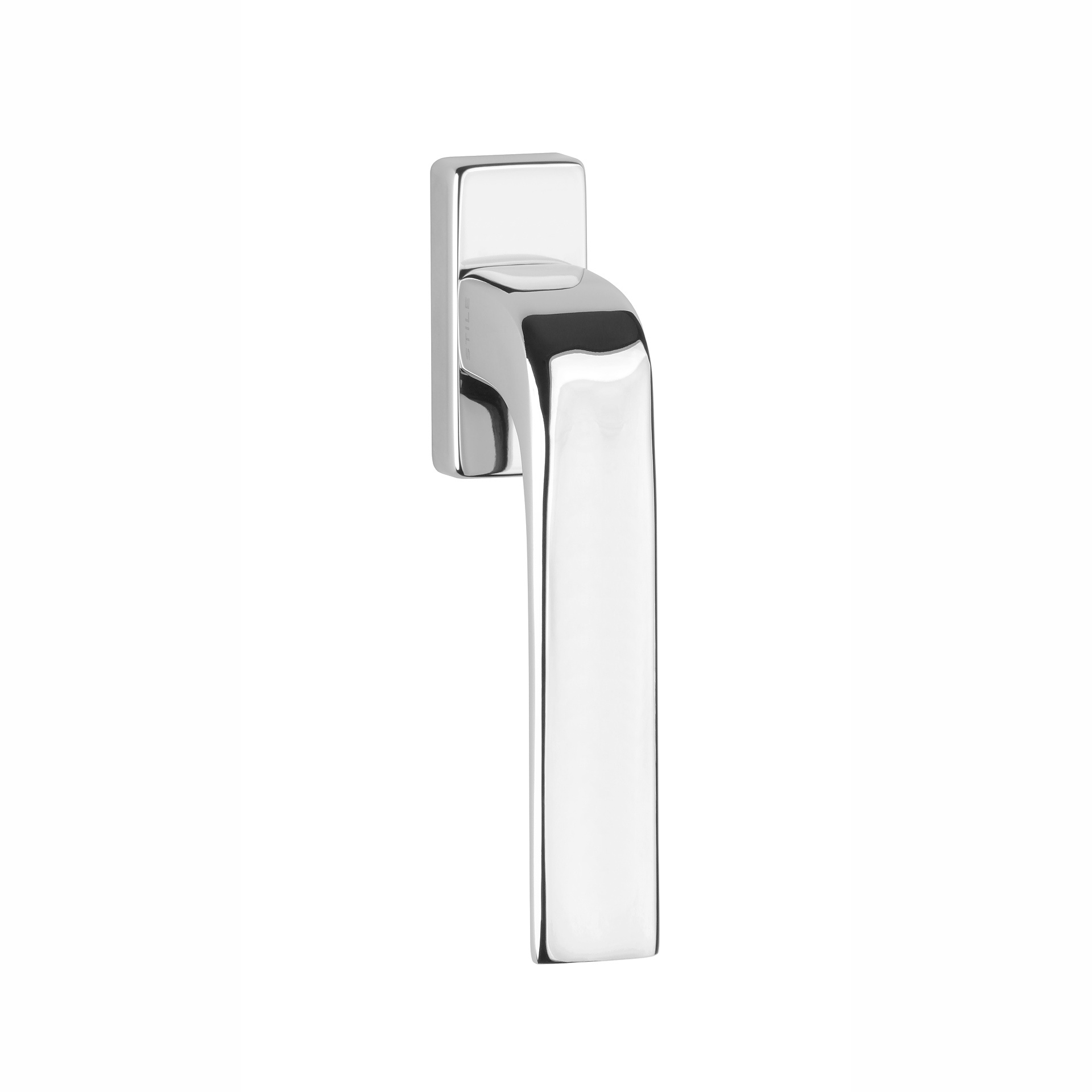

The chrome-polished window handle 'JENA' in turn-tilt design has a wider handle with a rounded corner.
The window handles have an aluminum base. Aluminum is known for the fact that the applied coating adheres very well, so that these handles have an extra long color fastness

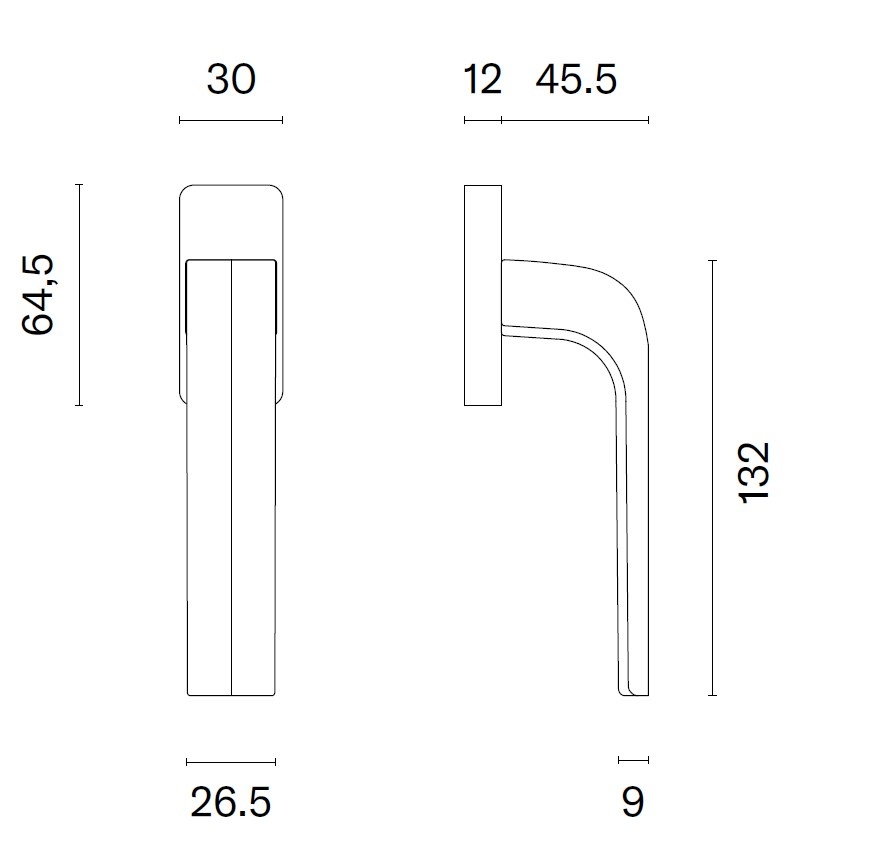

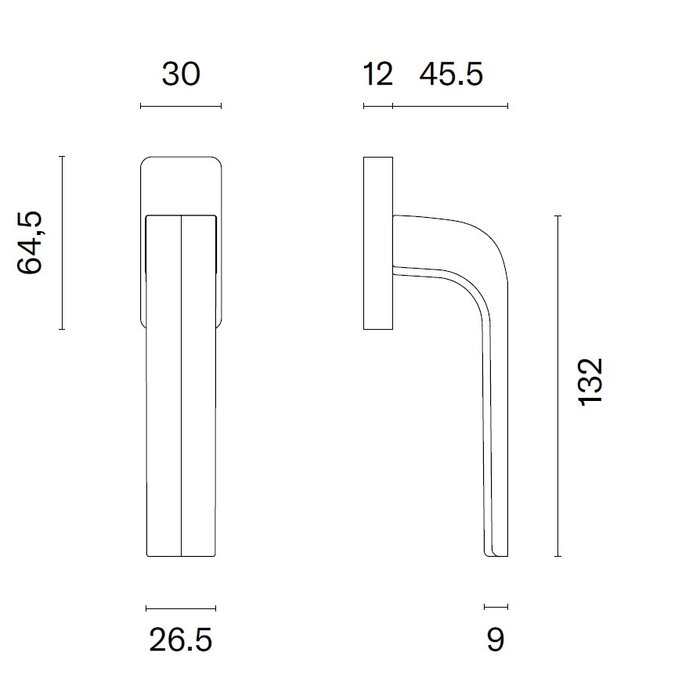

The 26.5x9 mm handle rests on a 64.5x30x12 mm rectangular rosette and protrudes only 57.5 mm.
This glossy window handle, with the STILE logo, is supplied per piece including mounting materials and a pin of 7x7x35 mm. The mounting holes are spaced 43 mm apart
Combine the elegant window handles with STILE door handles and you will be amazed by the beautiful result.
At the top of the scroll menu, choose between a left or right window handle!
Both window handles rotate 360°. The only difference is the location of the STILE logo.
With a left window handle the logo is on the left, with a right window handle the logo is on the right.
base | aluminium |
performance | turn-tilt function |
colour | Chrome polished |
dimensions rosette | 64.5x30x12mm |
depth | 57.5mm |
drilling distance | 43mm |
marker | 7x7x35mm |
handle dimensions | 26.5x9mm |
mounting material | 2 bolts M5 x 40 mm included |
