Description

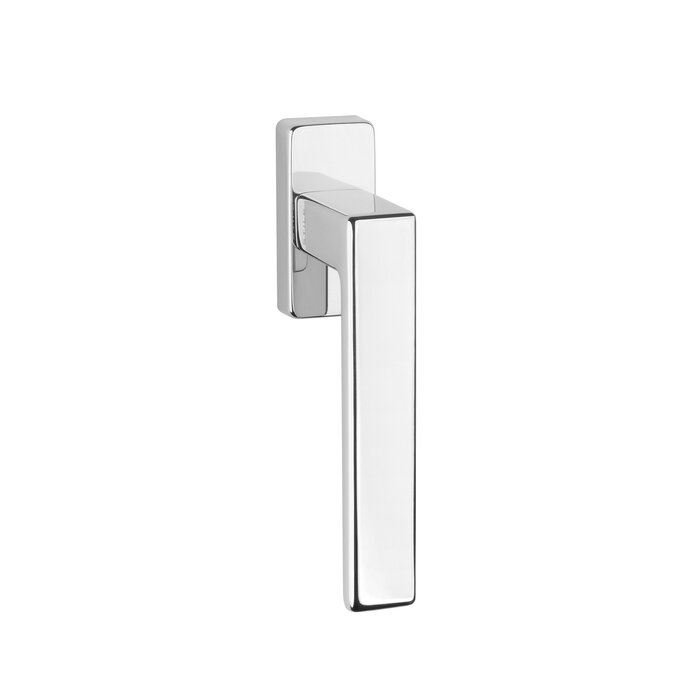

Window handle MIIA on a rectangular rosette with a thin, flat handle in polished chrome from STILE
Article code: ST O MIIA Q CP-L
The glossy Chrome window handle 'MIIA' from STILE is available in a tilt-and-turn version. The window handle has a flat flat handle.
These window handles are based on aluminum, which is known for providing very good adhesion to the applied coating.
The handle is on a rectangular rosette of 64.5x30x12 mm. The handle that extends forward is 22 mm wide.
This chrome polished window handle is supplied per piece including mounting materials and pin of 7x7x35 mm. The mounting holes are spaced 43 mm apart
Combine the shiny window handles with the matching door handles from STILE and you get a beautiful result.
Above in the scrolling menu you can choose between a left or right window handle.
Both window handles rotate 360°. The only difference is the location of the STILE logo.
With a left window handle the logo is on the left and you open the window handle from the left, with a right window handle the logo is on the right and you open it from the right.
| base | aluminium |
| performance | turn-tilt function |
| colour | Chrome polished |
| rosette dimensions | 64.5x30x12mm |
| depth | 59mm |
| drilling distance | 43mm |
| marker | 7x7x35mm |
| handle dimensions | 22x11mm |
| mounting material | 2 bolts M5 x 40 mm included |
