Description
STILE window handle SALTA on an oval rosette with a handle of 22.5 x 9 mm in matt chrome
Article code: ST O SALTA R PSC-L

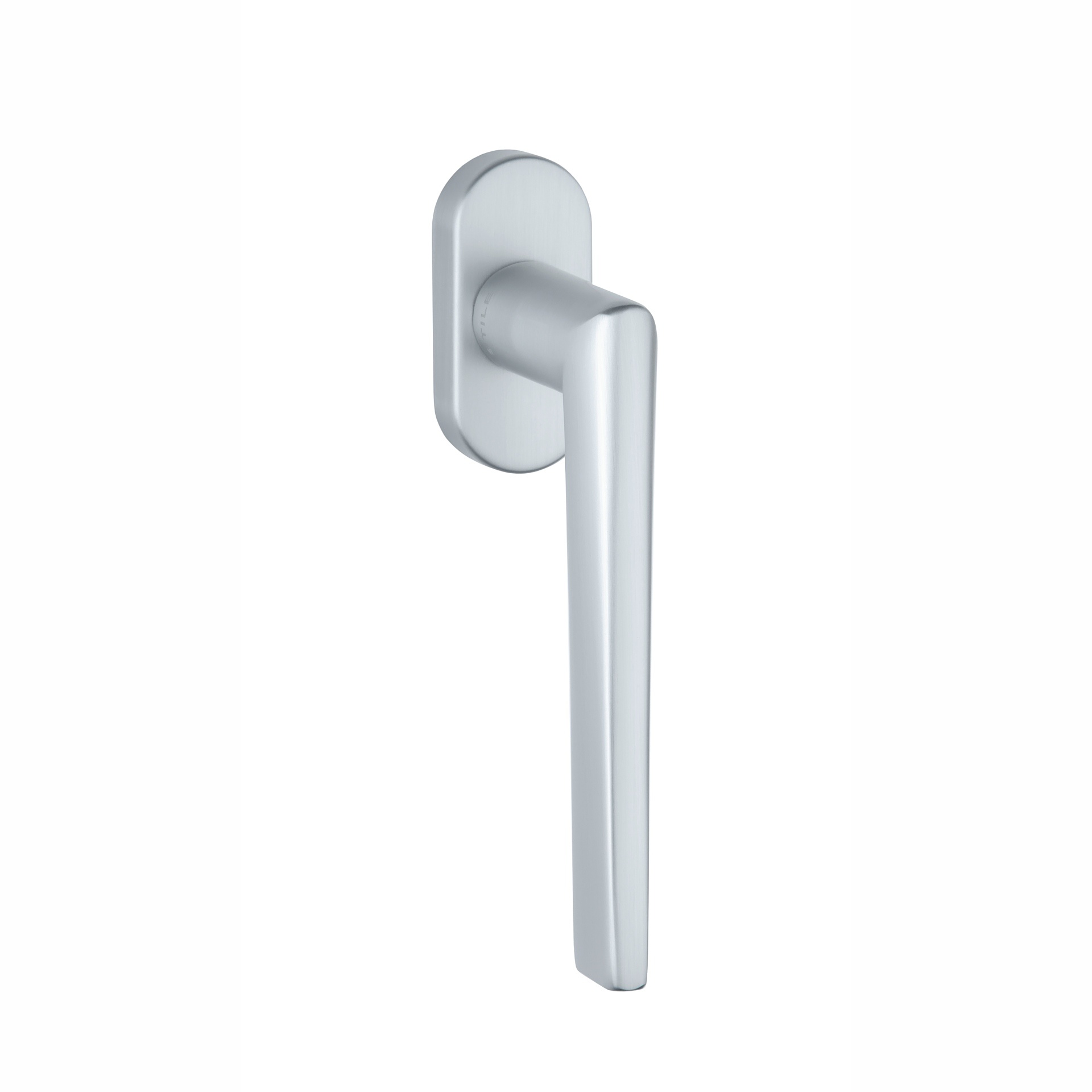

The matte Chrome window handle 'SALTA' in turn-tilt version has a flat flared handle that fits well in the hand.
The window handles have an aluminum base. Aluminum is known for the fact that the applied coating adheres very well, so that these handles have an extra long color fastness

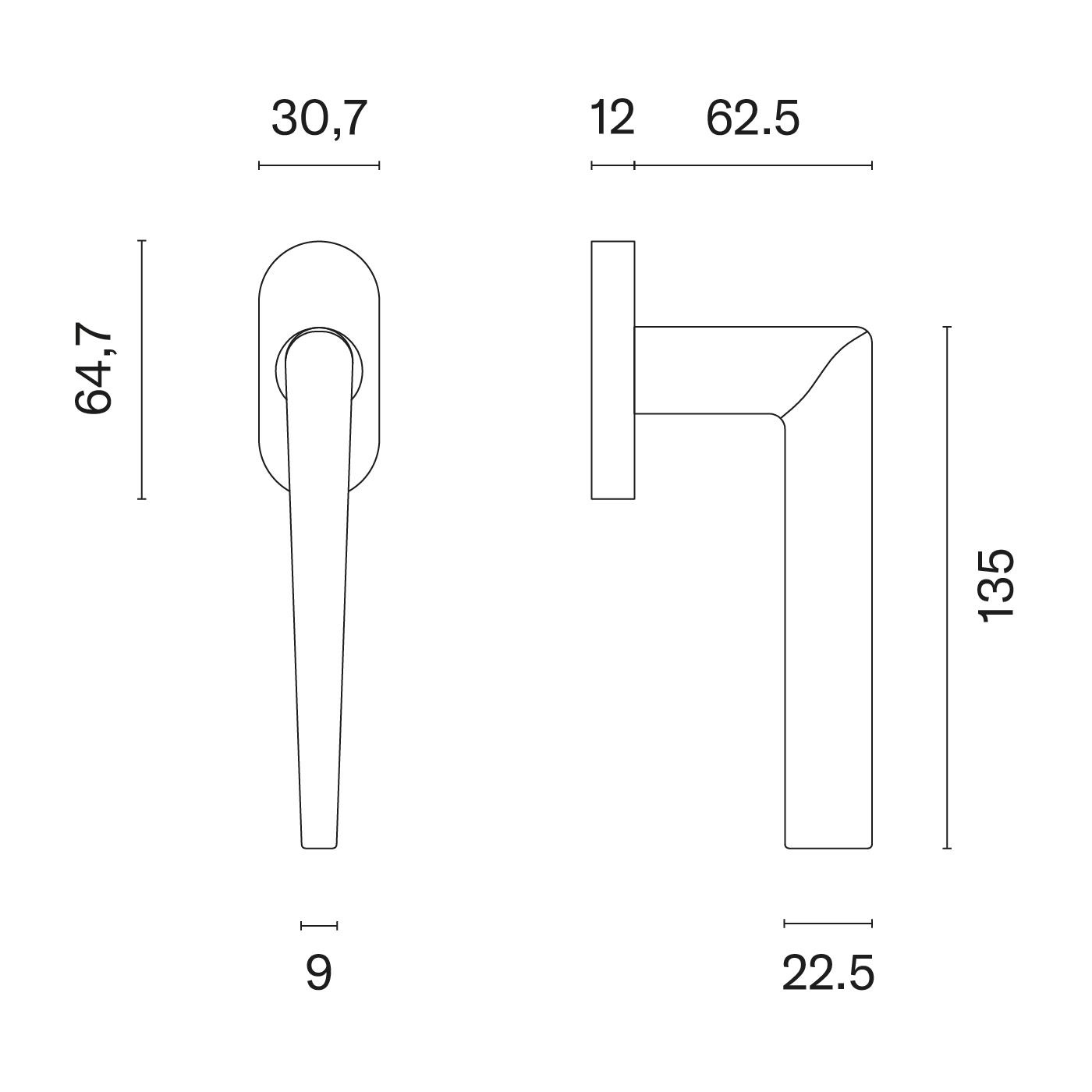

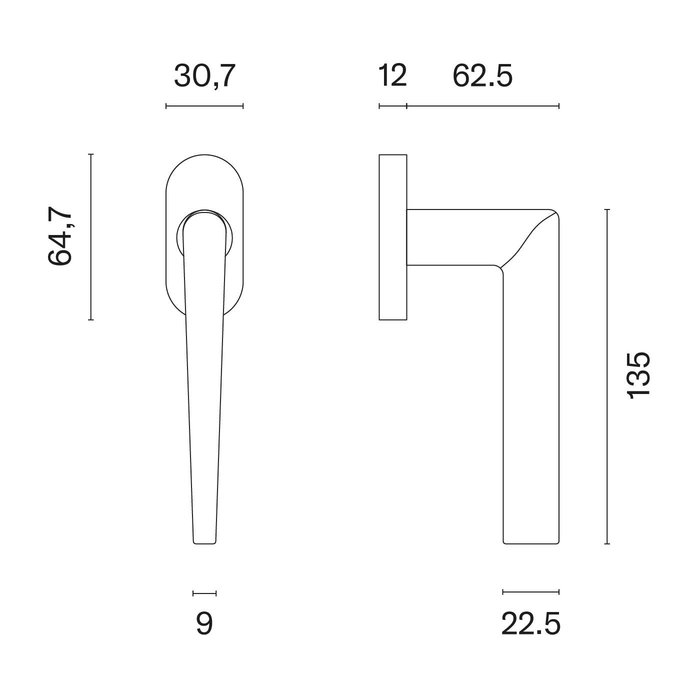

The handle of 22.5x9 mm stands on an oval rosette of 64.7x30.7x12 mm.
This window handle, with the STILE logo, is supplied per piece including mounting materials and a pin of 7x7x35 mm. The mounting holes are spaced 43 mm apart
Combine these window handles with the matching door handles from STILE and your interior will meet all your wishes.
At the top of the scroll menu, choose between a left or right window handle!
Both window handles rotate 360°. The only difference is the location of the STILE logo.
With a left window handle the logo is on the left, with a right window handle the logo is on the right.
| base | aluminium |
| performance | turn-tilt function |
| colour | matte chrome |
| dimensions rosette | 64.7x30.7x12mm |
| depth | 74.5mm |
| drilling distance | 43mm |
| marker | 7x7x35mm |
| handle dimensions | 22.5x9mm |
| mounting material | 2 bolts M5 x 40 mm included |
