Description

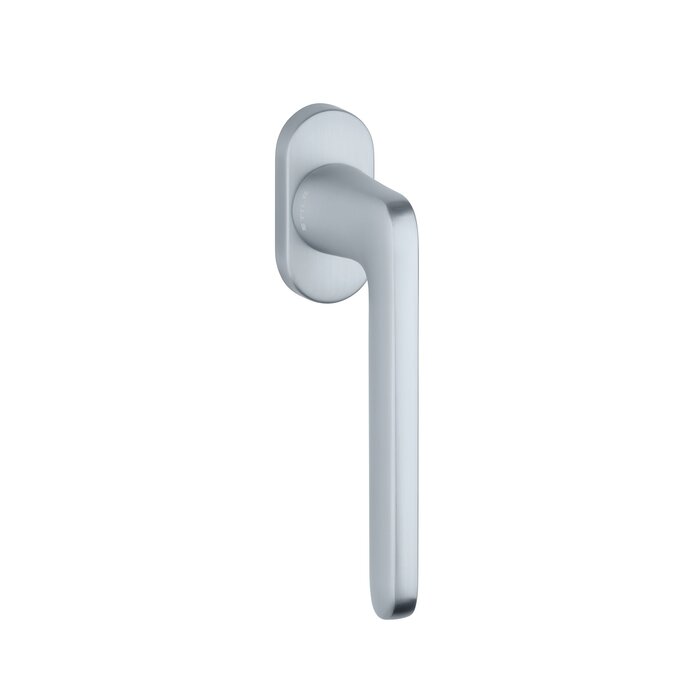

STILE window handle UTA on an oval rosette with a curved handle in matt chrome
Article code: ST O UTA R PSC-L
The matt Chrome window handle 'UTA' in a tilt-and-turn version has a narrow handle that fits well in the hand.
The window handles have aluminum as a base. Aluminum is known that the applied coating adheres very well, which means that these handles have an extra long color fastness

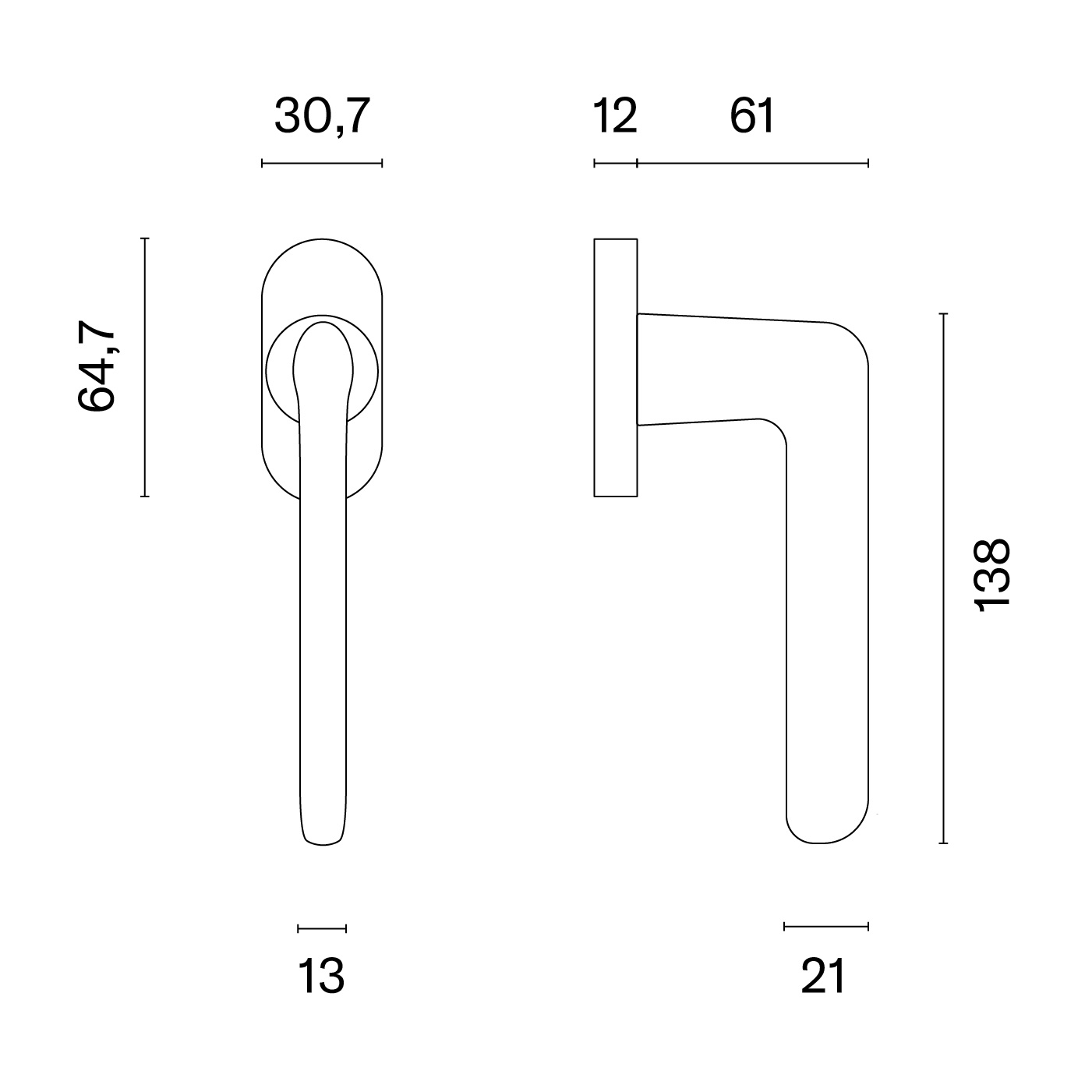

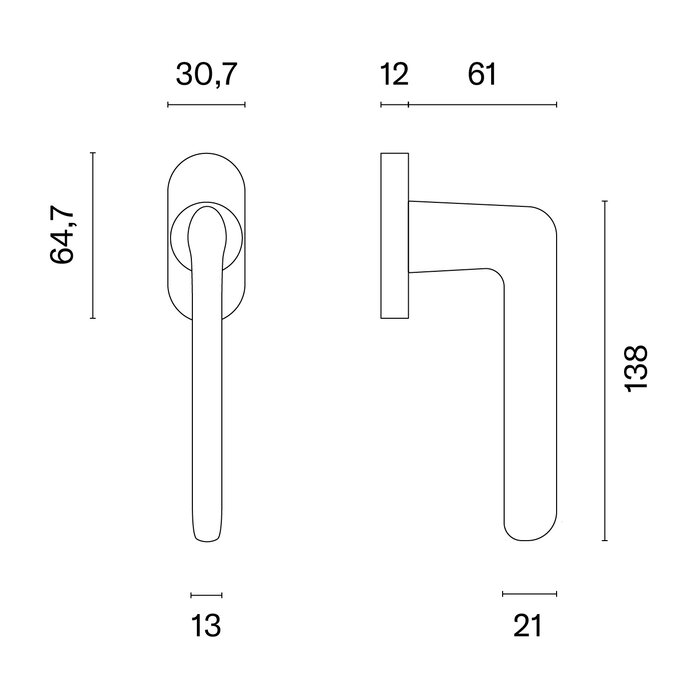

The 22.5x9 mm handle is mounted on an oval rosette of 64.7x30.7x12 mm.
This window handle, with the STILE logo, is supplied per piece including mounting materials and pin of 7x7x35 mm. The mounting holes are spaced 43 mm apart
Combine these window handles with the matching door handles from STILE and your interior will meet all your wishes.
Choose between a left or right window handle at the top of the scrolling menu!
Both window handles rotate 360°. The only difference is the location of the STILE logo.
With a left window handle the logo is on the left, with a right window handle the logo is on the right.
| base | aluminium |
| performance | turn-tilt function |
| colour | matte chrome |
| rosette dimensions | 64.7x30.7x12mm |
| depth | 74.5mm |
| drilling distance | 43mm |
| marker | 7x7x35mm |
| handle dimensions | 22.5x9mm |
| mounting material | 2 bolts M5 x 40 mm included |
